User Manual for SHAPE Canon C100 C300 C500 Shoulder Mount Click to enlarge the picture
Contents of the user manual for the SHAPE Canon C100 C300 C500 Shoulder
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
|
User manual for the SHAPE Canon C100 C300 C500 Shoulder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

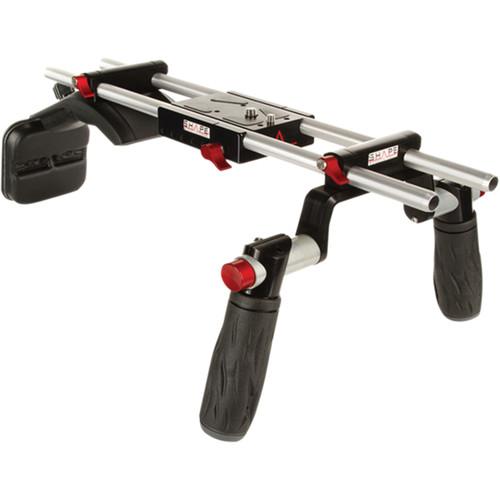

Product description The Canon C100 C300 C500 Shoulder Mount from SHAPE is a shoulder rig with light weight support (LWS) for the Canon Cinema EOS line of movie cameras. As the three have a similar profile, this rig is compatible with the C100, C300, and C500 models. The base plate features specially recessed rods to accommodate the these cameras' uniquely tall stature while ensuring proper centering of lenses in case a matte box is used.
The system includes 15mm rods with the standard LWS spacing of 60mm. Because rod-based accessories are standardized you can use virtually any 15mm accessories for LWS you want with this rig. Types of accessories include, follow focuses, matte boxes, mounts for external audio and video recorders, EVFs, battery plates, cages, and more. The included rods are 18" in length and can be extended if needed.
Handles and a shoulder pad allow you to use the Canon C100 C300 C500 Shoulder Mount on a tripod or hand-held. The handles feature rosettes and spring-loaded push-buttons so that the angle can be adjusted on the fly without having to loosen a screw. Both the hand grips and the shoulder pad clamp onto the rods using a single red knob that ratchets in case you can't turn it a full circle. Extension rods can be added behind the shoulder pad for attaching weights, battery plates, or other accessories intended for behind the camera or to help balance the load. Support System - Made specifically for the Canon Cine EOS C100, C300, and C500 cameras
- Features a pair of 15mm rods that are 18" in length
- Compatible with nearly all 15mm rod accessories that feature 60mm center-to-center LWS (light weight support) spacing
Base Plate - Attaches underneath the camera with four M4 screws (included) or using with 3/8"-16 and 1/4"-20 screws (also included)
- Recessed rod height to ensure proper centering of matte boxes relative to lens
- Ratchet keys located on the both sides of the Base Plate secure the 15mm rods
- Tripod mountable with 3/8"-16 or 1/4"-20 screw
Quick Handle Rod Block - Push button 360° rotating handles for fast set up adjustments
- Achieve precise positioning by sliding Rod Block along the rods
- Secure the handles by tightening a single knob on one side of the Rod Block
Mini Composite Shoulder Pad - Single red knob for adjusting and securing the shoulder pad
- Can be left on rig even when using a tripod
- Padded for operator comfort
- By attaching extension rods to the back, weights such as the SHAPE Base Counter-Weight can be added
UPC: 629266002117 In the Box SHAPE Canon C100 C300 C500 Shoulder Mount Baseplate for Canon C300 Camera cqsbuuwycwbd Quick Handle + Rod Block Mini Composite Shoulder Pad Back Pad Limited Lifetime Warranty Quick start Guide PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Canon C100 C300 C500 Shoulder Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE C300SM Specs | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 21.024 x 7.323 x 5.276" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
