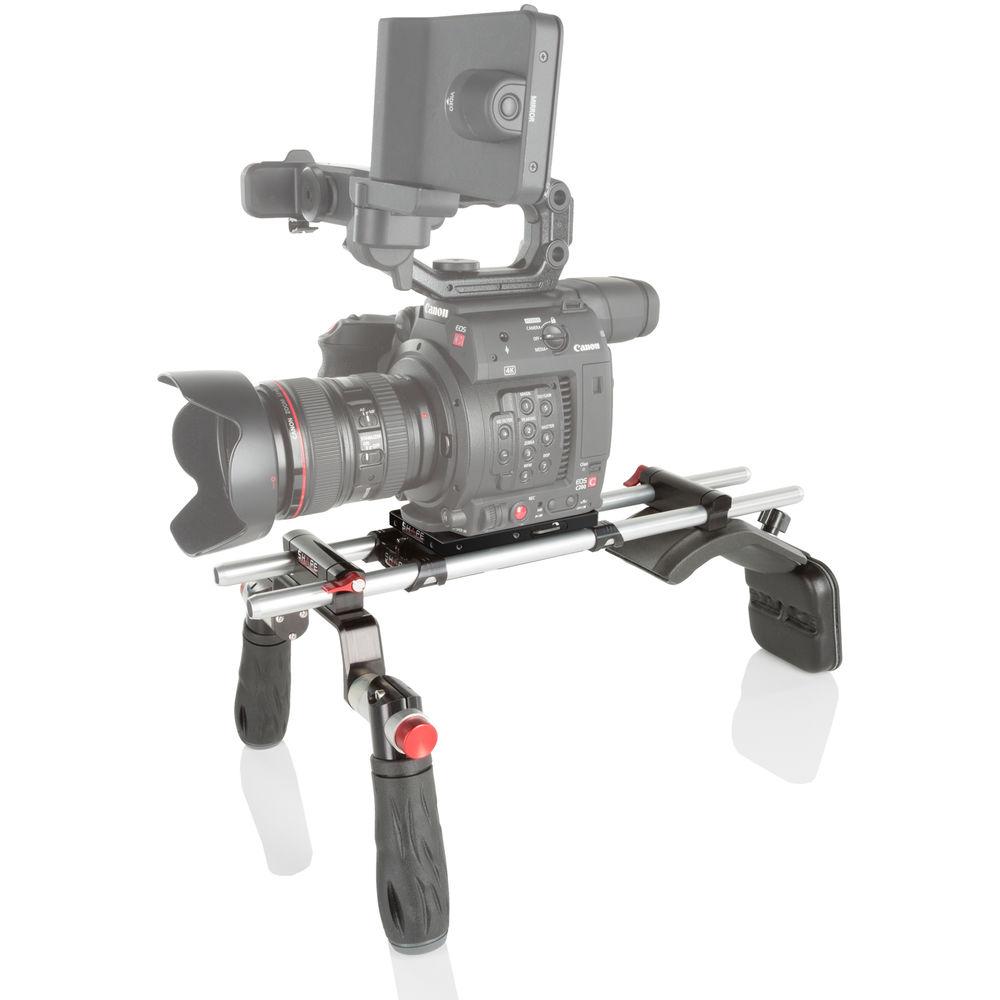

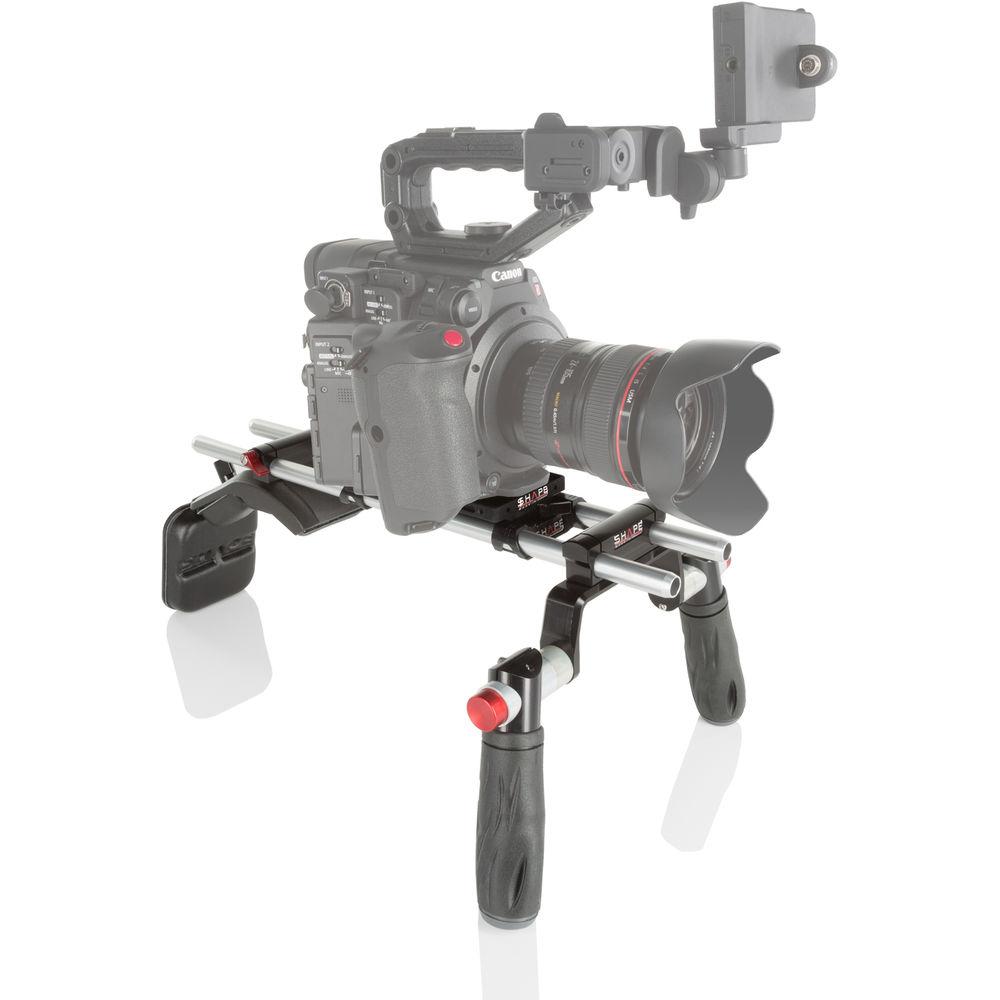

Product description The Shoulder Mount System from SHAPE is a shoulder rig system with lightweight support (LWS) for the Canon C200 camera. It includes one B15C200 Baseplate, one HAND5 Quick Handle with Rod Block, one Mini Composite Shoulder Pad, two 15mm Aluminum Rods (18"), and one Back Pad.

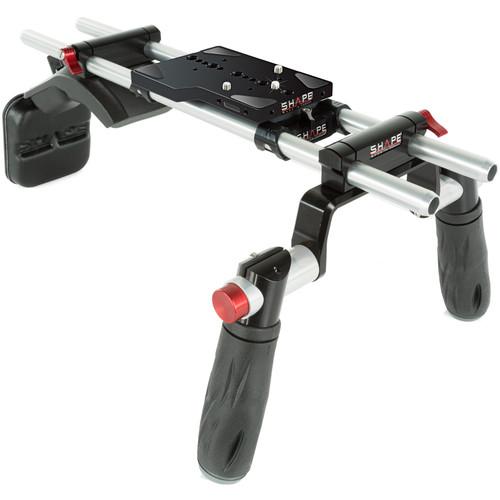

The Baseplate features four attachment points for securely mounting the C200. It includes a pair of 15mm rods that are 18” long and run through the length of the baseplate. The Quick Handle with Rod Block is a professional video stabilization accessory with two camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A push button located at the articulation allows for easy attachment and removal.
The Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm Rod Block mount, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a lever. The Back Pad is a standard rig component included with most SHAPE camera rigs. Its design features a powder-coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. - Baseplate with 15mm Rod System for Canon C200 Camera
- Canon C200 Camera Supports
- SHAPE CANON C200 TECHNICAL VIDEO
The SHAPE Baseplate is designed for use with the Canon C200 camera. It comes with a pair of 15mm rods that are 12" long through the length of the baseplate. The baseplate features three attachment points for securing your camera and tripod plate attachment via three 1/4"-20 mounting holes. - Attaches underneath the camera via 3/8"-16 and 1/4"-20 screws
- Ratchet key knobs to reposition the Rod Bloc system
- The 15mm Lightweight Rod System (LWS) is designed to respect the C200 optical center
- Four rubber pads at the top of the base protect and securely hold your C200 camera
- Unscrewing the bottom section of the baseplate with an Allen key (included) reveals an adapter plate with several 1/4"-20 and 3/8"-16 threaded holes, suitable for optimizing your C200 camera balance on a tripod, gimbal, or drone
- Allen key attaches to the bottom of the baseplate via a magnet
UPC: 629266007273 - Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle - Provides professional video stabilization with 2 handles
- Each handle offers 360° individual rotation
- Offers easy attachment/removal
Rod Block - Composed of anodized aluminum
- Offers composite camera support for all 15mm rods
- Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
- With 2 screw-threaded holes, the Rod Block provides for attachment of components
UPC: 629266000793 - Mini Composite Shoulder Pad The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830
- 15mm Rods (18", Pair) These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
- Pair of aluminum support rods for 15mm rod clamps.
- 18" long rods with chamfered ends that guide the rod into an available rod clamp, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp.
UPC: 629266002223 - Back Pad The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
- Compatible Support Series
-
- Composite
- Cameleon
- Sumo
- Spider
UPC: 629266001202 In the Box Bundle Items Baseplate with 15mm Rod System for Canon C200 Camera usqxcbrffctayyuavrebccbqcz - 15mm Aluminum Rods (Pair, 12")
- Limited Lifetime Warranty
Quick Handle + Rod Block usqxcbrffctayyuavrebccbqcz Mini Composite Shoulder Pad - Camera Screw Knob (1/4"-20)
15mm Rods (18", Pair) usqxcbrffctayyuavrebccbqcz - Limited Lifetime Warranty
Back Pad - Limited Lifetime Warranty
Assembly plan PDF 3.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Canon C200 Shoulder Mount System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Baseplate with 15mm Rod System for Canon C200 Camera
| | | Material | CNC-Machined aluminum | | Dimensions (WxHxD) | 4 x 4 x 1.31" (101.6 x 101.6 x 33.2 mm) | | Weight | 0.79 lb (0.35 kg) | | | | Box Dimensions (LxWxH) | 12.7 x 4.4 x 2.4" | - Quick Handle + Rod Block
| | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" | - Mini Composite Shoulder Pad
| | | Box Dimensions (LxWxH) | 6.5 x 4.3 x 3.4" | - 15mm Rods (18", Pair)
| Diameter | 15mm | | Length | 18" (45.7 cm) | | Weight | 0.4 lb (181.4 g) | | | | Box Dimensions (LxWxH) | 18.5 x 2.992 x 0.236" | - Back Pad
| Material of Construction | Anodized aluminum | | Adjustments | Up/Down: 2" (5 cm)
Right/Left: 360° | | Weight | 0.5 lbs (0.2 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.5" |
