User Manual for SHAPE Composite Grip Camera Support Click to enlarge the picture
Contents of the user manual for the SHAPE Composite Grip Camera Support
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
|
User manual for the SHAPE Composite Grip Camera Support contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

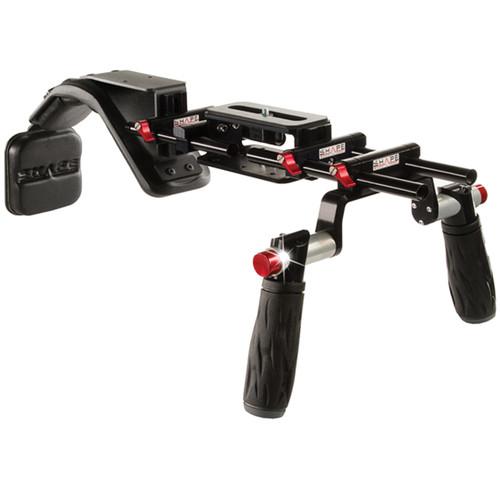

Product description The Shape Composite Grip Camera Support is an adjustable, lightweight, and compact 15mm LWS shoulder mount rig for DSLRs and compact video cameras. The rig is built around the Paparazzi Riser baseplate, a pair of 15mm Sliding Rod Blocks, and a set of four 8" 15mm rods. The sliding rod blocks enable you to adjust the height of the rods to suit your camera setup. For shoulder mounted shooting, handles and a shoulder pad are included the mount onto the rods. The handles feature rosettes and SHAPE's patented spring-loaded push-button technology that lets you quickly adjust the angle of the grips on-the-fly with just the push of your thumb. The Adjustable Composite Shoulder Pad is height adjustable thanks to its own Sliding Rod Block. For additional support and comfort, a Back Pad is also included that attaches to the rear of the shoulder pad. When you need to go tripod-mounted, the Paparazzi Riser features 1/4"-20 and 3/8"-16 threaded holes at the bottom.
Please see the links below for more information on the components of this bundle. - Paparazzi Riser
- Product Demo 1
- Product Demo 2
The Paparazzi Riser from SHAPE is a 2" fixed-height camera riser offering either parallel or perpendicular camera support. The riser's top surface includes a 4" sliding screw slot that enables the camera to be adjusted front-to-back or side-to-side, depending on the riser's orientation. This Paparazzi Riser features several 1/4"-20 and 3/8"-16 threaded holes. The hole located on the base is used to attach the riser to a camera support, while the front and rear holes can be used to attach various accessories such as a sliding rod block. The Paparazzi Riser is suited for use with small camcorders and DSLR cameras. Constructed of CNC-machined, anodized aluminum, this riser is the common component of all SHAPE Composite camera support systems. Features - Four-inch, fixed-height riser is compatible with small camcorders or DSLRs
- Can be placed either parallel or perpendicular for camera placement centered on the support or offset to the right or to the left
- Multiple 1/4"-20 and 3/8"-16 threaded holes for mounting the riser onto a camera support and for attaching accessories
- Lightweight, durable riser made of CNC-machined anodized aluminum
UPC: 629266001066 - Sliding Rod Block The SHAPE Sliding Rod Block allows you to attach 15mm rods to select SHAPE gear and adjust them vertically to support different sized lenses and accessories.
Using supplied screws, it can be attached to the front of the PAPARAZZI RISER, CAMELEON I, SPIDER I, SUMO I, and other rigs/accessories that support the screw pattern. One ratchet knob tightens both optional rods in place. UPC: 629266001363 - Pair of 15mm Female - Female Rod (8") The Shape Pair of 15mm Female - Female Rod (8") are anodized aluminum rods with 1/2"-13 threaded female extremities.
The rods are 8" (203mm) long and have a diameter of 0.59" (15mm). You can use the 15mm Female - Female Rods (8") with 15mm Male - Female Rod (4" / 101.6mm), 15mm Female - Female Rod (6" / 152.4mm), Rod Black, and the Sliding Rod Block. - Anodized aluminum rods with 1/2"-13 threaded female extremities
- Rod Diameter - 0.59" (15mm)
- Compatible with 15mm Male - Female Rod (4" / 101.6mm), 15mm Female - Female Rod (6" / 152.4mm), Rod Black, and the Sliding Rod Block
UPC: 629266001660 - Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle - Provides professional video stabilization with 2 handles
- Each handle offers 360° individual rotation
- Offers easy attachment/removal
Rod Block - Composed of anodized aluminum
- Offers composite camera support for all 15mm rods
- Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
- With 2 screw-threaded holes, the Rod Block provides for attachment of components
UPC: 629266000793 - Adjustable Composite Shoulder Pad The SHAPE Adjustable Composite Shoulder Pad is a core component of SHAPE's Composite series of camera supports. The pad rests on the camera operator's shoulder to transfer the weight of the camera and any accessories closer to the core of the body. The lightweight aluminum shoulder pad is padded for comfort. Attached to the front of the pad, the included Sliding Rod Block enables the adjustment – up to 2.75 in (7.0 cm) – that allows the operator to set a pair of 15mm rods and at the proper vertical level. The Adjustable Composite Shoulder Pad is compatible with several other camera rig components from SHAPE and, because it accepts standard 15mm rods, other manufacturers as well. You can attach a counterweight to the back of the shoulder pad to provide more support for the camera rig. The shoulder pad is recommended for camera rigs up to 15 lb (6.8 kg) if you're supporting it with dual rods or up to 7.5 lb (3.4 kg) if you're using a single rod, so it's perfect for heavy DSLR setups and lighter HD video camera rigs. UPC: 629266001226
- Back Pad The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
- Compatible Support Series
-
- Composite
- Cameleon
- Sumo
- Spider
UPC: 629266001202 In the Box Bundle Items Paparazzi Riser fafcbduvzbtzdswwazuxrqffrcydufrqaycs 2 x Sliding Rod Block 2 x Pair of 15mm Female - Female Rod (8") - Limited Lifetime Warranty
Quick Handle + Rod Block Adjustable Composite Shoulder Pad Back Pad - Limited Lifetime Warranty
User Manual PDF 2.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Composite Grip Camera Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Paparazzi Riser
| Material of Construction | Riser: Anodized CNC aluminum Screws: Stainless steel | | Accessory Mounting Threads | 1/4"-20, 3/8"-16 | | Slot Size | 4" (10.2 cm) | | Dimensions (LxWxH) | 5 x 3 x 2" (12.7 x 7.62 x 5.08 cm) | | Weight | 8.8 oz (249 g) | | | | Box Dimensions (LxWxH) | 8.0 x 5.0 x 5.0" | - Sliding Rod Block
| Material | Anodized aluminum | | | | Box Dimensions (LxWxH) | 8.4 x 4.6 x 4.6" | - Pair of 15mm Female - Female Rod (8")
| Compatibility | 15mm Male - Female Rod (4" / 101.6mm), 15mm Female - Female Rod (6" / 152.4mm), Rod Black, and the Sliding Rod Block | | Length | 8" (203mm) | | Diameter | 0.59" (15mm) | | Construction | Anodized Aluminum | | | | Box Dimensions (LxWxH) | 7.8 x 2.9 x 0.2" | - Quick Handle + Rod Block
| | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" | - Adjustable Composite Shoulder Pad
| | | Box Dimensions (LxWxH) | 14.0 x 5.9 x 4.1" | - Back Pad
| Material of Construction | Anodized aluminum | | Adjustments | Up/Down: 2" (5 cm)
Right/Left: 360° | | Weight | 0.5 lbs (0.2 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.5" |
