User Manual for SHAPE CP33 Cheese Plate with IDX Plate Click to enlarge the picture
Contents of the user manual for the SHAPE CP33 Cheese Plate with IDX
- Product category: Battery Mounting Plates SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Battery Mounting Plates
|
User manual for the SHAPE CP33 Cheese Plate with IDX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

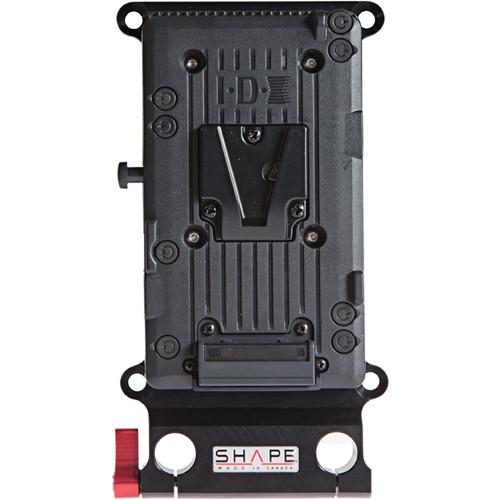

Product description The SHAPE CP33 Cheese Plate with IDX Plate is a 15mm rod-mount cheese plate with an IDX V-Mount battery plate screwed onto one side. The plate is 1/4" thick and features 33 threaded holes for accessories to be screwed into. These holes run end to end, from one side of the plate to the other. Four of the holes are 10/32" and the rest are 1/4" and 3/8". The IDX plate covers many of the holes from one side, but you can still screw into these holes from the other side as long as the screws are not much longer than the 1/4" thickness of the plate. The holes at the very corners of the plate are untouched by the IDX plate and can be used to attach accessories or devices like AJA's Ki Pro Mini. Screws are included for a Ki Pro Mini and for an Anton Bauer battery plate. The cheese plate is precision-machined as one piece. UPC: 629266001332 In the Box SHAPE CP33 Cheese Plate with IDX Plate IDX V-Mount Battery Plate Set of 4 Screws for the Included IDX Battery Plate Set of 4 Screws for AJA Ki Pro Mini Set of 4 Screws for Anton Bauer Battery Plate Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE CP33 Cheese Plate with IDX Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE CP33IDX Specs | Mounting Threads | 33 holes total: four 10/32" and the rest 1/4" and 3/8" | | Material | Anodized aluminum | | Thickness | 1/4" (.6 cm) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.1 x 4.7 x 1.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
