Product description - SHAPE D-BOX CAMERA POWER AND CHARGERS

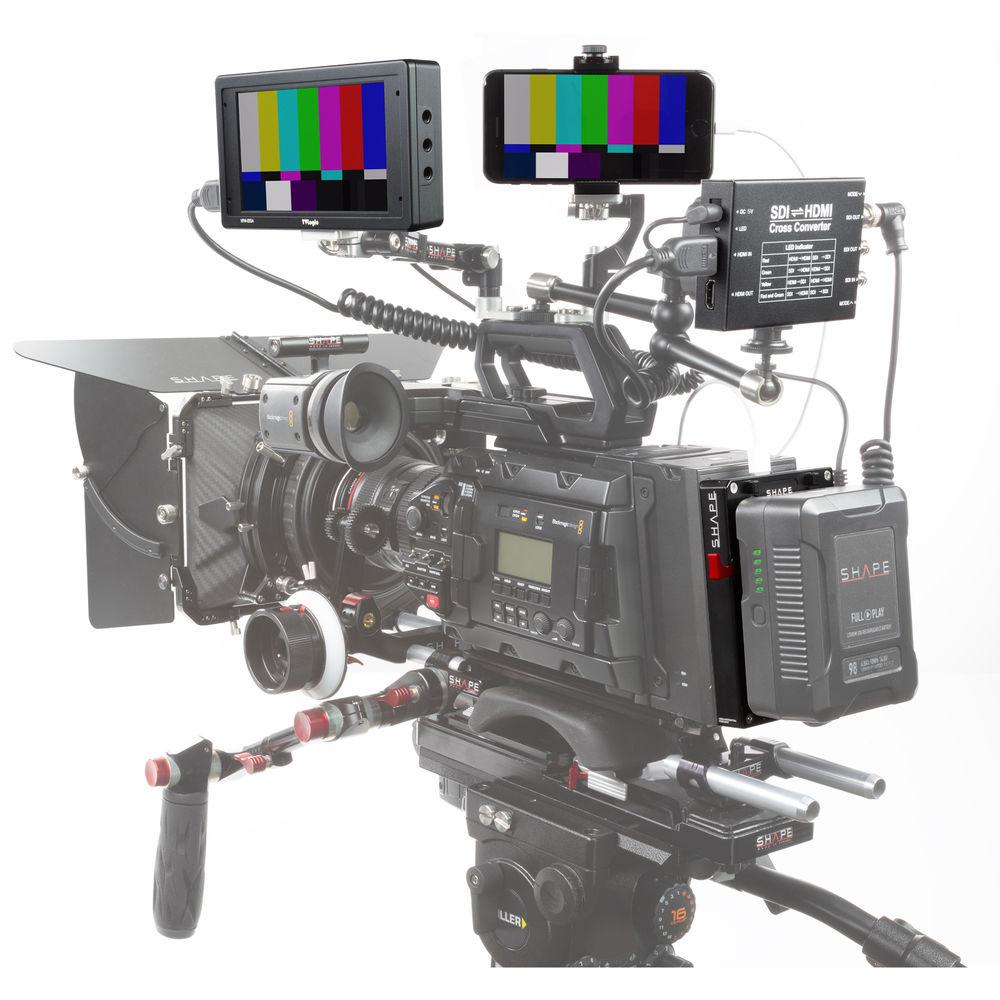

Use the D-Box Camera Power and Charger from SHAPE to power your Blackmagic URSA Mini or URSA Mini Pro camera and other accessories simultaneously with a V-mount battery (not included) and continuous AC power. Multiple LED indicators on the D-Box show battery and power status.

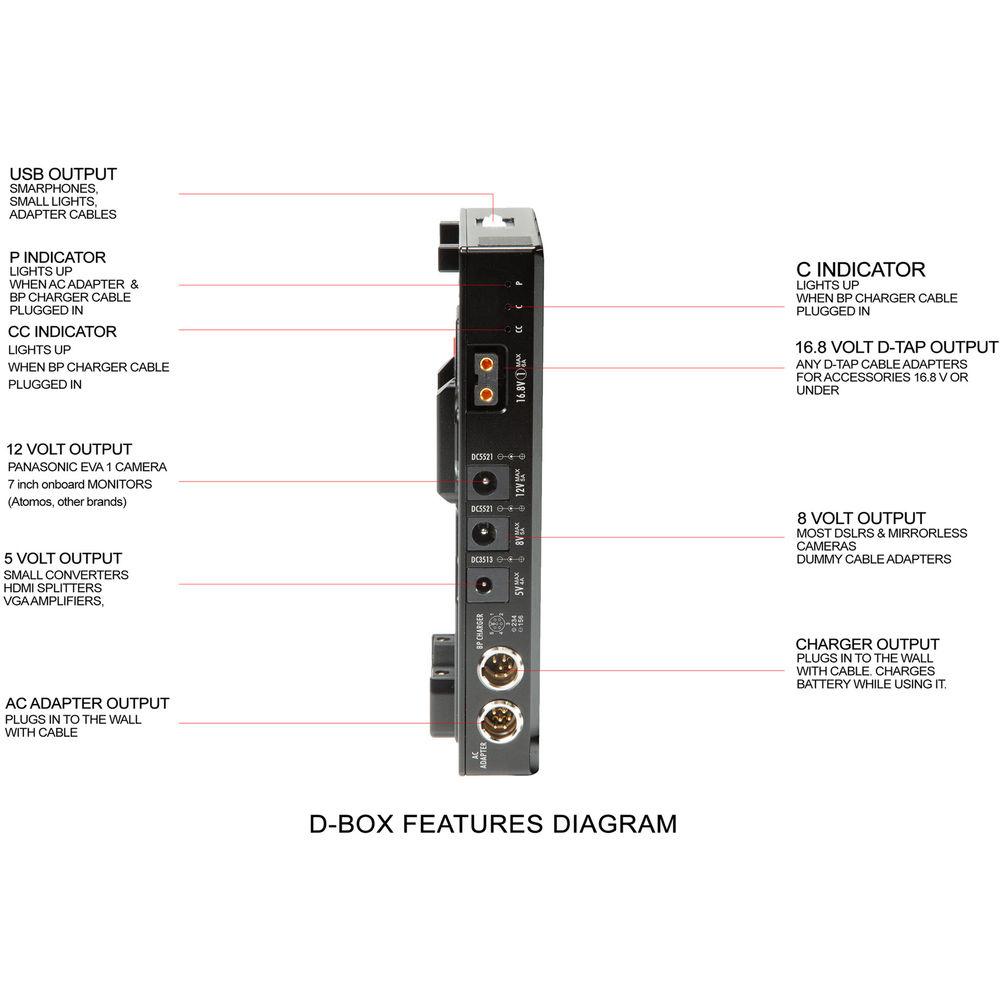

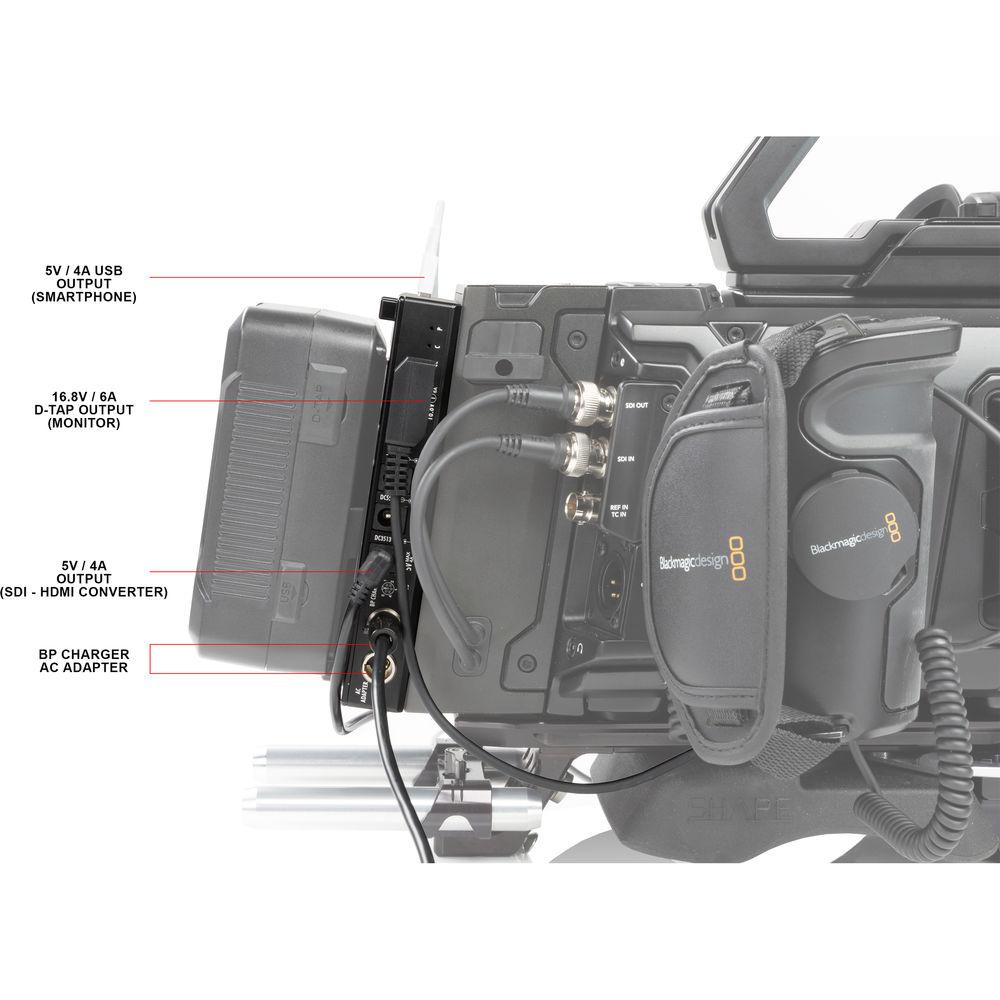

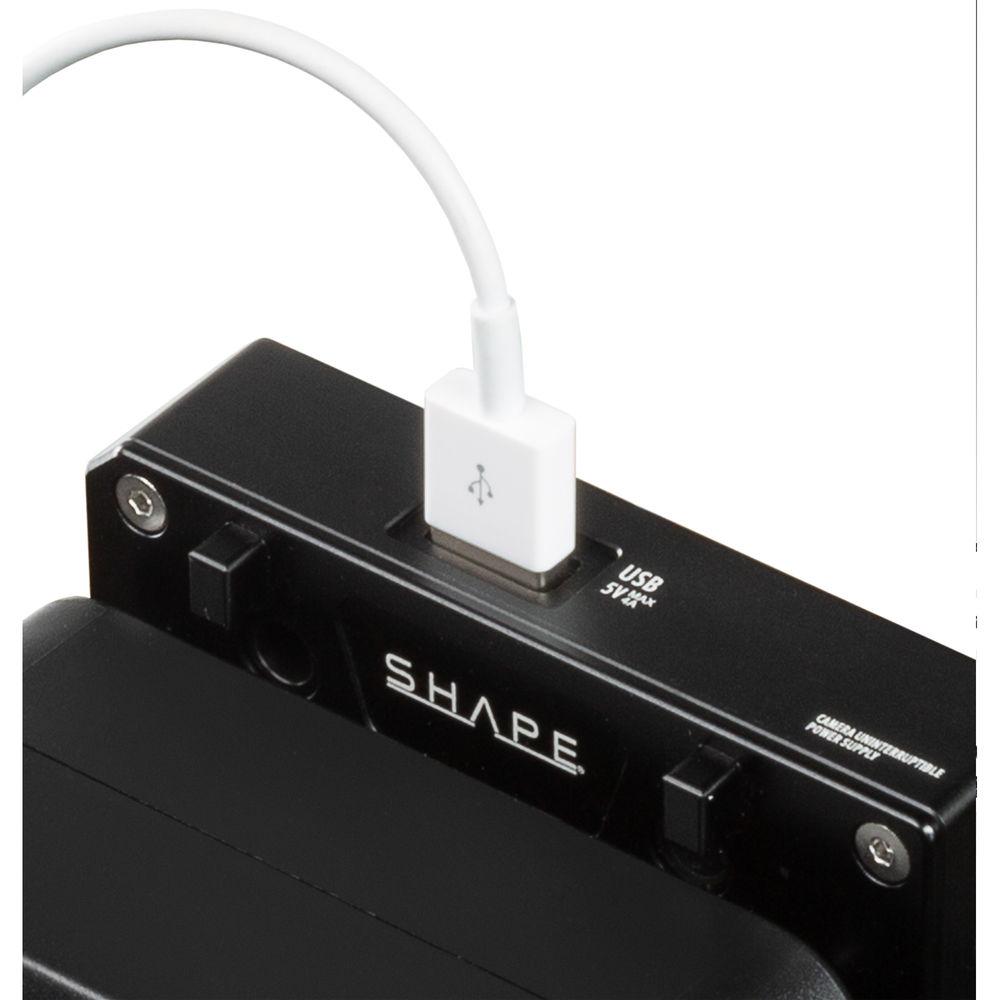

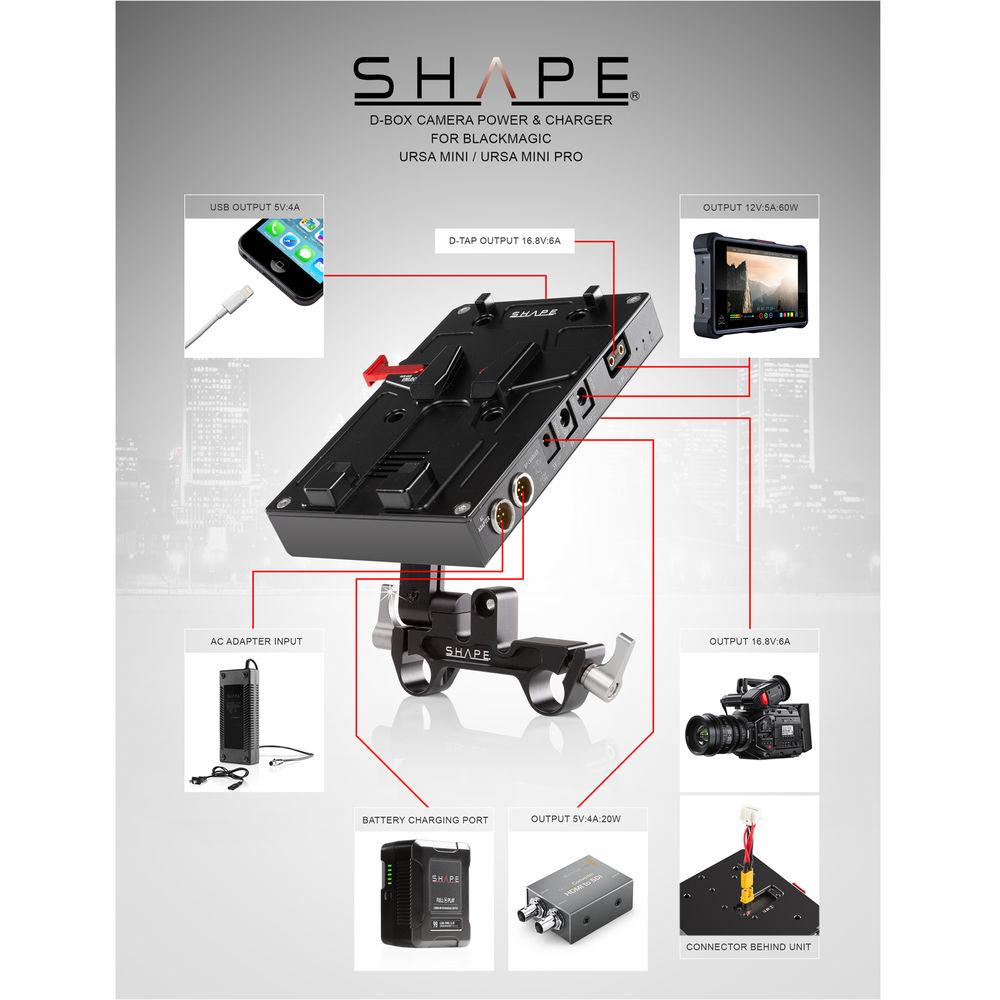

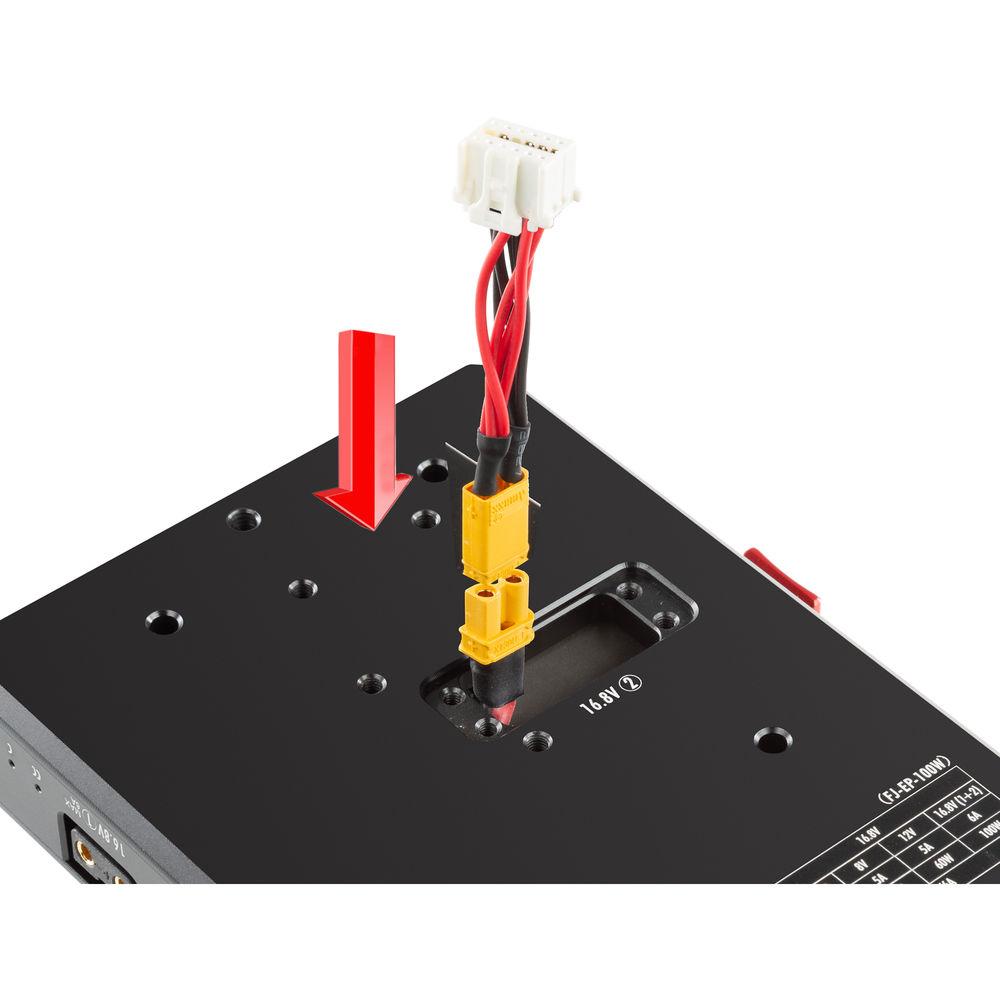

The D-Box is designed to power your camera while also powering items like a monitor, smartphone, or lights, and when plugged into an AC outlet with the included AC adapter, you can remove the battery safely without powering down your camera. The D-Box has a V-mount battery plate, and on the side there are four power outputs: one 20W, 5V/4A, one 40W, 8V/5A, one 60W, 12V/5A, and one D-Tap 100W, 16.8V/6A. On top there's a 5V/4A USB Type-A port to power your smartphone or USB accessory. There is also an additional D-Tap 100W port on the back of the unit that provides 16.8V, 6A. You can power multiple items simultaneously with up to 100W of total power consumption. There are also threaded holes on the back of the plate for mounting options.

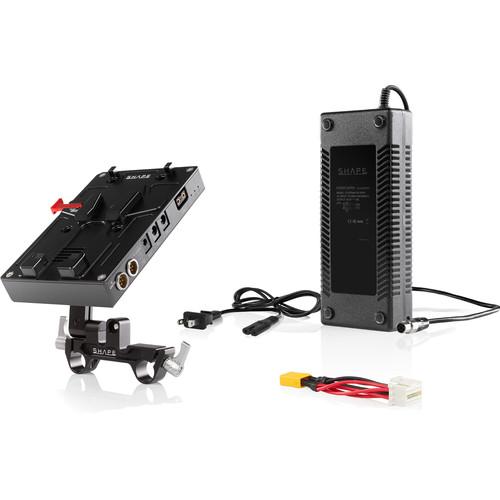

The charger comes with a cable connector to power your Blackmagic URSA Mini or URSA Mini Pro camera, an 8V output cable, a 15mm rod mount to use with your 15mm LWS rod system, a removable Delta plate, and an Allen wrench and screws for mounting your gear. UPC: 629266008560 In the Box SHAPE D-Box Camera Power & Charger for Blackmagic URSA Mini/URSA Mini Pro (V-Mount) AC Adapter AC Power Plug Power Output Connector (8V/12V) Power Connector for Blackmagic URSA Mini/URSA Mini Pro 15mm Rod Mount Removable Delta Plate Allen Key and Mounting Screw Toolkit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE D-Box Camera Power & Charger for Blackmagic URSA Mini URSA Mini Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE BXBUM Specs | AC Power Adapter | Input: 110-240 VAC, 2 A, 50/60 Hz
Output: 16.8 V, 6 A | | Ports and Connectors | Battery Plate: V-mount
20 W: 5 V, 4 A
40 W: 8 V, 5 A
60 W: 12 V, 5 A
2 x 100 W: 16.8 V, 6 A
USB: 5V, 4 A | | Material of Construction | Shock-resistant PPS | | Dimensions | D-Box: 5.5 x 3.6 x 0.8" / 14 x 9 x 2 cm
Camera Connector Cable Length: Not supplied by manufacturer
8 V Output Cable: 23" / 58.4 cm | | Weight | 2.3 lb / 1.1 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.3 x 4.6 x 3.6" |
