Product description - SHAPE D-BOX CAMERA POWER AND CHARGERS
Use the D-Box Camera Power and Charger from SHAPE to power your Panasonic EVA1 or Sony FS7, FS7M2, FS5, or FS5M2 camera and other accessories simultaneously with a V-mount battery (not included) and continuous AC power. Multiple LED indicators on the D-Box show battery and power status.

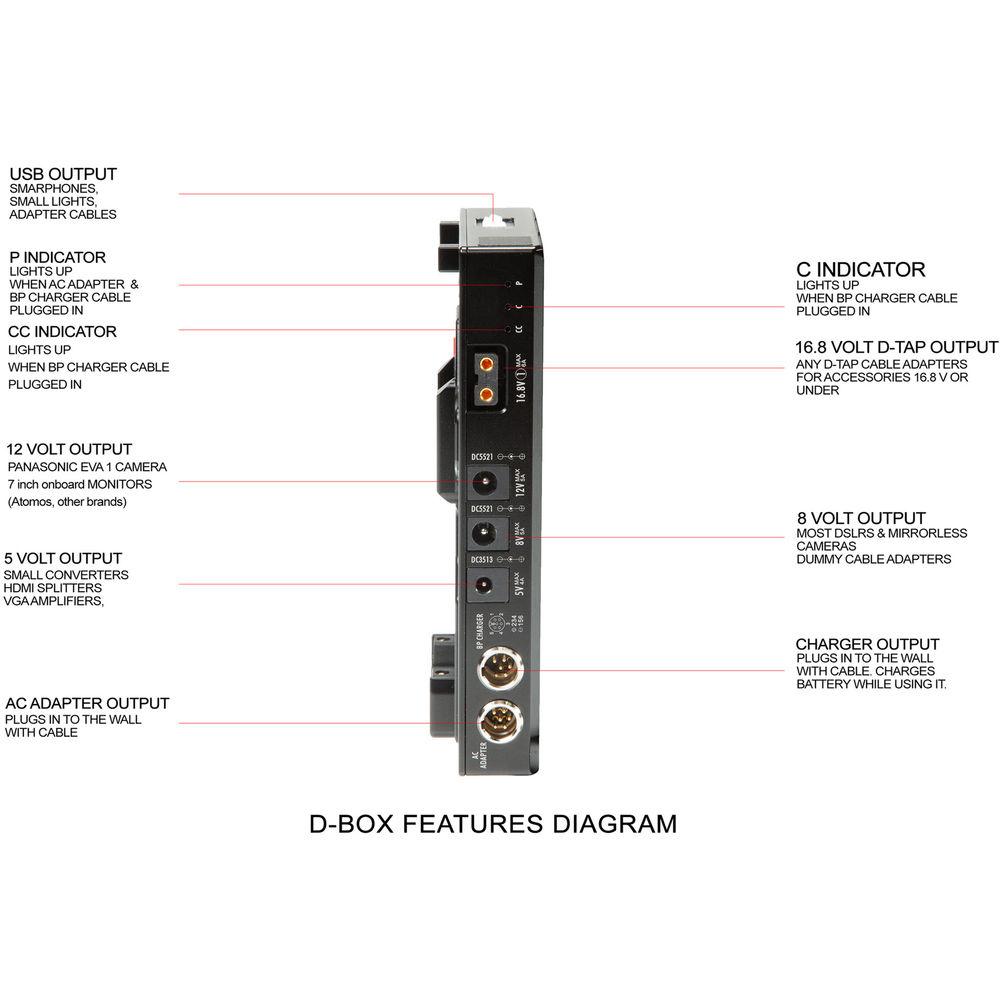

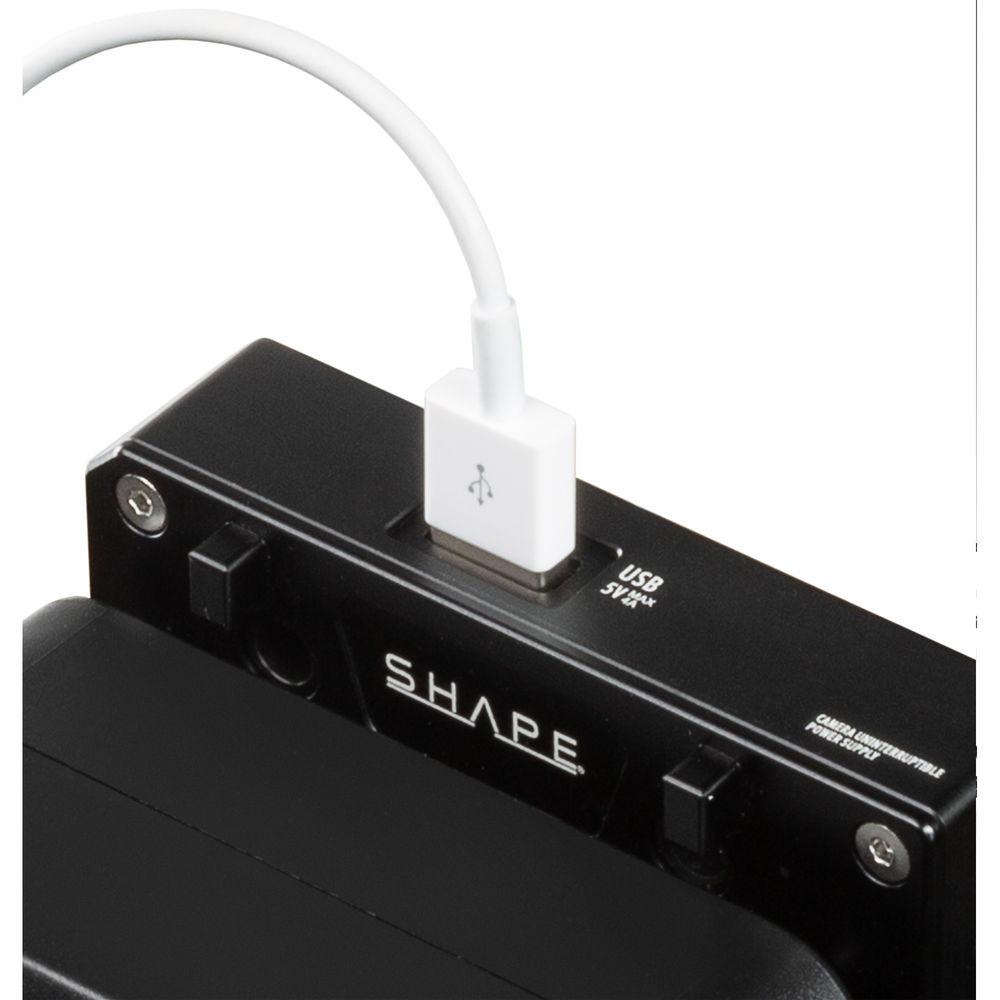

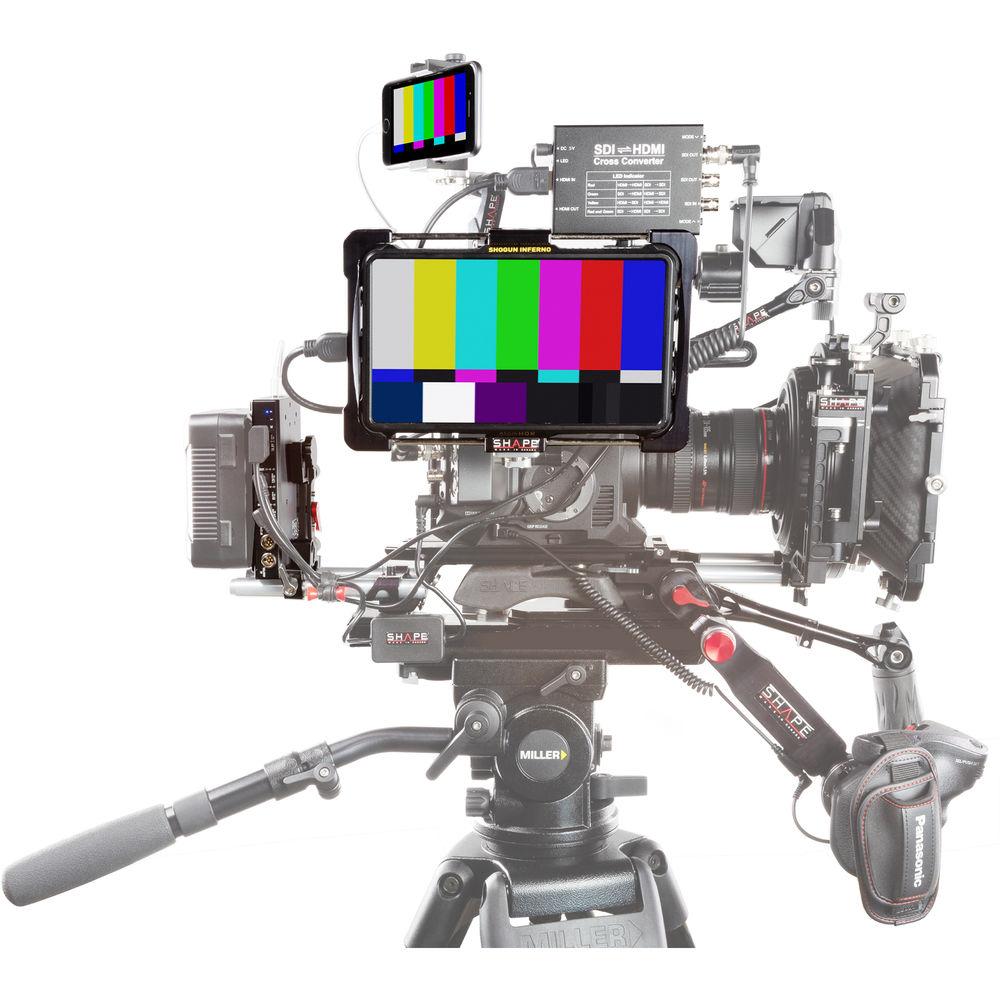

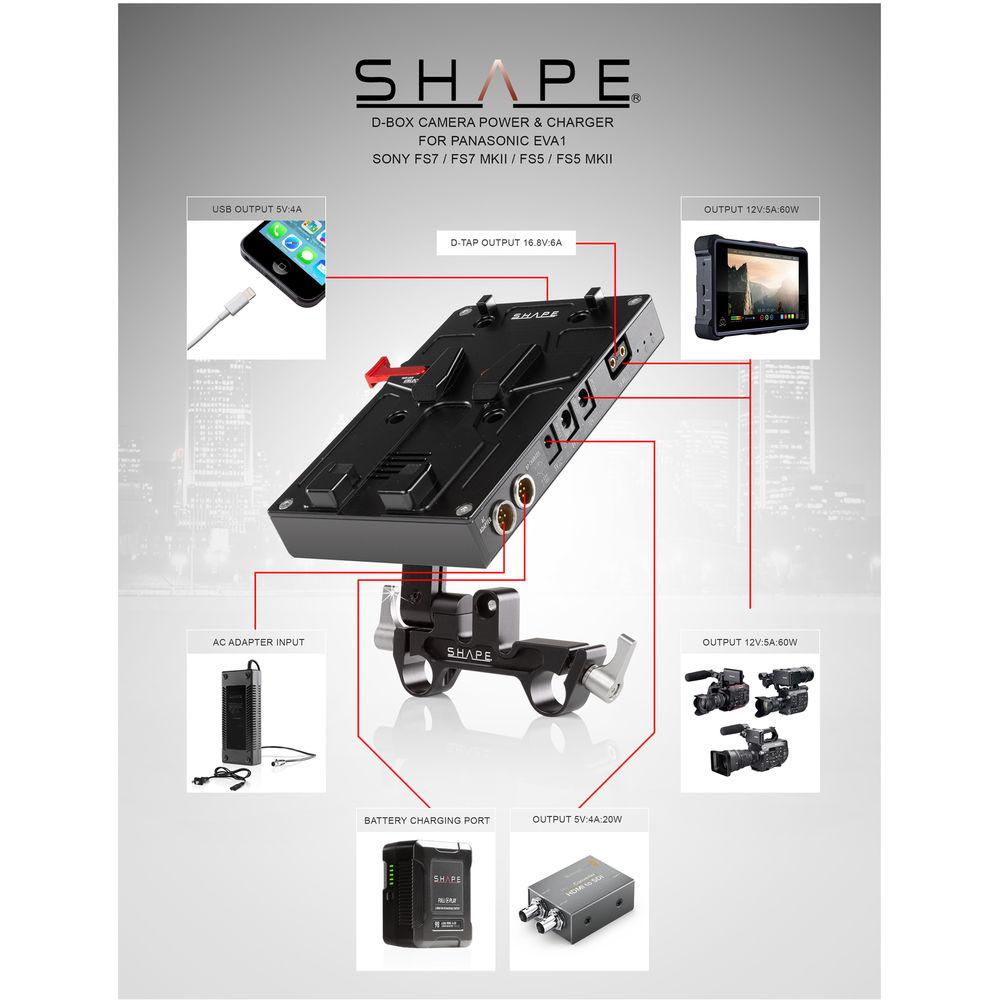

The D-Box is designed to power your camera while also powering items like a monitor, smartphone, or lights, and when plugged into an AC outlet with the included AC adapter, you can remove the battery safely without powering down your camera. The D-Box has a V-mount battery plate, and on the side there are four power outputs: one 20W, 5V/4A, one 40W, 8V/5A, one 60W, 12V/5A, and one D-Tap 100W, 16.8V/6A. On top there's a 5V/4A USB Type-A port to power your smartphone or USB accessory. You can power multiple items simultaneously with up to 100W of total power consumption. There are also threaded holes on the back of the plate for mounting options.

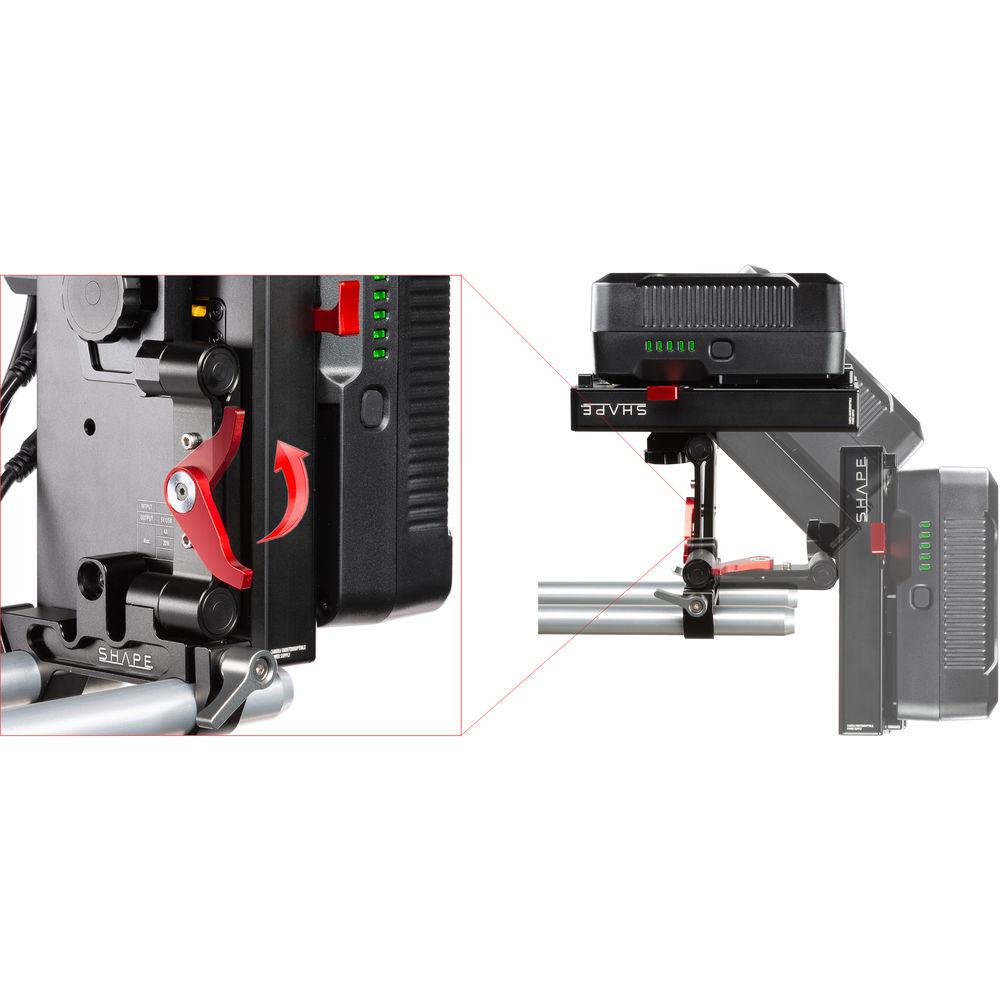

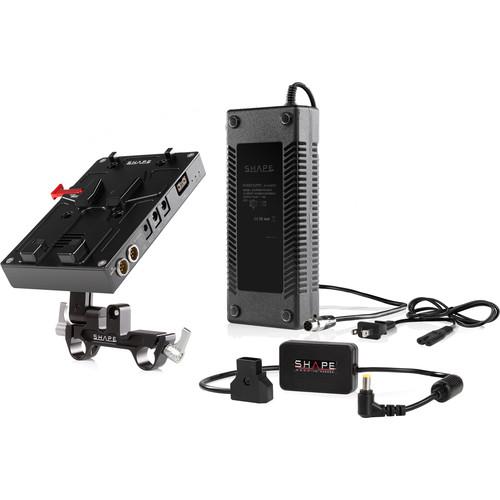

The charger comes with a cable connector to power your Panasonic EVA1 or Sony FS7, FS7M2, FS5, or FS5M2 camera, an 8V output cable, a 15mm rod mount to use with your 15mm LWS rod system, a removable Delta plate, and an Allen wrench and screws for mounting your gear. UPC: 629266008577 In the Box SHAPE D-Box Camera Power & Charger for Panasonic EVA1 & Sony FS7/FS7M2/FS5/FS5M2 (V-Mount) AC Adapter AC Power Plug Power Output Connector (8V/12V) Power Connector for EVA1 or FS7/FS7M2/FS5/FS5M2 15mm Rod Mount Removable Delta Plate Allen Key and Mounting Screw Toolkit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE D-Box Camera Power & Charger for Panasonic EVA1 & Sony FS7 FS7M2 FS5 FS5M2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE BXFS5 Specs | AC Power Adapter | Input: 110-240 VAC, 2 A, 50/60 Hz
Output: 16.8 V, 6 A | | Ports and Connectors | Battery Plate: V-mount
20 W: 5 V, 4 A
40 W: 8 V, 5 A
60 W: 12 V, 5 A
100 W: 16.8 V, 6 A
USB: 5V, 4 A | | Material of Construction | Shock-resistant PPS | | Dimensions | D-Box: 5.5 x 3.6 x 0.8" / 14 x 9 x 2 cm
Camera Connector Cable Length: 24.5" / 62.2 cm
8 V Output Cable: 23" / 58.4 cm | | Weight | 2.3 lb / 1.1 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 11.3 x 4.7 x 3.7" |
