Product description - SHAPE D-BOX CAMERA POWER AND CHARGERS

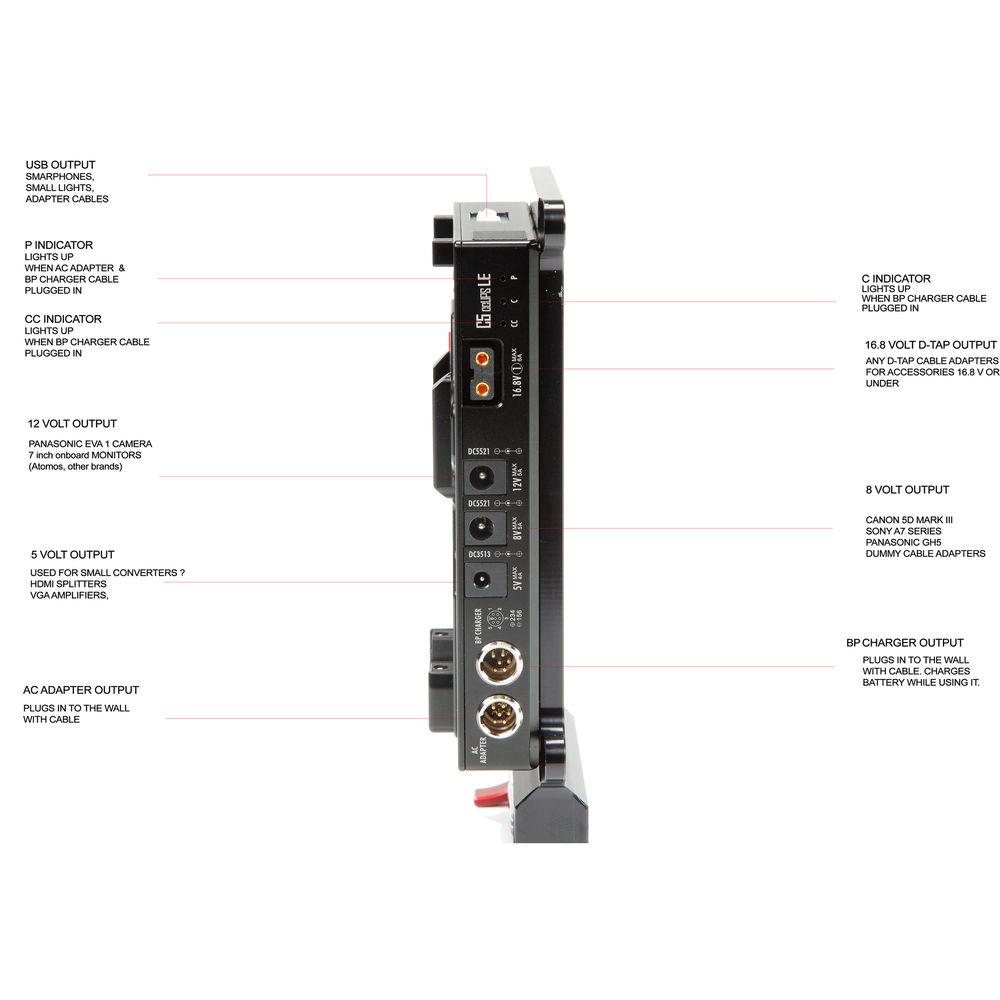

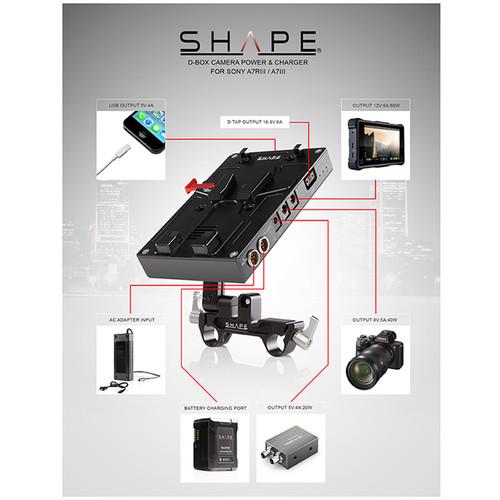

The D-Box Camera Power & Charger Kit from SHAPE is composed of a D-Box power and charger compatible with Sony a7 III and a7R III cameras. It features a small-size, lightweight V-mount battery plate with safe lock. The D-Box has five outputs including D-Tap and 5, 8, 12, and 16.8V ports, as well as USB 5V. It supports up to 100W power consumption from the device and includes a 15mm rod mount bracket with locking and angle adjustment system. There are threaded holes at the back of the plate for mounting on a cheese plate and LED indicators for power. When the D-Box is plugged in you can safely disconnect and reconnect a separately available battery without powering down your rig. A 110 to 240V power supply, AC power cable, 8/12V cable output connector, a7 III/a7R III cable connector, and removable Delta plate are included. - Compatible with most professional DSLRs and cameras such as ARRI, Blackmagic, Canon Cinema EOS, Canon EOS, Panasonic, RED, Sony P series, Sony ILCE, and mirrorless

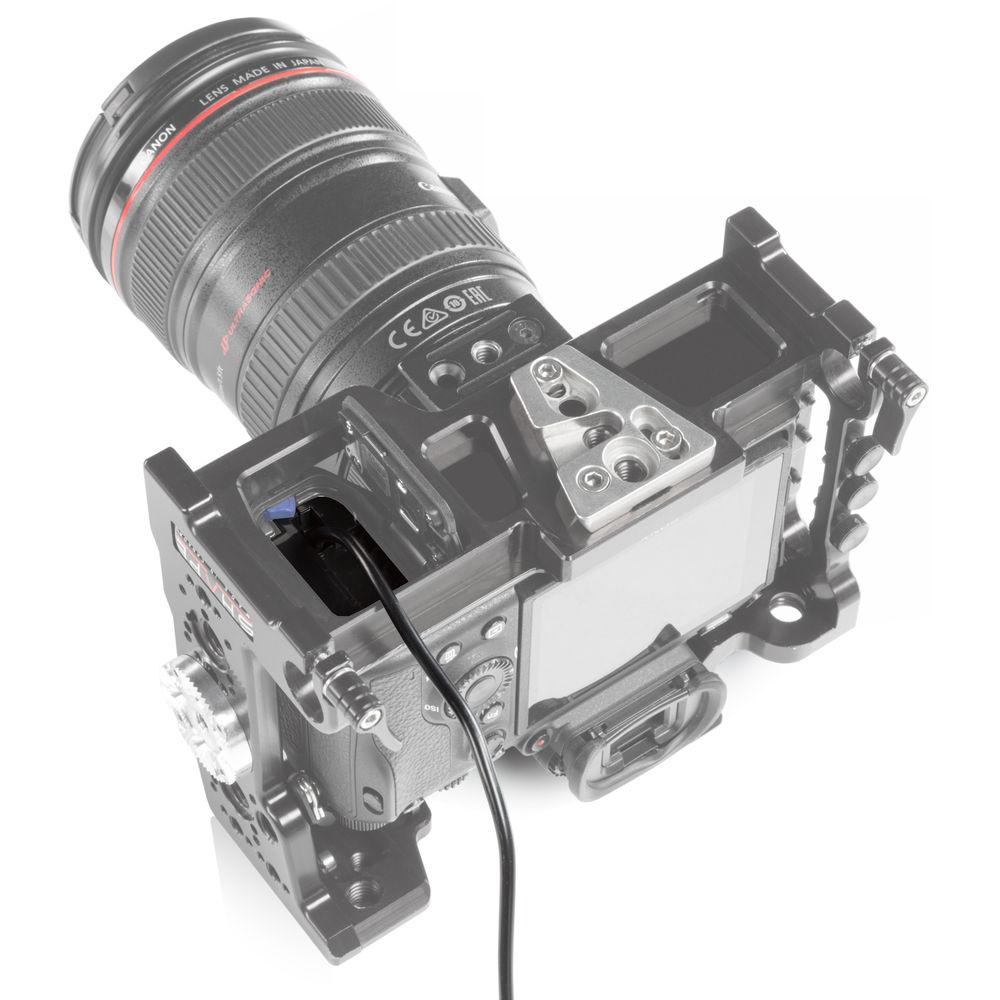

- 15" cable compatible with Sony a7 III and a7R III
- Output cable compatible with 8 or 12V outputs
- BP charger input to use and charge a battery (available separately) at the same time
- AC adapter input to use without a battery
- Delta plate included to mount on the D-Box main unit

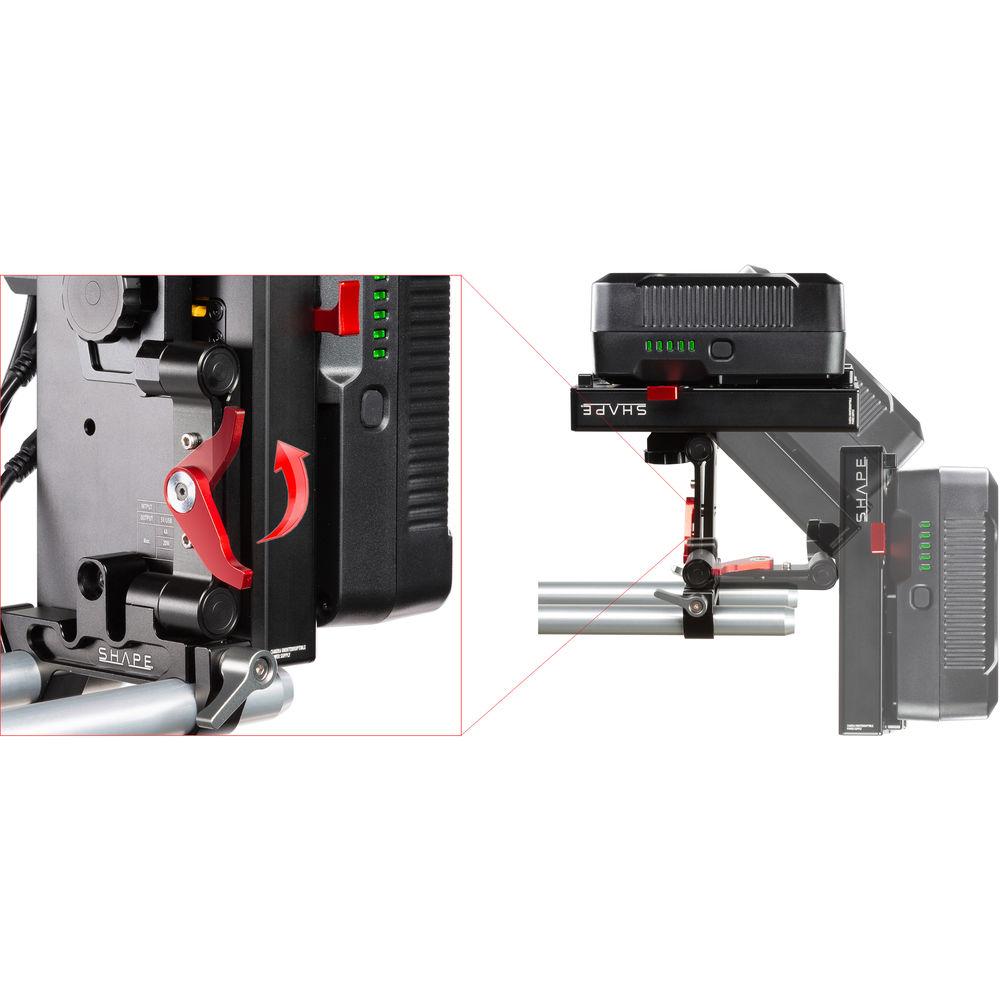

- Knob system to lock and adjust the position of the D-Box unit
- Gold Mount converter and 5V output cable available separately
UPC: 629266008966 In the Box SHAPE D-Box Camera Power & Charger Kit for Sony a7R III and a7 III Series D-Box Power & Charger (V-Mount) Power Supply AC Power Cable Cable Output Connector (8V, 12V) Cable Connector (a7 III, a7R III) 15mm Rod Mount Device Removable Delta Plate Tool Box Kit (Allen Key, Mounting Screws) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE D-Box Camera Power & Charger Kit for Sony a7R III and a7 III Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE BXA73 Specs | Materials | Shock-Resistant, PPS Aircraft-Grade | | Power Supply | Input: 110-240 V, 2 A at 50/60 Hz
Output: 16.8 V, 6 A | | Outputs | 1 x 5 V, 4 A, 20 W
1 x 8 V, 5 A, 40 W
1 x 12 V, 5 A, 60 W
1 x D-Tap 16.8 V, 6 A, 100 W

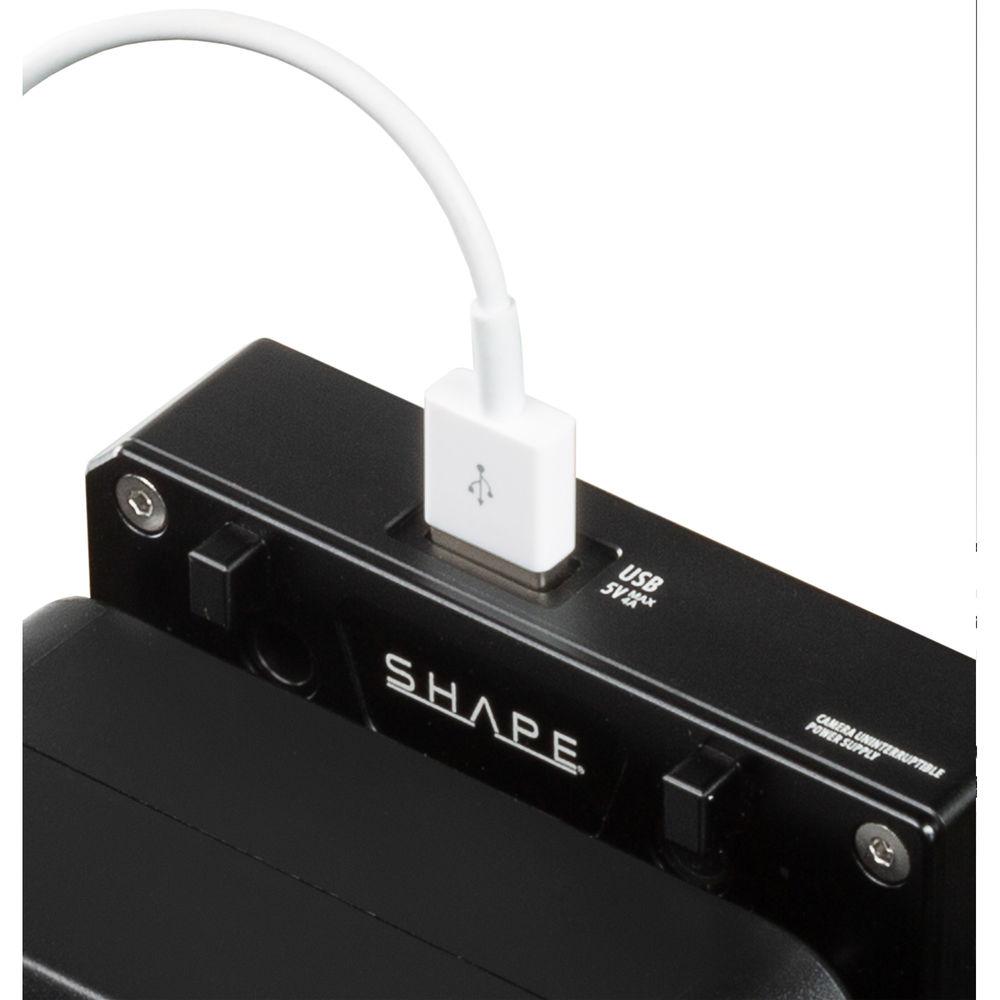

1 x USB 5 V, 4 A | | Dimensions | 5.51 X 3.54 X 0.79" / 14.0 X 8.99 X 2.01 cm | | Weight | 2.31 lb / 1.05 kg | | | | Package Weight | 2.42 lb | | Box Dimensions (LxWxH) | 11.35 x 4.85 x 3.65" |
