Product description - SHAPE D-BOX CAMERA POWER AND CHARGERS

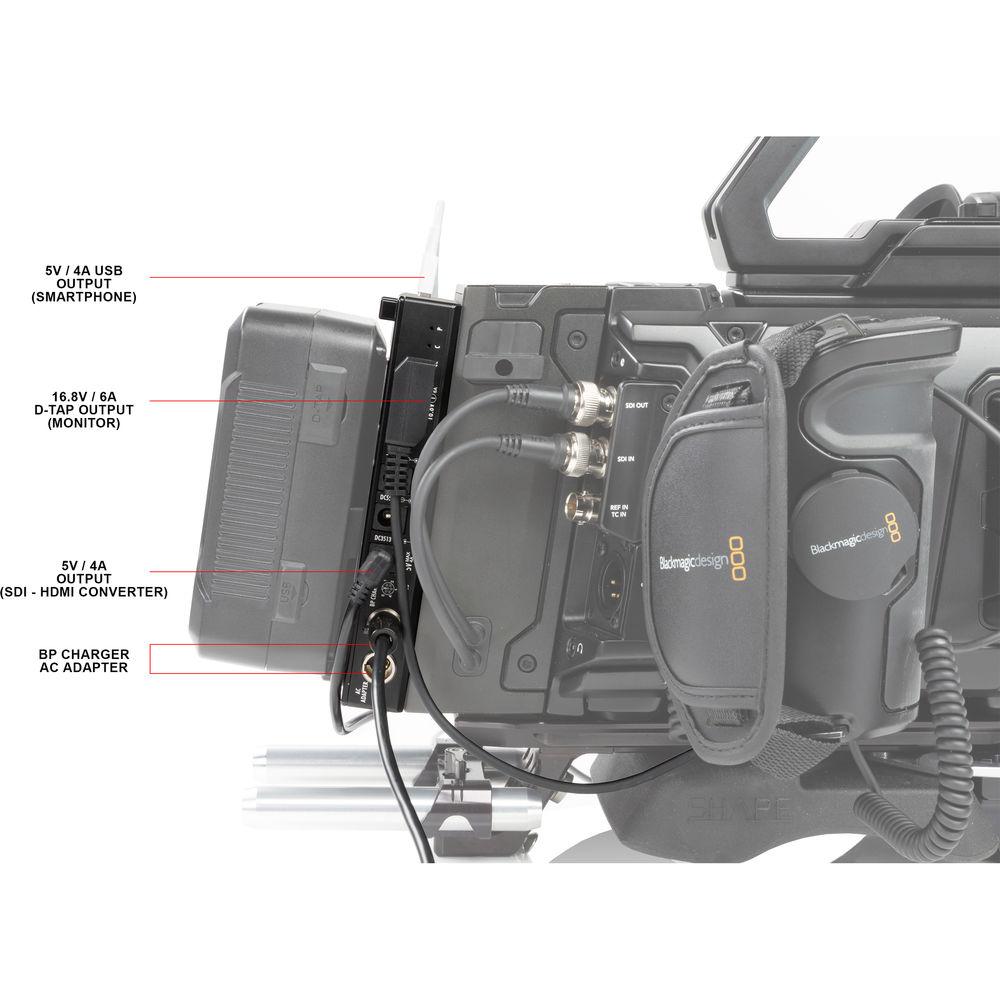

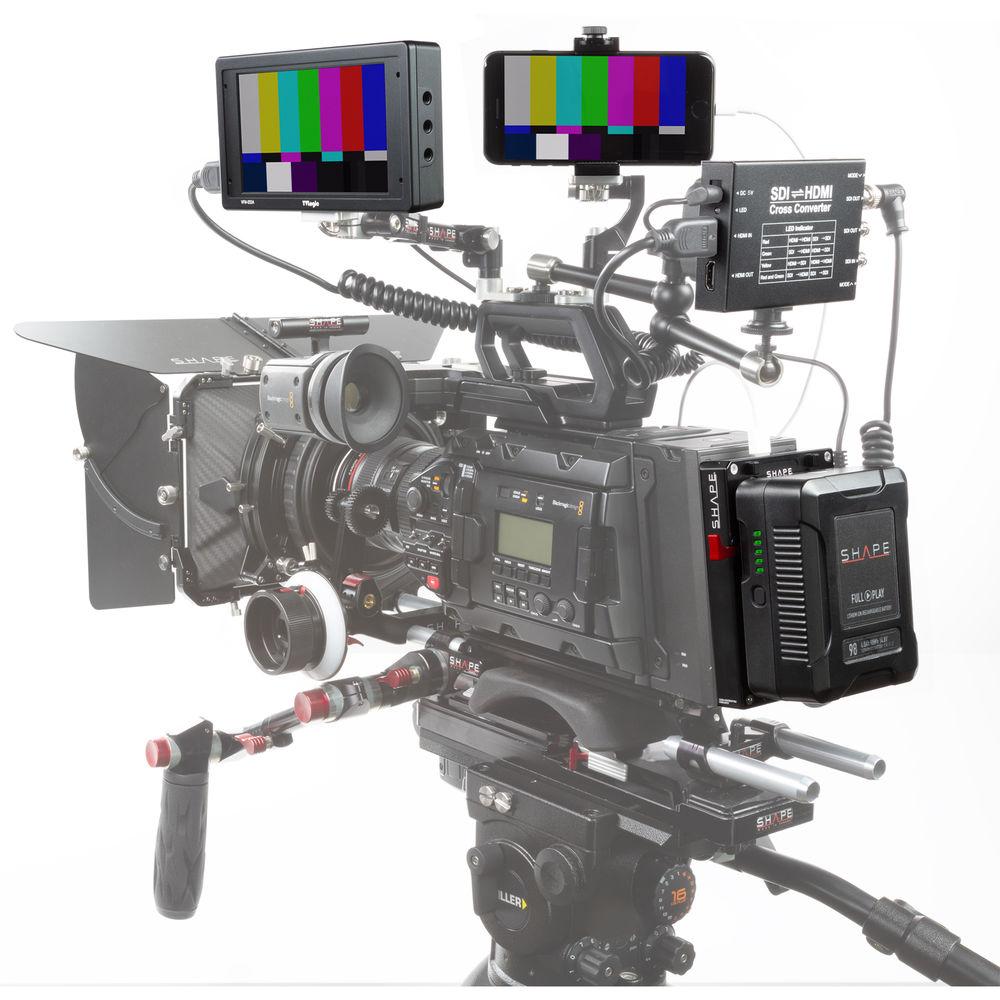

The Shape D-Box Camera Power and Charger Kit with 98Wh Battery for Blackmagic URSA Mini/Mini Pro is a kit with a power distribution box that mounts on 15mm rods using the included 15mm LWS rod clamps, or directly onto your URSA Mini or Mini Pro camera. In addition to the camera power connector, the D-Box incorporates D-Tap, 5/8/12V, and USB power outputs. The plate supports powering from either a V-mount battery or the included AC power adapter, which can be used to power the plate by itself or to charge a battery on the plate.
The included 98Wh lithium-ion battery has a built-in 4-LED battery gauge and supports a total draw of up to 12A continuously without damage. The battery also features intelligent control and protection circuitry to help keep it in tip-top shape. - D-Box
-
- D-Box is compatible with the camera + SSD recorder unit
- 16.8V, 6A output combined with a multi-pin cable compatible for URSA Mini and URSA Mini Pro

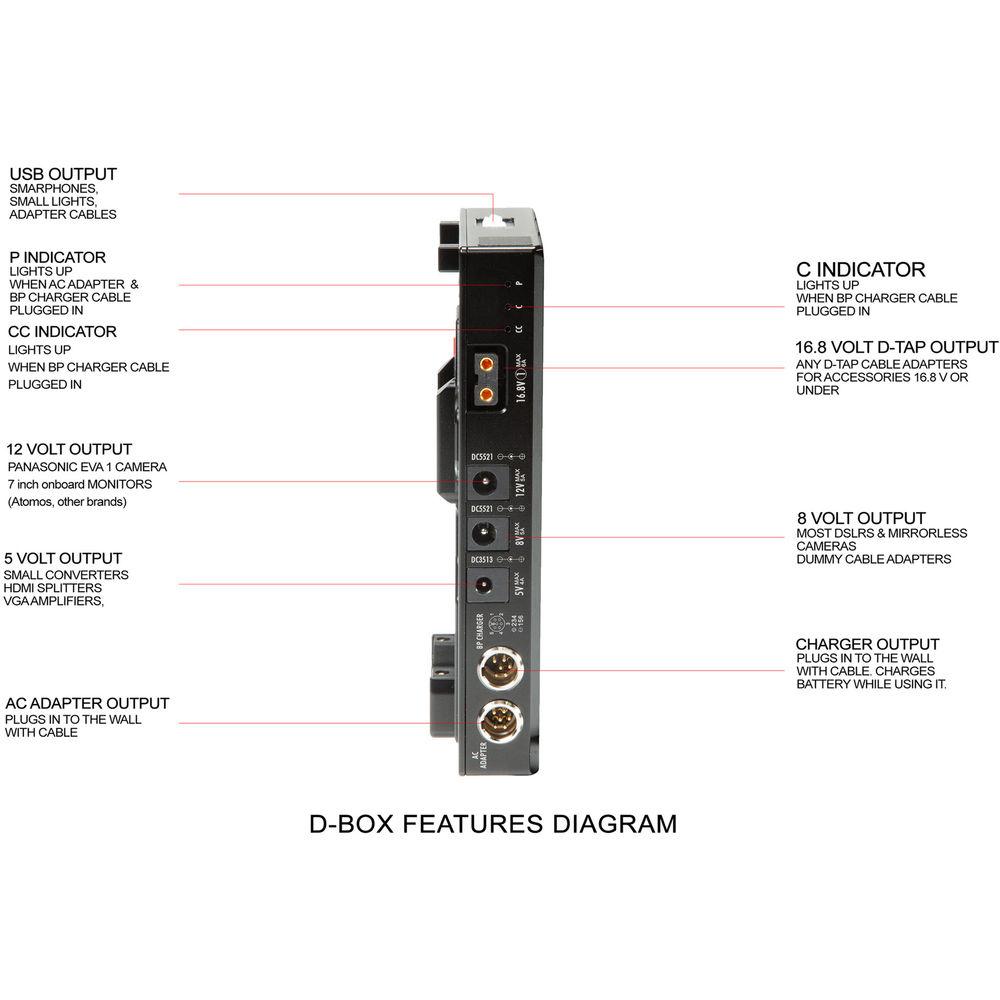

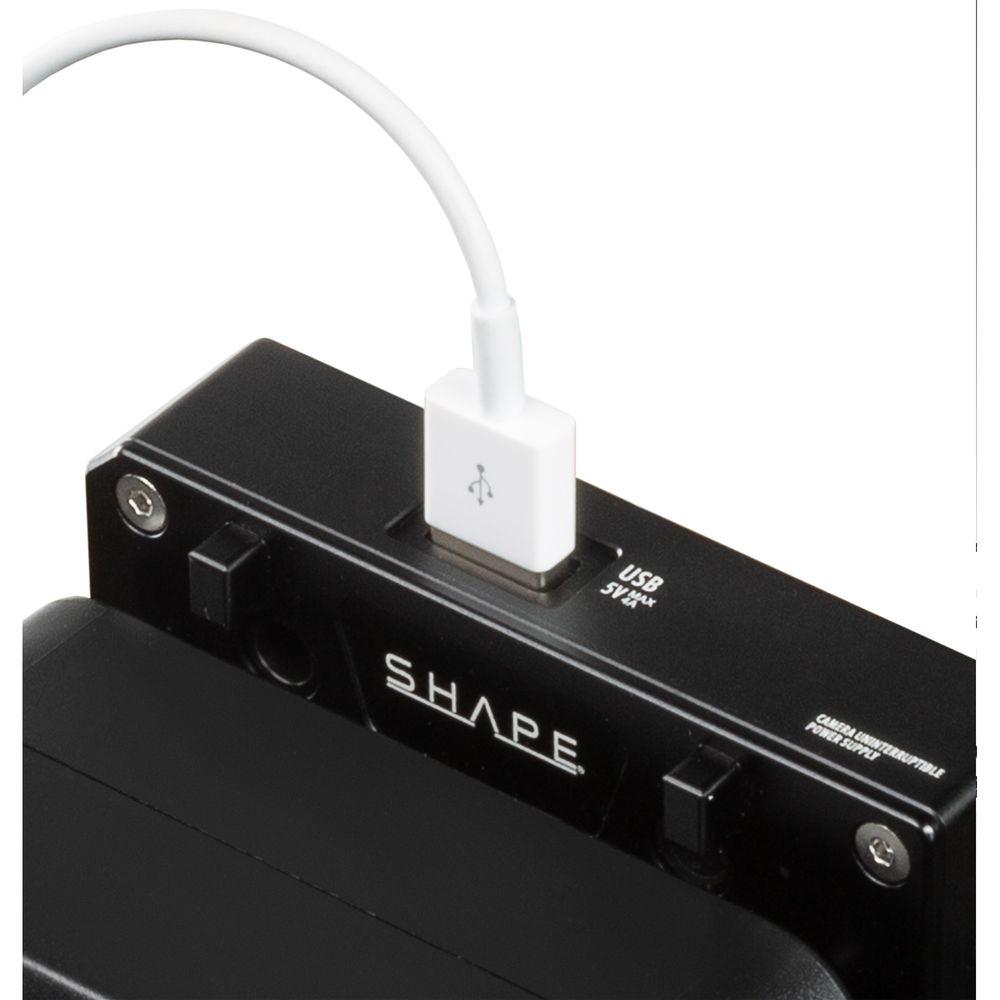

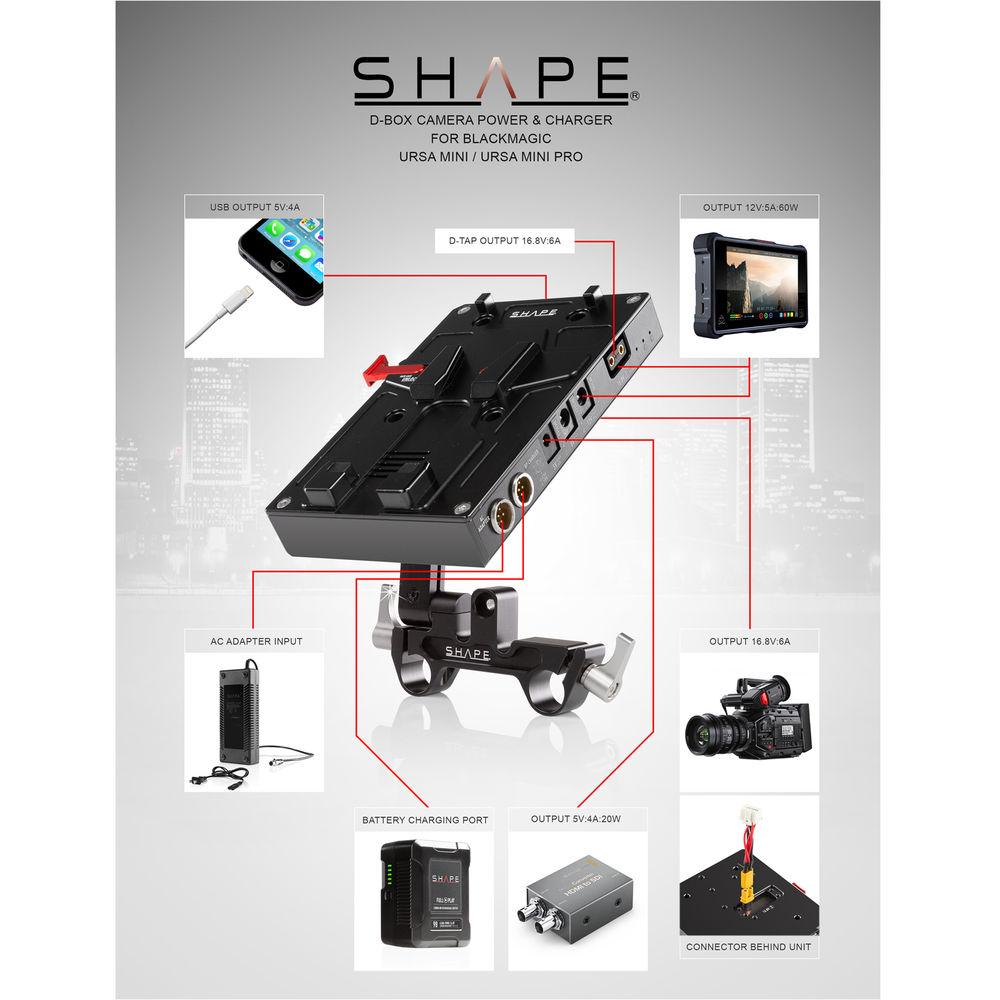

- Six outputs: 5V, 4A, 20W / 8V, 5A, 40W / 12V, 5A, 60W / 2 x 16.8V, 6A, 100W / USB 5V, 4A
- V-mount battery plate with Safe Lock
- Small size and lightweight battery plate
- When the D-Box is plugged in, safely disconnect and reconnect the battery without powering down your rig
- Supports up to 100W power consumption from the device
- Robust 15mm rod mount with locking and angle adjustment system
- Threaded holes at the back of the plate for mounting on a cheese plate
- LED indicators for power features
UPC: 629266008614 In the Box SHAPE D-Box Camera Power & Charger Kit with 98Wh Battery for Blackmagic URSA Mini/Mini Pro Full Play V-Mount Battery sztuzdxyafrdwccvtdzaaqdftubd D-Box Distro Plate with V-Mount AC Power Adapter Cable Connector for URSA Mini/Mini Pro 15mm Rod Clamps Removable Delta Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE D-Box Camera Power & Charger Kit with 98Wh Battery for Blackmagic URSA Mini Mini Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE KBBUM Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap | | USB Output | 5 V, 4 A | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 11.4 x 11.2 x 4.6" |
