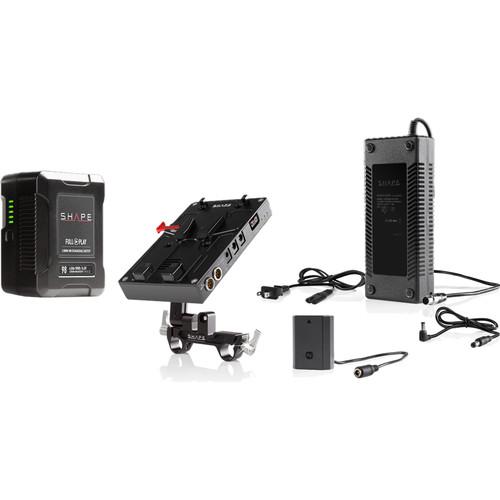

Product description The D-Box Camera Power & Charger Kit from SHAPE is composed of a D-Box power and charger kit and a 14.8V 98Wh rechargeable lithium-ion V-mount battery. It is compatible with Sony a7 III and a7R III cameras. The D-Box has five outputs including D-Tap and 5, 8, 12, and 16.8V ports, plus USB 5V. It supports up to 100W of power consumption from the device and includes a 15mm rod mount bracket with a locking and angle adjustment system. The battery supports a continuous draw of up to 12A. When the D-Box is plugged in you can safely disconnect and reconnect the battery without powering down your rig. A 110 to 240V power supply, AC power cable, 8/12V cable output connector, a7 III/a7R III cable connector, and removable Delta plate are included. - Full Play V-Mount Battery
- SHAPE D-BOX CAMERA POWER AND CHARGERS

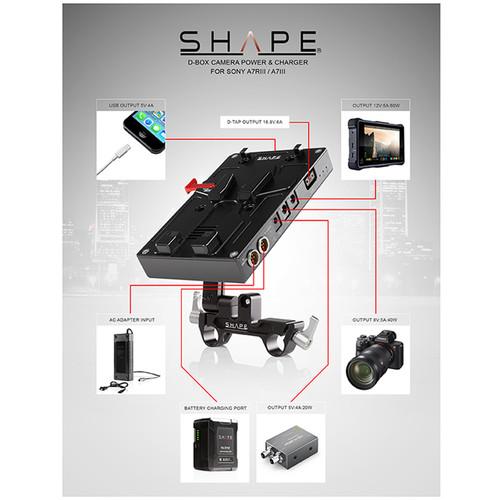

The Shape Full Play V-Mount Battery features a compact design that easily fits on small or large cameras, monitors, lights, or other pro video equipment. Power-hungry equipment can draw up to 12 amps, between the V-mount and D-Tap on the side. A USB output is provided for small video accessories or for charging smartphones or on-set mobile devices. Battery capacity can be quickly checked via the 4-segment LED meter. The battery's box-like design can be easily stacked for storage, or packed away in a case for transport. UPC: 629266008034 - D-Box Camera Power & Charger Kit for Sony a7R III and a7 III Series The D-Box Camera Power & Charger Kit from SHAPE is composed of a D-Box power and charger compatible with Sony a7 III and a7R III cameras. It features a small-size, lightweight V-mount battery plate with safe lock. The D-Box has five outputs including D-Tap and 5, 8, 12, and 16.8V ports, as well as USB 5V. It supports up to 100W power consumption from the device and includes a 15mm rod mount bracket with locking and angle adjustment system. There are threaded holes at the back of the plate for mounting on a cheese plate and LED indicators for power. When the D-Box is plugged in you can safely disconnect and reconnect a separately available battery without powering down your rig. A 110 to 240V power supply, AC power cable, 8/12V cable output connector, a7 III/a7R III cable connector, and removable Delta plate are included.
- Compatible with most professional DSLRs and cameras such as ARRI, Blackmagic, Canon Cinema EOS, Canon EOS, Panasonic, RED, Sony P series, Sony ILCE, and mirrorless
- 15" cable compatible with Sony a7 III and a7R III
- Output cable compatible with 8 or 12V outputs
- BP charger input to use and charge a battery (available separately) at the same time
- AC adapter input to use without a battery
- Delta plate included to mount on the D-Box main unit

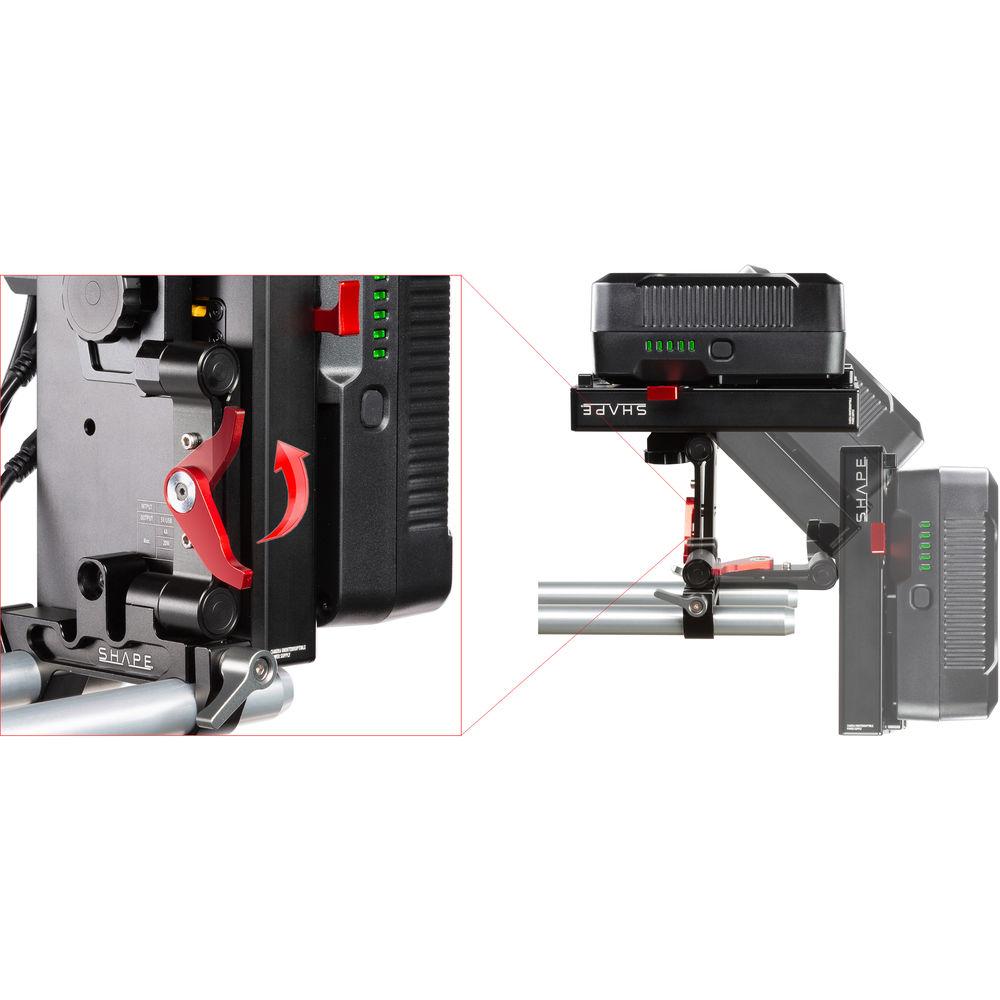

- Knob system to lock and adjust the position of the D-Box unit
- Gold Mount converter and 5V output cable available separately
UPC: 629266008966 In the Box Bundle Items Full Play V-Mount Battery abdxcvyvbxyeaytybcyqsyqevsyuvuz D-Box Camera Power & Charger Kit for Sony a7R III and a7 III Series - D-Box Power & Charger (V-Mount)
- Cable Output Connector (8V, 12V)
- Cable Connector (a7 III, a7R III)
- Tool Box Kit (Allen Key, Mounting Screws)
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE D-Box Camera Power & Charger Kit with 98Wh Battery for Sony a7R III & a7 III in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Full Play V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Accessory Mounting Thread | None | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.2" / 12.0 x 9.1 x 5.5 cm | | Weight | 1.5 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 2.5" | - D-Box Camera Power & Charger Kit for Sony a7R III and a7 III Series
| Materials | Shock-Resistant, PPS Aircraft-Grade | | Power Supply | Input: 110-240 V, 2 A at 50/60 Hz
Output: 16.8 V, 6 A | | Outputs | 1 x 5 V, 4 A, 20 W
1 x 8 V, 5 A, 40 W
1 x 12 V, 5 A, 60 W
1 x D-Tap 16.8 V, 6 A, 100 W

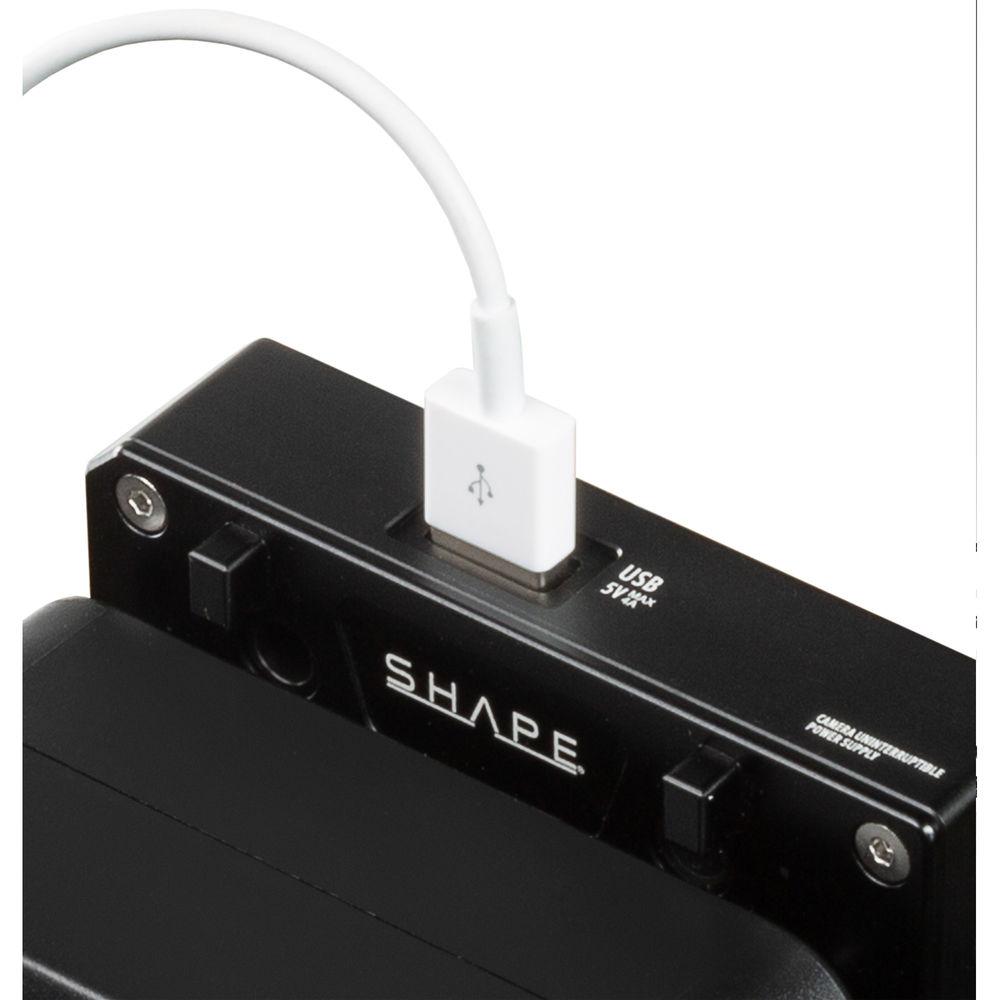

1 x USB 5 V, 4 A | | Dimensions | 5.51 X 3.54 X 0.79" / 14.0 X 8.99 X 2.01 cm | | Weight | 2.31 lb / 1.05 kg | | | | Box Dimensions (LxWxH) | 11.35 x 4.85 x 3.65" |
