User Manual for SHAPE Delta Marbel Quick Release Kit Click to enlarge the picture
Contents of the user manual for the SHAPE Delta Marbel Quick Release Kit
- Product category: Quick Release Assemblies SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Quick Release Assemblies
|
User manual for the SHAPE Delta Marbel Quick Release Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

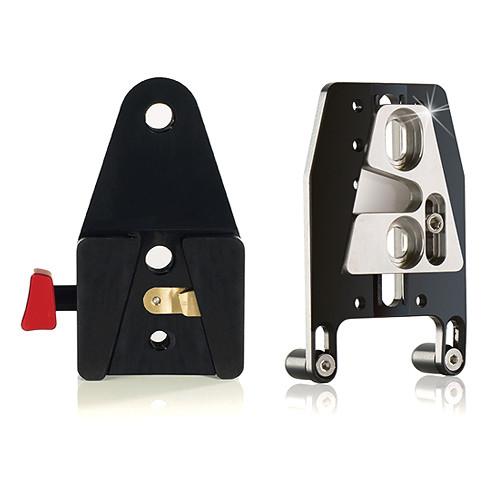

Product description The SHAPE Delta Marbel Quick Release Kit includes a V-lock delta quick release plate and V-lock delta quick release adapter that you can use to quickly mount any camera to any support platform.
Featuring one 1/4"-20 thread and one 3/8"-16 thread, the quick release plate can be attached to the camera platform of any tripod or video rig. The quick release adapter features two 1/4" holes, attaches on the bottom of your camera, and allows quick release mounting/dismounting on and off the plate. A simple push of a release button on the side of the quick-release plate releases the adapter and allows you to remove your camera. The plate supports loads up to 50 lb. All the necessary screws are supplied.
The adapter attaches to your camera along with an included, thin camera plate. The camera plate has stoppers on the back that will keep the camera from twisting sideways. The camera plate and stoppers are both adjustable to support different-size cameras, and the stoppers can be removed completely to make room for full-size cameras. An alignment screw is included to secure the camera plate in place.
The quick release adapter is also compatible with third party V-lock delta plates, such as the Sony VCT-U14. - Key Features
-
- Includes V-lock delta quick release plate and adapter
- Allows you to quickly mount any camera to any support platform
- Adjustable/removable camera stoppers keep the camera from twisting
- Supports loads up to 50 lb
UPC: 629266001493 In the Box SHAPE Delta Marbel Quick Release Kit V-Lock Quick Release Plate V-Lock Quick Release Delta Adapter with 1/4"-20 Screw and Alignment Screw Spare 1/4"-20 Screw and Alignment Screw Camera Mid-Plate with Removable Stoppers Set of Hex Keys Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Delta Marbel Quick Release Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE DELTAQUICK Specs | Payload | Quick release plate supports loads up to 50 lb (22.7 kg) | | Mount Types | Quick release plate features 1x 1/4"-20 thread and 1x 3/8"-16 thread
Quick release adapter features 1x 1/4" pass-through hole and one elongated 1/4" pass-through hole | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 8.74 x 5.433 x 2.362" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
