User Manual for SHAPE Director's Kit with Handles Click to enlarge the picture
Contents of the user manual for the SHAPE Director's Kit with Handles
- Product category: Director's Monitor Brackets SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Director's Monitor Brackets
|
User manual for the SHAPE Director's Kit with Handles contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

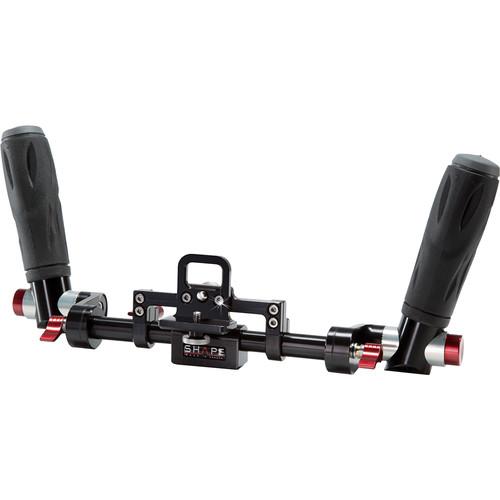

Product description The SHAPE Director's Kit with Handles provides an adjustable handheld solution for monitoring on set. On the ends you get push button-adjustable 360° rotatable handles with comfortable rubbers handgrips, and in the center is a bracket for attaching a monitor. A 1/4"-20 screw secures to the monitor from underneath the bracket while a second screw can be secured from the rear when you use a compatible SHAPE monitor cage.
Aside from providing a handheld solution, the Director's Kit is also designed to be mounted on gobo stands and C-stands via a universal mounting hole on the bottom of the center bloc. A screw on the rear of the bloc tightens it to your stand. Additionally, the Director's Kit can be mounted on the optional SHAPE 15mm Rod Bloc (MFR # ICONBLOC), which allows mounting it on rods. It can also be placed on flat surfaces by rotating the handles and aligning them to function as stands. When it's set on flat surfaces as such, you can change the tilt angle of the monitor by loosening a red lever on the rear and changing the tilt position of the center bracket.
The Director's Kit supports 5 and 7" monitors as well as tablets via 1/4"-20 tablet adapters. Even if you use a 12" tablet it'll fit because you can rotate the handles to the rear and out of the way. - Key Features
-
- Handheld/stand mount/optional rod-mount solution for monitoring on set
- Monitor bracket in the center for 5 and 7" monitors (also supports tablets via optional 1/4"-20 adapters)
- Push button-adjustable 360° rotatable handles
- Second 1/4"-20 screw can be secured from the rear when you use a compatible SHAPE monitor cage
- Can be mounted on gobo stands and C-stands via the center bloc
- Compatible with optional SHAPE 15mm Rod Bloc
- Can be placed on flat surfaces by pushing the handles backward and setting them to serve as stands
UPC: 629266005279 In the Box SHAPE Director's Kit with Handles 2 x Single Handle with ARRI Rosette cduqwuvbbydqbqufrrcqwb 2 x 1/4"-20 Captive Screw Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Director's Kit with Handles in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE ICON1 Specs | Mount Types | 2 x ARRI Rosettes
2 x 1/4-20 Screws
Universal Hole (with Tightening Screw on Rear) for Stands | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 8.7 x 7.4 x 4.3" |
