User Manual for SHAPE Director's Kit with Wooden Handles Click to enlarge the picture
Contents of the user manual for the SHAPE Director's Kit with Wooden Handles
- Product category: Director's Monitor Brackets SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Director's Monitor Brackets
|
User manual for the SHAPE Director's Kit with Wooden Handles contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description - SHAPE ICON TECHNICAL VIDEO

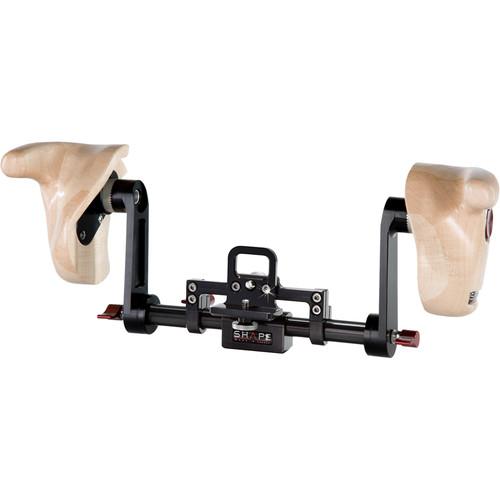

The SHAPE Director's Kit with Wooden Handles enables you to comfortably hold your monitor while remaining mobile on set. Attach your monitor of choice to the 1/4"-20 or 3/8"-16 mounting points and you're ready to go. Both handles can rotate 360° for positioning to your liking at the push of SHAPE's iconic red button. When you're not holding the monitor, use the built-in support bracket to secure the monitor to a C stand or gobo. Alternatively, reposition the handles to stand the monitor up on a flat surface. - Two 1/4"-20 captive screws to secure the monitor position on the angle bracket
- Monitor's position can be rotated forward and backward
- Includes a pair of SHAPE Wooden handles made from Canadian maple hardwood
- Wooden handles feature push button technology and SHAPE red ratchet key for fast and easy adjustments
- Handles are attached with SHAPE standard ARRI rosette on each side on the monitor support
- Handles can be moved up and down with 360° rotation
- Handles can be positioned backward for desktop configuration and easily hold on a flat surface
- Can be combined with the ICON 15mm Rod Bloc Spigot 750 standard for installation on rods
- Monitor support can be installed on a gobo stand and fixed with the SHAPE red ratchet key
- Compatible with the monitor which has threaded holes underneath
- Universal bracket for monitors between 7 to 9"
- Compatible with most monitors from manufacturers such as Small HD, Atomos, TV Logic, ikan, Sony, Ikegami, Astro Design, Liliput, Video Devices, and more
- Constructed from CNC aluminum
UPC: 629266005361 In the Box SHAPE Director's Kit with Wooden Handles Neck Strap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Director's Kit with Wooden Handles in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE W-ICON1 Specs | Accessory Mounting Threads | 1/4"-20 and 3/8"-16 threaded holes | | Dimensions (H x W x D) | 8 x 15 x 2.5" / 20.3 x 38.1 x 6.4 cm | | Weight | 3.75 lb / 1.7 kg | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 14.1 x 5.8 x 4.4" |
