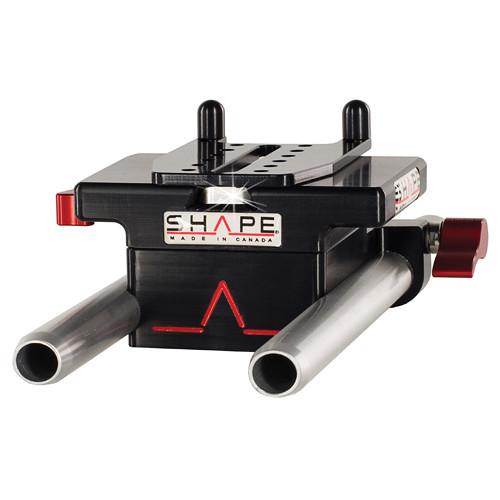

User Manual for SHAPE DSLR Kirk Neff Baseplate 2.0 Click to enlarge the picture
Contents of the user manual for the SHAPE DSLR Kirk Neff Baseplate 2.0
- Product category: DSLR Video Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE DSLR Video Supports & Rigs
|
User manual for the SHAPE DSLR Kirk Neff Baseplate 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description The DSLR Kirk Neff Baseplate 2.0 from SHAPE is a 15mm rod baseplate designed for DSLR cameras that utilizes a standard V-lock quick-release system. The quick-release plate provides a 1/4"-20 threaded camera screw and has rubber stoppers at the back to prevent your camera from twisting during operation. The rubber stoppers can be adjusted and removed using the included hex key. For alignment and balance adjustments, the V-lock delta adapter on the bottom of the quick-release plate can be also adjusted forward/backward, and the camera screw can be placed in a front or rear position - using appropriate hex keys.
The baseplate itself features two 15mm rod ports with thumbscrews. It's design places the optical center of camera between the two rods and places the lens at a height suitable for use with a matte box. A pair of 8" aluminum rods come included. - Key Features
-
- 15mm rod baseplate for DSLR cameras
- V-lock quick-release system
- Adjustable and removable rubber stoppers on quick-release plate prevent camera for twisting
- 1/4"-20 camera screw
- Baseplate respects DSLR optical center
- 8" aluminum 15mm rods included
UPC: 629266002353 In the Box SHAPE DSLR Kirk Neff Baseplate 2.0 Delta Adapter vwzxsfcqwdbvrescvsccwezsvcszdy 1/4"-20 Camera Screw 2 x 8" Aluminum 15mm Rods (Silver) Hex Key Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE DSLR Kirk Neff Baseplate 2.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE DSLRKNBPLT2.0 Specs | Material of Construction | CNC machined aluminum | | Quick Release Plate | V-lock delta adapter | | Camera Screw | 1/4"-20 | | Tripod Mounting Thread | 1/4"-20 and 3/8"-16 | | Rod Length | 8" (20.3 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.189 x 4.646 x 4.488" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
