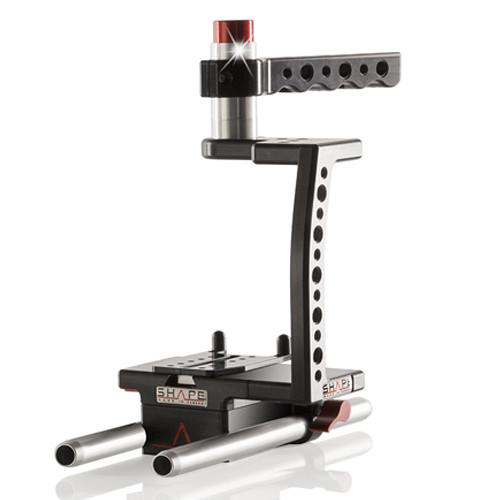

User Manual for SHAPE DSLR Kirk Neff Baseplate Cage 2.0 Click to enlarge the picture
Contents of the user manual for the SHAPE DSLR Kirk Neff Baseplate Cage
- Product category: DSLR Video Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE DSLR Video Supports & Rigs
|
User manual for the SHAPE DSLR Kirk Neff Baseplate Cage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description The SHAPE DSLR Kirk Neff Baseplate + Cage 2.0 is a baseplate and half-cage integrated into one unit and featuring an adjustable top handle assembled on top. It features a V-lock delta receptacle on the baseplate and includes a V-lock adapter that attaches to your DSLR and allows quick release mounting/dismounting.
The top-handle rotates a full 360° at the press of a push-button on top. Two 8" 15mm rods are included for attaching a follow focus, matte box, and other accessories. They insert into rod ports at the bottom of the baseplate and secure into place by a single ratcheting lever. All the components are positioned to provide precise optical centering.
The baseplate offers 1/4"-20 and 3/8"-16 tripod mount threads on the bottom, and the top handle and side cage feature 1/4"-20 and 3/8"-16 accessory mounting threads. The V-lock adapter attaches to the bottom of your camera along with a thin camera plate, also included, using a supplied 1/4"-20 screw. The camera plate has stoppers on the back that will keep the camera from twisting sideways. The plate and the stoppers are both adjustable to support different-sized cameras. An alignment screw secures the plate in place. When the camera is mounted on the baseplate, a simple push of a release button on the side releases the V-lock adapter from place and allows you to remove your camera. - Key Features
-
- Baseplate and half-cage with V-lock quick release mechanism
- 360° push-button adjustable top handle
- Includes two 8" 15mm rods
- 1/4"-20 and 3/8"-16 tripod mount threads and accessory mounting threads
- Adjustable mid-plate with camera stoppers
- Endorsed by videographer Kirk Neff
UPC: 629266002346 In the Box SHAPE DSLR Kirk Neff Baseplate + Cage 2.0 V-Lock Delta Adapter Camera Mid-Plate 1/4"-20 Camera Screw Alignment Screw 360° Adjustable Top Handle Set of 3 Different Sized Hex Keys 15mm Aluminum Rods (Pair, 8") wqqqxbebfttrfzyzveafdctuwtffcsdwuxyey Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE DSLR Kirk Neff Baseplate Cage 2.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE DSLRKN2.0 Specs | Included Rods | 2x 15 mm rods, 8" long (20 cm) | | Mount Types | V-lock Delta quick release
1/4"-20 and 3/8"-16 tripod mount threads
1/4"-20 and 3/8"-16 accessory mounting threads | | Material | Solid, CNC-machined aluminum | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 14.173 x 6.063 x 4.882" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
