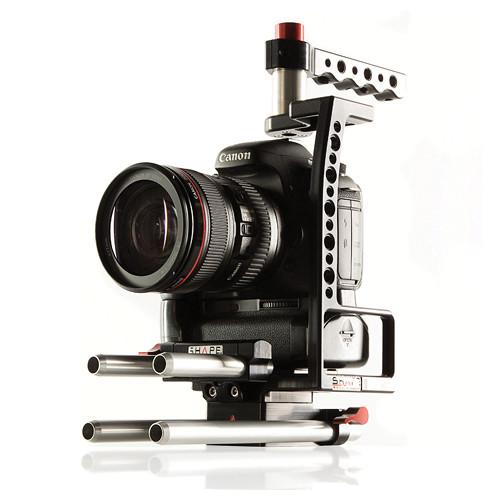

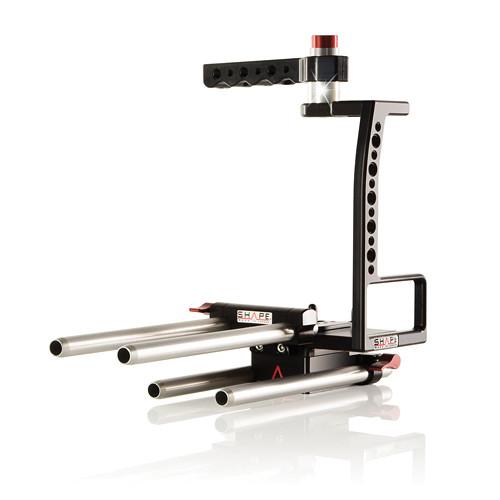

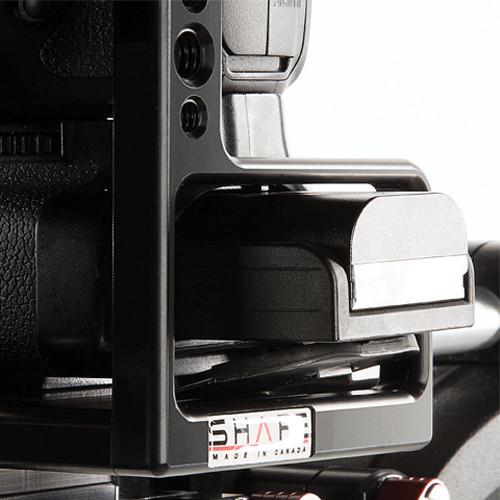

Product description The SHAPE DSLR Kirk Neff Baseplate + Cage Over Size 2.0 is a baseplate and half-cage designed for a larger bodied DSLR camera, such as the Canon 1D C or Nikon D4, or a smaller DSLR camera with battery grip. The baseplate and half-cage are integrated into one unit and feature an adjustable top handle assembled on top, two 15mm rod blocks, and a standard V-lock quick-release system.

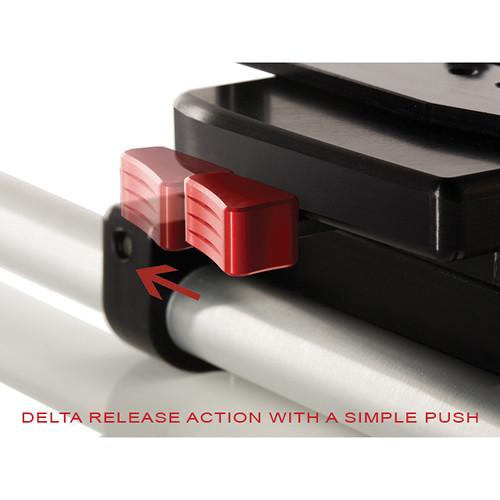

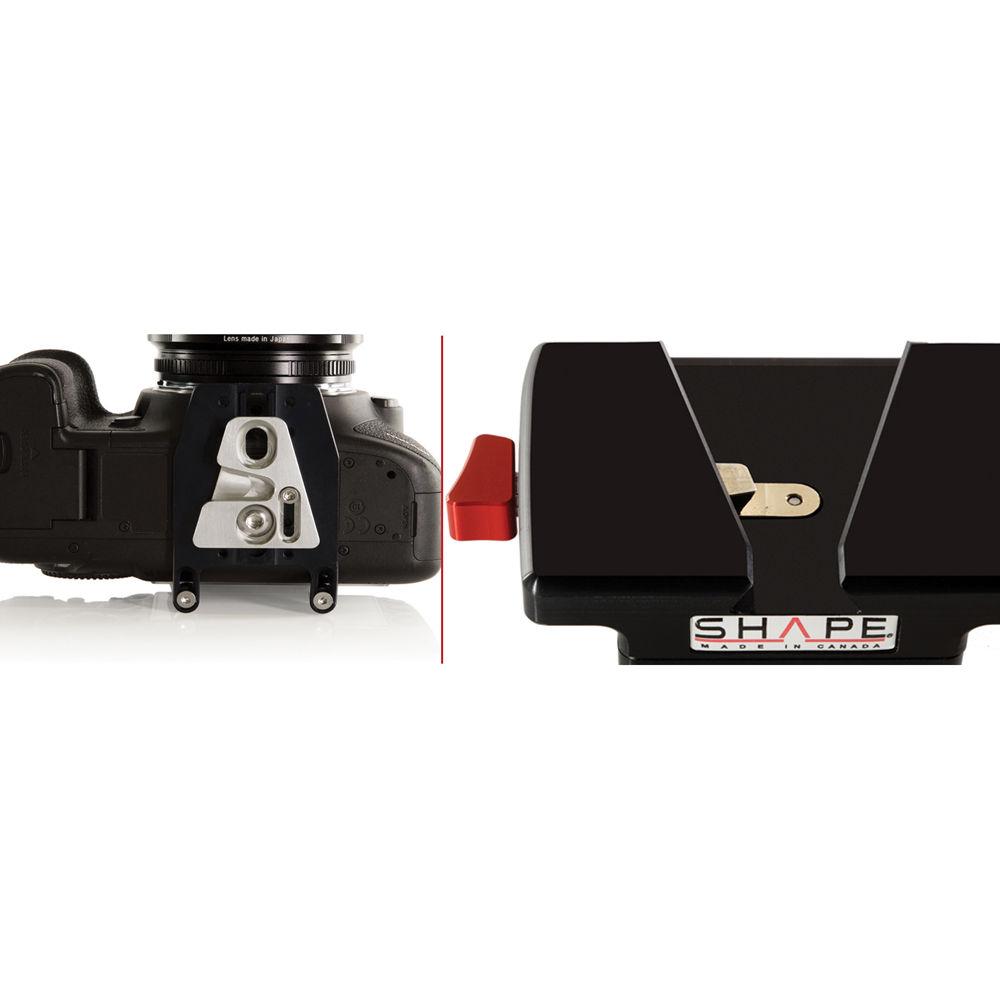

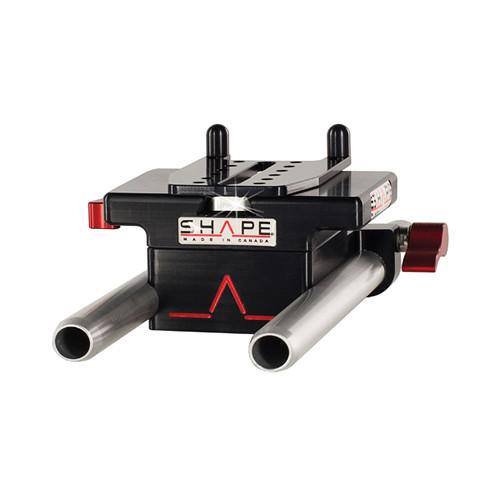

The quick release plate attaches to the bottom of your camera using a supplied 1/4"-20 screw and has adjustable rubber stoppers at the back to prevent your camera from twisting during operation. For alignment and balance adjustments, the V-lock delta adapter on the bottom of the quick-release plate can be also adjusted forward/backward via an adjustment screw, and the camera screw can be placed in a front or rear position using appropriate hex keys. All screw adjustments are made using included hex keys.
The top-handle rotates a full 360° at the press of a push-button on top. Two 15mm rod mount blocks are provided: one at the base of the unit and one at cage-level. The cage-level rod block allows 1/2" of vertical adjustment to properly align of a matte box and follow focus with your lens. Each rod block has a ratcheting lever to secured the rods into place. Two pairs of 15mm rods come included in 6" and 8" lengths.
The baseplate provides 1/4"-20 and 3/8"-16 mounting threads for use on a tripod. The top handle and side cage feature 1/4"-20 and 3/8"-16 threads for adding various camera accessories. - Key Features
-
- Baseplate and half-cage with V-lock quick release mechanism
- Designed for larger DSLR bodies (such as Canon 1D C or Nikon D4) or DSLR camera with battery grip attached
- 360° push-button adjustable top handle
- Quick release plate with adjustable camera stoppers
- Two 15mm rod blocks
- 8" and 6" aluminum 15mm rods included
- Two 6" aluminum 15mm rods
- 1/4"-20 and 3/8"-16 tripod mount threads and accessory mounting threads
- Endorsed by videographer Kirk Neff
UPC: 629266002339 In the Box SHAPE DSLR Kirk Neff Baseplate + Cage Over Size 2.0 Quick Release Plate with V-Lock Delta Adapter 1/4"-20 Camera (Short) 1/4"-20 Screw (Long) 15mm Aluminum Rods (Pair, 8") 19mm Aluminum Rods (Pair, 6") 3 x Hex Key Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE DSLR Kirk Neff Baseplate Cage Over Size 2.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE DSLRKNOS2.0 Specs | Material | CNC machined aluminum | | Mount Types | V-lock Delta quick release
1/4"-20 and 3/8"-16 tripod mount threads
1/4"-20 and 3/8"-16 accessory mounting threads | | Included Rods | 2 x 15mm rods, 8" (20 cm) long
2 x 15mm rods, 6" (15 cm) long | | Dimensions | 11.75 x 5.13 x 8.25" (29.85 x 13.02 x 20.96 cm), with handle pointed toward back | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 14.409 x 5.827 x 4.882" |
