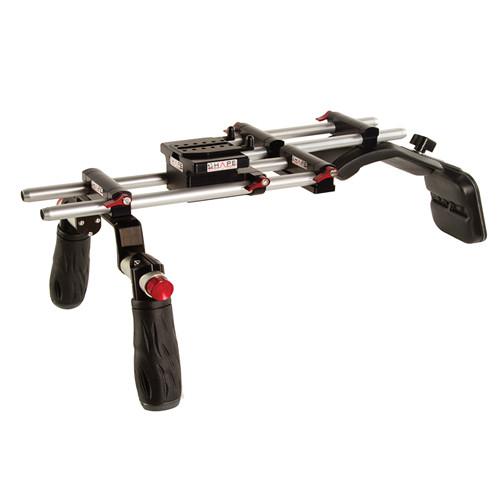

Product description The DSLR Kirk Neff Offset Rig from SHAPE is a 15mm rod, shoulder-mount solution designed for DSLR or other compact cameras. The offset design places your camera's LCD screen in front of your eyes for easier viewing while shooting. Centered around the DSLR Kirk Neff Baseplate 2.0, the rig features a rod offset bracket, and a pair of 10" and 12" long 15mm rods that support the included shoulder pad and handgrips. The shoulder pad and handgrips can be removed for tripod-mounted setups.
Your camera attaches to the baseplate via a V-lock quick-release camera plate. The plate is also compatible with third party support systems that utilize the V-lock interface. The baseplate provides clamps to support one of the 15mm rod pairs, allowing you to the dual handgrips in front of the baseplate, as well as the rod offset bracket behind it.
The Quick Handle Rod Bloc provides dual handgrip support and features SHAPE's push button rosette release, which allows you to adjust the angle of the handgrips without having to remove your hands from the rig. At the rear of the rig is the Mini Composite Shoulder Pad which provides padded shoulder support for the rig. It mounts onto the pair of 15mm rods extending out the back of the rod offset bracket. A Back Pad is included which attaches to the shoulder pad for augmented camera support and comfort. A 1/4"-20 hole allows for additional accessories to be added.
Please see the links below for more information on the various components of this bundle. - DSLR Kirk Neff Baseplate 2.0 The DSLR Kirk Neff Baseplate 2.0 from SHAPE is a 15mm rod baseplate designed for DSLR cameras that utilizes a standard V-lock quick-release system. The quick-release plate provides a 1/4"-20 threaded camera screw and has rubber stoppers at the back to prevent your camera from twisting during operation. The rubber stoppers can be adjusted and removed using the included hex key. For alignment and balance adjustments, the V-lock delta adapter on the bottom of the quick-release plate can be also adjusted forward/backward, and the camera screw can be placed in a front or rear position - using appropriate hex keys.
The baseplate itself features two 15mm rod ports with thumbscrews. It's design places the optical center of camera between the two rods and places the lens at a height suitable for use with a matte box. A pair of 8" aluminum rods come included. - Key Features
-
- 15mm rod baseplate for DSLR cameras
- V-lock quick-release system
- Adjustable and removable rubber stoppers on quick-release plate prevent camera for twisting
- 1/4"-20 camera screw
- Baseplate respects DSLR optical center
- 8" aluminum 15mm rods included
UPC: 629266002353 - Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle - Provides professional video stabilization with 2 handles
- Each handle offers 360° individual rotation
- Offers easy attachment/removal
Rod Block - Composed of anodized aluminum
- Offers composite camera support for all 15mm rods
- Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
- With 2 screw-threaded holes, the Rod Block provides for attachment of components
UPC: 629266000793 - Mini Composite Shoulder Pad The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830
- Back Pad The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
- Compatible Support Series
-
- Composite
- Cameleon
- Sumo
- Spider
UPC: 629266001202 - Off-Set Bracket for Blackmagic Cage The SHAPE Off-Set Bracket will fit on the SHAPE Blackmagic Cage and Shoulder Mount. UPC: 629266001462
- 15mm Aluminum Rods (Pair, 10") This pair of Shape 15mm Aluminum Rods (10") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 10 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001707 - 15mm Aluminum Rods (Pair, 12") This pair of Shape 15mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001714 In the Box Bundle Items DSLR Kirk Neff Baseplate 2.0 wfsvductfbtcvyzes - 2 x 8" Aluminum 15mm Rods (Silver)
- Limited Lifetime Warranty
Quick Handle + Rod Block Mini Composite Shoulder Pad - Camera Screw Knob (1/4"-20)
Back Pad - Limited Lifetime Warranty
Off-Set Bracket for Blackmagic Cage - Limited 1-Year Warranty on Parts & Labor
15mm Aluminum Rods (Pair, 10") - Limited Lifetime Warranty
15mm Aluminum Rods (Pair, 12") - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE DSLR Kirk Neff Offset Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DSLR Kirk Neff Baseplate 2.0
| Material of Construction | CNC machined aluminum | | Quick Release Plate | V-lock delta adapter | | Camera Screw | 1/4"-20 | | Tripod Mounting Thread | 1/4"-20 and 3/8"-16 | | Rod Length | 8" (20.3 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Box Dimensions (LxWxH) | 8.189 x 4.646 x 4.488" | - Quick Handle + Rod Block
| | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" | - Mini Composite Shoulder Pad
| | | Box Dimensions (LxWxH) | 6.5 x 4.3 x 3.4" | - Back Pad
| Material of Construction | Anodized aluminum | | Adjustments | Up/Down: 2" (5 cm)
Right/Left: 360° | | Weight | 0.5 lbs (0.2 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.5" | - Off-Set Bracket for Blackmagic Cage
| | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 2.3" | - 15mm Aluminum Rods (Pair, 10")
| Diameter | 15 mm | | Length | 10 inches (25.4 cm) | | Material | Aluminum with a clear finish applied over it | | | | Box Dimensions (LxWxH) | 12.0 x 3.4 x 0.4" | - 15mm Aluminum Rods (Pair, 12")
| Diameter | 15 mm | | Length | 12 inches (30.5 cm) | | Material | Aluminum with a clear finish applied over it | | | | Box Dimensions (LxWxH) | 12.4 x 3.2 x 1.1" |
