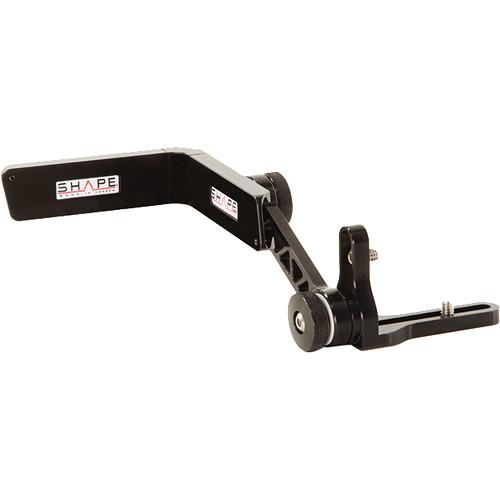

User Manual for SHAPE EVF Mount Shoe Mount L Bracket for Sony Click to enlarge the picture
Contents of the user manual for the SHAPE EVF Mount Shoe Mount L
- Product category: Misc. Components SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Misc. Components
|
User manual for the SHAPE EVF Mount Shoe Mount L contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description The Shape EVF Mount Shoe Mount L Bracket is an EVF support for Alphatron, Cineroid, Zacuto, and Sony electronic viewfinders. It mounts to the Shape ASHS or ASHS1/4, and that allows you to adjust the bracket side to side and lock it in place. It features two spring loaded tension knobs that allow you to adjust the position of the viewfinder at two points, with each point featuring 360° of rotation so you can easily adjust the viewfinder to be visible from almost any shooting angle.
The spring-loaded tension allows you to position your EVF where you want it and have it stay there without having to lock down the knobs. Of course if you need to lock the bracket in a specific position, just tighten the knobs all the way. The knobs are made from anodized aluminum and textured for a sure grip. The bracket is also machined from aluminum and anodized for wear and corrosion resistance. The bracket includes two stainless steel 1/4"-20 mounting screws that mount the EVF to the bracket. - Anodized aluminum construction
- Spring loaded tension adjustment for positioning EVF
- Supports Alphatron, Cineroid, Zacuto and Sony EVF
UPC: 629266000502 In the Box SHAPE EVF Mount Shoe Mount L Bracket for Sony 2 x 1/4"-20 Stainless Steel EVF Mounting Screws Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE EVF Mount Shoe Mount L Bracket for Sony in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE EVFSHL Specs | Material of Construction | Anodized aluminum
Stainless steel screws | | Dimensions | 7 x 4.5 x 4" (17.8 x 11.4 x 10.2 cm) | | Weight | 0.6 lb (272.2 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
