User Manual for SHAPE Follow Focus Kit with Single 15mm Rod Clamp Click to enlarge the picture
Contents of the user manual for the SHAPE Follow Focus Kit with Single
- Product category: Follow Focus Systems SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Follow Focus Systems
 |
User manual for the SHAPE Follow Focus Kit with Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

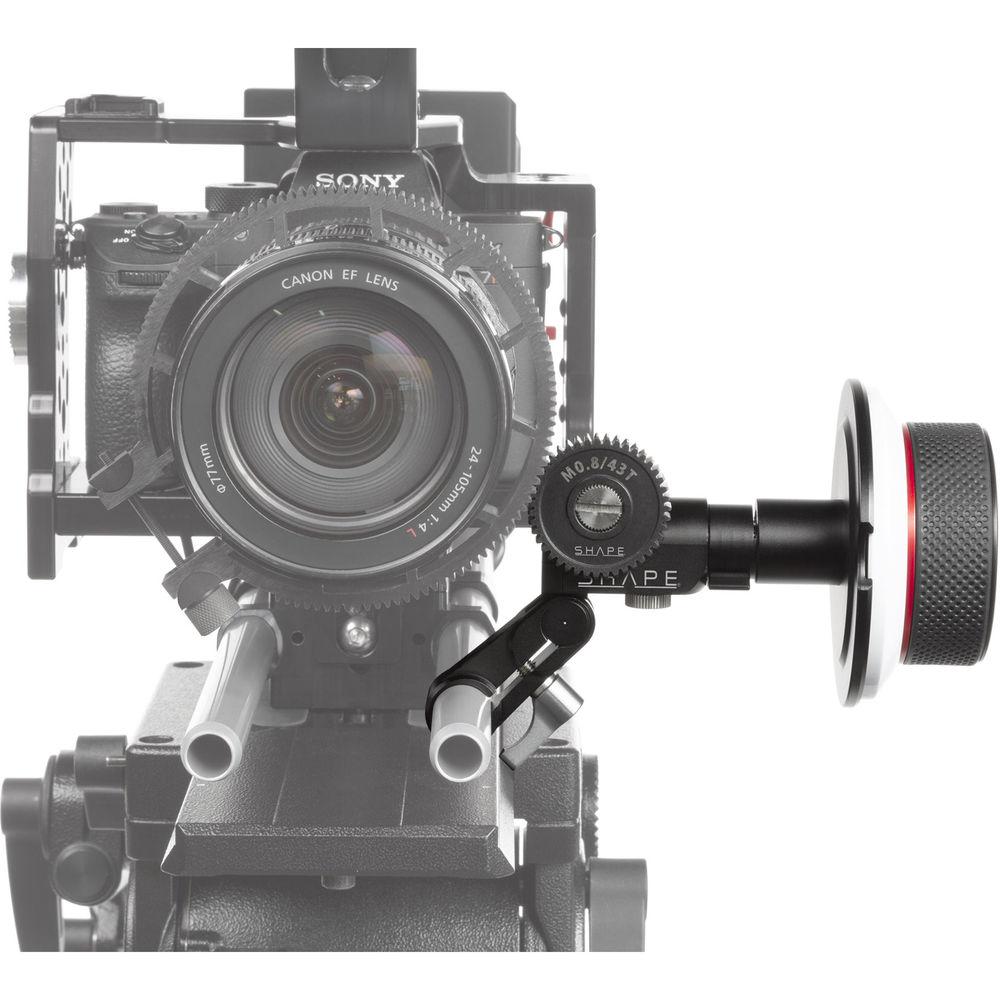

Product description Use the compact SHAPE Follow Focus Kit with Single 15mm Rod Clamp with your camera setup to make focus pulling easy. The modular design allows you to add and remove any of the components without screws or tools, and its small profile allows the addition of a matte box or accessories around your lens.

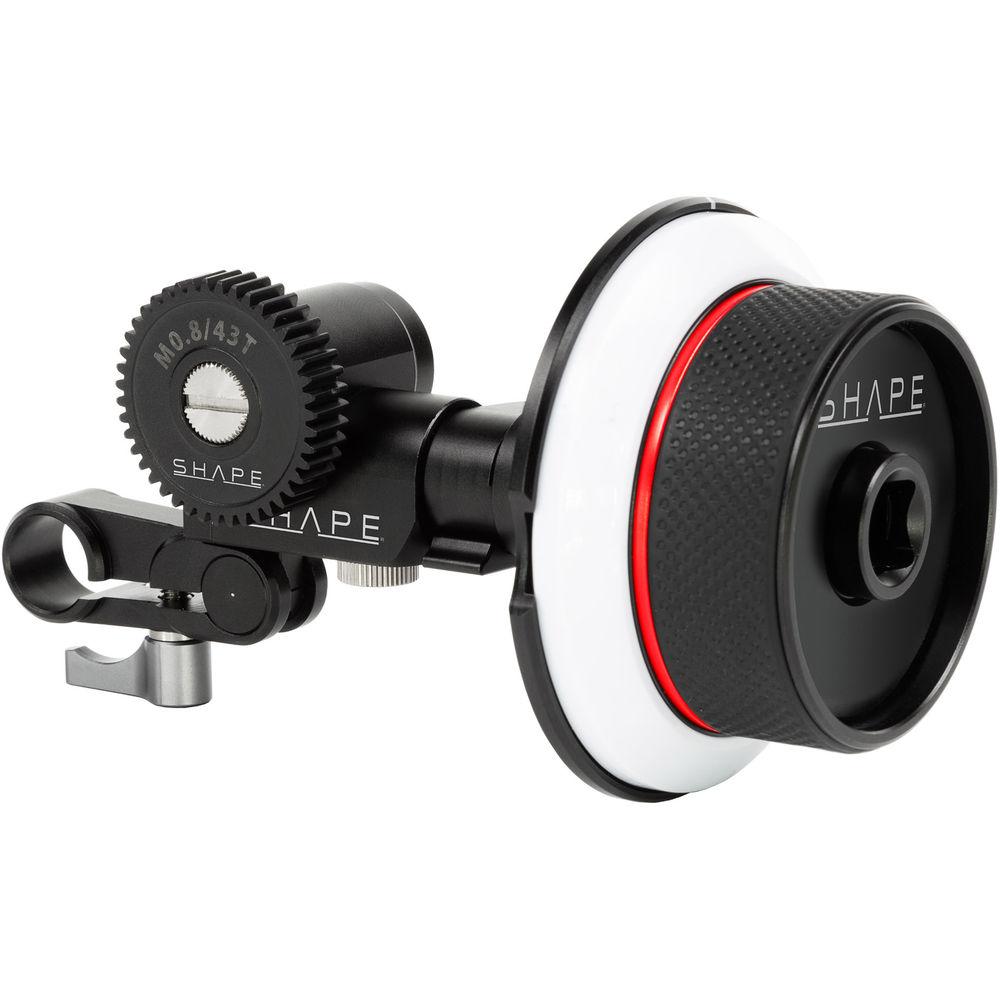

At the core of the kit is a rubber, anti-slip follow focus wheel attached to a single aluminum 15mm rod clamp. The clamp rotates to adjust to most lens sizes, and it's tightened by a locking lever. The clamp's rotation also allows the focus wheel to easily swing out of the way when changing lenses.
Five drive gears are included to fit a variety of lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to facilitate different lens configurations. A 49mm rubber friction wheel is also included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses.
For alternate fine-focus configurations, use the included speed crank or 11" whip, both of which attach to the center point of the knob. Four magnetic marking disks are included to attach to the focus wheel. - Modular design allows for addition and removal of components without tools or screws. Its compact size allows it to fit easily with lens accessories like a matte box.
- The rubber follow focus wheel is attached to an adjustable, aluminum 15mm rod clamp which can swing away when changing lenses.
- The focus wheel fits most lens sizes. Five drive gears are included: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T.
- A rubber friction wheel is included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses.
- An 11" whip and a speed crank are included. Each connects to the focus wheel for fine adjustments.
- Four magnetic marking disks are included to attach to the focus wheel.
UPC: 629266008645 In the Box SHAPE Follow Focus Kit with Single 15mm Rod Clamp Follow Focus with 15mm Rod Clamp 0.5 MOD/78T Gear 0.6 MOD/64T Gear 0.8 MOD/43T Gear 0.8 MOD/38T Gear 0.8 MOD/78T Gear Speed Crank 11" Whip 4 x Magnetic Marking Disk Rubber Friction Wheel Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Follow Focus Kit with Single 15mm Rod Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE FA123 Specs | Included Drive Gear | 0.5 / 0.6 / 0.8 MOD | | Rod Compatibility | 15 mm Single Rod | | Number of Sides | Single-Sided | | Built-In Hardstops | None | | Marking Disk | Yes | | Switchable Handwheel Speed | No | | Gear Material | Aluminum, Rubber | | Included Whip Length | 11" / 28 cm | | Dimensions | 7 x 4 x 3" / 17.8 x 10.2 x 7.6 cm | | Weight | 1.2 lb / 544 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 11.0 x 5.0 x 4.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
