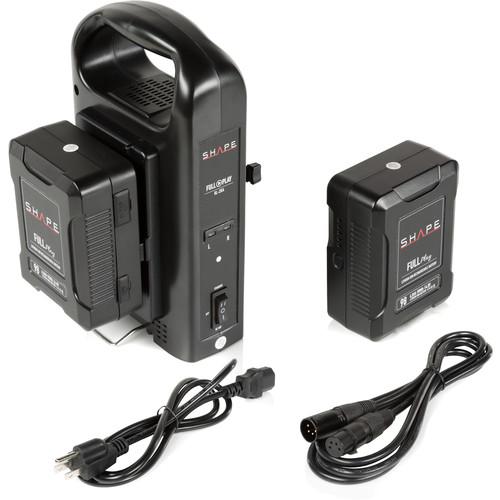

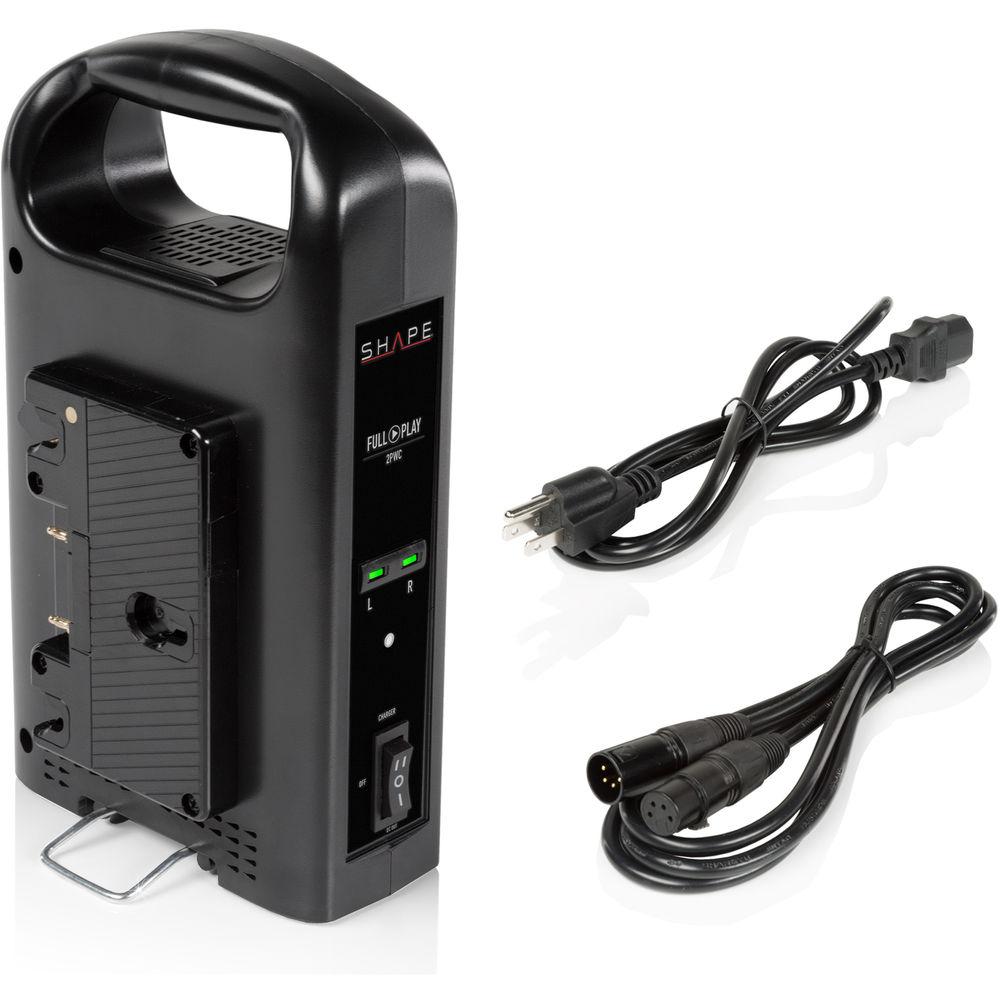

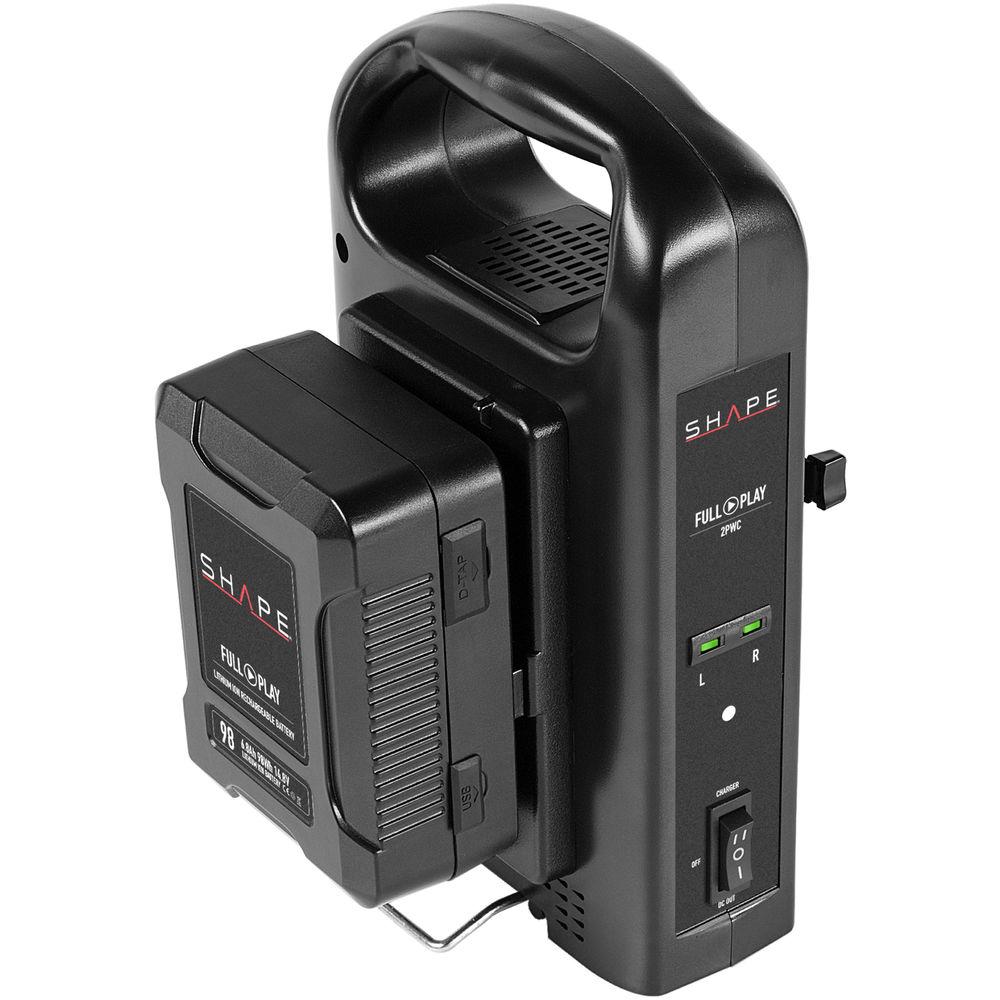

Product description The SHAPE Full Play 2 Battery Kit with 2-Bay Vertical Charger includes two 98Wh Gold mount batteries and a two-bay vertical charger. The Full Play batteries can support up to 12A draws from power-hungry equipment such as lights and cinema cameras. When the batteries are discharged, place them in the charger to replenish them. The charger will charge both slots simultaneously. See below for more information on the items included in this kit. - FULL PLAY Intelligent 2-Bay Vertical Gold Mount Battery Charger The SHAPE FULL PLAY Intelligent 2-Bay Vertical Gold Mount Battery Charger can charge two Gold mount batteries simultaneously. Having a vertical profile means this charger takes up a minimum of space when not in use. Connect the 4-pin XLR to your camera or light with the included 4-pin XLR cable and use the charger as a DC power supply, up to 60 watts. The compact vertical design is easy to transport using the top handle and the internal power supply can handle worldwide AC voltages. UPC: 629266008102

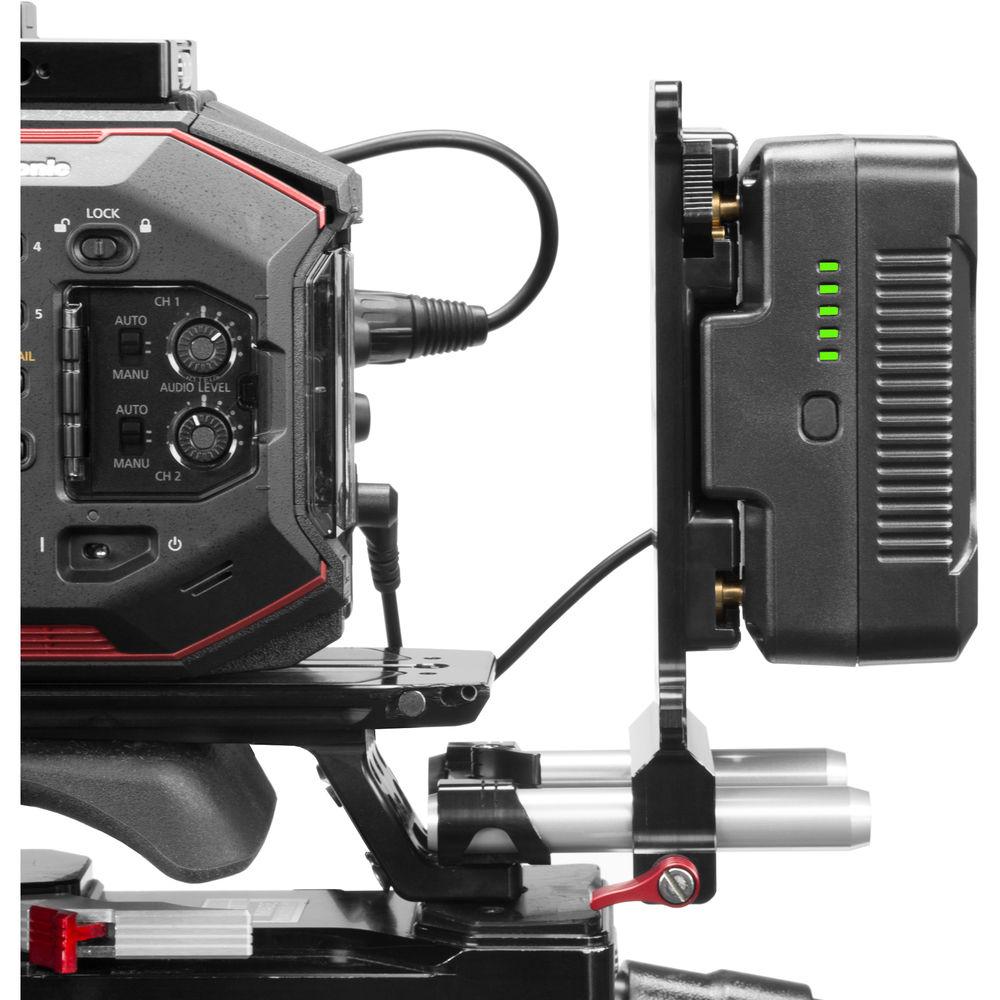

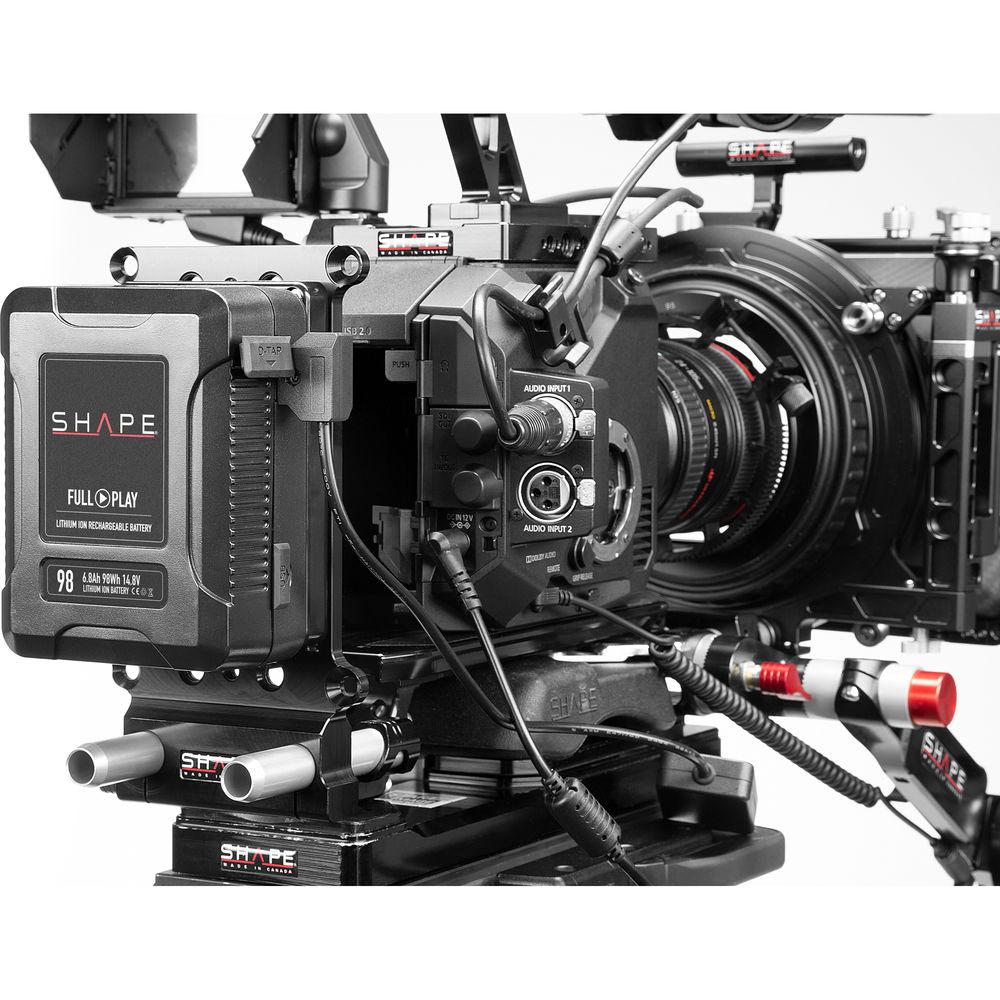

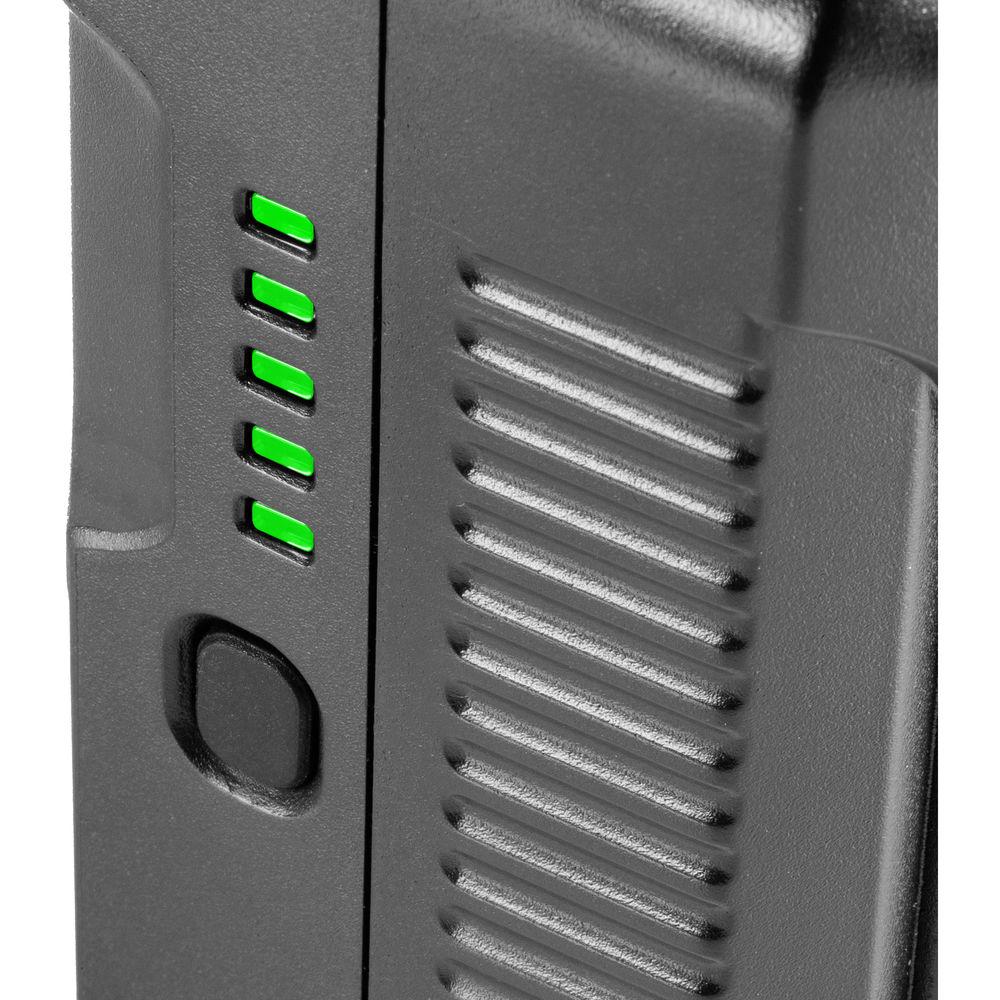

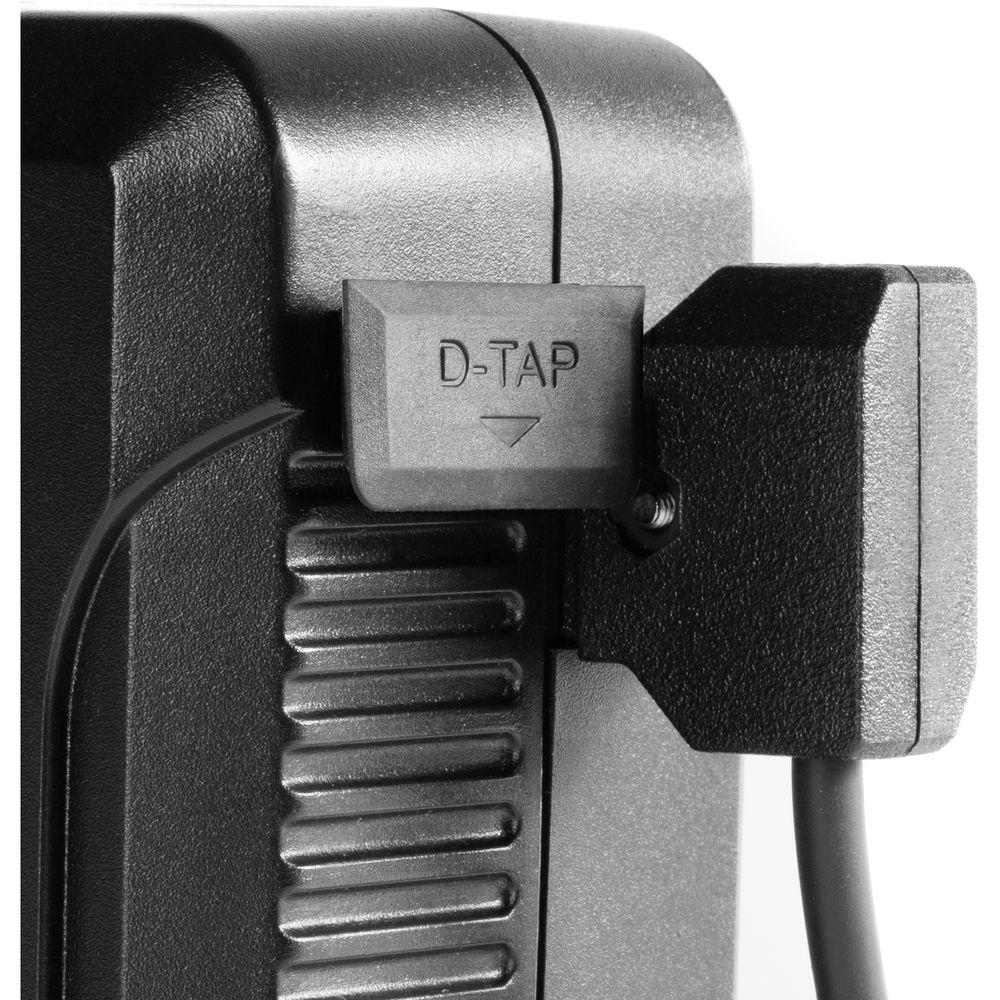

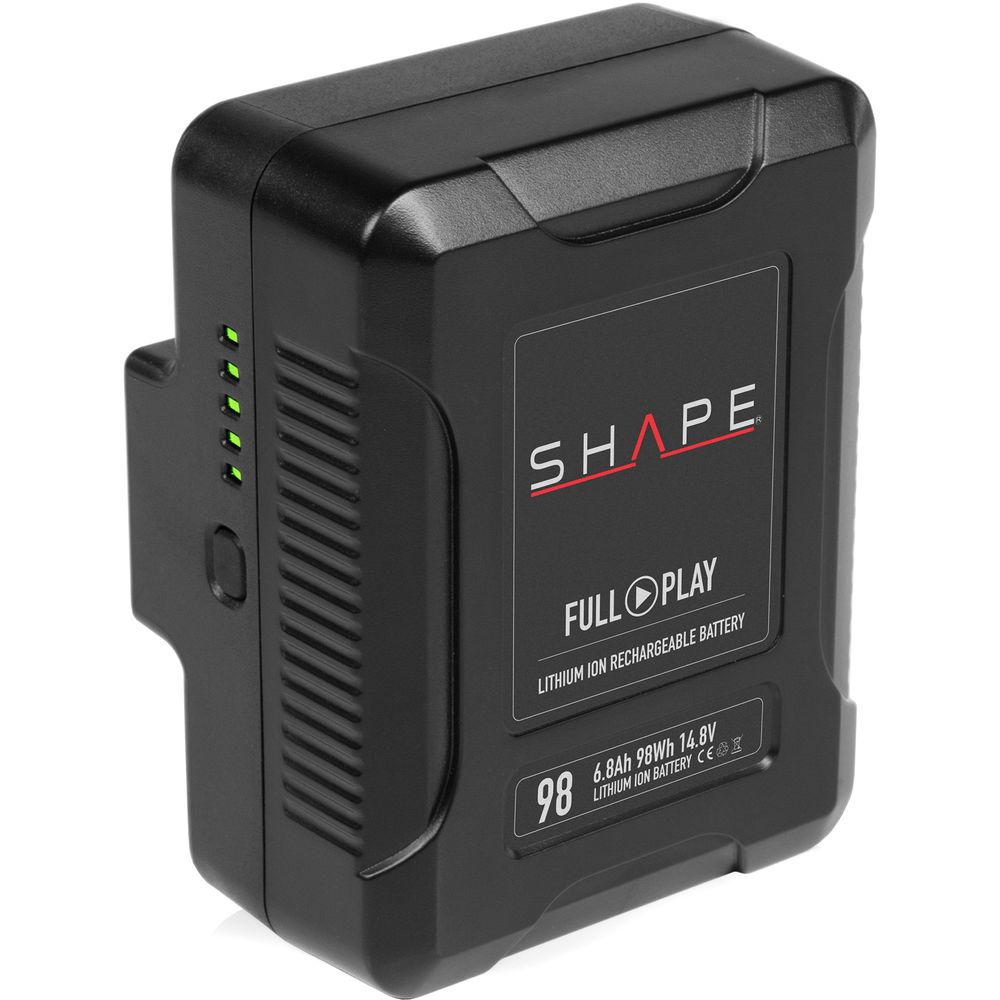

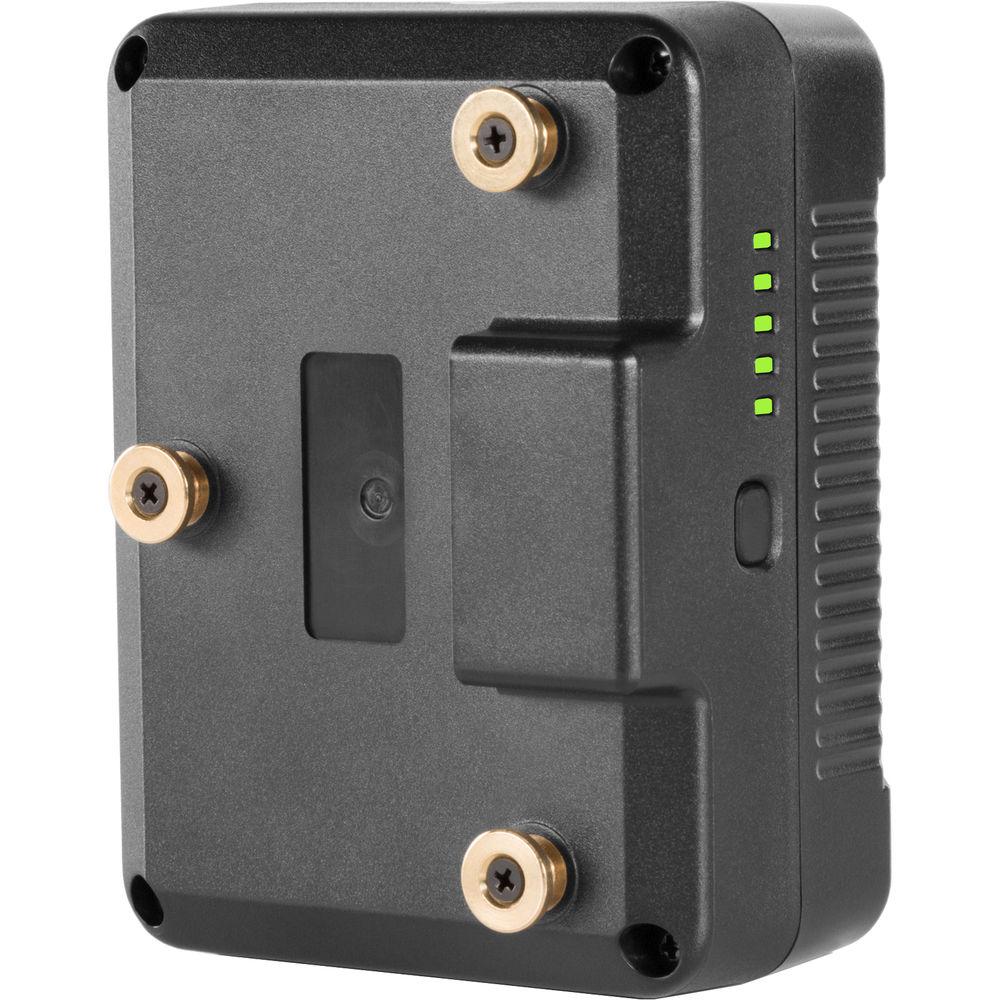

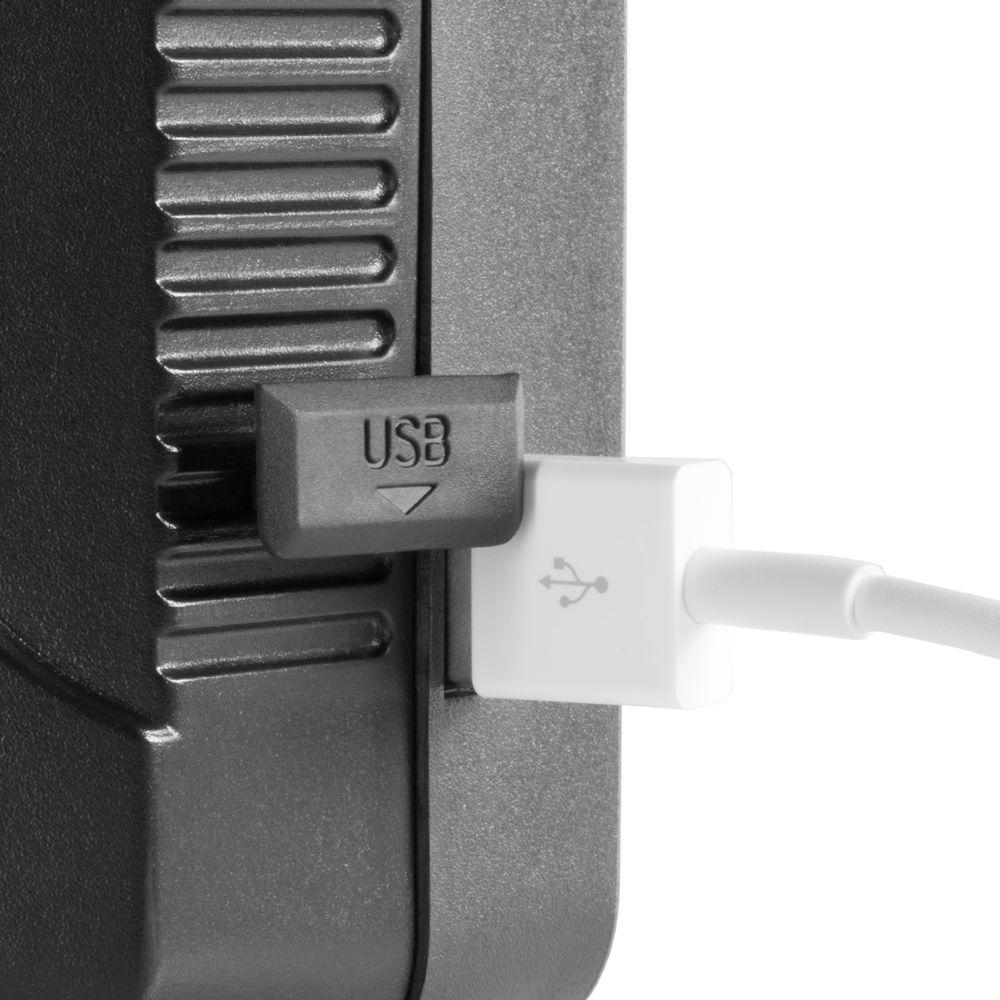

- Full Play Gold Mount Battery The Shape Full Play Gold Mount Battery features a compact design that easily fits on small or large cameras, monitors, lights, or other pro video equipment. Power-hungry equipment can draw up to 12 amps, between the Gold mount and D-Tap on the side. A USB output is provided for small video accessories or for charging smartphones or on-set mobile devices. Battery capacity can be quickly checked via the 4-segment LED meter. The battery's box-like design can be easily stacked for storage, or packed away in a case for transport. UPC: 629266008065
In the Box Bundle Items FULL PLAY Intelligent 2-Bay Vertical Gold Mount Battery Charger tdtxxueyrvbdsreabebdzb - Limited Lifetime Warranty
2 x Full Play Gold Mount Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Full Play 2 Battery Kit with 2-Bay Vertical Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FULL PLAY Intelligent 2-Bay Vertical Gold Mount Battery Charger
| Charging Current | 2.5 A | | Power Input | 100-240 VAC, 50/60 Hz | | 4-Pin XLR DC Output | 15 VDC, 4 A | | Dimensions | 9.7 x 5.9 x 3.9" / 24.5 x 15 x 10 cm | | Weight | 2.3 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 10.9 x 9.05 x 5.15" | - Full Play Gold Mount Battery
| Mount / Series Type | Gold Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Accessory Mounting Thread | None | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.2" / 12.0 x 9.1 x 5.5 cm | | Weight | 1.5 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 2.7" |
