User Manual for SHAPE Full Play 98Wh V-Mount Battery with Clamp for 25mm Gimbal Handlebar Click to enlarge the picture
Contents of the user manual for the SHAPE Full Play 98Wh V-Mount Battery
- Product category: Stabilizers & Gimbals SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Stabilizers & Gimbals
 |
User manual for the SHAPE Full Play 98Wh V-Mount Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

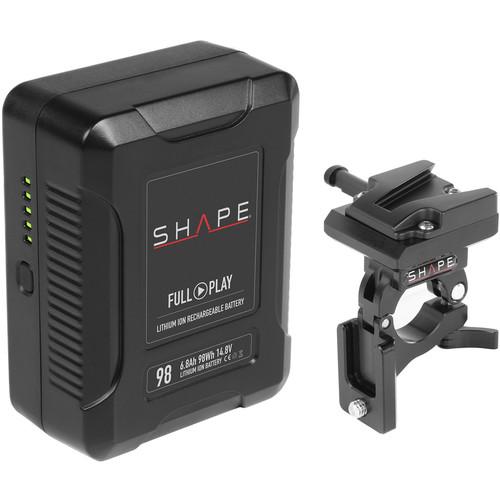

Product description Add a V-mount battery to your gimbal rig with this Full Play 98Wh V-Mount Battery with Clamp from SHAPE which mounts on a 24.9 to 25.5mm gimbal rod. The lightweight aluminum battery clamp features a quick release V-mount that allows the included 98Wh battery to mount onto your gimbal rod to power your gimbal or accessories.
The clamp features a shoe mount and a 1/4"-20 captive screw to mount additional accessories. The 98Wh, 14.8 VDC battery draws up to 12A and offers a D-Tap output to power accessories and a USB output to power smaller devices. - Full Play V-Mount Battery The Shape Full Play V-Mount Battery features a compact design that easily fits on small or large cameras, monitors, lights, or other pro video equipment. Power-hungry equipment can draw up to 12 amps, between the V-mount and D-Tap on the side. A USB output is provided for small video accessories or for charging smartphones or on-set mobile devices. Battery capacity can be quickly checked via the 4-segment LED meter. The battery's box-like design can be easily stacked for storage, or packed away in a case for transport. UPC: 629266008034

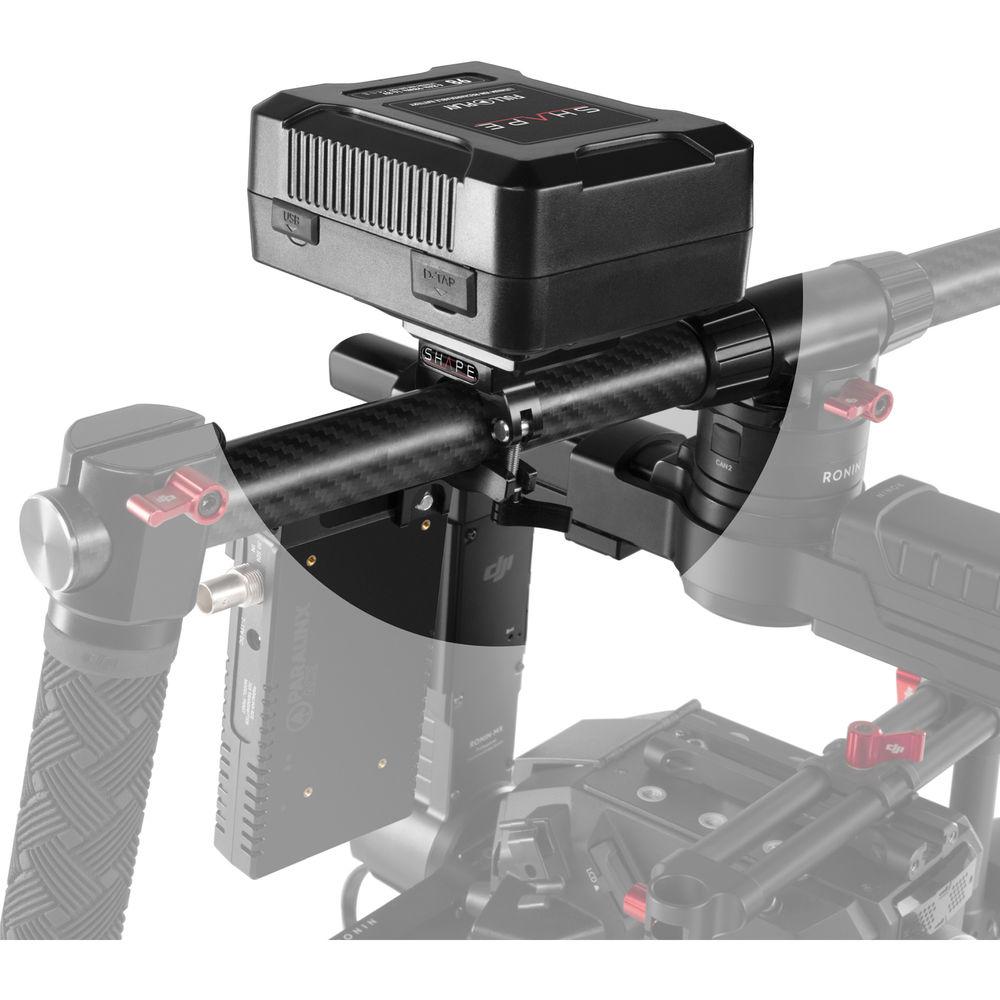

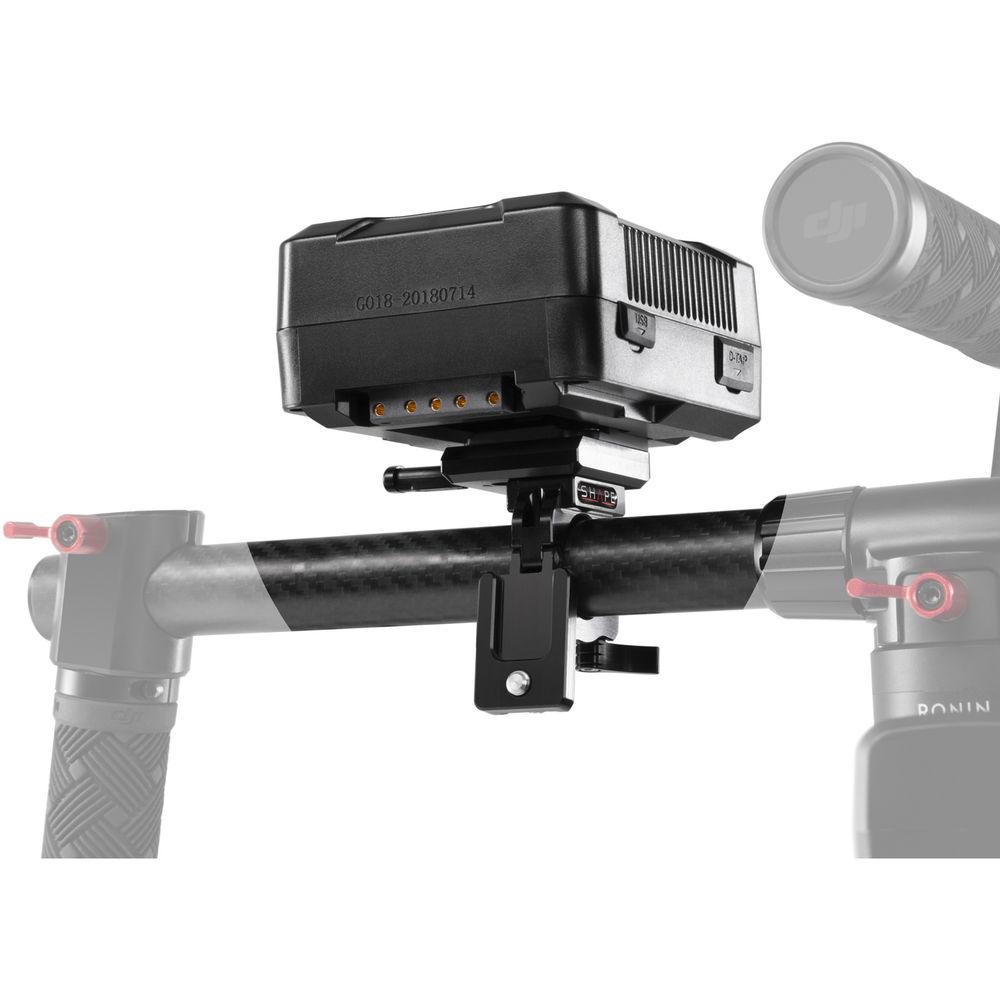

- V-Mount Battery Clamp for 25mm Gimbal Handlebar Use this lightweight aluminum V-Mount Battery Clamp from SHAPE to mount a V-mount battery on any 24.9 to 25.5mm gimbal rod. The clamp features a quick release V-mount battery plate, and the clamp secures around the gimbal rod with a thumbscrew.
The clamp also features a cold shoe mount and a 1/4"-20 captive screw to mount additional accessories such as a light, wireless receiver, monitor, microphone, or mounting arm onto your gimbal. UPC: 629266008980 In the Box Bundle Items Full Play V-Mount Battery svserzcvaywfvudxtaftetryeqzvfrwerc V-Mount Battery Clamp for 25mm Gimbal Handlebar - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Full Play 98Wh V-Mount Battery with Clamp for 25mm Gimbal Handlebar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Full Play V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 98 Wh | | Amp-Hours | 6.8 Ah | | Output Voltage | 14.8 VDC | | Maximum Load | 12 A | | Accessory Port | 1 x D-Tap
1 x USB Type-A | | Accessory Mounting Thread | None | | Dimensions (W x H x D) | 4.7 x 3.6 x 2.2" / 12.0 x 9.1 x 5.5 cm | | Weight | 1.5 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 2.5" | - V-Mount Battery Clamp for 25mm Gimbal Handlebar
| Material of Construction | Aluminum | | Mounting | V-Mount Battery
Cold Shoe
1/4"-20 Captive Screw | | Rod Compatibility | 24.9 to 25.5 mm Rods | | Dimensions | Clamp: 3.2 x 2.8 x 2" / 8 x 7 x 5 cm
Captive Screw: 0.5" / 1.27 cm Long | | Weight | 4.2 oz / 118 g | | | | Box Dimensions (LxWxH) | 4.7 x 3.4 x 3.3" |
