User Manual for SHAPE HDMI Lock System and Top Plate Kit for 5" Atomos Ninja V Click to enlarge the picture
Contents of the user manual for the SHAPE HDMI Lock System and Top
- Product category: Solid State Recorder Accessories SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Solid State Recorder Accessories
 |
User manual for the SHAPE HDMI Lock System and Top contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

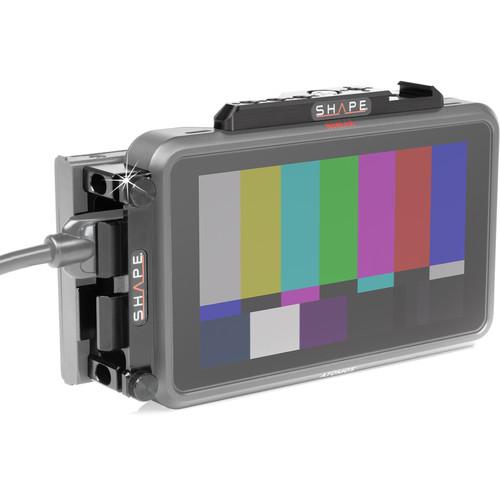

Product description Add accessories and protect your HDMI cables with this HDMI Lock System and Top Plate Kit from SHAPE designed specifically for the 5" Atomos Ninja V. The top plate provides 1/4"-20 threads and a cold shoe mount, and the adjustable HDMI lock system provides protection for the HDMI in/out cables. Both items are made of CNC-machined aluminum and are secured with captive screws. - HDMI Lock System for 5" Atomos Ninja V Recording Monitor Use the HDMI Lock System from SHAPE to protect and lock the HDMI in and out cables on the side of the 5" Atomos Ninja V Recording Monitor. Made of lightweight CNC-machined aluminum, the main bracket connects to the Ninja V with two custom-fit screw holes. The system features adjustable brackets to fit your HDMI cable size, and two captive thumbscrews are included to secure the cables tightly. The lock system keeps SSD drive access clear, and it is also compatible with the Atomos Sun Hood. UPC: 629266008775

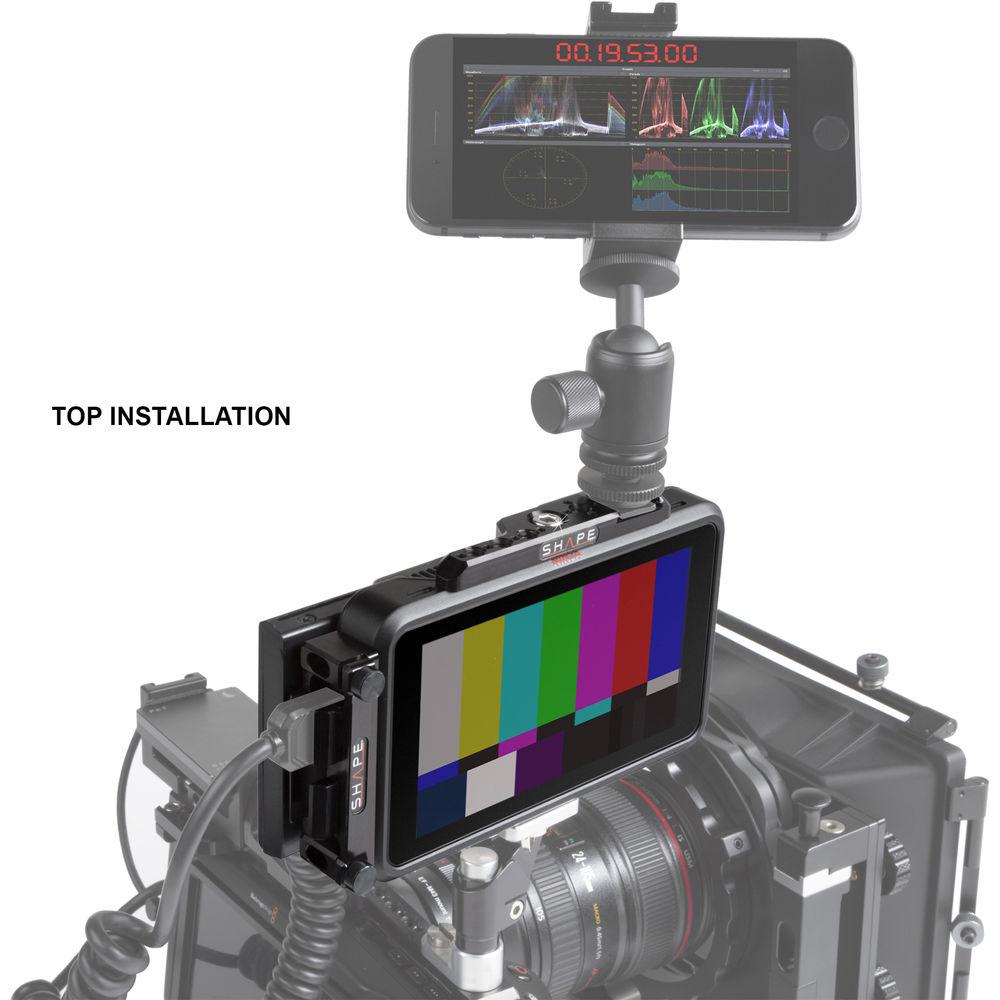

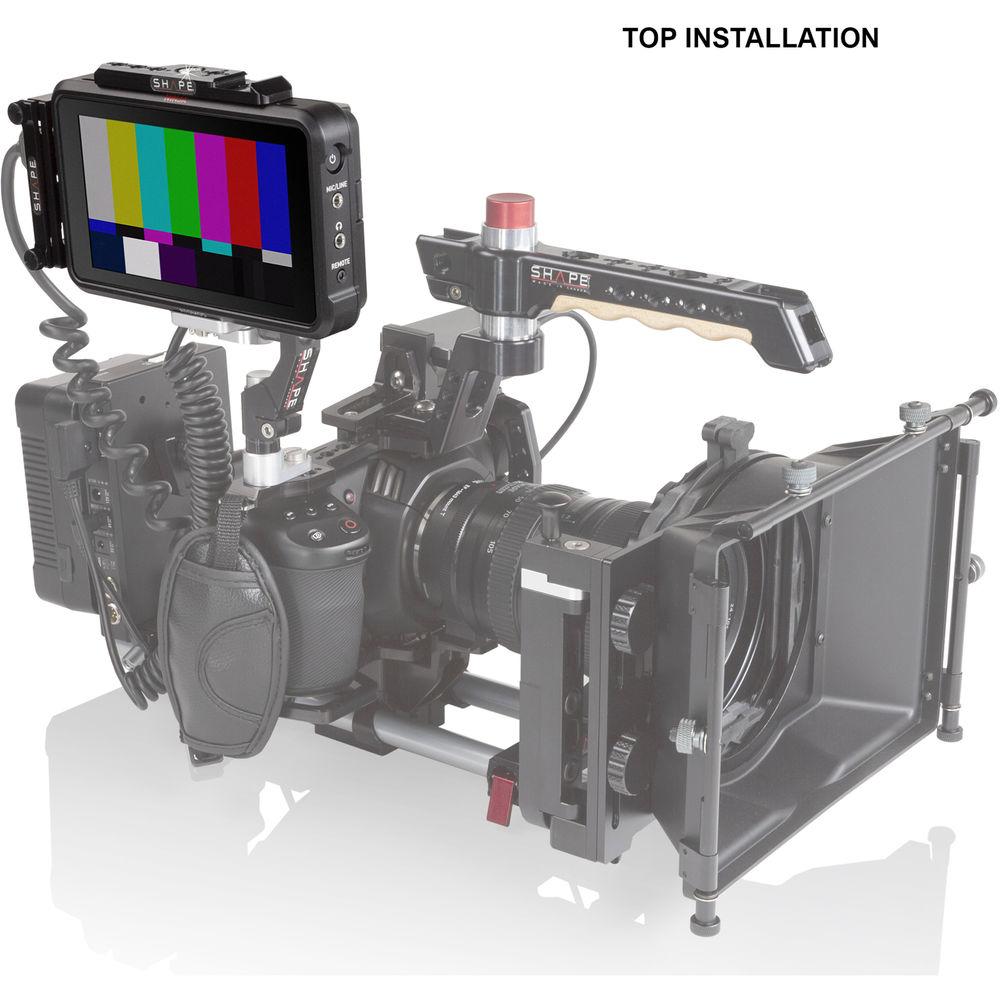

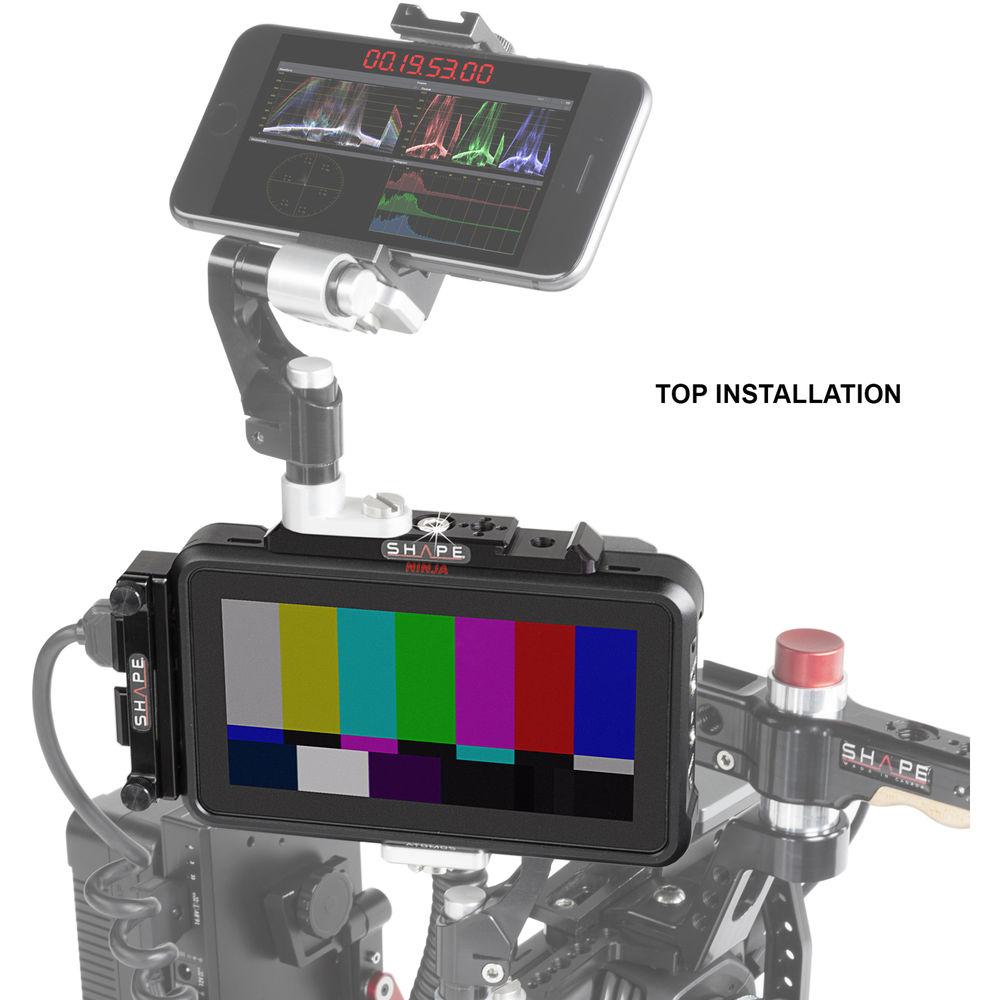

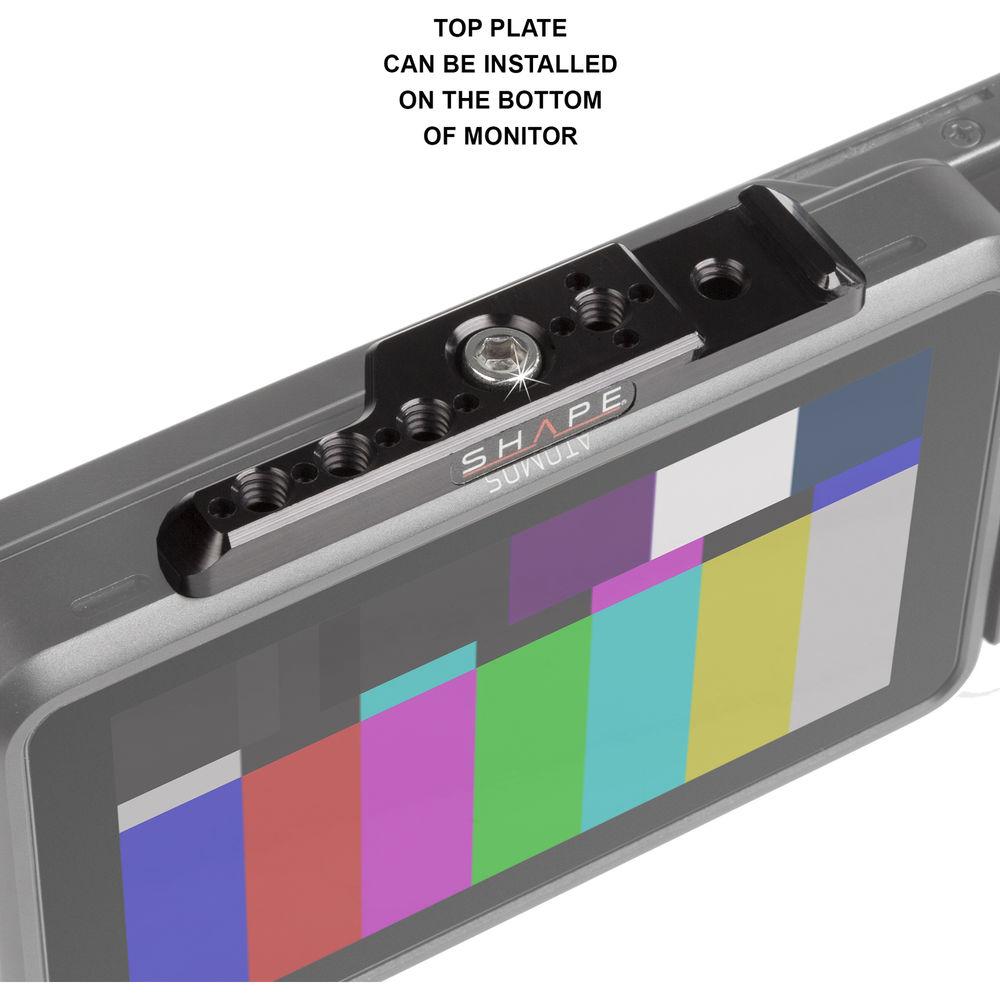

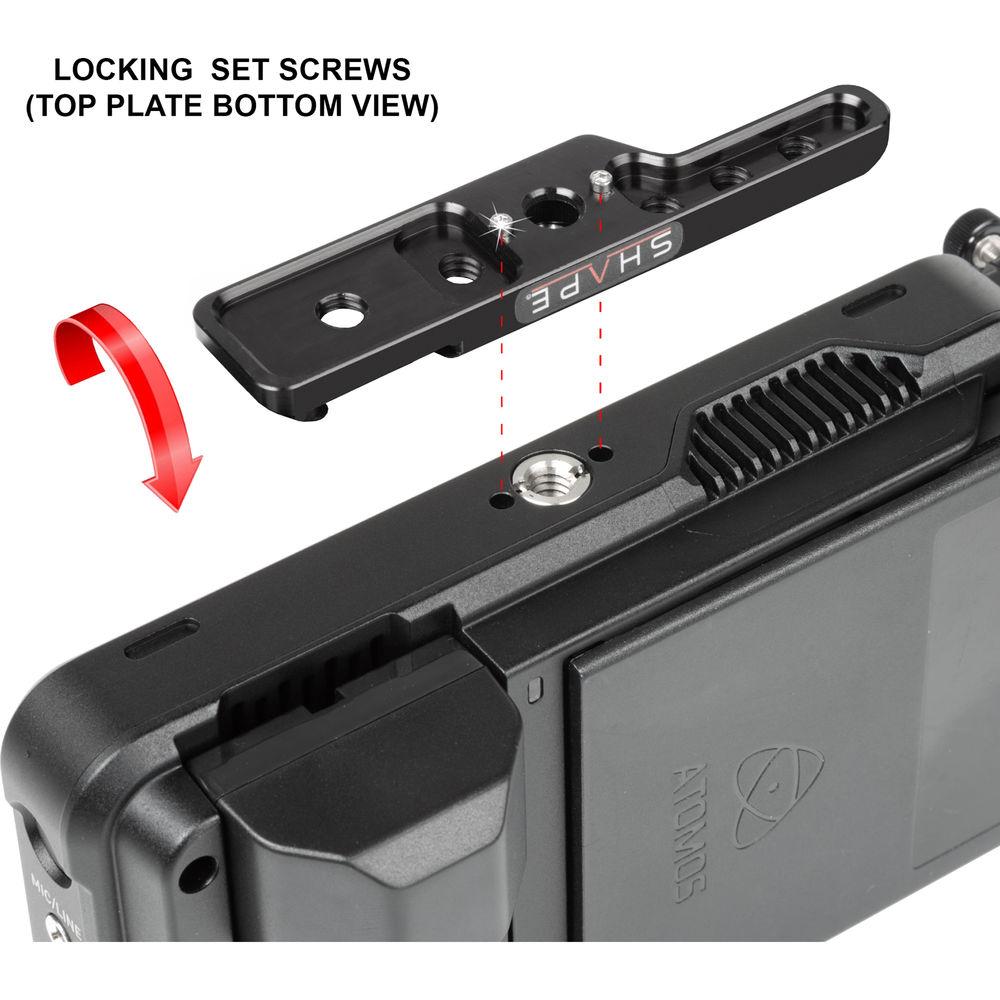

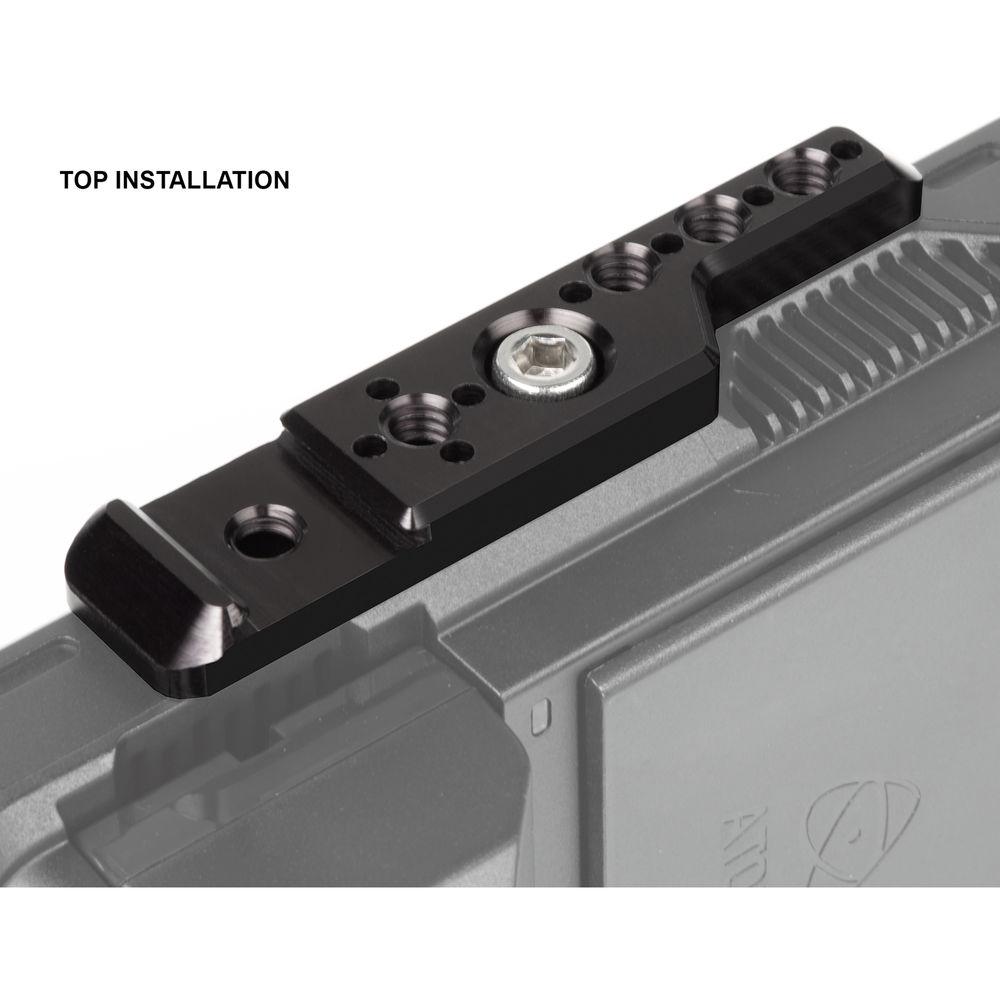

- Top Plate for Atomos 5'' Ninja V Recording Monitor Use this Top Plate from SHAPE designed specifically for the Atomos 5'' Ninja V Recording Monitor to attach accessories such as arms, lights, or microphones to a cold shoe or 1/4"-20 threaded mounting holes. The plate is constructed with CNC-machined aluminum and features secure anti-rotation blockers on the ends to prevent any movement. A 1/4"-20 captive screw is included to attach the top plate to the Ninja V. UPC: 629266008782
In the Box Bundle Items HDMI Lock System for 5" Atomos Ninja V Recording Monitor zvaqxvwzducr - Limited Lifetime Warranty
Top Plate for Atomos 5'' Ninja V Recording Monitor - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE HDMI Lock System and Top Plate Kit for 5" Atomos Ninja V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDMI Lock System for 5" Atomos Ninja V Recording Monitor
| Material of Construction | CNC-machined aluminum | | Dimensions | 3 x 1 x 0.8" / 7.6 x 2.5 x 1.9 cm | | Weight | 2.4 oz / 68 g | | | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 3.9" | - Top Plate for Atomos 5'' Ninja V Recording Monitor
| Material of Construction | CNC-machined aluminum | | Mounting Options | 1/4"-20 threads
1/4"-20 screw
Cold shoe | | Dimensions | 3.8 x 0.8 x 0.3" / 9.5 x 1.9 x 0.6 cm | | Weight | 0.7 oz / 20 g | | | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 3.0" |
