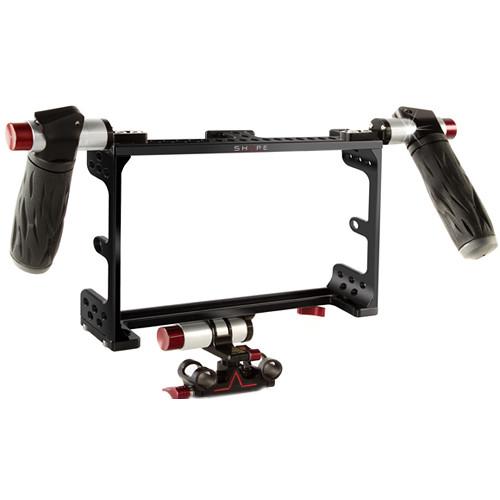

Product description The Odyssey 7Q+ Bundle Kit from SHAPE features a formfitting cage for the Convergent Design Odyssey 7Q+ monitor, plus push-button adjustable handgrips and a tiltable 15mm monitor bracket for attaching the 7Q+ to your camera rig. The handgrips attach on top and provide many uses, including handing the Shogun off to a director or someone else who wants to monitor the shot. They can be set to be used right-side-up or upside-down. The monitor bracket attaches to 15mm LWS rods and lets you tilt, rotate, and slide the 7Q+ sideways. Most of the bracket's adjustments are also push-button adjustable.
The cage leaves access to all slots, ports, and controls of the 7Q+, and has screw-in HDMI clamps designed specifically for SHAPE HDMI cables that have a recess on the connectors that the screws can push up against. Both 1/4"-20 and 3/8"-16 threaded holes are provided throughout the cage for accessories. - Odyssey 7Q+ Cage Protect your Convergent Design Odyssey 7Q+ with this Odyssey 7Q+ Cage from Shape. Manufactured from CNC-machined aluminum, this cage surrounds the Odyssey 7Q+, shielding it from bumps and falls. The cage's design doesn't add any significant bulk to the monitor, and, while easily removable, it is solid enough to be a permanent fixture. Additional features include numerous 1/4"-20 threaded holes for mounting additional accessories to the cage or for mounting the monitor itself to your rig. An integrated HDMI cable clamp protects the HDMI output and prevents unwanted cable snags from thwarting your video feed. UPC: 629266004838
- Universal 1/4"-20 Screw Handles (Pair) This pair of Shape Universal 1/4"-20 Screw Handles are designed to attach to the Atomos Shogun Cage for faster and easier transport and mobility. They feature Shape's push-button technology that allows for quick adjustment of the handle at the push of a button. You can adjust the handles up or down as well as slide them sideways.
Featuring 1/4"-20 mounting screws, these handles can also be used various other equipment, including other cages. The handles are made from CNC machined aluminum parts and a stainless steel locking mechanism for durability and sturdiness. - Key Features
-
- Designed for Atomos Shogun Cage but can be used with other cages and gear
- 1/4"-20 mounting screw attachment
- Push-button adjustment technology
- Adjusts up, down, and sideways
- CNC machined aluminum parts and stainless steel locking mechanism
UPC: 629266004722 Adjustable 15mm Monitor Bracket The MONBRAC Adjustable 15mm Monitor Bracket from Shape is designed to hold the Atomos Shogun cage. It can be mounted on 15mm rods on any of the Shape systems. The push-button technology utilized offers different position options and the red knob offers alternate placement options on rods. The bracket features a sliding mechanism for additional positioning choices. - Can be mounted on 15mm rods on any Shape system
- Push-button technology offers different position options
UPC: 629266004715 In the Box Bundle Items Odyssey 7Q+ Cage tfstqaxuewrztstvvqabfvatasdtfyaxv Universal 1/4"-20 Screw Handles (Pair) tfstqaxuewrztstvvqabfvatasdtfyaxv - Limited Lifetime Warranty
Adjustable 15mm Monitor Bracket - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Odyssey 7Q Bundle Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Odyssey 7Q+ Cage
| | | Box Dimensions (LxWxH) | 11.8 x 9.2 x 3.2" | - Universal 1/4"-20 Screw Handles (Pair)
| Dimensions | 8 x 5 x 2" (203 x 127 x 51 mm) | | Weight | 1 lb (0.45 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.6 x 4.5" | - Adjustable 15mm Monitor Bracket
| Dimensions (Approx.) | 8 x 5 x 2" (203 x 127 x 51 mm) | | Weight (Approx.) | 1 lb (0.45 kg) | | | | Box Dimensions (LxWxH) | 6.4 x 4.4 x 3.4" |
