SHAPE Offset Shoulder Mount Kit for

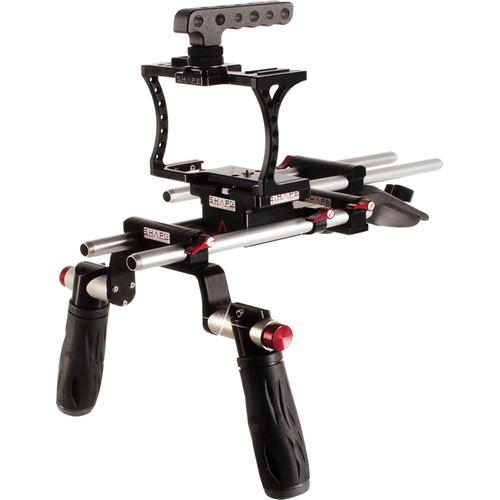

User Manual for SHAPE Offset Shoulder Mount Kit for Sony A7s

• Product category: DSLR Video Supports & Rigs SHAPE
• Brand: SHAPE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SHAPE DSLR Video Supports & Rigs

Product description

• Sony a7S Cage The SHAPE a7S Cage provides two cold shoe mounts on top and leaves the camera's hot shoe mount accessible, offering convenient support for the Sony XLR-K1M and XLR-K2M audio packs. One cold shoe mount is offset to the side and is removable to provide access to the controls on that side of the camera. The other cold shoe mount overhangs in front of the camera and can be useful for both top handles and mics. The right side of the cage can be unscrewed and totally removed to allow you to hold the camera by the handle. A cutout on the bottom provides battery door access.

  The cage secures to the bottom of the camera using an included 1/4"-20 screw with a small retainer ring. There are three mounting threads on the bottom, the middle one for the camera and the other two for tripod plates. The cage is designed specifically for the Sony a7S. It's lightweight and solid and offers added protection and 1/4"-20 mounting threads on all sides.
  Key Features
  • • Designed to accommodate Sony's XLR-K1M and XLR-K2M audio packs
    • Two cold shoe mounts on top, one removable to provide access to controls
    • Leaves the camera's hot shoe mount accessible
    • Right side of the cage is removable to allow you to hold the camera handle
    • Secures to the bottom of the camera with a 1/4"-20 screw
    • Mounting threads for tripod plates
    • 1/4"-20 mounting threads on all sides
    • Provides battery door access
• Black Liquorice Candy DSLR Handle The Black Liquorice Candy DSLR Handle from SHAPE is a compact, ergonomic top-handle that can be attached to any camera with a standard shoe mount. It attaches facing forward or backward and also offers 1/4"-20 and 3/8"-16 threaded accessory mounting threads. UPC: 629266000014
• Sony a7S Baseplate The Sony a7S Baseplate from SHAPE is designed to be used in conjunction with SHAPE's a7S Cage. It features two 15mm rod ports and a quick-release V-lock mounting interface. To make your a7S Cage compatible with the quick-release interface, a V-lock delta plate adapter comes included that installs underneath the cage. With the cage mounted, the baseplate's design places the optical center of camera between the two rods and the lens at a height suitable for use with a matte box. A pair of 10" long 15mm rods are included.
  Key Features
  • • 15mm rod baseplate for SHAPE's Sony a7S Cage
    • Quick-release V-lock mounting interface
    • V-lock delta adapter for a7S Cage included
    • Baseplate respects optical center
    • CNC-machined aluminum construction
    • 10" aluminum 15mm rods
  UPC: 629266004623
• Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

  Quick Handle

  • Provides professional video stabilization with 2 handles
  • Each handle offers 360° individual rotation
  • Offers easy attachment/removal

  Rod Block

  • Composed of anodized aluminum
  • Offers composite camera support for all 15mm rods
  • Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
  • With 2 screw-threaded holes, the Rod Block provides for attachment of components
  UPC: 629266000793
• Mini Composite Shoulder Pad The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830
• Off-Set Bracket for Blackmagic Cage The SHAPE Off-Set Bracket will fit on the SHAPE Blackmagic Cage and Shoulder Mount. UPC: 629266001462
• 15mm Aluminum Rods (Pair, 10") This pair of Shape 15mm Aluminum Rods (10") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
  The rods are each 15mm in diameter, 10 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001707
• 15mm Aluminum Rods (Pair, 12") This pair of Shape 15mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
  The rods are each 15mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001714

• 1/4"-20 Screw with Retaining Ring

• Allen Key

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• V-Lock Delta Adapter with Attachment Screws

• Limited Lifetime Warranty

• Lifetime Warranty

• Rod Block

• Camera Screw Knob (1/4"-20)

• Lifetime Warranty

• Limited 1-Year Warranty on Parts & Labor

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sony a7S Cage

  Material	CNC aluminum
  Mount Types	2x cold shoe mounts (one removable) 1/4"-20 camera mounting thread 2x 1/4"-20 tripod plate mounting threads 1/4"-20 accessory mounting threads on all sides

  Box Dimensions (LxWxH)	8.7 x 7.4 x 4.4"

• Black Liquorice Candy DSLR Handle

  Box Dimensions (LxWxH)	8.1 x 5.3 x 1.7"

• Sony a7S Baseplate

  15mm Rod Length

  10" (25.4 cm)

  Box Dimensions (LxWxH)	6.2 x 4.4 x 3.6"

• Quick Handle + Rod Block

  Box Dimensions (LxWxH)	12.7 x 11.3 x 2.55"

• Mini Composite Shoulder Pad

  Box Dimensions (LxWxH)	6.5 x 4.3 x 3.4"

• Off-Set Bracket for Blackmagic Cage

  Box Dimensions (LxWxH)	8.7 x 5.4 x 2.3"

• 15mm Aluminum Rods (Pair, 10")

  Diameter	15 mm
  Length	10 inches (25.4 cm)
  Material	Aluminum with a clear finish applied over it

  Box Dimensions (LxWxH)	12.0 x 3.4 x 0.4"

• 15mm Aluminum Rods (Pair, 12")

  Diameter	15 mm
  Length	12 inches (30.5 cm)
  Material	Aluminum with a clear finish applied over it

  Box Dimensions (LxWxH)	12.4 x 3.2 x 1.1"
