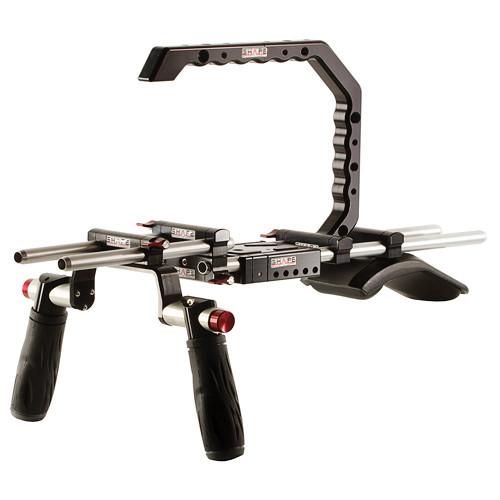

Product description The Panasonic GH4 Shoulder Mount from SHAPE is a LWS 15mm rod support rig designed specifically for the Panasonic GH4 with YAGH Interface Unit attached. The system features a baseplate, Paparazzi Handle, Mini Composite Shoulder Pad, Quick Handles, and a Double Sliding Rod Block. The baseplate supports a pair of 18" long rods, while the double rod block supports a pair of 8" long rods at a raised level in front of the rig. This lets you accommodate the height of the GH4 with YAGH interface unit attached, ensuring proper centering of lenses when an optional matte box is used.
While originally designed for the Canon ESO C100/300/500 cameras, the baseplate attaches the YAGH Interface Unit via 3/8"-16 or 1/4"-20 threaded screws. For tripod use, the baseplate has a set of 3/8"-16 and 1/4"-20 threads on the bottom for attaching a standard tripod plate. For shoulder-mounted use, both the quick handle and Mini Composite Shoulder Pad clamp onto the 15mm rods using single red spring-loaded levers. The handles feature SHAPE's push button rosette release technology, letting you adjust the angle of the hand grips on-the-fly, without having to remove your hands from the rig.
The Paparazzi Handle clamps onto the 15mm rods and provides a secure point of contact for carrying the camera. Additionally, it has threaded 3/8"-16 and 1/4"-20 holes along the sides, top, and bottom for adding various accessories, such as LED lights, monitors, microphones, recorders, articulating arms, wireless audio receivers, or any other accessories that you might need. Support System -
- Made specifically for the Panasonic GH4 with YAGH Interface Unit attached
- Features a pair of 18" and 8" LWS 15mm rods
- Sliding Double Rod Block adjustable to put front rods at proper height for using a matte box
Baseplate -
- Attaches underneath the YAGH Interface Unit using 3/8"-16 and 1/4"-20 screws
- Spring-loaded rod-clamp levers
- 3/8"-16 or 1/4"-20 screw tripod mounting threads
Paparazzi Handle -
- Provides a top handle for transporting assembled rig with camera
- 1/4"-20 and 3/8"-16 threaded attachment points for articulating arms and other accessories
Quick Handle + Rod Block -
- Push button 360° rotating handles for fast set up adjustments
- 15mm rod block with spring-loaded lever
Mini Composite Shoulder Pad -
- Single lever for adjusting and securing the shoulder pad
- Padded for operator comfort
- 1/4"-20 screw and hole in rear for adding optional padded counter weight or back pad
UPC: 629266003305 In the Box SHAPE Panasonic GH4 Shoulder Mount Paparazzi with Bloc Quick Handle + Rod Block Mini Composite Shoulder Pad Canon C100/300/500 Baseplate Double Sliding Rod Block 15mm Rods (18", Pair) 15mm Aluminum Rods (Pair, 8") Limited Lifetime Warranty on CNC Machined Parts Limited 1-Year Warranty on Non-CNC Machined Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Panasonic GH4 Shoulder Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE GH4SM Specs | Tripod Mounting Thread | 1/4"-20 and 3/8"-16 | | Camera Screw(s) | 1/4"-20 and 3/8"-16 | | Accessory Mounting Threads | 1/4"-20 and 3/8"-16 | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 21.0 x 7.0 x 5.0" |
