Product description

• Cage with 15mm Lightweight Rod System for Panasonic GH5
  • Panasonic Lumix GH5 Cage
  • Panasonic GH5 Cage with Top Handle
  • Panasonic GH5 Cage with 15mm rods
  • Panasonic GH5 Cage with shoulder mount
  • GH5 Cage with Offset shoulder mount
  • GH5 Cage with Mattebox and Follow Focus
  • GH5 Cage with Mattebox, Follow Focus and shoulder mount
  The SHAPE Cage with 15mm Lightweight Rod System for Panasonic GH5 includes a form-fitting cage, REVOLT top handle grip, quick release plate, adjustable Rod Bloc system, and a pair of 10" 15mm rods. The cage wraps securely around the GH5 camera body, preventing unwanted rotation while providing an abundance of 1/4"-20 and 3/8"-16 accessory threads. The camera is fixed to the cage by a 1/4"-20 screw under the unit, and the position is secured with the back and sides of the cage, so it will not move forward when equipped with a heavy lens.

  The cage provides quick and easy access to the lens release button, battery door, and memory card. It features an open access on top for mounting accessories to the GH5's electronic hot shoe. A second built-in shoe on the side offers an additional accessory mounting point. The cage is designed to be compatible with the micro-HDMI cable protector lock on the side, to secure the use of your HDMI cable. The adjustable Rod Bloc system allows for optimal adjustment of your camera's optical center. Its travel height can be adjusted with the help of an Allen key. The included 10" rods can be inserted into the Rod Bloc system to attach more equipment.

  The REVOLT top handle provides a comfortable grip on your camera and can be quickly inserted or removed with the built-in shoe attachment. The frame is made from robust aluminum, and the grip from Canadian maple wood for maximum comfort. The top handle is also threaded with multiple 1/4"-20 and 3/8"-16 screw threads for mounting accessories. This rig system can be used as a table stand or can be attached to a tripod, thanks to the quick release baseplate. The baseplate features a removable support bracket for the Metabones EF adapter. In the absence of a Metabones adapter, the 1/4"-20 screw is captive so you don't have to remove it from the cage when sliding the bracket from under the cage. UPC: 629266006740
• Friction & Gear Follow-Focus Clic with Adjustable Marker The Shape Friction & Gear Follow-Focus Clic with Adjustable Marker is designed to attach onto standard 15mm rods of shoulder support rigs and other rigs. It attaches onto them via a clamp system, with simplicity. You would sit the Clic atop the rods, and then slide and close a Shape-patented lever clamp underneath the rods, and the lever locks and holds the Clic securely on the rods.

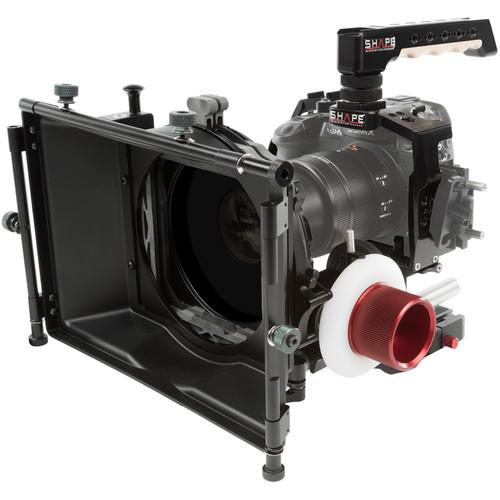

  The Clic's focus mechanism also works with a clamp system, which when unlocked loosens the focus mechanism and allows it to be moved horizontally. It moves so to adjust itself closer to the lens. As it moves, its main feature -- the focus disk -- moves with it, and the focus disk is what reaches the lens. The focus disk can either be a friction wheel, as you see in the photo above, or a gear wheel. Both are present in this package, and replacing one with the other is accomplished with the help of the included Allen wrench. The friction wheel has a rubber outer surface that would press up against the lens, keep firm contact with it, and ensure accurate and slip-free focusing. The friction wheel would serve well for most lenses and is made of high-quality rubber that in cold temperatures won't get too cold to lose its grip. The gear wheel would accommodate those lenses that specifically have teeth on their focusing rings, and it would do so without any ring gears, by pressing its .8 pitch gears into the teeth.

  The focus mechanism can be used on either the left or the right side of the lens, depending on the direction you place the Clic onto the rods in. And the focus disk itself can be used either in front of the focus mechanism, as you see in the photo above, or behind it, so to accommodate a wider variety of lens lengths. To move the disk to the rear, you would first just unscrew two screws from a cube-shaped gearbox that you can't see in the photo above because it sits behind the focus disk. Once the screws are off, the focus disk can just be flipped over for use with longer lens constructions.

  In the photo above, the white mark disk that you see to the right of the red knob is made of highly resistant Delrin thermoplastic. It can be written on with non-permanent markers to mark up focus measurements for various predetermined shots, and it is interchangeable and thereby many predetermined measurements can be kept ready at your side. Additionally, a slide-adjustable marker made of aluminum is included to be attached beside the mark disk and to be moved and tightened into positions along the disk.

  The Clic is CNC machined and made of lightweight anodized aluminum for strength and durability.
  • Designed to attach onto standard 15mm rods.
  • Attaches onto the rods via a patented clamp system.
  • The focus mechanism moves horizontally to adjust to the lens.
  • The focus mechanism can be used on the left or right side of the lens.
  • A friction wheel and a gear wheel are included to interchange as the focus disk.
  • The focus disk flips to the rear of the focus mechanism to accommodate longer lenses.
  • A thermoplastic mark disk can be written on with non-permanent markers and is interchangeable.
  • An included marker attaches beside the mark disk and slides and tightens into positions along the disk.
  UPC: 629266000946
• 2-Stage 4 x 4" Matte Box The SHAPE 2-Stage 4 x 4" Matte Box accepts lenses with up to a 100mm front outside diameter. It mounts to 15mm LWS rods and utilizes a swing-away design, which lets you perform quick lens changes without having to remove the matte box from your rods. You can adjust the height of the matte box in relation to the rods, which comes in handy when your lens center to rod center height is slightly off from the standard.

  Two rotating filter stages support the use of 4x4" filters. The matte box comes with a top flag (eyebrow), side flags, four matte box donuts in 66, 72, 82, and 90mm sizes, and elastic donut.
  • The matte box has a rear opening of 100mm for lenses.
  • The included anti-reflection donuts prevent light behind the camera from reflecting off any filters in the matte box and degrading the image. Included with the matte box are anti-reflection donuts for lenses with a front outside diameter of 66, 72, 82, and 90mm. The included elastic donut supports lenses with a front outside diameter between 66 and 90mm, and it is especially useful with lenses that grow and shrink as you change focus or zoom.
  • The side flags incorporate a hook design as a safety feature where they attach to the matte box. This helps prevent them from falling out of the matte box should the lock-down thumbscrew loosen accidentally.
  • The swing-away bracket incorporates a height adjustment, enabling you to compensate a total of 0.65" vertically. This allows you to use this matte box with a variety of camera/rod support combinations that may vary slightly from the industry standard 85mm distance from LWS rod center to lens port center.
  UPC: 629266001189

• Cage for Panasonic GH5

• Top Handle Cold Shoe for DSLR Camera

• Quick Release Baseplate

• Adjustable 15mm Rods Bloc System

• 15mm Aluminum Rods (Pair, 10")

• Limited Lifetime Warranty

• Allen Wrench

• Lifetime Warranty

• 2 x Filter Tray (4 x 4")

• French Flag

• 2 x Side Wing

• 4 x Matte Box Ring

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cage with 15mm Lightweight Rod System for Panasonic GH5

  Material	CNC Machined aluminum
  Dimensions	5.5 x 10.0 x 11.0" (13.97 x 25.4 x 27.9 cm)
  Weight	2.35 lb (1.07 kg)

  Box Dimensions (LxWxH)	8.7 x 7.4 x 4.4"

• Friction & Gear Follow-Focus Clic with Adjustable Marker

  Box Dimensions (LxWxH)	9.606 x 5.906 x 3.937"

• 2-Stage 4 x 4" Matte Box

  Size	Matte Box Rings: 82, 90, 72, and 66 mm
  Height Adjustment Range	0.65" / 1.65 cm
  Dimensions	8 x 9 x 14" / 20.3 x 22.9 x 35.6 cm
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	20.9 x 7.5 x 5.6"
