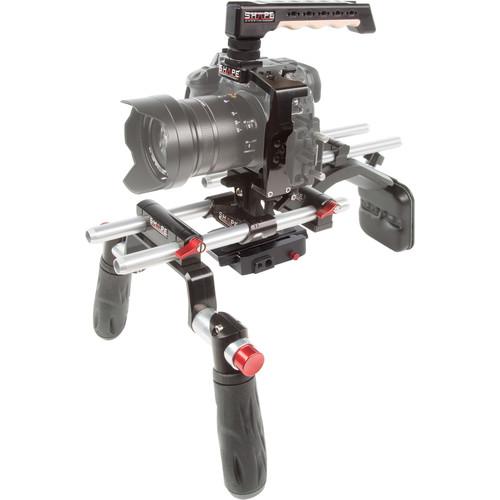

SHAPE Panasonic GH5 Cage with Offset

User Manual for SHAPE Panasonic GH5 Cage with Offset Shoulder Mount System

• Product category: DSLR Video Supports & Rigs SHAPE
• Brand: SHAPE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SHAPE DSLR Video Supports & Rigs

Product description

• Cage with 15mm Lightweight Rod System for Panasonic GH5
  • Panasonic Lumix GH5 Cage
  • Panasonic GH5 Cage with Top Handle
  • Panasonic GH5 Cage with 15mm rods
  • Panasonic GH5 Cage with shoulder mount
  • GH5 Cage with Offset shoulder mount
  • GH5 Cage with Mattebox and Follow Focus
  • GH5 Cage with Mattebox, Follow Focus and shoulder mount
  The SHAPE Cage with 15mm Lightweight Rod System for Panasonic GH5 includes a form-fitting cage, REVOLT top handle grip, quick release plate, adjustable Rod Bloc system, and a pair of 10" 15mm rods. The cage wraps securely around the GH5 camera body, preventing unwanted rotation while providing an abundance of 1/4"-20 and 3/8"-16 accessory threads. The camera is fixed to the cage by a 1/4"-20 screw under the unit, and the position is secured with the back and sides of the cage, so it will not move forward when equipped with a heavy lens.

  The cage provides quick and easy access to the lens release button, battery door, and memory card. It features an open access on top for mounting accessories to the GH5's electronic hot shoe. A second built-in shoe on the side offers an additional accessory mounting point. The cage is designed to be compatible with the micro-HDMI cable protector lock on the side, to secure the use of your HDMI cable. The adjustable Rod Bloc system allows for optimal adjustment of your camera's optical center. Its travel height can be adjusted with the help of an Allen key. The included 10" rods can be inserted into the Rod Bloc system to attach more equipment.

  The REVOLT top handle provides a comfortable grip on your camera and can be quickly inserted or removed with the built-in shoe attachment. The frame is made from robust aluminum, and the grip from Canadian maple wood for maximum comfort. The top handle is also threaded with multiple 1/4"-20 and 3/8"-16 screw threads for mounting accessories. This rig system can be used as a table stand or can be attached to a tripod, thanks to the quick release baseplate. The baseplate features a removable support bracket for the Metabones EF adapter. In the absence of a Metabones adapter, the 1/4"-20 screw is captive so you don't have to remove it from the cage when sliding the bracket from under the cage. UPC: 629266006740
• Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

  Quick Handle

  • Provides professional video stabilization with 2 handles
  • Each handle offers 360° individual rotation
  • Offers easy attachment/removal

  Rod Block

  • Composed of anodized aluminum
  • Offers composite camera support for all 15mm rods
  • Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
  • With 2 screw-threaded holes, the Rod Block provides for attachment of components
  UPC: 629266000793
• Mini Composite Shoulder Pad The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830

• Cage for Panasonic GH5

• Top Handle Cold Shoe for DSLR Camera

• Quick Release Baseplate

• Adjustable 15mm Rods Bloc System

• 15mm Aluminum Rods (Pair, 10")

• Limited Lifetime Warranty

• Lifetime Warranty

• Rod Block

• Camera Screw Knob (1/4"-20)

• Lifetime Warranty

Also Includes

• Offset Bracket
• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cage with 15mm Lightweight Rod System for Panasonic GH5

  Material	CNC Machined aluminum
  Dimensions	5.5 x 10.0 x 11.0" (13.97 x 25.4 x 27.9 cm)
  Weight	2.35 lb (1.07 kg)

  Box Dimensions (LxWxH)	8.7 x 7.4 x 4.4"

• Quick Handle + Rod Block

  Box Dimensions (LxWxH)	12.7 x 11.3 x 2.55"

• Mini Composite Shoulder Pad

  Box Dimensions (LxWxH)	6.5 x 4.3 x 3.4"
