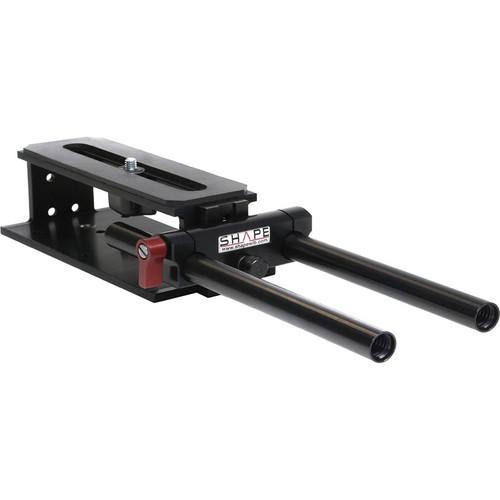

User Manual for SHAPE Paparazzi Riser 15mm Rod System Click to enlarge the picture
Contents of the user manual for the SHAPE Paparazzi Riser 15mm Rod System
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
|
User manual for the SHAPE Paparazzi Riser 15mm Rod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description Use the SHAPE Paparazzi Riser/15mm Rod System as a base to attach accessories to your DSLR or small camcorder. This system displaces the weight of accessories from the camera to the rods/riser. The Paparazzi riser adds 2" to the camera height while its mounting-screw slot allows for up to 4" of front-to-back adjustment. The 15mm rod system offers thumbscrew-locking 8" rods with Allen key vertical adjustment (up to 1.375"). This riser/rod system can work with various on-camera accessories such as a lens support, matte box, lens adapter, or follow focus. - Paparazzi Riser The Paparazzi Riser from SHAPE is a 2" fixed-height camera riser offering either parallel or perpendicular camera support. The riser's top surface includes a 4" sliding screw slot that enables the camera to be adjusted front-to-back or side-to-side, depending on the riser's orientation. This Paparazzi Riser features several 1/4"-20 and 3/8"-16 threaded holes. The hole located on the base is used to attach the riser to a camera support, while the front and rear holes can be used to attach various accessories such as a sliding rod block. The Paparazzi Riser is suited for use with small camcorders and DSLR cameras. Constructed of CNC-machined, anodized aluminum, this riser is the common component of all SHAPE Composite camera support systems.
Features - Four-inch, fixed-height riser is compatible with small camcorders or DSLRs
- Can be placed either parallel or perpendicular for camera placement centered on the support or offset to the right or to the left
- Multiple 1/4"-20 and 3/8"-16 threaded holes for mounting the riser onto a camera support and for attaching accessories
- Lightweight, durable riser made of CNC-machined anodized aluminum
UPC: 629266001066 - 15mm Rod Riser System The Shape 15mm Rod System provides support for rod-mounted accessories such as matte boxes, lens adapters, lens supports, and follow focus mechanisms. By supporting these accessories, the system transfers additional weight away from your lens. The 15mm Rod System is composed of a Sliding Rod Bloc and a pair of 15mm aluminum rods. The rods' threaded female ends enable the attachment of 1/2"-13–threaded extension rods (not included).This system can be easily attached and removed from the front of the camera using a 4mm hex key (not included). The 15mm Rod System uses a small thumb lever for horizontal adjustments of the bracket along the rods. The same 4mm hex key can be used to adjust the bracket up to 1 3/8" vertically to correspond to the height of the accessory. This system features an aluminum bracket and aluminum rods with stainless steel screws. UPC: 629266001417
In the Box Bundle Items Paparazzi Riser srxxuzdczwecwudqvb 15mm Rod Riser System - Pair of 15mm Female - Female Rod (8")
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Paparazzi Riser 15mm Rod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Paparazzi Riser
| Material of Construction | Riser: Anodized CNC aluminum Screws: Stainless steel | | Accessory Mounting Threads | 1/4"-20, 3/8"-16 | | Slot Size | 4" (10.2 cm) | | Dimensions (LxWxH) | 5 x 3 x 2" (12.7 x 7.62 x 5.08 cm) | | Weight | 8.8 oz (249 g) | | | | Box Dimensions (LxWxH) | 8.0 x 5.0 x 5.0" | - 15mm Rod Riser System
| | | Box Dimensions (LxWxH) | 8.3 x 4.6 x 4.4" |
