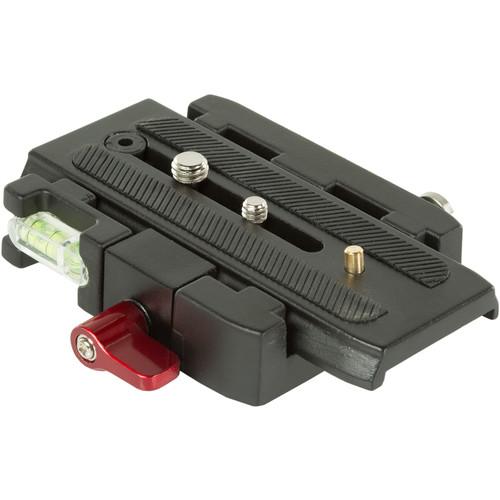

Product description The SHAPE Quick Release Plate Adapter gives you the freedom to remove your camera from your tripod, stabilizer, or support rig without having to detach it from the plate. It includes a Manfrotto 501PL style sliding plate, meaning that the plate will also work with any Manfrotto system that accepts a 501PL plate. A 1/4"-20 screw and a 3/8"-16 screw are included so you can use the plate with various cameras. 1/4"-20 and 3/8"-16 threaded holes on the underside of the adapter allow you attach the plate to a tripod, stabilizer, or support rig. Three bubble levels are available to assist in leveling your camera. -
- Manfrotto 501PL compatible sliding plate
- 1/4"-20 and 3/8"-16 camera screws
- Spring-loaded locking pin
- 1/4"-20 and 3/8"-16 mounting threads
- Three bubble levels
UPC: 629266002186 In the Box SHAPE Quick Release Plate Adapter Manfrotto 501PL Type Sliding Plate 1/4-20" Screw 3/8"-16 Screw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Quick Release Plate Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE 577QR Specs | Camera Mount Screw Sizes | 1 x 1/4"-20
1 x 3/8"-16 | | Tripod Mount Thread Sizes | 1 x 1/4"-20
1 x 3/8"-16 | | Quick Release Plate | Manfrotto 501PL type | | Weight | 9.6 oz (272.2 kg) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 4.6 x 3.3 x 3.3" |
