User Manual for SHAPE RED DSMC2 Shim Plate for ARRI Standard Bridge Plate Click to enlarge the picture
Contents of the user manual for the SHAPE RED DSMC2 Shim Plate for
- Product category: Baseplate Components SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Baseplate Components
 |
User manual for the SHAPE RED DSMC2 Shim Plate for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

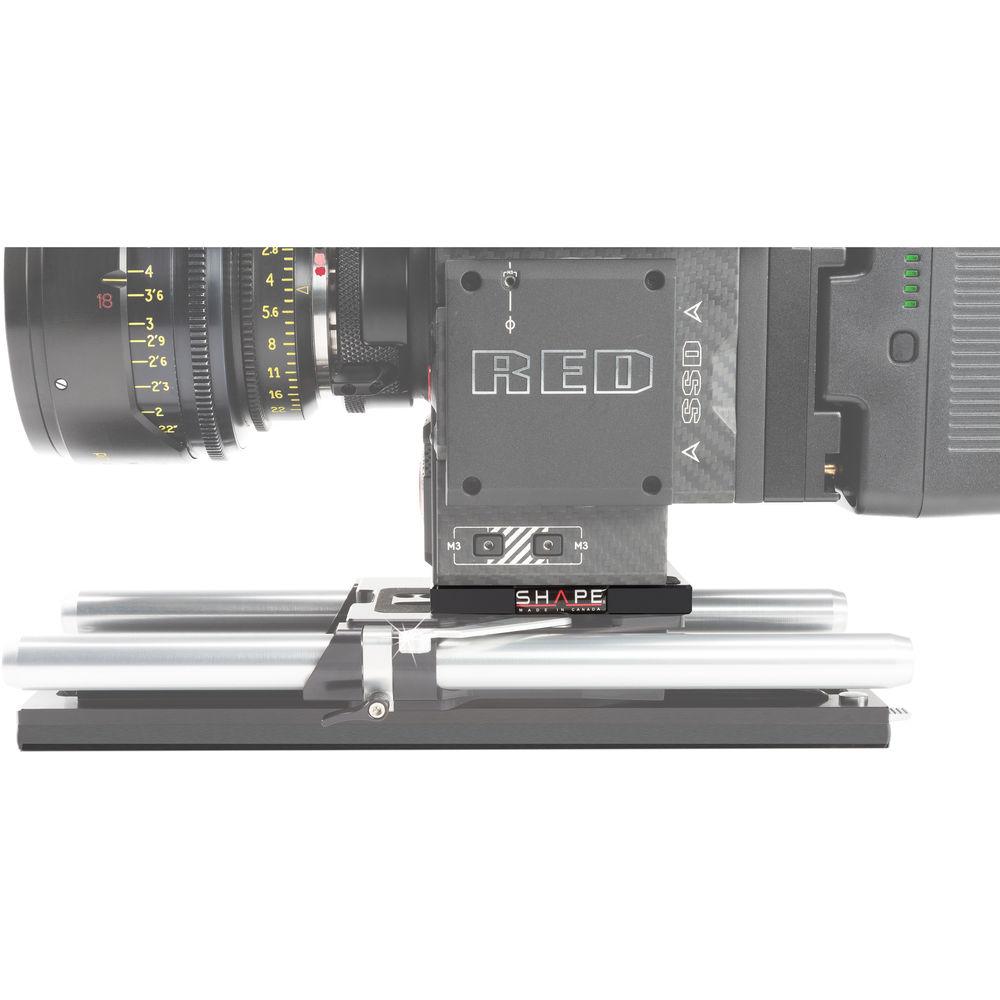

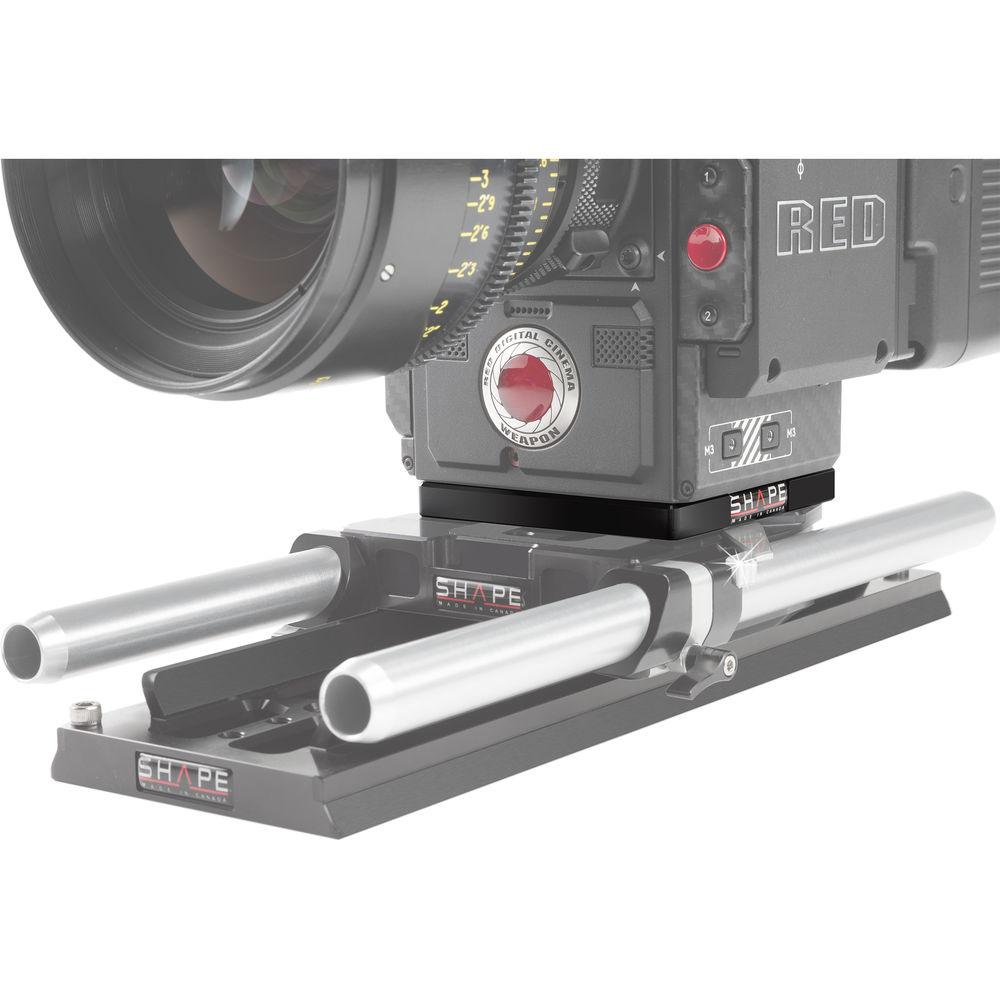

Product description The SHAPE RED DSMC2 Shim Plate for ARRI Standard Bridge Plate is made from CNC machined aluminum and enables you to mount your RED DSMC2 camera—such as the EPIC, SCARLET, RAVEN, DRAGON, MONSTRO, HELIUM, or GEMINI—onto a 15 or 19mm studio bridge plate and maintain the industry-standard 85mm distance from lens center to rod center. This distance allows your rod-mounted accessories, such as follow focus units and matte boxes, to work properly with your RED camera.

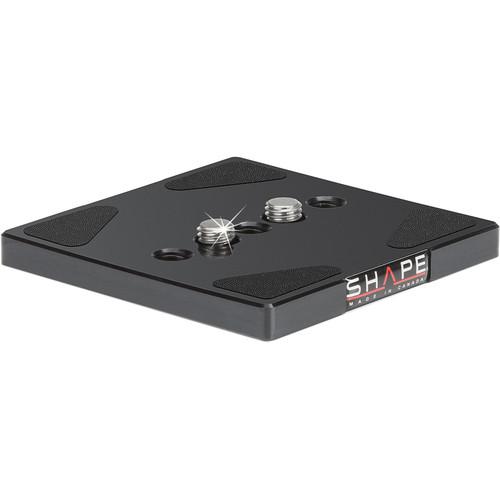

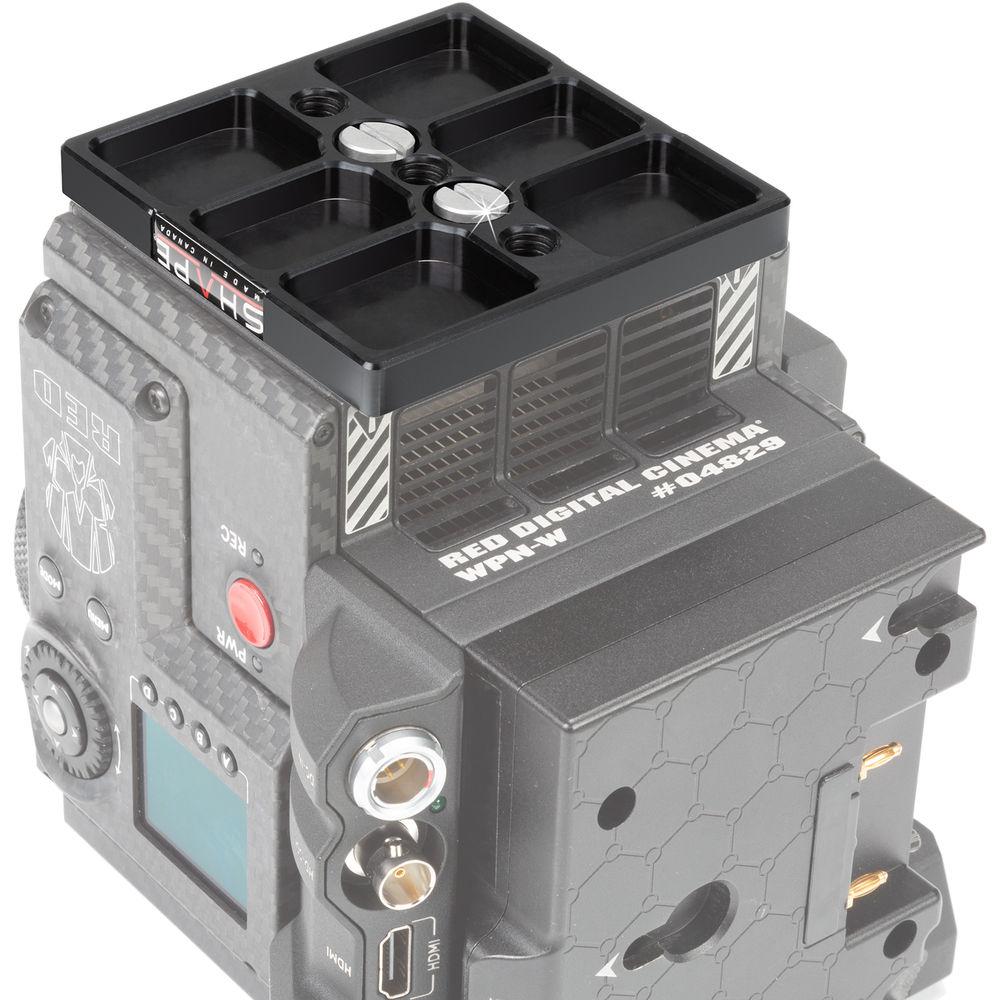

The plate features five threaded camera mounting holes, enabling you to mount your camera forward of back-of-center of the plate, and providing additional adjustment that comes in handy when balancing the system. Two included captive 3/8"-16 tie-down screws travel with the plate and won't fall out when the camera is not mounted on the plate. Four rubber pads on the top of the plate help cushion your camera, holding it secure. - The machined plate ensures the correct lens center-to-rod center height when mounting your RED DSMC2 camera on a standard ARRI compatible 15 or 19mm studio bridge plate.
- The rubber pads allow you to mount your camera onto the plate while avoiding metal-to-metal contact between your camera and the plate.
UPC: 629266008447 In the Box SHAPE RED DSMC2 Shim Plate for ARRI Standard Bridge Plate (15/19mm Studio Rod Support) 2 x 3/8"-16 Captive Screw Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE RED DSMC2 Shim Plate for ARRI Standard Bridge Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE RSPA Specs | Material of Construction | CNC machined aluminum
Rubber pads | | Mounting Threads | 5 x 3/8"-16 holes | | Dimensions | 3.50 x 3.50 x 0.39" / 8.89 x 8.89 x 0.99 cm | | Weight | 0.29 lb / 0.13 kg | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.6 x 5.5 x 2.4" |
