User Manual for SHAPE Revolt Sliding Dovetail Riser Click to enlarge the picture
Contents of the user manual for the SHAPE Revolt Sliding Dovetail Riser
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
 |
User manual for the SHAPE Revolt Sliding Dovetail Riser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

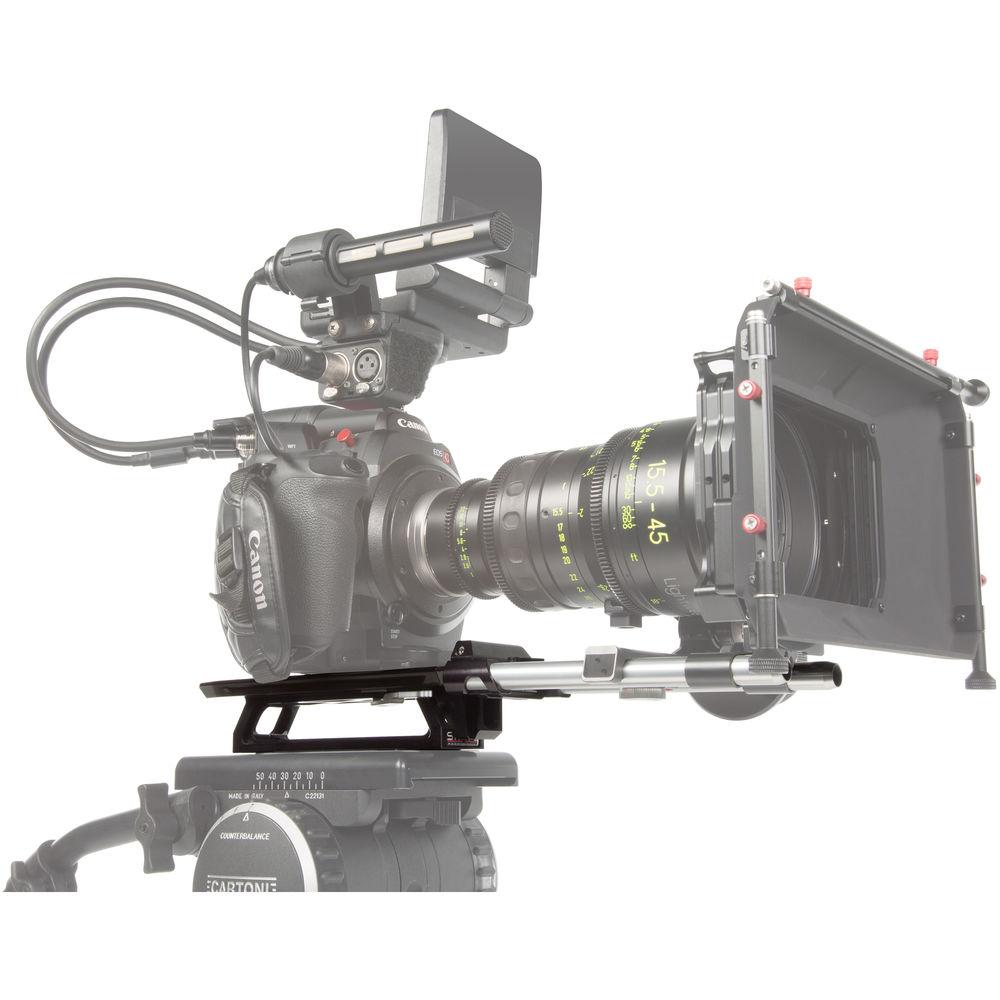

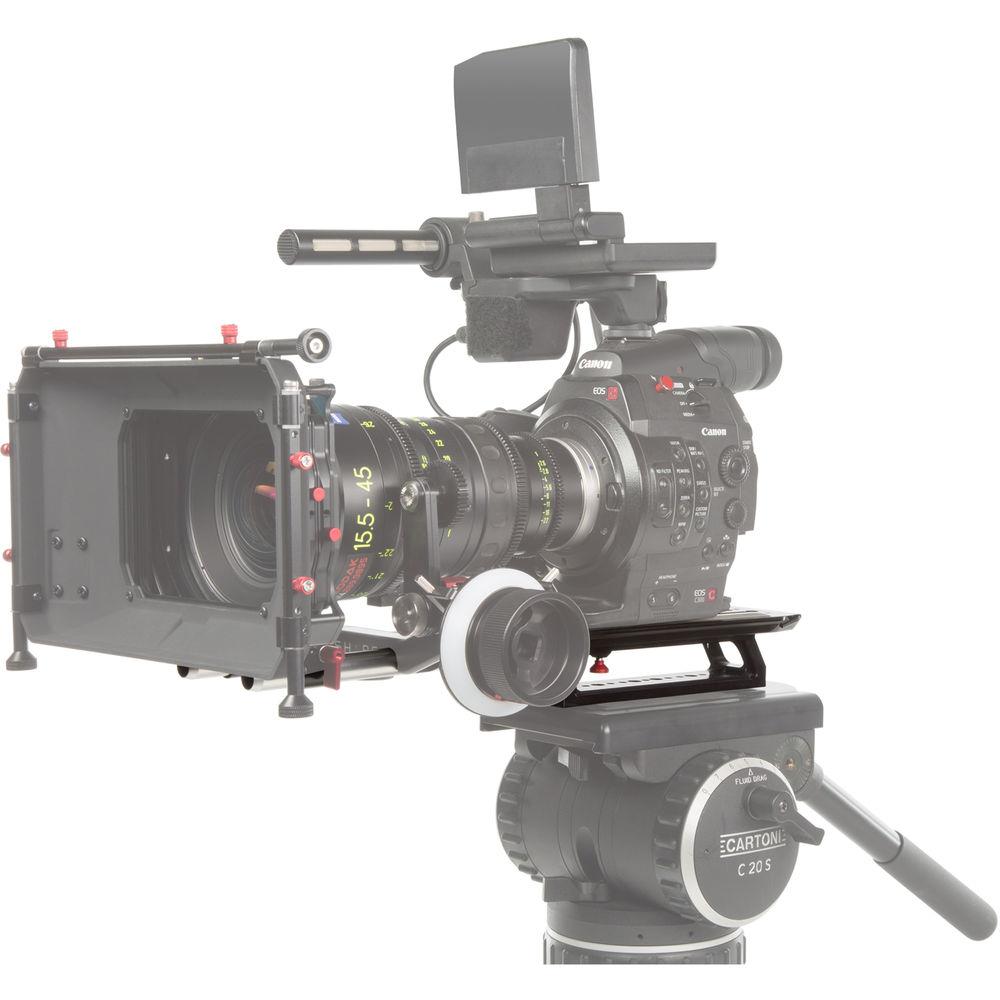

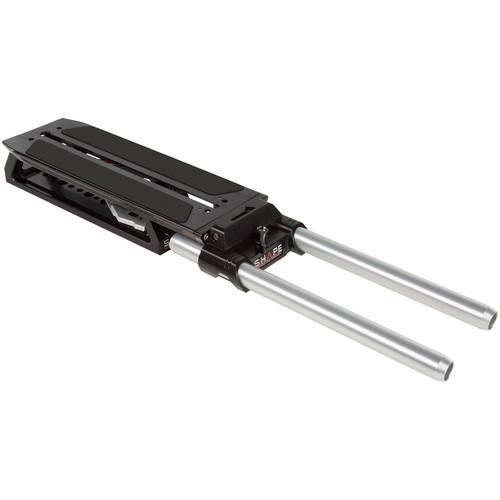

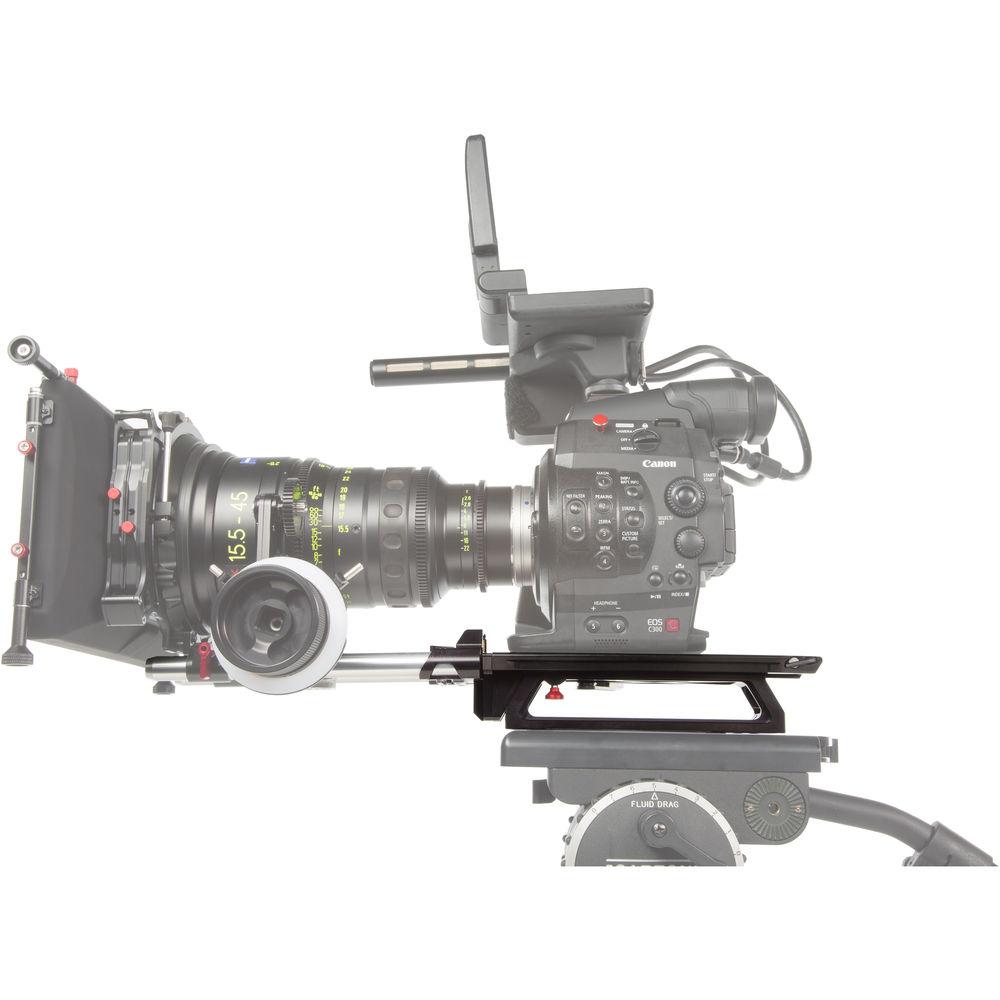

Product description Mount your camera to the SHAPE Revolt Sliding Dovetail Riser for precise tripod balancing and 15mm LWS accessory compatibility. The long plate design can compensate for short or long camera lengths, and it slides to further compensate for interchangeable lenses or other accessories mounted on the camera. The bottom of the baseplate has 1/4"-20 and 3/8"-16 threaded holes for compatibility with most video fluid heads. At the front, a 15mm rod clamp secures the two included rods for accessory mounting. Equipment such as follow focuses, lens supports, drive motors, and matte boxes can be attached to build up your rig. The levers on the baseplate are spring-loaded, so they can be optimally rotated for tightening and loosening bolts. Safety catches on adjustable surfaces have been implemented to prevent the camera from accidentally falling during adjustment. - Sliding Plate with Locking Lever
- Disengage the lever at the side of the baseplate to find the center of gravity for precise balancing.
- Height-Adjustable Rod Clamp
- Adjust the height of the rod clamp to ensure that your rod-mounted accessories line up with your camera's optical center.
- Compatible Cameras
- ARRI Amira and Alexa Mini
Sony FS7, FS7M2, F5, F55, EX1, and EX3
Canon C300, C300M2, and C700
RED Series
Panasonic Cinema Varicam LT 4K S35, AG-AF100, AG-AF101, Varicam LT, and P2
Blackmagic Ursa Mini
Similar cameras with interchangeable lenses UPC: 629266006832 In the Box SHAPE Revolt Sliding Dovetail Riser Sliding Plate 2 x 15mm Rods Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Revolt Sliding Dovetail Riser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE RSDR Specs | Tripod Mounting Threads | 1/4"-20 & 3/8"-16 | | Material | Aluminum | | Dimensions | 9.75 x 3.25 x 1.75" / 24.8 x 8.3 x 4.5 cm | | Weight | 1.3 lb / 590 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 14.2 x 5.9 x 4.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
