SHAPE REVOLT VCT Universal Baseplate

Search your instruction manual in PDF to download

User Manual for SHAPE REVOLT VCT Universal Baseplate

Click to enlarge the picture
SHAPE REVOLT VCT Universal Baseplate Contents of the user manual for the SHAPE REVOLT VCT Universal Baseplate
  • Product category: Camcorder Supports & Rigs SHAPE
  • Brand: SHAPE
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for SHAPE Camcorder Supports & Rigs

SHAPE REVOLT VCT Universal Baseplate SHAPE REVOLT VCT Universal Baseplate SHAPE REVOLT VCT Universal Baseplate SHAPE REVOLT VCT Universal Baseplate SHAPE REVOLT VCT Universal Baseplate SHAPE REVOLT VCT Universal Baseplate SHAPE REVOLT VCT Universal Baseplate SHAPE REVOLT VCT Universal Baseplate SHAPE REVOLT VCT Universal Baseplate
User manual for the SHAPE REVOLT VCT Universal Baseplate contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any SHAPE product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!



Product description

  • REVOLT series: Universal Baseplate, Extendable Top Handle, Push-Button Arms

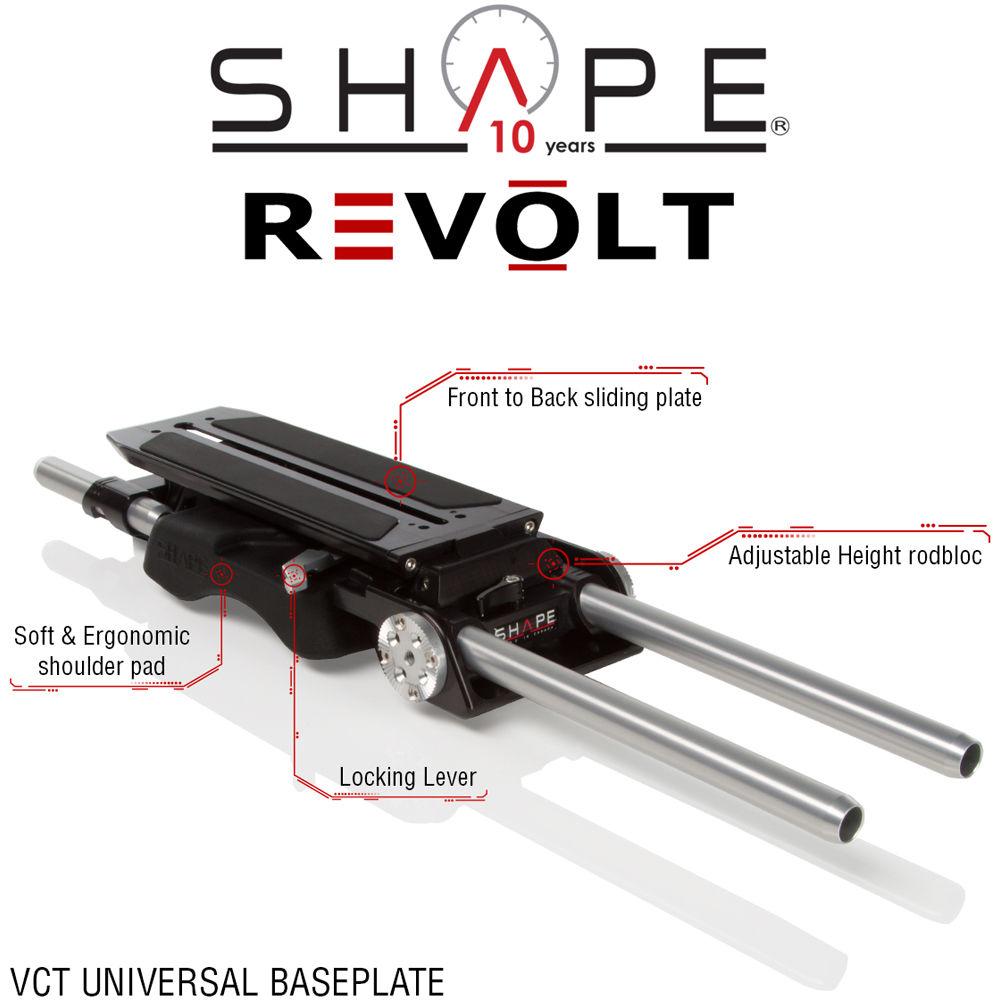

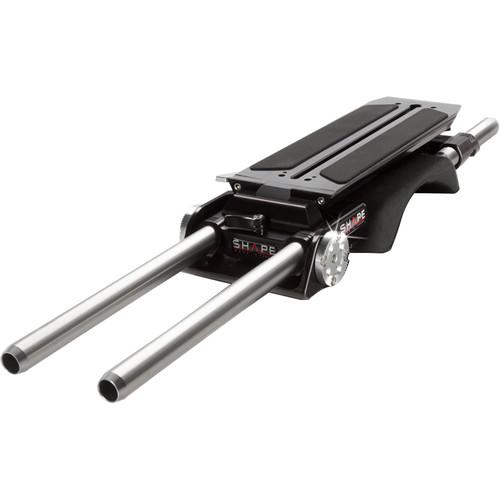

Featuring a sliding camera plate, SHAPE's REVOLT VCT Universal Baseplate can accommodate rigs of varying sizes. Simply attach your camera via 1/4"-20 or 3/8"-16 screws to the top plate, and slide it onto the shoulder plate. Fore and aft movement allows you to balance the weight of your setup properly. Further adjustments can be made by moving the shoulder pad. The 15mm rod clamps at the front and rear of the baseplate allow you to secure 15mm accessories such as a matte box, follow focus, lens motors, lens supports, battery plates, or external recorders. Since the front rod clamp is attached to the top plate, the rod-mounted accessories don't need to be repositioned as the rig is adjusted. Additionally, handles can be mounted to the ARRI standard rosettes on either side of the plate. When not shoulder-mounted, the baseplate can be secured to a standard VCT-14 ENG quick release in a matter of seconds, saving time on set.

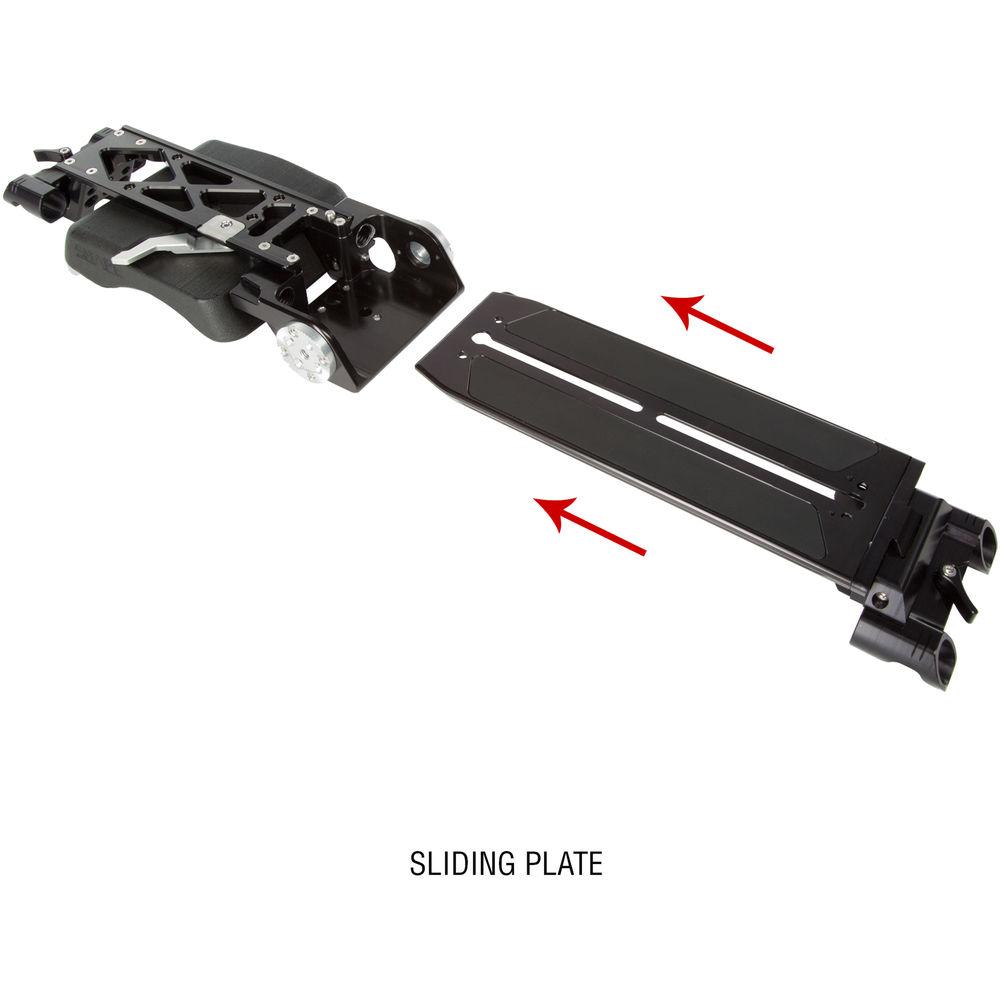

  • The sliding baseplate provides a quick positioning of your camera and accessories for an optimal adjustment of your camera's balance center.

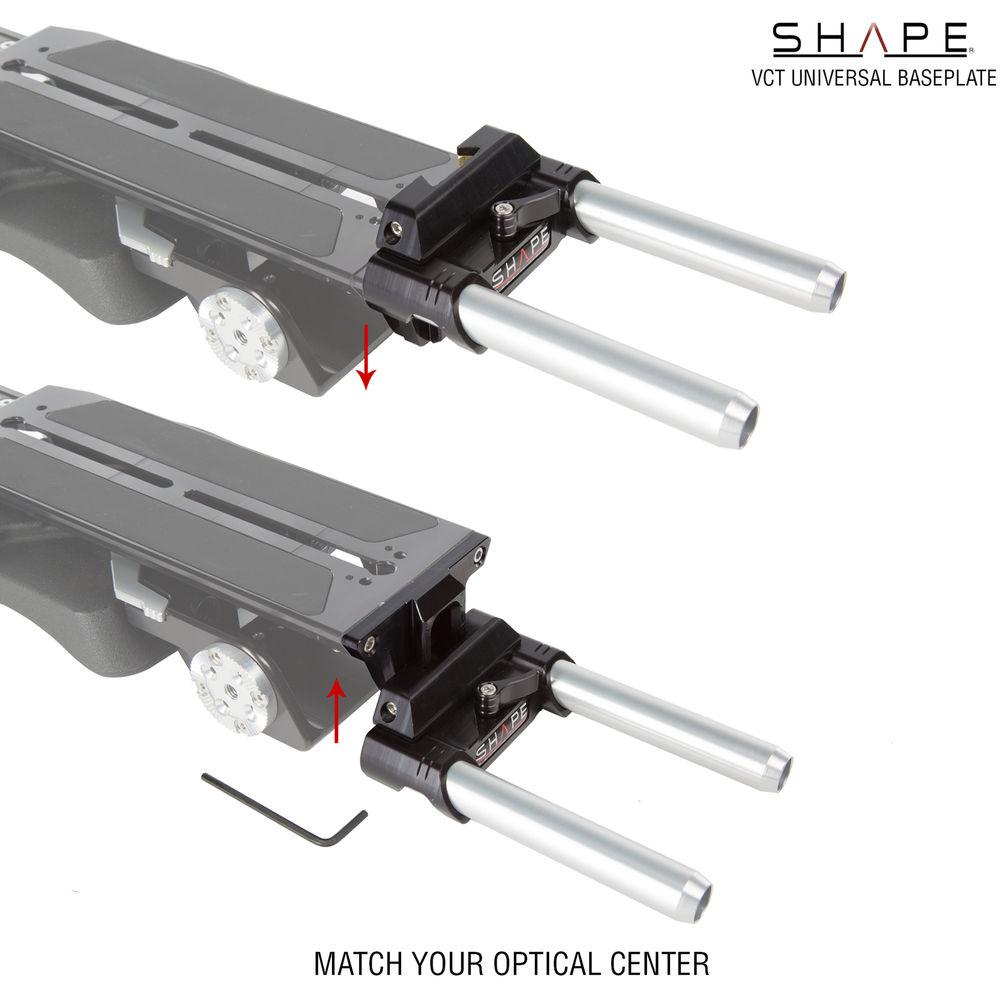

  • Height-adjustable rod clamp for aligning the 15mm rods at the proper LWS height in relation to the optical axis.
  • Front and rear rod clamps allow you to extend your rig forwards and backwards.

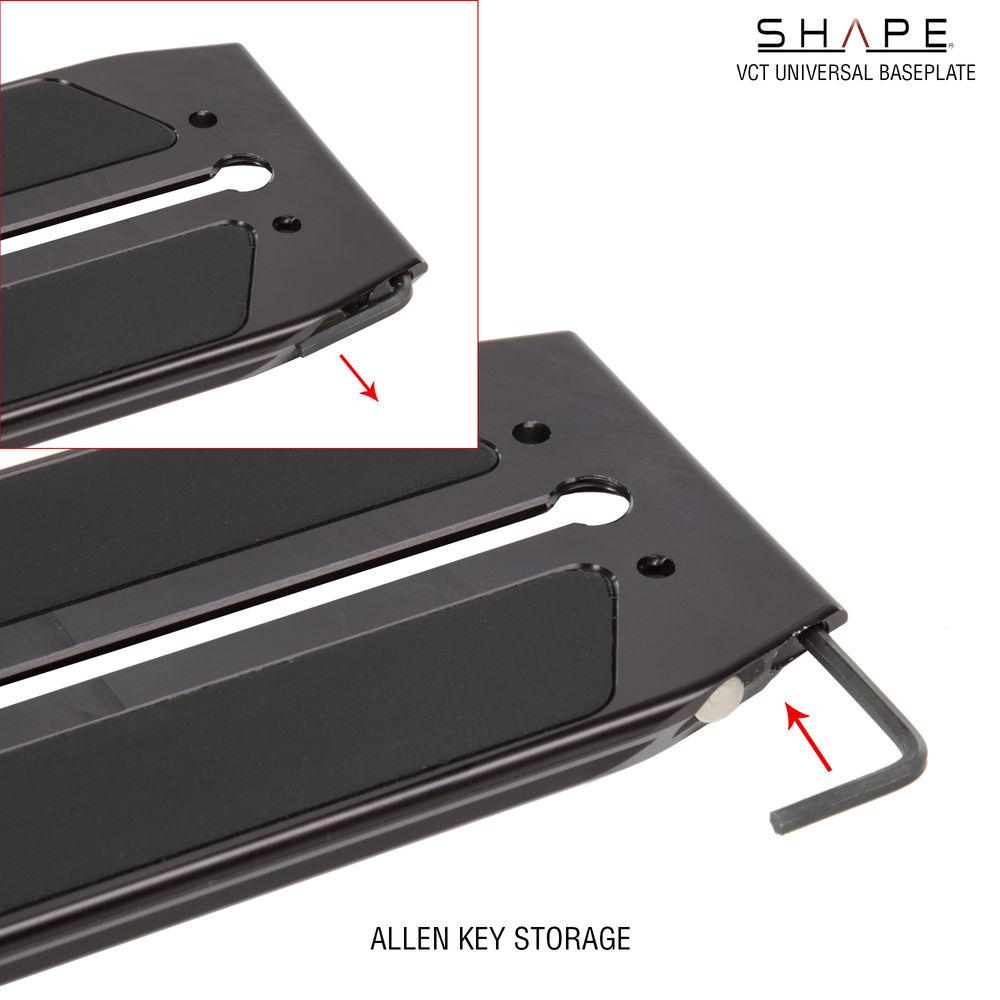

  • Built-in storage areas for extra screws and the Allen wrench ensure that necessary adjustment tools are always close at hand.

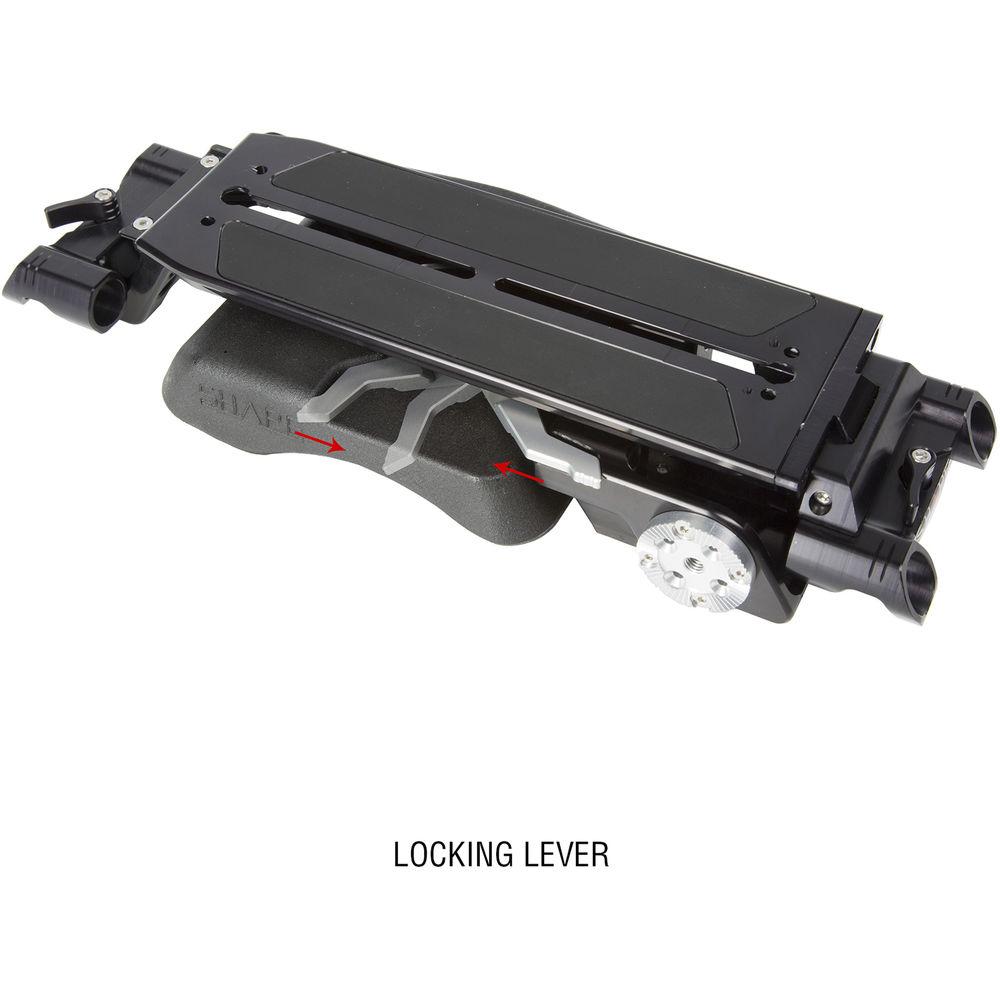

  • Safety pins and spring-loaded levers prevent the top plate from sliding unintentionally.
  • Soft and ergonomic shoulder pad.
UPC: 629266006672 In the Box SHAPE REVOLT VCT Universal Baseplate
