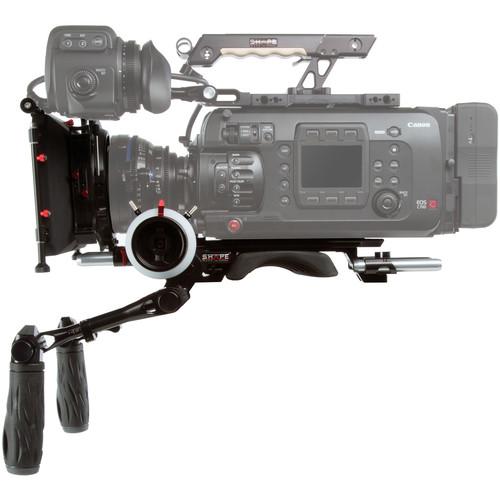

SHAPE REVOLT VCT Universal Baseplate with

User Manual for SHAPE REVOLT VCT Universal Baseplate with Follow Focus & Matte Box Pro Kit

• Product category: Camcorder Supports & Rigs SHAPE
• Brand: SHAPE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SHAPE Camcorder Supports & Rigs

Product description

• REVOLT VCT Universal Baseplate Featuring a sliding camera plate, SHAPE's REVOLT VCT Universal Baseplate can accommodate rigs of varying sizes. Simply attach your camera via 1/4"-20 or 3/8"-16 screws to the top plate, and slide it onto the shoulder plate. Fore and aft movement allows you to balance the weight of your setup properly. Further adjustments can be made by moving the shoulder pad. The 15mm rod clamps at the front and rear of the baseplate allow you to secure 15mm accessories such as a matte box, follow focus, lens motors, lens supports, battery plates, or external recorders. Since the front rod clamp is attached to the top plate, the rod-mounted accessories don't need to be repositioned as the rig is adjusted. Additionally, handles can be mounted to the ARRI standard rosettes on either side of the plate. When not shoulder-mounted, the baseplate can be secured to a standard VCT-14 ENG quick release in a matter of seconds, saving time on set.
  • The sliding baseplate provides a quick positioning of your camera and accessories for an optimal adjustment of your camera's balance center.
  • Height-adjustable rod clamp for aligning the 15mm rods at the proper LWS height in relation to the optical axis.
  • Front and rear rod clamps allow you to extend your rig forwards and backwards.
  • Built-in storage areas for extra screws and the Allen wrench ensure that necessary adjustment tools are always close at hand.
  • Safety pins and spring-loaded levers prevent the top plate from sliding unintentionally.
  • Soft and ergonomic shoulder pad.
  UPC: 629266006672
• Telescopic Handles with ARRI Rosettes (Black) The black Telescopic Handles with ARRI Rosettes from SHAPE are left and right handgrips that can be attached to cameras and camera support hardware that has standard ARRI rosettes. Each arm features three points of articulation, combined with the approximately two inches of arm extension allows you to adjust the arms for your comfort. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place without having a full 360° of rotation.

  Shape's unique push-button articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips. A second spring-loaded locking lever along the arms allows you to extend the arms up to two inches and rotate the handgrips throughout 360°. The arms are indexed for extension and rotation, so you can quickly move between known setups.
  • The push-button locking joint enables independent rotation throughout 360°.
  • Spring-loaded locking levers allow you to tighten or loosen the lever even when you do not have space to turn the lever throughout the entire 360° range.
  • The arms feature two inches of extension and are indexed every 5mm of extension.
  • The arms can rotate through 360° and feature 30° of index markings.
  UPC: 629266002162
• Follow Focus Pro The SHAPE Follow Focus Pro mounts on 15mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. The unit snaps onto 15mm rods, allowing for quick attachment, removal, and re-positioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth - depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.
  • • Snap-on 15mm rod attachment
    • Adjustable arm
    • Two 0.8 pitch aluminum gears included: 28 teeth and 43 teeth
    • Interchangeable gear position
    • Adjustable hard stops
    • Removable marking disc
    • Industry standard accessory port
    • CNC machined aluminum parts
  UPC: 629266002360
• 2-Stage 4 x 5.6" Matte Box The 2-Stage 4 x 5.6" Matte Box from SHAPE can be used as a clip-on matte box or can be mounted on industry-standard 15mm rod system. It is designed for light control, insertion, and adjustment of filters. It features a two-stage rotating 4 x 5.6" filter holder. The matte box accepts lenses with a front diameter up to 114mm. It comes with six step-down rings that allow you to fit lenses with an outer diameter of 52, 58, 62, 67, 72, 77, and 82mm as well.
  Compatibility
  • Photo lenses with a minimum diameter of 52mm
    Professional video optics with up to 114mm front diameter
  • Includes 6 step-down rings (52 to 82, 58 to 82, 62 to 82, 67 to 82, 72 to 82, 77 to 82mm)
  • Made in Canada
  UPC: 629266006481

• Limited Lifetime Warranty

• Limited Lifetime Warranty on CNC Machined Parts

• 0.8 Pitch 28 Teeth Aluminum Gear for Follow Focus Pro

• 0.8 Pitch 43 Teeth Aluminum Gear for Follow Focus Pro

• Limited Lifetime Warranty

• 2-Stage Bracket for 4 x 5.6" Rotary Filters

• Clip-On System

• 15mm Bracket

• French Flag

• 2 x Side Wing

• 6 x Step-Down Ring

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• REVOLT VCT Universal Baseplate

  Dimensions	10.4 x 4.4 x 2" / 26 x 11 x 5 cm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	14.1 x 5.8 x 4.4"

• Telescopic Handles with ARRI Rosettes (Black)

  Load Capacity	25 lb / 11 kg
  Dimensions	Arms Retracted: 4.3 x 13.0" / 10.8 x 33.0 cm Arms Extended: 4.3 x 15.0" / 10.8 x 38.1 cm
  Weight	Each Arm: 1.05 lb / 0.48 kg

  Box Dimensions (LxWxH)	11.654 x 9.291 x 3.071"

• Follow Focus Pro

  Included Drive Gear	0.8 MOD
  Rod Compatibility	15 mm LWS
  Number of Sides	Single-Sided
  Built-In Hardstops	2, Fixed
  Witness/Index Mark	Yes
  Marking Disk	Yes
  Switchable Handwheel Speed	No
  Gear Material	Aluminum
  Dimensions	7.63 x 5 x 3" / 19.37 x 12.7 x 7.62 cm
  Weight	1.4 lb / 0.6 kg

  Box Dimensions (LxWxH)	8.74 x 7.48 x 4.409"

• 2-Stage 4 x 5.6" Matte Box

  Lens Fit and Mount	Fits lenses with front diameter up to 114mm Fits lenses with front diameter from 52 to 82mm (6 step-down rings included)
  Filter Type	4 x 5.65" (10.16 x 14.35 cm)
  Total Filter Stages	2
  Rotating Stages	Endless
  Degree of Rotation	360°
  Materials	Aluminum (lens holders are plastic)
  Dimensions	11.5 x 7.5 x 3.5" (29.2 x 19.1 x 8.9 cm)
  Weight	2.35 lb (1.1 kg)

  Box Dimensions (LxWxH)	17.9 x 12.7 x 4.1"
