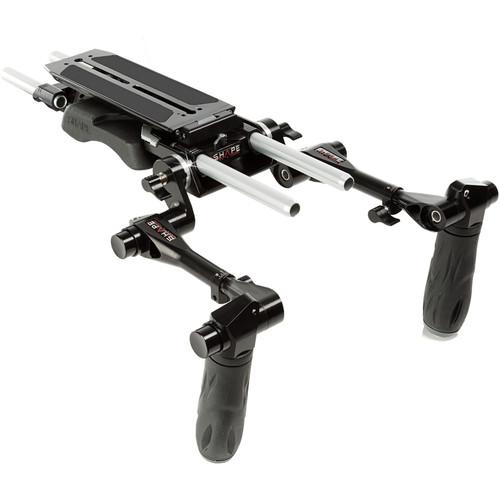

SHAPE REVOLT VCT Universal Baseplate with

User Manual for SHAPE REVOLT VCT Universal Baseplate with Telescopic Handles

• Product category: Camcorder Supports & Rigs SHAPE
• Brand: SHAPE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SHAPE Camcorder Supports & Rigs

Product description

• REVOLT VCT Universal Baseplate Featuring a sliding camera plate, SHAPE's REVOLT VCT Universal Baseplate can accommodate rigs of varying sizes. Simply attach your camera via 1/4"-20 or 3/8"-16 screws to the top plate, and slide it onto the shoulder plate. Fore and aft movement allows you to balance the weight of your setup properly. Further adjustments can be made by moving the shoulder pad. The 15mm rod clamps at the front and rear of the baseplate allow you to secure 15mm accessories such as a matte box, follow focus, lens motors, lens supports, battery plates, or external recorders. Since the front rod clamp is attached to the top plate, the rod-mounted accessories don't need to be repositioned as the rig is adjusted. Additionally, handles can be mounted to the ARRI standard rosettes on either side of the plate. When not shoulder-mounted, the baseplate can be secured to a standard VCT-14 ENG quick release in a matter of seconds, saving time on set.
  • The sliding baseplate provides a quick positioning of your camera and accessories for an optimal adjustment of your camera's balance center.
  • Height-adjustable rod clamp for aligning the 15mm rods at the proper LWS height in relation to the optical axis.
  • Front and rear rod clamps allow you to extend your rig forwards and backwards.
  • Built-in storage areas for extra screws and the Allen wrench ensure that necessary adjustment tools are always close at hand.
  • Safety pins and spring-loaded levers prevent the top plate from sliding unintentionally.
  • Soft and ergonomic shoulder pad.
  UPC: 629266006672
• Telescopic Handles with ARRI Rosettes (Black) The black Telescopic Handles with ARRI Rosettes from SHAPE are left and right handgrips that can be attached to cameras and camera support hardware that has standard ARRI rosettes. Each arm features three points of articulation, combined with the approximately two inches of arm extension allows you to adjust the arms for your comfort. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place without having a full 360° of rotation.

  Shape's unique push-button articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips. A second spring-loaded locking lever along the arms allows you to extend the arms up to two inches and rotate the handgrips throughout 360°. The arms are indexed for extension and rotation, so you can quickly move between known setups.
  • The push-button locking joint enables independent rotation throughout 360°.
  • Spring-loaded locking levers allow you to tighten or loosen the lever even when you do not have space to turn the lever throughout the entire 360° range.
  • The arms feature two inches of extension and are indexed every 5mm of extension.
  • The arms can rotate through 360° and feature 30° of index markings.
  UPC: 629266002162

• Limited Lifetime Warranty

• Limited Lifetime Warranty on CNC Machined Parts

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• REVOLT VCT Universal Baseplate

  Dimensions	10.4 x 4.4 x 2" / 26 x 11 x 5 cm
  Weight	2.2 lb / 1 kg

  Box Dimensions (LxWxH)	14.1 x 5.8 x 4.4"

• Telescopic Handles with ARRI Rosettes (Black)

  Load Capacity	25 lb / 11 kg
  Dimensions	Arms Retracted: 4.3 x 13.0" / 10.8 x 33.0 cm Arms Extended: 4.3 x 15.0" / 10.8 x 38.1 cm
  Weight	Each Arm: 1.05 lb / 0.48 kg

  Box Dimensions (LxWxH)	11.654 x 9.291 x 3.071"
