User Manual for SHAPE REVOLT VCT Universal Baseplate with Wooden Handle Grips Click to enlarge the picture
Contents of the user manual for the SHAPE REVOLT VCT Universal Baseplate with
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
 |
User manual for the SHAPE REVOLT VCT Universal Baseplate with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

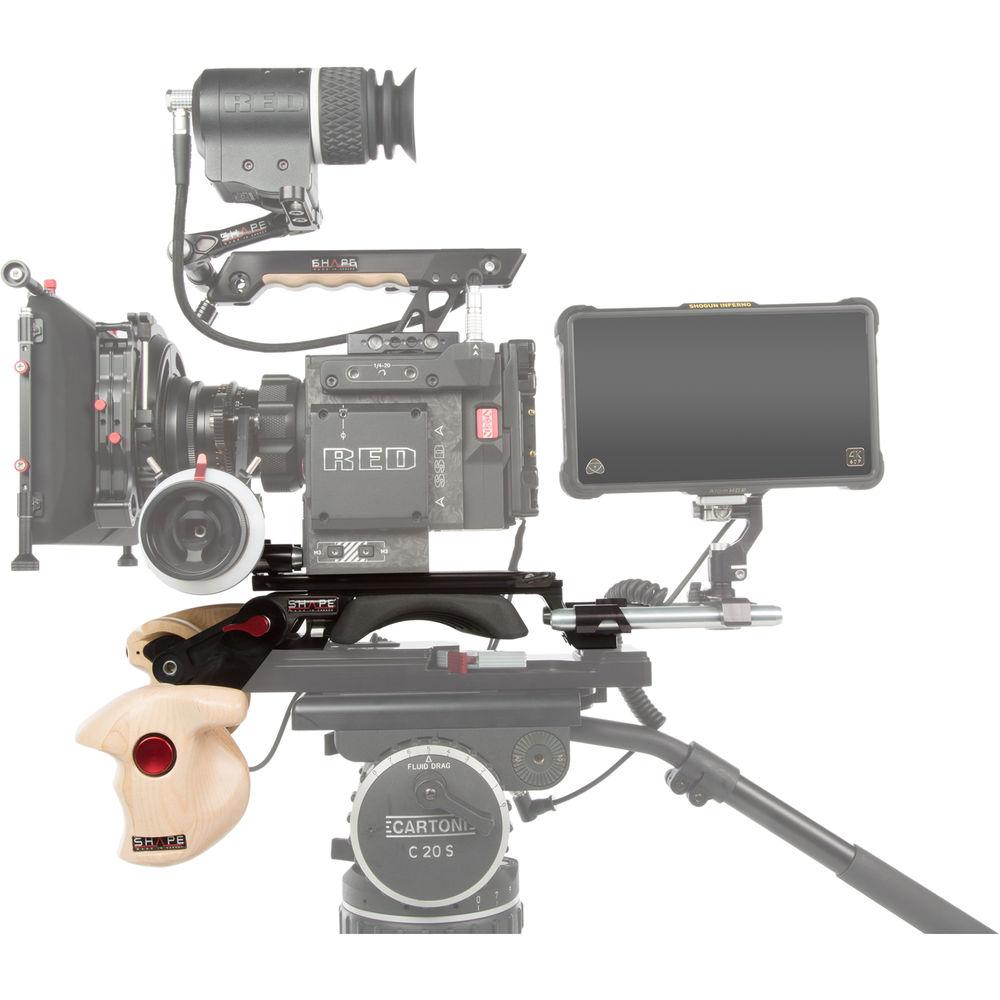

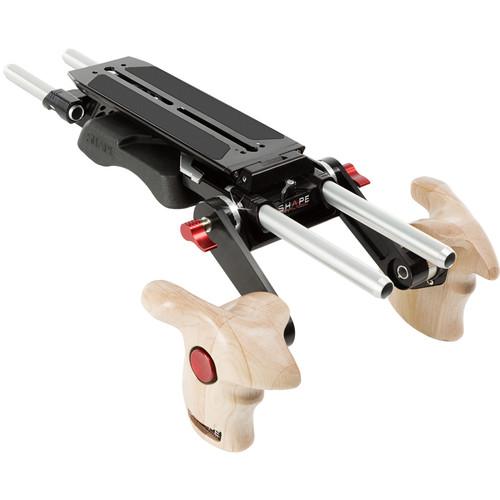

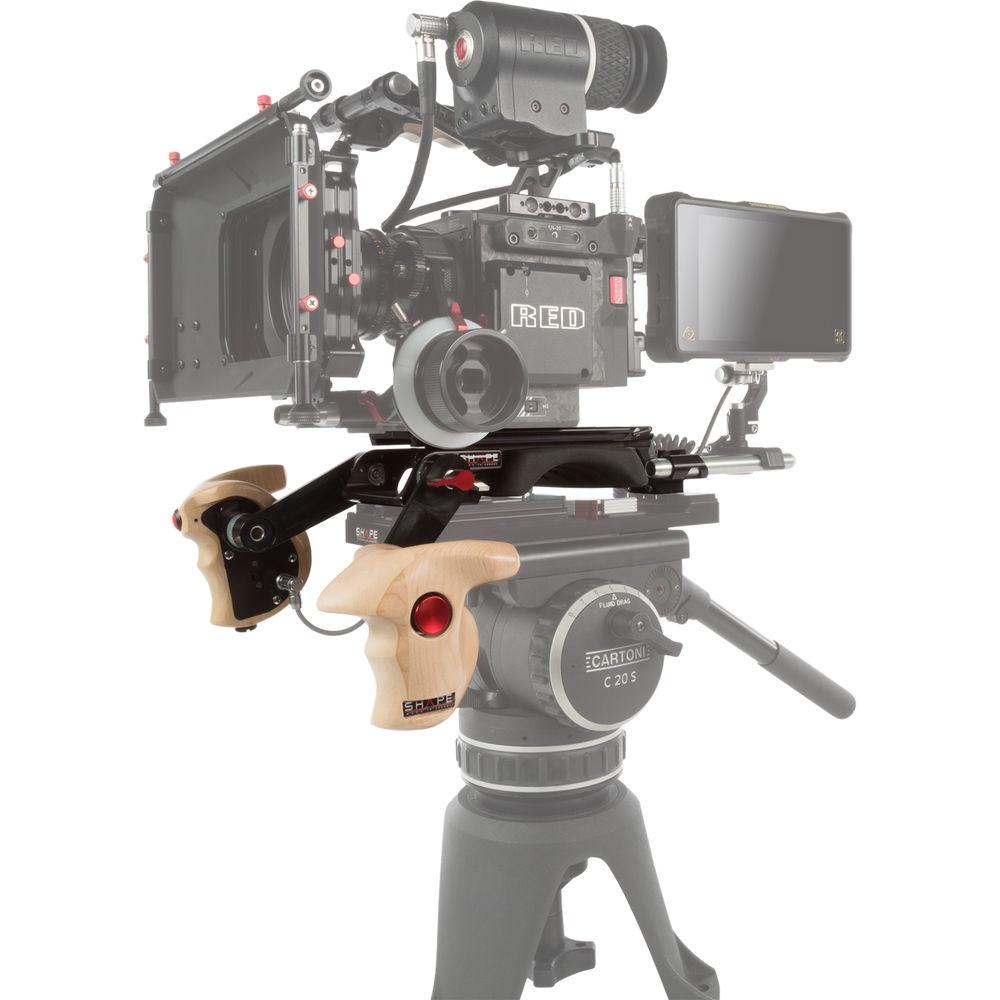

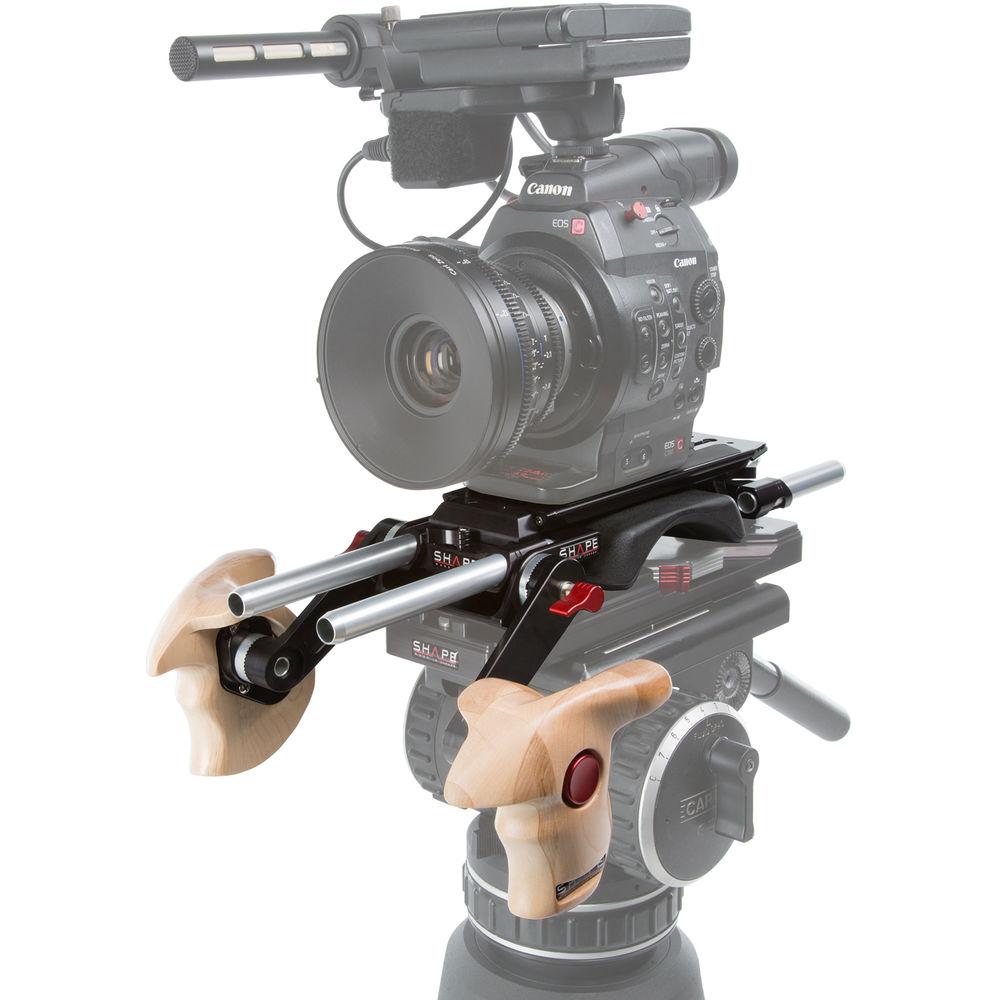

Product description The REVOLT VCT Universal Baseplate with Wooden Handle Grips from SHAPE is a camera support system for shoulder-mounted as well as handheld shooting. It includes the REVOLT VCT universal baseplate and dual maple wooden grips with standard ARRI rosettes. The baseplate comes integrated with a shoulder mount, one pair of 8" standard 15mm rods, and one pair of 4" standard 15mm rods. Camera can be attached via 1/4"-20 or 3/8"-16 screws to the top plate. The sliding baseplate provides a quick positioning of your camera and accessories for an optimal adjustment of your camera's balance center.The wooden hand grips are designed with an ergonomic surface to add more comfort when you are shooting for long hours. It is made from maple hardwood and a high-quality varnish top-coat to provide more durability. - REVOLT VCT Universal Baseplate Featuring a sliding camera plate, SHAPE's REVOLT VCT Universal Baseplate can accommodate rigs of varying sizes. Simply attach your camera via 1/4"-20 or 3/8"-16 screws to the top plate, and slide it onto the shoulder plate. Fore and aft movement allows you to balance the weight of your setup properly. Further adjustments can be made by moving the shoulder pad. The 15mm rod clamps at the front and rear of the baseplate allow you to secure 15mm accessories such as a matte box, follow focus, lens motors, lens supports, battery plates, or external recorders. Since the front rod clamp is attached to the top plate, the rod-mounted accessories don't need to be repositioned as the rig is adjusted. Additionally, handles can be mounted to the ARRI standard rosettes on either side of the plate. When not shoulder-mounted, the baseplate can be secured to a standard VCT-14 ENG quick release in a matter of seconds, saving time on set.
- The sliding baseplate provides a quick positioning of your camera and accessories for an optimal adjustment of your camera's balance center.
- Height-adjustable rod clamp for aligning the 15mm rods at the proper LWS height in relation to the optical axis.
- Front and rear rod clamps allow you to extend your rig forwards and backwards.
- Built-in storage areas for extra screws and the Allen wrench ensure that necessary adjustment tools are always close at hand.
- Safety pins and spring-loaded levers prevent the top plate from sliding unintentionally.
- Soft and ergonomic shoulder pad.
UPC: 629266006672 - Double Wooden Handgrips for ARRI Rosettes This pair of Double Wooden Handgrips from SHAPE is designed to attach to shoulder mounts or other rigs with standard ARRI rosettes. These left and right handgrips feature two points of articulation - a quick release push button, and a rotatable ARRI rosette. The 360° of rotation and the handgrips' ergonomic design enable you to adjust each arm individually for your comfort.These Double Wooden Handgrips are constructed of anodized aluminum with varnished maple grips. The locking mechanisms are made of stainless steel for durability.
Features - Attaches to standard ARRI-type rosettes on shoulder rigs, cages, etc.
- Locking, push button joint for 360° individual rotation
- Varnished maple wood and aluminum construction
- Ergonomic handle design for comfortable operating
UPC: 629266005224 In the Box Bundle Items REVOLT VCT Universal Baseplate uwvstxzy - Limited Lifetime Warranty
Double Wooden Handgrips for ARRI Rosettes - Limited Lifetime Warranty (CNC Machined and Wooden Parts)
