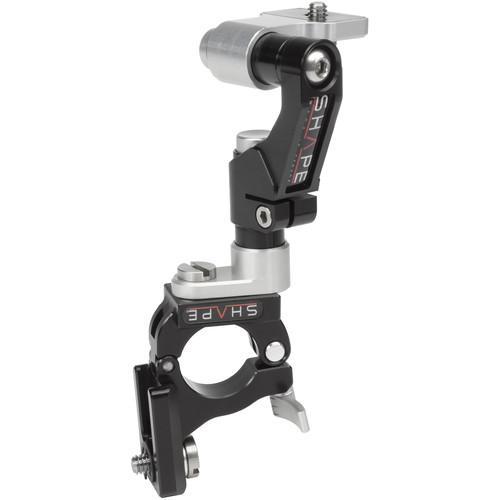

Product description The RPB25 2-Axis Push-Button Arm for 25mm Gimbal Rod is a SHAPE kit that enables you to securely mount accessories to your gimbal rig. Compatible with rod diameters from 24.9 to 25.5mm, this 2-axis arm enables you to tilt and pan the accessory for optimal positioning. - Dual-Axis Push Button Magic Arm with 1/4"-20 Mounting Screw Providing push button adjustment, the SHAPE Dual-Axis Push Button Magic Arm with 1/4"-20 Mounting Screw allows you to quickly mount this accessory support arm to a 1/4"-20 threaded mounting hole. You mount your 1/4"-20 accessory to the top of the arm, which features a small mounting platform with rubberized surface. The D-ring assembly enables you to securely tighten down the screw without using tools. The arm is 3.5" long and features slotted D-rings mounting screws enabling you to either use a slotted screwdriver to tighten the screws, or finger-tighten using the D-ring.
The push button adjustment allows you to tilt the mounting platform forward or backward, and another push button provides you with pan adjustment to position your accessory just how you want it. This arrangement doesn't require you to stress, strain, or worry when loosening or tightening the central lock-down arm common to most accessory arms. Additionally, each push button only controls one axis, so you don't have to worry about your arm collapsing when you make an adjustment. - This arm provides one distinct point of 360° pan articulation and one point of tilt articulation.
- The push button adjustment on each axis allows you to adjust a single axis at a time, instead of loosening all axes at the same time.
- You can attach the arm to any 1/4"-20 threaded mounting hole.
- The arm is a fixed 3.5" long.
- Made from CNC Machined and anodized aluminum, it is both lightweight and strong.

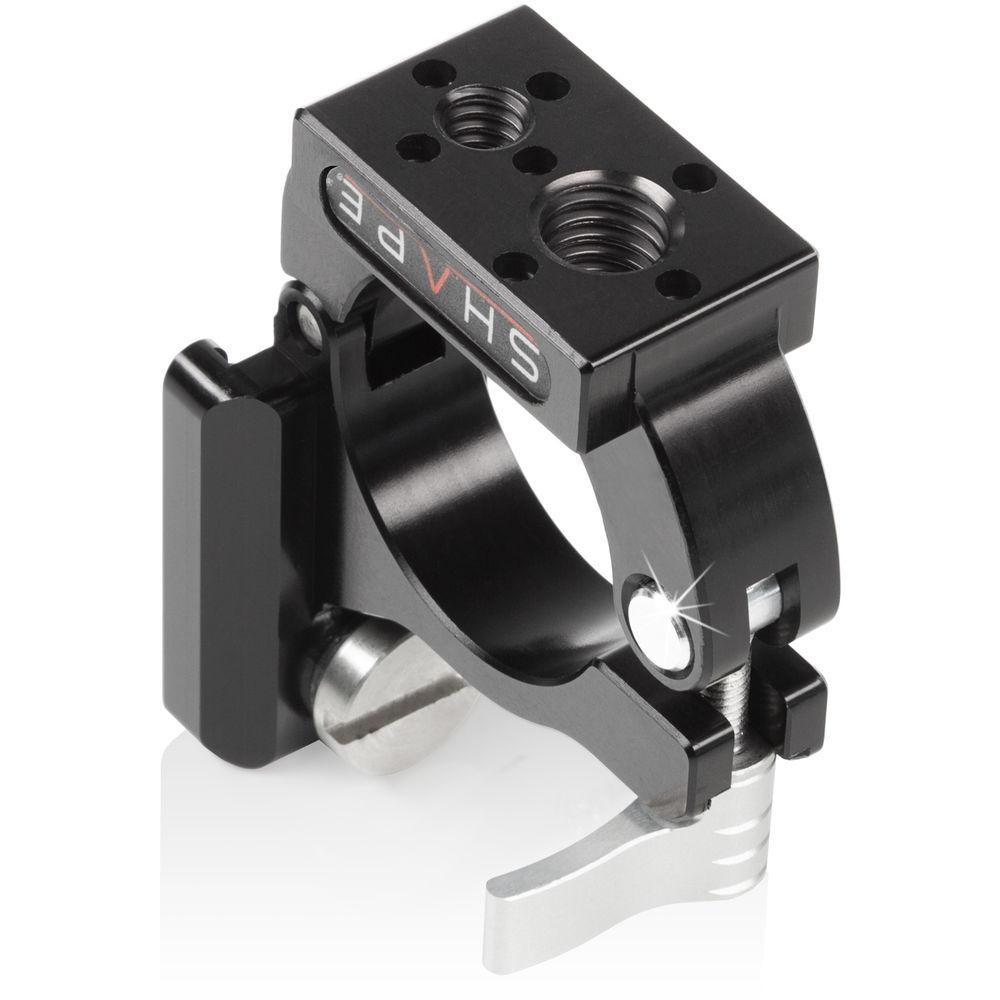

UPC: 629266006856 - Gimbal Accessory Clamp for 25mm Rod Securely mount a monitor, mic, or other component on your gimbal with the versatile SHAPE Gimbal Accessory Clamp. The clamp is compatible with gimbal rods or any component with a 25mm rod diameter.Accessory mounting options include a cold shoe mount, a captive 1/4"-20 screw, and 1/4"-20 and 3/8"-16 anti-twist threads. The SHAPE Accessory Clamp features a thumb-lever for a secure mount and a lightweight aluminum build. UPC: 629266008454
In the Box Bundle Items Dual-Axis Push Button Magic Arm with 1/4"-20 Mounting Screw rfqvezettsaryerfww - Limited Lifetime Warranty on CNC Machined Parts
Gimbal Accessory Clamp for 25mm Rod - Limited Lifetime Warranty
