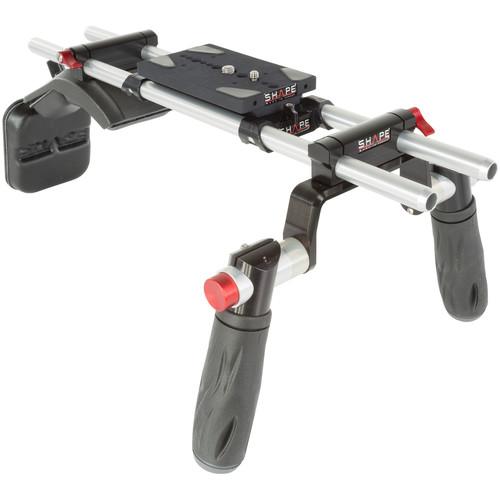

Product description The Shoulder Mount from SHAPE is a shoulder rig system with lightweight support (LWS) for the Panasonic AU-EVA1 camera. It includes one EVAB15 Baseplate with Rod Bloc, one HAND5 Quick Handle with Rod Bloc and Push Button System, a pair of 15mm 18" rods, and one shoulder pad support.
The baseplate is designed for use with the Panasonic AU-EVA1, and features four attachment points for securely mounting the camera. It includes a pair of 15mm rods that are 18” long and run through the length of the baseplate. The handle and shoulder pad allow you to use the rig for handheld or tripod shooting.
The Quick Handle features two handles that can rotate individually on a 360° axis by pushing the red push button system. Once the buttons are released, the handles are secured firmly in place. You can achieve precise positioning by sliding the Rod Bloc system along the 15mm rods, securing the handles with the red knob on the Rod Bloc. - Baseplate with 15mm Rod System for Panasonic AU-EVA1 The SHAPE Baseplate with 15mm Rod System is designed for use with the Panasonic AU-EVA1 camera. It features four attachment points for securely mounting the AU-EVA1 to a camera rig. The baseplate also comes with a pair of 15mm rods that are 12” long through the length of the baseplate.
By unscrewing the bottom section of the baseplate with the included Allen key, you get an adapter plate featuring several 1/4"-20 and 3/8"-16 mounting holes for mounting and balancing your camera on equipment like a tripod, gimbal, or drone. - Attaches underneath the camera with 3/8"-16 and 1/4"-20 screws
- Three 1/4"-20 and one 3/8"-16 mounting holes for securing the camera or a tripod plate
- Ratchet key knobs to reposition the Rod Bloc system
- Four rubber pads at the top of the base protect and securely hold your Panasonic AU-EVA1 camera
- Allen key is fixed via a magnet at the bottom of the baseplate for easy accessibility
UPC: 629266007358 - 15mm Rods (18", Pair) These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
- Pair of aluminum support rods for 15mm rod clamps.
- 18" long rods with chamfered ends that guide the rod into an available rod clamp, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp.
UPC: 629266002223 - Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle - Provides professional video stabilization with 2 handles
- Each handle offers 360° individual rotation
- Offers easy attachment/removal
Rod Block - Composed of anodized aluminum
- Offers composite camera support for all 15mm rods
- Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
- With 2 screw-threaded holes, the Rod Block provides for attachment of components
UPC: 629266000793 In the Box Bundle Items Baseplate with 15mm Rod System for Panasonic AU-EVA1 rdvavyeufybzdbarva - 15mm Aluminum Rods (Pair, 12")
- Limited Lifetime Warranty
15mm Rods (18", Pair) - Limited Lifetime Warranty
Quick Handle + Rod Block
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Shoulder Mount for Panasonic AU-EVA1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Baseplate with 15mm Rod System for Panasonic AU-EVA1
| | | Material | CNC Machined aluminum | | Mounting Holes | 3 x 1/4"-20
1 x 3/8"-16 | | Dimensions (W x H x L) | 4.0 x 4.0 x 1.31" (10.1 x 10.1 x 3.3 cm) | | Weight | 0.79 lb (0.36 kg) | | | | Box Dimensions (LxWxH) | 12.7 x 4.4 x 2.4" | - 15mm Rods (18", Pair)
| Diameter | 15mm | | Length | 18" (45.7 cm) | | Weight | 0.4 lb (181.4 g) | | | | Box Dimensions (LxWxH) | 18.5 x 2.992 x 0.236" | - Quick Handle + Rod Block
| | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" |
