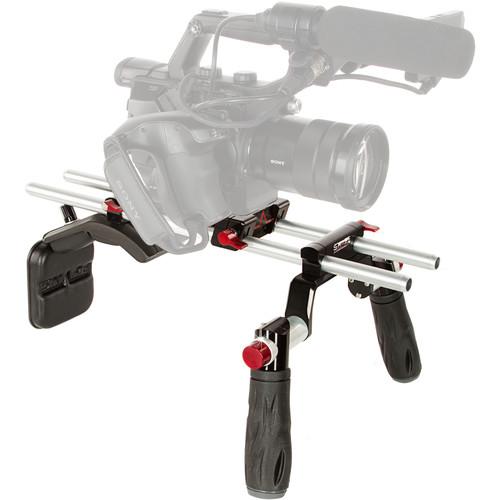

User Manual for SHAPE Shoulder Mount Kit for Sony FS5 FS5M2 Click to enlarge the picture
Contents of the user manual for the SHAPE Shoulder Mount Kit for Sony
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
|
User manual for the SHAPE Shoulder Mount Kit for Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description Optimized for the Sony FS5 and FS5M2 cameras, this Shoulder Mount Kit from SHAPE will make a great camera even better by providing an ergonomic solution to run-and-gun shooting. It features a dedicated baseplate with 18" 15mm rods which will mount the quick handle, the mini composite shoulder pad, and back pad with ease, as well as other assorted accessories. The baseplate also sports rubber pads to cushion the camera, and the system has tripod mounting threads on the base. Additionally, the rig is constructed from CNC Machined aluminum and features several 1/4"-20 and 3/8"-16 threads for mounting devices. - Baseplate for Sony FS5 and FS5M2 Cameras
- SHAPE SONY FS5 TECHNICAL VIDEO
The SHAPE Baseplate comes with rubber pads at the top so the Sony PXW-FS5 or PXW-FS5M2 camera doesn't sit directly on the aluminum. The baseplate fits 15mm standard rods, which are secured with a red ratchet knob screw. A pair of 10" 15mm rods is included. The baseplate is ideal for drone and gimbal applications, and is designed with a lightweight system for mounting standard 15mm accessories. - 1/4"-20 treaded holes for side mounting
- 3/8"-16 and 1/4"-20 captive screws to secure the camera position
- Four 1/4"-20 and two 3/8"-16 threaded holes under the baseplate for tripod mounting
- Rods are positioned to reach optical center
- Rubber pads on top of the baseplate cushion the camera base
- Removable bracket for Metabones adapter can be installed separately
UPC: 629266005125 - Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle - Provides professional video stabilization with 2 handles
- Each handle offers 360° individual rotation
- Offers easy attachment/removal
Rod Block - Composed of anodized aluminum
- Offers composite camera support for all 15mm rods
- Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
- With 2 screw-threaded holes, the Rod Block provides for attachment of components
UPC: 629266000793 - Mini Composite Shoulder Pad The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830
- Back Pad The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
- Compatible Support Series
-
- Composite
- Cameleon
- Sumo
- Spider
UPC: 629266001202 - 15mm Rods (18", Pair) These Shape's 15mm Rods are a pair of 18" long rods that fit studio and LWS 15mm rod clamps, allowing you to use available rod mounted accessories. This pair of rods are approximately 18" long and machined from hollow aluminum tubes. The rods feature chamfered ends that make it easier to insert into available 15mm rod clamps.
- Pair of aluminum support rods for 15mm rod clamps.
- 18" long rods with chamfered ends that guide the rod into an available rod clamp, even if the rod isn't perfectly aligned or is at a slight angle to the rod clamp.
UPC: 629266002223 In the Box Bundle Items Baseplate for Sony FS5 and FS5M2 Cameras sbudaeadvxtfrdsf - 15mm Aluminum Rods (Pair, 10")
- Limited Lifetime Warranty
Quick Handle + Rod Block sbudaeadvxtfrdsf Mini Composite Shoulder Pad - Camera Screw Knob (1/4"-20)
Back Pad - Limited Lifetime Warranty
15mm Rods (18", Pair) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Shoulder Mount Kit for Sony FS5 FS5M2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Baseplate for Sony FS5 and FS5M2 Cameras
| Material | CNC aluminum | | Mounting Threads | 1/4"-20 and 3/8"-16 | | Dimensions | 1.25 x 3.25 x 4.50" / 3.18 x 8.26 x 11.43 cm | | Weight | 11.2 oz / 317.5 g | | | | Box Dimensions (LxWxH) | 12.7 x 4.4 x 2.4" | - Quick Handle + Rod Block
| | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" | - Mini Composite Shoulder Pad
| | | Box Dimensions (LxWxH) | 6.5 x 4.3 x 3.4" | - Back Pad
| Material of Construction | Anodized aluminum | | Adjustments | Up/Down: 2" (5 cm)
Right/Left: 360° | | Weight | 0.5 lbs (0.2 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.5" | - 15mm Rods (18", Pair)
| Diameter | 15mm | | Length | 18" (45.7 cm) | | Weight | 0.4 lb (181.4 g) | | | | Box Dimensions (LxWxH) | 18.5 x 2.992 x 0.236" |
