SHAPE Shoulder Rig Bundle for Sony

User Manual for SHAPE Shoulder Rig Bundle for Sony FS7 Cameras

• Product category: Camcorder Supports & Rigs SHAPE
• Brand: SHAPE
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SHAPE Camcorder Supports & Rigs

Product description

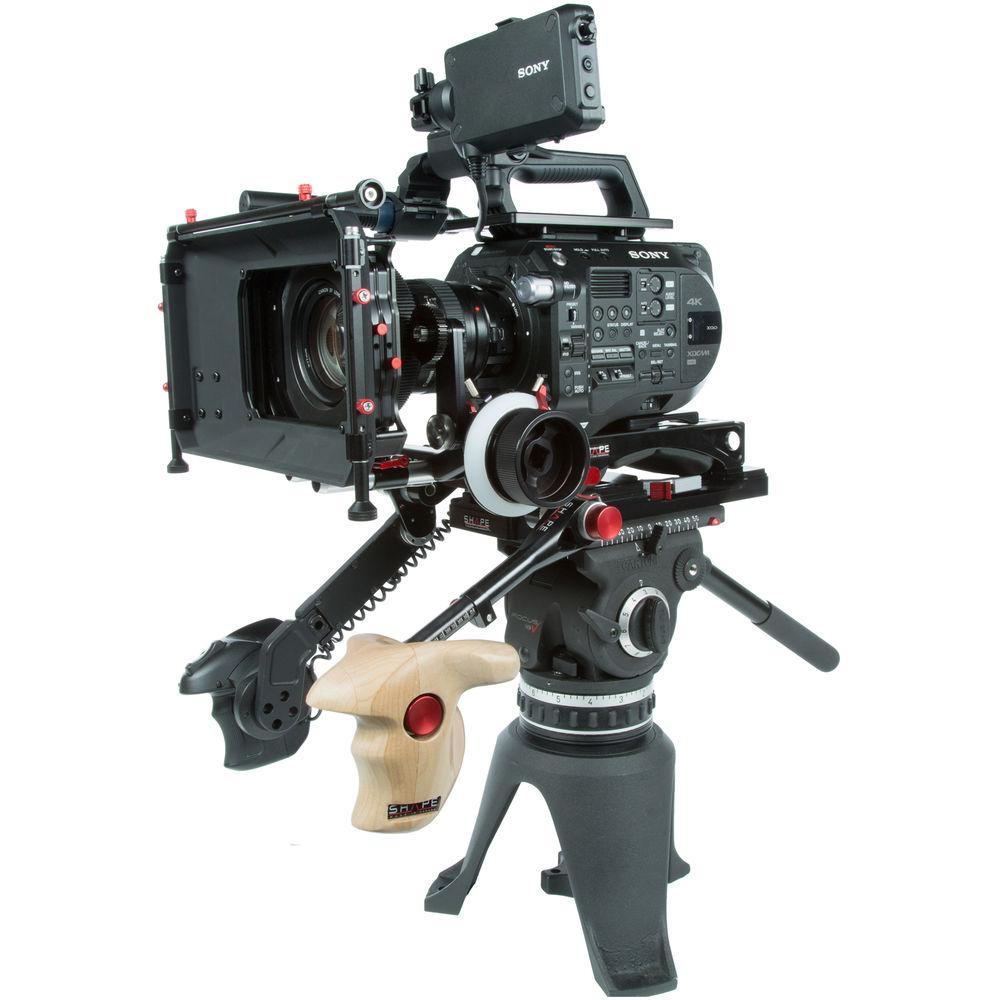

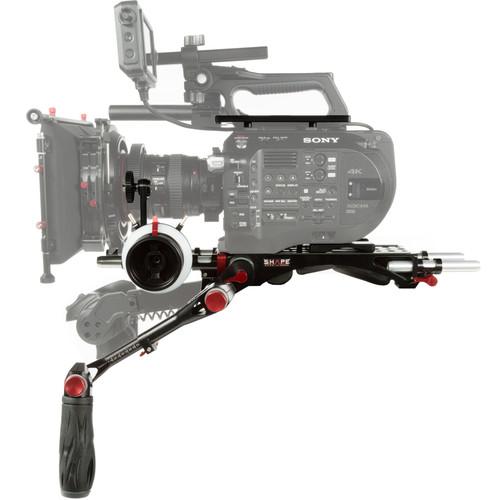

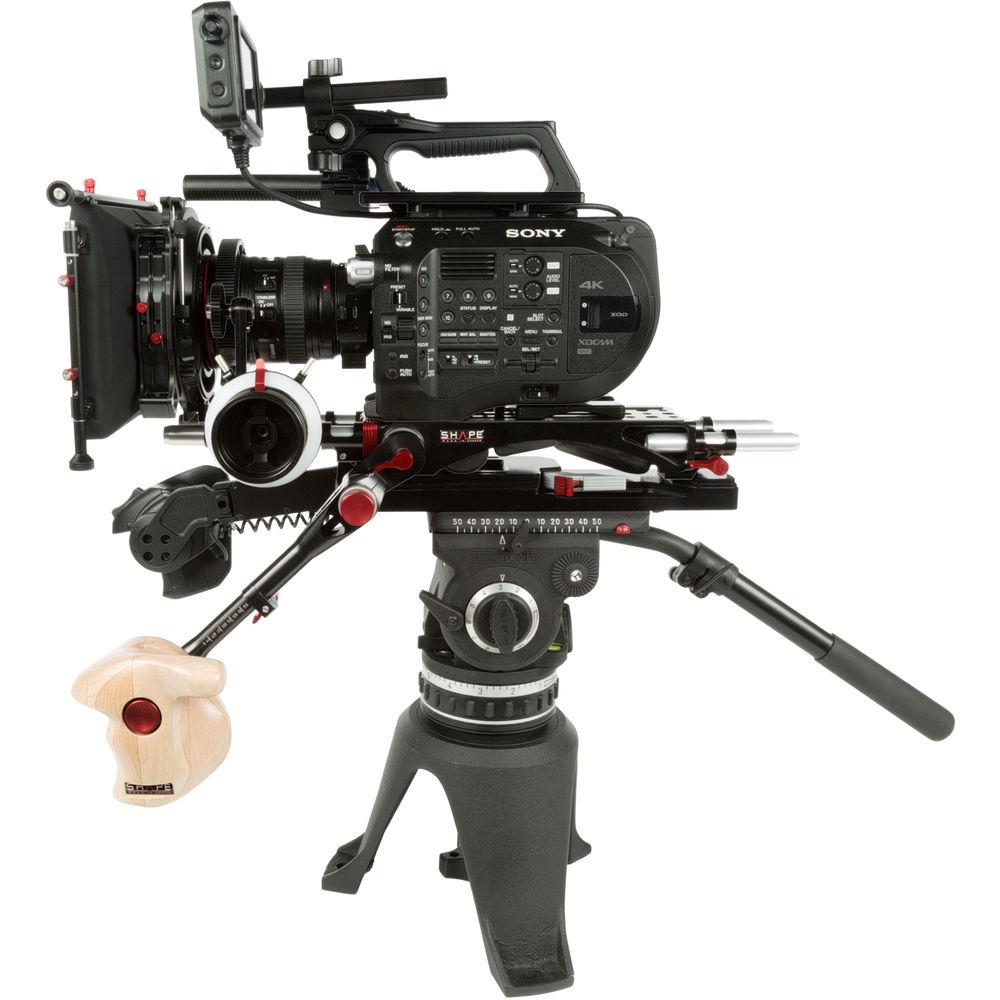

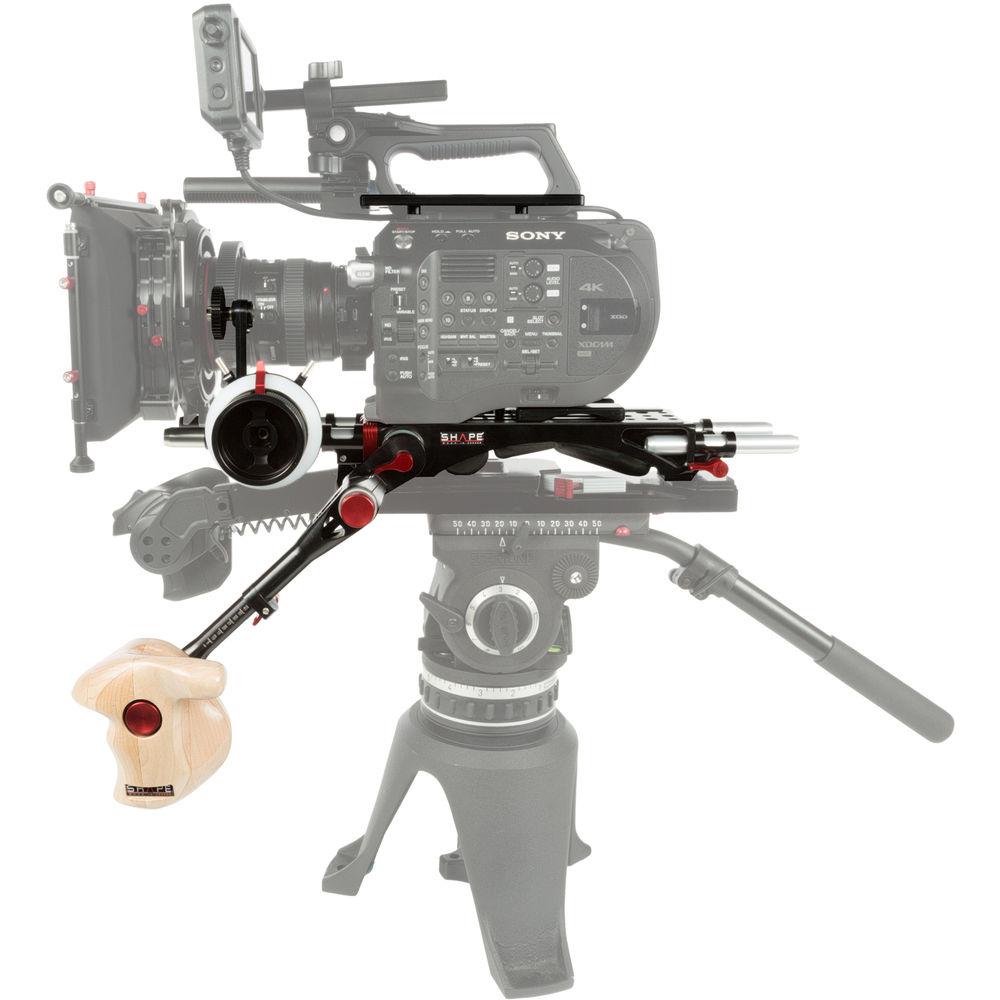

• Sony FS7M2 V-Lock Quick Release Baseplate With SHAPE's Sony FS7M2 V-Lock Quick Release Baseplate you can build a 15mm LWS rig around your FS7 or FS7M2 camera. The included 15mm rods enable you to mount a matte box, follow focus, lens support or other production accessory. Since the plate is designed for the FS7, correct lens height is ensured for correct accessory clearance. A rear insert plate is included to support the raised rear portion of the FS7 body, increasing the surface area of the camera base.The mounting points on the bottom of the baseplate itself can secure to a standard VCT-14 quick release tripod plate. When not locked down, the shoulder pad provides cushioned support for handheld shooting. Touch-fastener on the shoulder pad allows easy removal for cleaning or replacement.Further handheld options can be introduced using the rosettes towards the front of the baseplate. Separately available handgrips, like the SHAPE Telescoping Handles can be secured directly to the baseplate for increased stability. Separately available 15mm rods can also be attached at the rear of the plate using the 15mm Rod Bloc (also available separately). UPC: 629266006658
• Telescopic Handle for ARRI Rosette The Telescopic Handle for ARRI Rosette from SHAPE is a versatile and adjustable handgrip that attaches to an ARRI standard rosette on the left or right side of your camera rig. It offers 1.5" of extension and uses push-button mechanisms on the extension arm and handle for adjusting the height and rotation of the handles to meet your needs and preference. The push-button on the handle is a huge benefit when you want to adjust the angle on-the-fly, without having to remove your hand or set down the rig.
  • • Each connection point independently rotates 360° at the push of a button
    • Ratchet knob unlocks extendable arm; arm provides 1.5" of extension
    • Markings on extendable arm help you remember preferred settings
    • CNC-machined aluminum parts with stainless steel locking mechanism
  UPC: 629266003381
• Top Plate for Sony FS7 Camera Use the top surface of your FS7 camcorder to mount accessories with this Top Plate from SHAPE. With multiple 1/4"-20 and 3/8"-16 tapped holes, this top plate will accept many standard accessories from magic arms to cold shoe adapters. The U-shape of the plate allows for the original camera handle to remain mounted while the non-flush design prevents over-tightened screws from puncturing the top of the camera casing. UPC: 629266003398
• 15mm Aluminum Rods (Pair, 4") This pair of Shape 15mm Aluminum Rods (4") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
  The rods are each 15mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001677
• Follow Focus Pro The SHAPE Follow Focus Pro mounts on 15mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. The unit snaps onto 15mm rods, allowing for quick attachment, removal, and re-positioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth - depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.
  • • Snap-on 15mm rod attachment
    • Adjustable arm
    • Two 0.8 pitch aluminum gears included: 28 teeth and 43 teeth
    • Interchangeable gear position
    • Adjustable hard stops
    • Removable marking disc
    • Industry standard accessory port
    • CNC machined aluminum parts
  UPC: 629266002360

• 15mm Rod Bloc for BP Series

• 1/4"-20 Screw

• 3/8"-16 Screw

• 15mm Aluminum Rods (Pair, 8")

• Sony FS7 Rear Insert Plate

• Allen Wrench

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• 0.8 Pitch 28 Teeth Aluminum Gear for Follow Focus Pro

• 0.8 Pitch 43 Teeth Aluminum Gear for Follow Focus Pro

• Limited Lifetime Warranty
