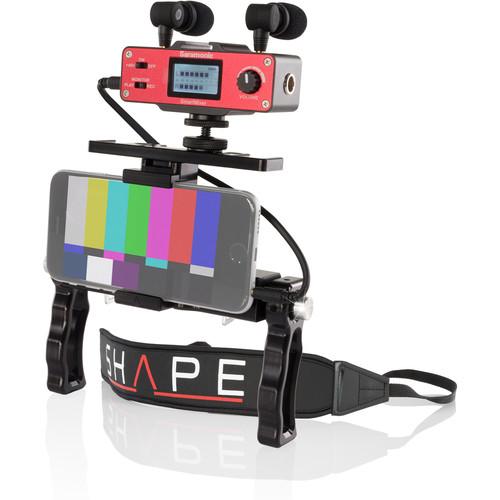

User Manual for SHAPE Smartphone Audio Power Controller Rig Click to enlarge the picture
Contents of the user manual for the SHAPE Smartphone Audio Power Controller Rig
- Product category: Grips & Support SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Grips & Support
|
User manual for the SHAPE Smartphone Audio Power Controller Rig contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description Buying Guide: Smartphone Stabilizing Devices Read More Shoot and record with your smartphone with the SHAPE Smartphone Audio Power Controller Rig. This kit comes with the SHAPE Smartphone Hand Grip Support Rig, which gives you 360° rotating handles to keep your device steady while you shoot. It provides a platform for the included Saramonic SmartMixer, which comes with two condenser mics. Two 3.5mm male-to-male cables, one for iOS devices and one for Android, are also included. - Saramonic SmartMixer Smartphone Audio Power Controller
- SMARTPHONE AUDIO POWER CONTROLLER RIG
Designed for use with iOS and Android devices, the SHAPE Saramonic SmartMixer Smartphone Audio Power Controller is a compact and lightweight audio mixer/interface with phantom power, suitable for professional audio and video production on iOS and Android mobile devices. The interface features one mini-XLR input for balanced microphones and two microphone/line inputs for the included condenser microphones or other user-supplied microphones.
A volume control knob and level meter allow easy adjustment of the input level. A headphone monitor output allows you to monitor the input and playback signal. The SmartMixer ships with two plug-in power condenser microphones, a mini-XLR to standard XLR cable, and two 3.5mm audio cables, one for iOS and one for Android. - Improves audio quality of Smartphone
- Two 1/8" (3.5mm) stereo line/mic inputs
- One mini-XLR microphone input
- One 1/8" (3.5mm) stereo line output to phone, one 1/8" (3.5mm) headphone monitor output
- Independent L/R level meters
- Includes two plug-in power condenser microphones
- Includes mini-XLR to standard-XLR cable
- Includes 3.5mm male-to-male cables for iOS and Android
- Power provided by 9V battery (not included)
UPC: 629266007815 - Smartphone Hand Grip Support Rig Improve your smartphone videography with the SHAPE Smartphone Hand Grip Support Rig. This rig holds your smartphone in place while you control it with the handles found on either side. Push buttons let you rotate the handles 360°, enabling you to configure the rig to suit your needs.
The top plate adapter attaches to the rig's shoe mount and has three shoe mounts of its own as well as several 1/4"-20 threaded holes for accessory attachment. Both the rig itself and the top plate adapter are CNC machined from 6061-T6 aluminum and anodized for durability. A padded neck strap is included. UPC: 629266007426 In the Box Bundle Items Saramonic SmartMixer Smartphone Audio Power Controller bawyaxfdvyszurtrfxubewxrcbxa - 2 x Plug-In Power Condenser Microphone
- 3.5mm Male to 3.5mm Male Audio Cable, iOS
- 3.5mm Male to 3.5mm Male Audio Cable, Android
Smartphone Hand Grip Support Rig - Limited Lifetime Warranty on CNC-Machined Parts Only
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Smartphone Audio Power Controller Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Saramonic SmartMixer Smartphone Audio Power Controller
| Frequency Response | 20 Hz to 20 kHz (+/- 0.5 dB) | | Noise | 82 dB @ 1 kHz, -30 dBu input | | Distortion | Less than 0.03% @ 1 kHz, -30 dBu input | | Gain | Input 1: 15 dB
Input 2 & mini-XLR jack: 15 dB | | Power | Input 1 & 2: 5 V | | Phantom Power | Mini jack: 48 V | | Level Metering | -18 dB to +3 dB in 3 dB increments | | Power Requirements | 9 V alkaline or lithium battery | | Dimensions (L x W x H) | 3.74 x 1.37 x 11.73" / 95 x 35 x 298 mm | | Weight | 26.1 oz / 740 g | | | | Box Dimensions (LxWxH) | 8.9 x 5.6 x 2.3" | - Smartphone Hand Grip Support Rig
| Material | CNC machined 6061-T6 aluminum | | Dimensions | 6.9 x 4.0 x 2.3" (175.3 x 101.6 x 58.4 mm) | | Weight | 14.8 oz (420.0 g) | | | | Box Dimensions (LxWxH) | 8.7 x 7.4 x 3.3" |
