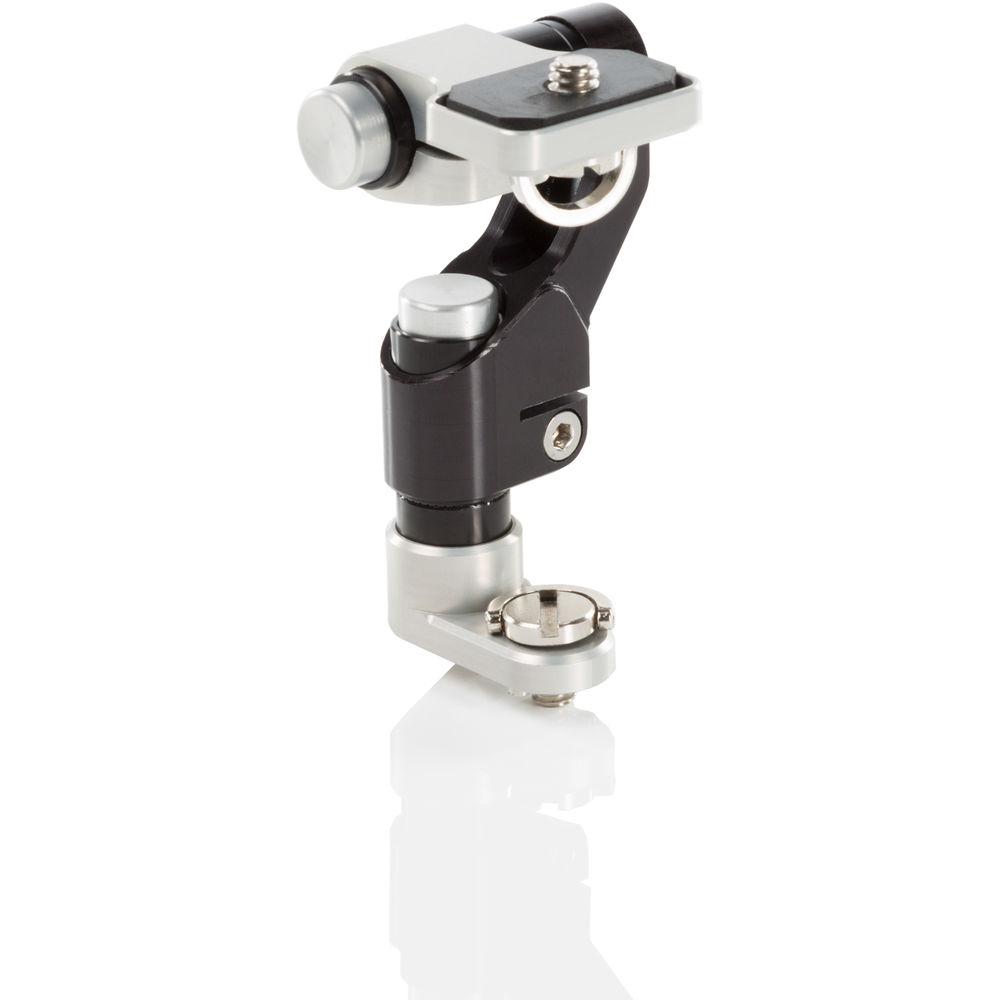

Product description The Smartphone Pro 2-Axis Push Button Arm from SHAPE provides a dual push-button adjustable smartphone mounting solution for various applications. It consists of the Dual Push Button Magic Arm and a Smartphone Aluminum Clamp. The Push Button Arm is 3.5" in height and offers tilt and 360° pan adjustment at the press of a push button for each. The Push Button Arm secures to various gear via a 1/4"-20 screw with a D-ring on the end that allows for easy installation/removal without any tools. Another 1/4"-20 screw with a D-ring accepts the Smartphone Clamp (or other accessory).
The Smartphone Clamp supports phones 2.5 to 3.5" in width, including the iPhone 7 Plus. It offers a shoe mount on top and three 1/4"-20 threaded holes. One hole is on the bottom and two are on the sides, allowing you to secure the clamp to the Push Button Arm (or other support) vertically or horizontally, for portrait or landscape orientation. The clamp is made of aluminum with a matte black finish and has rubber pads that grip the phone. It's spring-loaded and adjustable in width at the turn of a rotating screw on top. - Dual-Axis Push Button Magic Arm with 1/4"-20 Mounting Screw Providing push button adjustment, the SHAPE Dual-Axis Push Button Magic Arm with 1/4"-20 Mounting Screw allows you to quickly mount this accessory support arm to a 1/4"-20 threaded mounting hole. You mount your 1/4"-20 accessory to the top of the arm, which features a small mounting platform with rubberized surface. The D-ring assembly enables you to securely tighten down the screw without using tools. The arm is 3.5" long and features slotted D-rings mounting screws enabling you to either use a slotted screwdriver to tighten the screws, or finger-tighten using the D-ring.
The push button adjustment allows you to tilt the mounting platform forward or backward, and another push button provides you with pan adjustment to position your accessory just how you want it. This arrangement doesn't require you to stress, strain, or worry when loosening or tightening the central lock-down arm common to most accessory arms. Additionally, each push button only controls one axis, so you don't have to worry about your arm collapsing when you make an adjustment. - This arm provides one distinct point of 360° pan articulation and one point of tilt articulation.
- The push button adjustment on each axis allows you to adjust a single axis at a time, instead of loosening all axes at the same time.
- You can attach the arm to any 1/4"-20 threaded mounting hole.
- The arm is a fixed 3.5" long.
- Made from CNC Machined and anodized aluminum, it is both lightweight and strong.

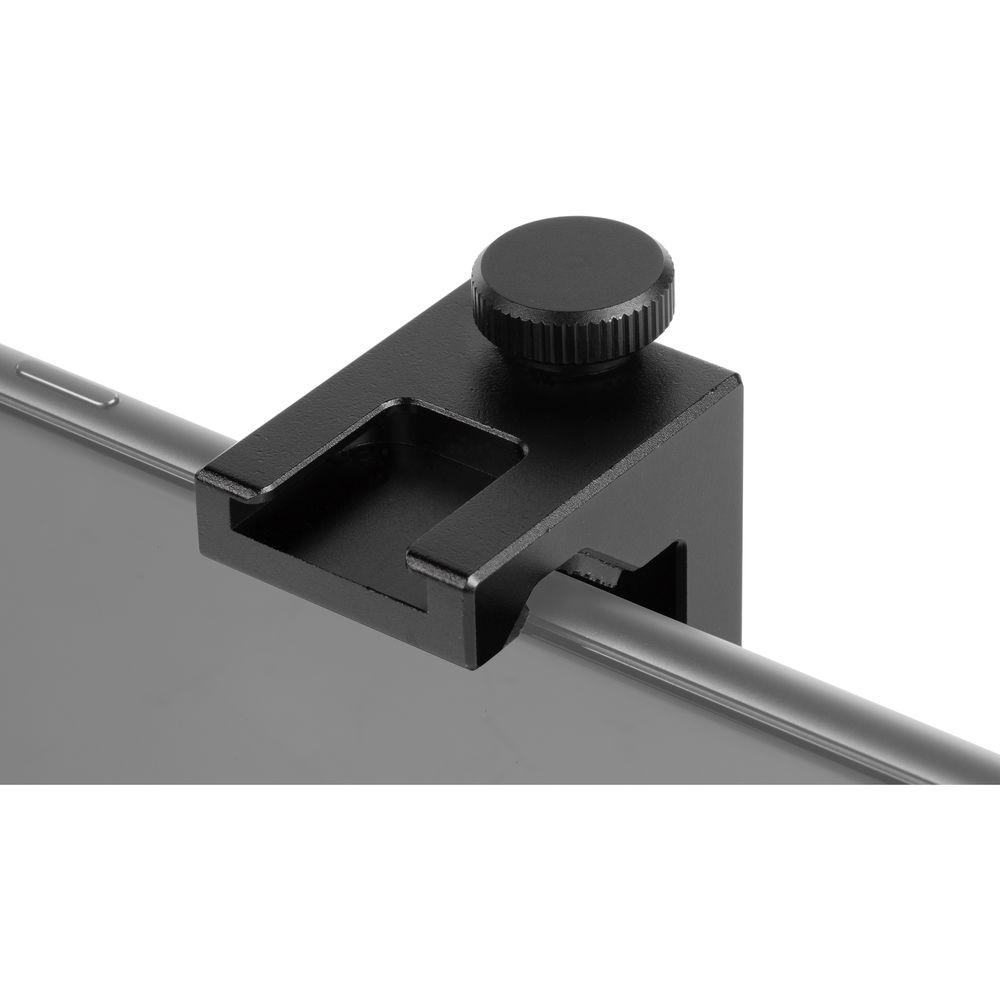

UPC: 629266006856 - Smartphone Aluminum Clamp Tripod Mount with Cold Shoe Compatible with smartphones 2.5 to 3.5" wide and built using lightweight, robust aluminum, the Smartphone Aluminum Clamp Tripod Mount with Cold Shoe from SHAPE not only holds and mounts a variety of smartphones, but also has been designed with a cold shoe mount and three 1/4"-20 threaded holes (one underneath and two on the side). Use the cold shoe mount to attach compatible devices, including a microphone or LED video light. The 1/4"-20 threaded holes can be used for vertical or horizontal tripod mounting, as well as mounting additional accessories, like SHAPE's Magic Arms.
General Features - CNC aluminum material, lightweight and matte black finish.
- Spring-loaded mechanism (maximum smartphone width: 2.5 to 3.5").
- Quickly adjust the width by rotating the screw with your hand. Phone holders are covered with rubber pads to protect your smartphone.
- Cold shoe mount for a microphone, LED video light, or other devices.

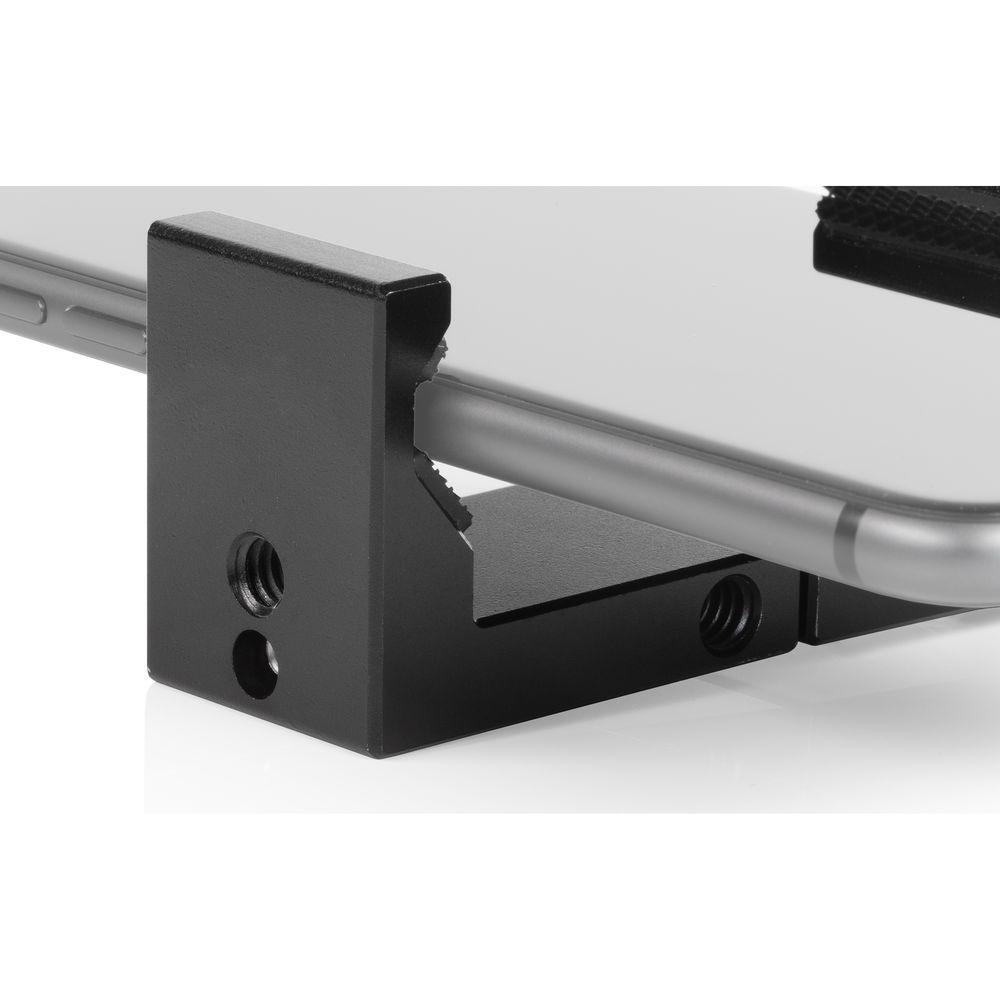

- Designed with three 1/4"-20 threaded holes (1 underneath + 2 on the side), for vertical or horizontal tripod mounting, or to mount additional accessories like SHAPE's Magic Arms.
UPC: 629266008355 In the Box Bundle Items Dual-Axis Push Button Magic Arm with 1/4"-20 Mounting Screw actfqbwytcvusvwuustzfedyfc - Limited Lifetime Warranty on CNC Machined Parts
Smartphone Aluminum Clamp Tripod Mount with Cold Shoe Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Smartphone Pro 2-Axis Push Button Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dual-Axis Push Button Magic Arm with 1/4"-20 Mounting Screw
| Material of Construction | Anodized aluminum | | Mounting | Accessory: 1/4"-20 threaded screw (D-ring)
Arm: 1/4"-20 threaded screw (D-ring) | | Dimensions | 1.75 x 2.5 x 3.5" / 4.45 x 6.35 x 8.89 cm | | Weight | 3.5 oz / 0.1 kg | | | | Box Dimensions (LxWxH) | 4.7 x 3.4 x 3.3" | - Smartphone Aluminum Clamp Tripod Mount with Cold Shoe
| Smartphone Width | 2.5 to 3.5" / 6.4 to 8.9 cm | | Material of Construction | CNC Aluminum | | Color | Matte Black | | Dimensions | 3.3 x 1.5 x 1.1" / 8.4 x 3.8 x 2.8 cm | | Weight | 0.2 lb / 0.1 kg | | | | Box Dimensions (LxWxH) | 4.8 x 3.4 x 3.3" |
