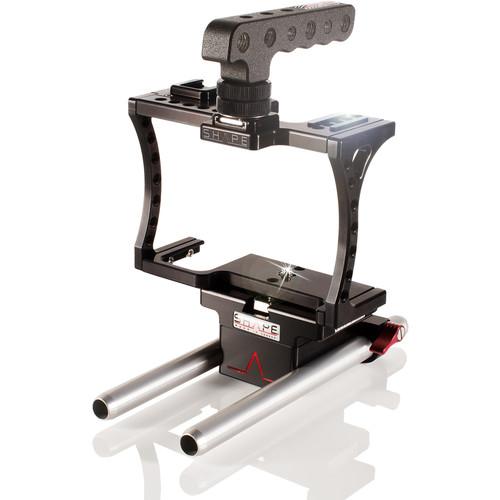

User Manual for SHAPE Sony a7S Cage with Kirk Neff Baseplate 2.0 Click to enlarge the picture
Contents of the user manual for the SHAPE Sony a7S Cage with Kirk
- Product category: DSLR Video Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE DSLR Video Supports & Rigs
 |
User manual for the SHAPE Sony a7S Cage with Kirk contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

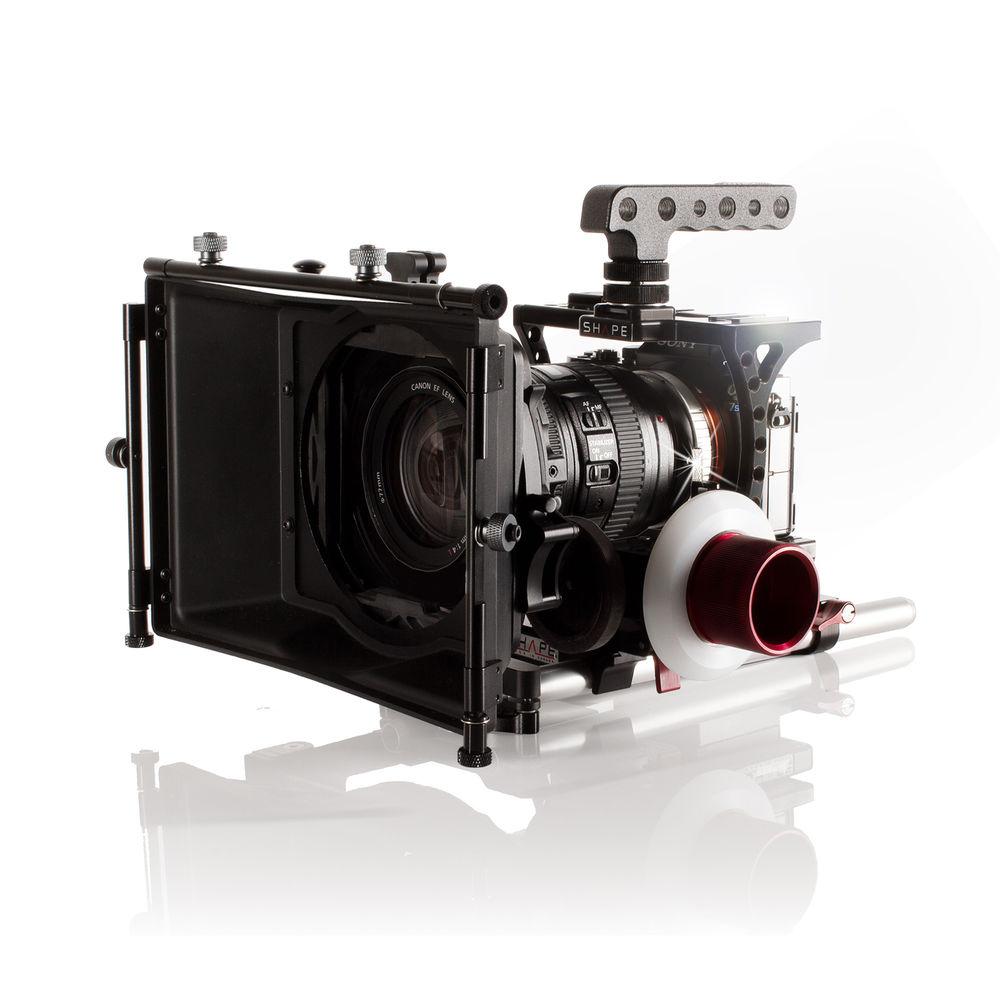

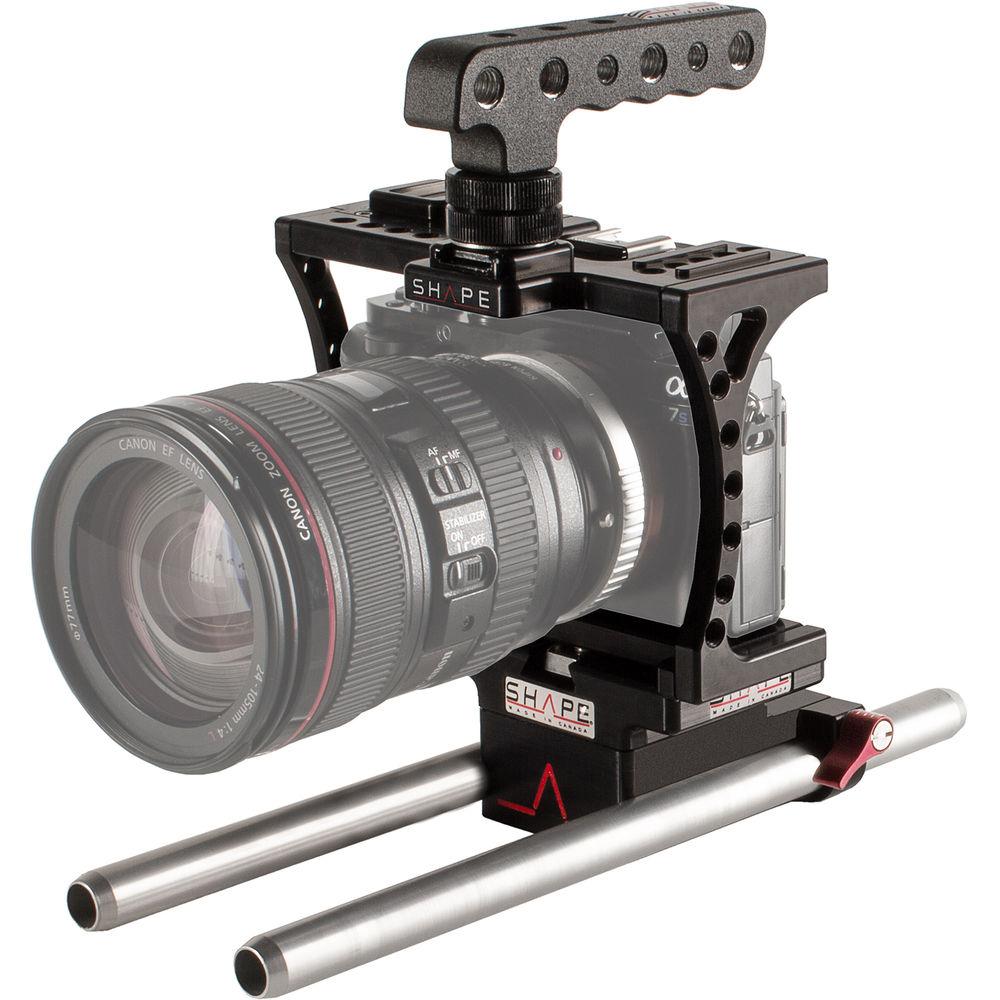

Product description SHAPE combines their Sony a7S Cage with their DSLR Kirk Neff Baseplate 2.0 into an elegant starting point rig that can be upgraded to a full shoulder mount rig.
The a7S Cage provides two cold shoe mounts on top and leaves the camera's hot shoe mount accessible, offering convenient support for the Sony XLR-K1M and XLR-K2M audio packs. One cold shoe mount is offset to the side and is removable to provide access to the controls on that side of the camera. The other cold shoe mount overhangs in front of the camera and can be useful for both top handles and mics. The right side of the cage can be unscrewed and totally removed to allow you to hold the camera by the handle. A cutout on the bottom provides battery door access.
The cage secures to the bottom of the camera using an included 1/4"-20 screw with a small retainer ring. There are three mounting threads on the bottom, the middle one for the camera and the other two for tripod plates. The cage is designed specifically for the Sony a7S. It's lightweight and solid and offers added protection and 1/4"-20 mounting threads on all sides.
The Kirk Neff Baseplate 2.0 features a V-lock quick release system instead of a standard mounting screw. It includes a quick-release plate and V-lock delta adapter that attach together to the bottom with a single 1/4"-20 screw and will allow you mount the cage on and off in an instant, releasing it at the press of a slide button on the side. The quick release plate has rubber stoppers at the back to prevent the cage from twisting during operation. The stoppers can be adjusted and removed using an included Allen key. For alignment and balance adjustments, the V-lock delta adapter can also be adjusted forward/backward.
The baseplate supports two 15mm rods and is designed to place the optical center of a camera between the two rods and also places the lens at a height suitable for use with a matte box. It includes two silver 8" rods and features a ratcheting lever that secures both rods in place at once. - a7S Cage
-
- Designed to accommodate Sony's XLR-K1M and XLR-K2M audio packs
- Two cold shoe mounts on top, one removable to provide access to controls
- Leaves the camera's hot shoe mount accessible
- Right side of the cage is removable to allow you to hold the camera handle
- Secures to the bottom of the camera with a 1/4"-20 screw
- Mounting threads for tripod plates
- 1/4"-20 mounting threads on all sides
- Provides battery door access
- Kirk Neff Baseplate 2.0
-
- V-lock quick release system
- Rubber stoppers to prevent from twisting during operation
- Two 8" 15mm rods
- Places the optical center of a camera between the two rods
- Places the lens at a height suitable for use with a matte box
UPC: 629266003404 In the Box SHAPE Sony a7S Cage with Kirk Neff Baseplate 2.0 Quick Release Plate V-Lock Delta Adapter 1/4"-20 Camera Screw for Baseplate Alignment Screw for Baseplate 15mm Aluminum Rods (Pair, 8") 1/4"-20 Screw with Retaining Ring for Cage Allen Key Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Sony a7S Cage with Kirk Neff Baseplate 2.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE A7SCAGEROD Specs | | | Material | CNC machined aluminum | | Mount Types | 2x cold shoe mounts (one removable)
1/4"-20 camera mounting thread
2x 1/4"-20 tripod plate mounting threads
1/4"-20 accessory mounting threads on all sides | | | | Material | CNC machined aluminum | | Mount Types | Quick release plate with V-lock delta adapter
1/4"-20 camera screw
1/4"-20 and 3/8"-16 tripod mount threads on the bottom | | Rod Type | 15 mm | | Rod Length | 8" (20 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 8.8 x 7.5 x 4.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
