User Manual for SHAPE Sony a7S Cage with Top Handle Click to enlarge the picture
Contents of the user manual for the SHAPE Sony a7S Cage with Top
- Product category: DSLR Video Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE DSLR Video Supports & Rigs
 |
User manual for the SHAPE Sony a7S Cage with Top contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

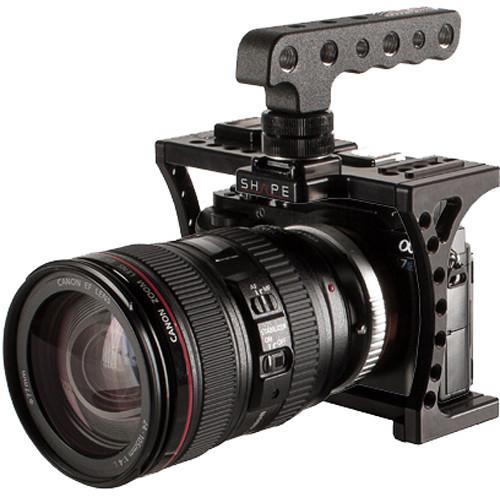

Product description The Sony a7S Cage with Top Handle from SHAPE outfits your Sony a7S camera for video production use, offering added protection and 1/4"-20 mounting threads on all sides. The cage provides two cold shoe mounts on top and leaves the camera's Multi Interface Shoe accessible, making it suitable for use with Sony's optional XLR-K1M and XLR-K2M audio packs. One cold shoe mount is offset to the side and is removable to provide access to the controls on that side of the camera. The other cold shoe mount overhangs in front of the camera and is useful for attaching the included Black Liquorice Candy DSLR Handle. The handle features left and right angle-adjustment and adds additional 1/4"-20 and 3/8"-16 threads. The right side of the cage can be unscrewed and removed to allow you to hold the camera by its grip. A cutout on the bottom provides battery door access.

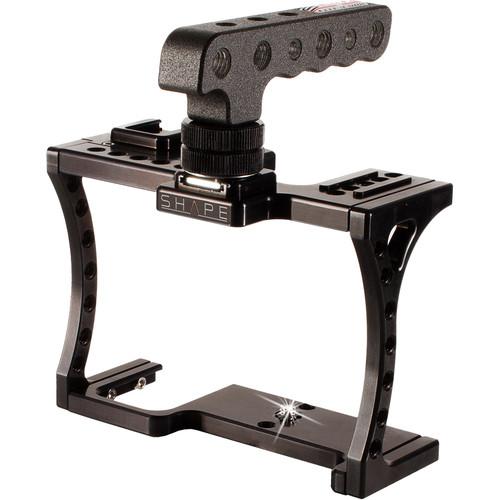

Please see the links below for more information on the components of this bundle. - Sony a7S Cage The SHAPE a7S Cage provides two cold shoe mounts on top and leaves the camera's hot shoe mount accessible, offering convenient support for the Sony XLR-K1M and XLR-K2M audio packs. One cold shoe mount is offset to the side and is removable to provide access to the controls on that side of the camera. The other cold shoe mount overhangs in front of the camera and can be useful for both top handles and mics. The right side of the cage can be unscrewed and totally removed to allow you to hold the camera by the handle. A cutout on the bottom provides battery door access.
The cage secures to the bottom of the camera using an included 1/4"-20 screw with a small retainer ring. There are three mounting threads on the bottom, the middle one for the camera and the other two for tripod plates. The cage is designed specifically for the Sony a7S. It's lightweight and solid and offers added protection and 1/4"-20 mounting threads on all sides. - Key Features
-
- Designed to accommodate Sony's XLR-K1M and XLR-K2M audio packs
- Two cold shoe mounts on top, one removable to provide access to controls
- Leaves the camera's hot shoe mount accessible
- Right side of the cage is removable to allow you to hold the camera handle
- Secures to the bottom of the camera with a 1/4"-20 screw
- Mounting threads for tripod plates
- 1/4"-20 mounting threads on all sides
- Provides battery door access
- Black Liquorice Candy DSLR Handle The Black Liquorice Candy DSLR Handle from SHAPE is a compact, ergonomic top-handle that can be attached to any camera with a standard shoe mount. It attaches facing forward or backward and also offers 1/4"-20 and 3/8"-16 threaded accessory mounting threads. UPC: 629266000014
In the Box Bundle Items Sony a7S Cage uuywvrsqfrstftffu - 1/4"-20 Screw with Retaining Ring
- Limited Lifetime Warranty
Black Liquorice Candy DSLR Handle - Limited Lifetime Warranty
User Manual PDF 2.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Sony a7S Cage with Top Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony a7S Cage
| Material | CNC aluminum | | Mount Types | 2x cold shoe mounts (one removable)
1/4"-20 camera mounting thread
2x 1/4"-20 tripod plate mounting threads
1/4"-20 accessory mounting threads on all sides | | | | Box Dimensions (LxWxH) | 8.7 x 7.4 x 4.4" | - Black Liquorice Candy DSLR Handle
| | | Box Dimensions (LxWxH) | 8.1 x 5.3 x 1.7" |
