User Manual for SHAPE Sony FS7 Lightweight Plate Click to enlarge the picture
Contents of the user manual for the SHAPE Sony FS7 Lightweight Plate
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
 |
User manual for the SHAPE Sony FS7 Lightweight Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

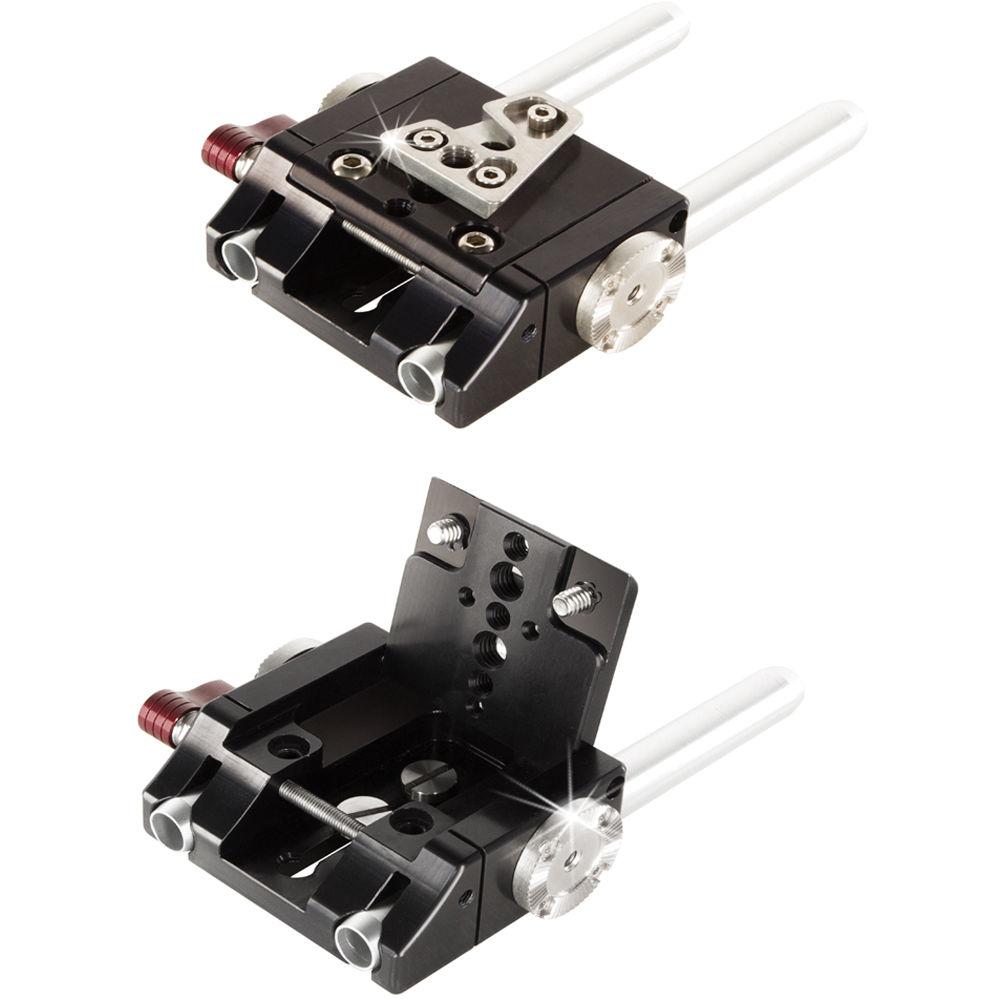

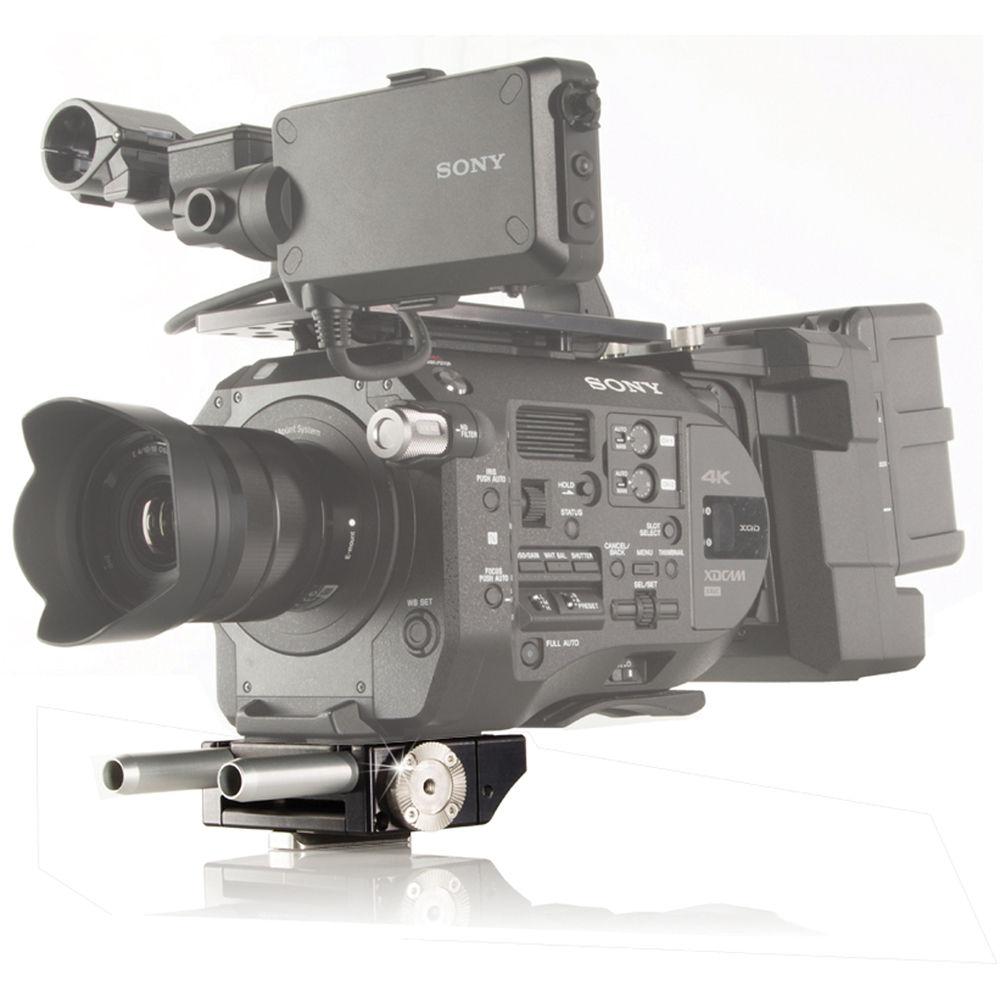

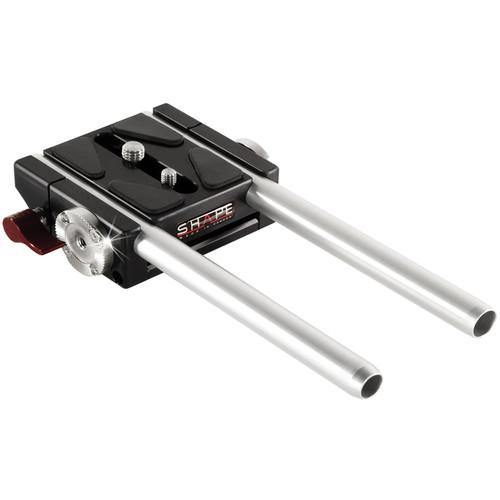

Product description The Sony FS7 Lightweight Plate from SHAPE is a fixed baseplate that provides 15mm LWS rod support without interfering with the camera's shoulder-mount design. A pair of 8" long 15mm rods is included for attaching optional accessories such as a follow focus and matte box. In addition to rod ports, the Lightweight Plate also features ARRI rosettes on each side for attaching the FS7's right handle and an optional left-sided rosette handle. On the underside of the baseplate is a V-lock delta adapter, allowing the baseplate to be mounted on V-lock quick-release tripod plates, such as the Panasonic SHAM-TM700 or Sony VCT14. The delta adapter is attached to a bottom door, which can be opened up to access 1/4"-20 and 3/8"-16 camera screws. - Key Features
-
- 15mm rod baseplate for the Sony FS7
- Single ratcheting lever secures rods in place

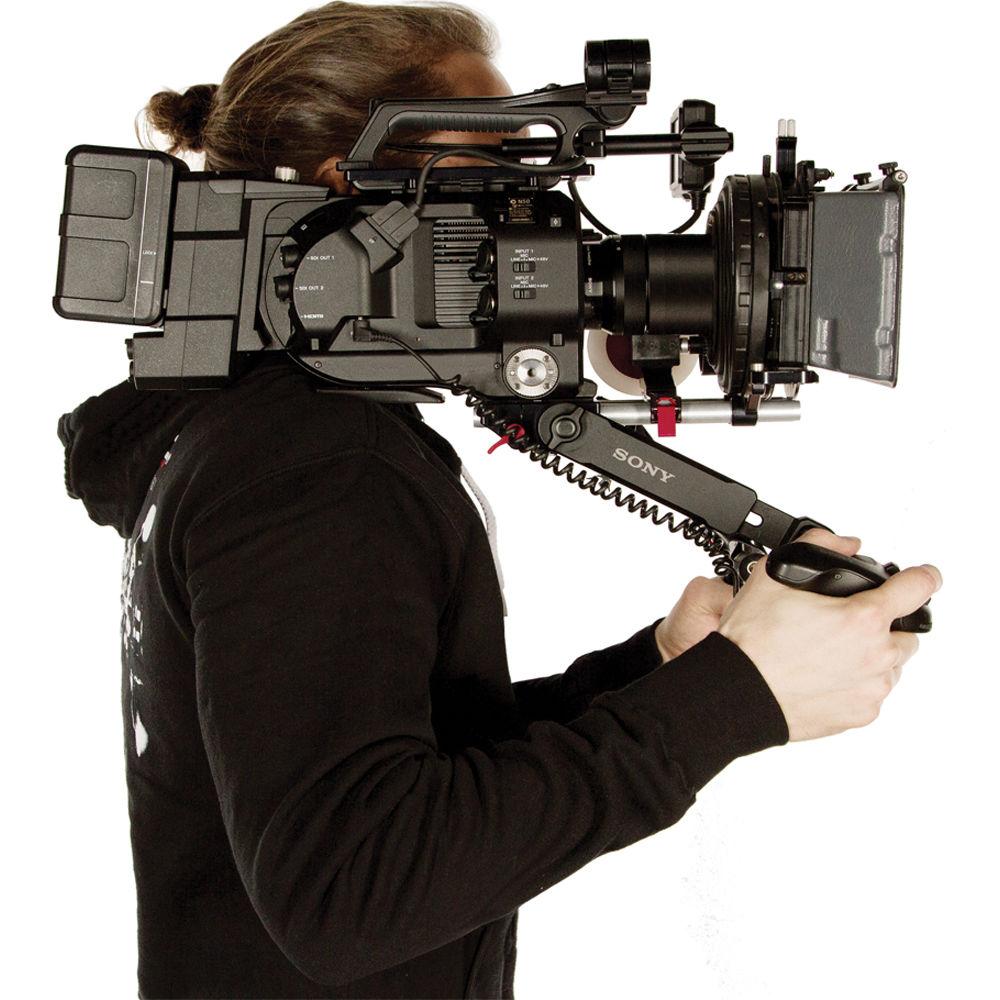

- Maintains the FS7's shoulder-mount functionality
- ARRI rosettes for attaching handles
- V-lock delta adapter for mounting on V-lock quick-release tripod plates
- Bottom door opens up to access 1/4"-20 and 3/8"-16 camera screws
- Pair of 8" long 15mm rods included
UPC: 629266003350 In the Box SHAPE Sony FS7 Lightweight Plate V-Lock Delta Adapter 1/4"-20 Camera Screw 3/8"-16 Camera Screw 2 x 1/4"-20 x 3/8" Screws for Bottom Door 15mm Aluminum Rods (Pair, 8") uuywvrsqfrstftffu Limited Lifetime Warranty User Manual PDF 749.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Sony FS7 Lightweight Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE FS7LW Specs | Camera Screw(s) | 1/4"-20 and 3/8"-16 | | 15mm Rod Length | 8" (20 cm) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.268 x 4.646 x 4.409" |
Rating46% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
