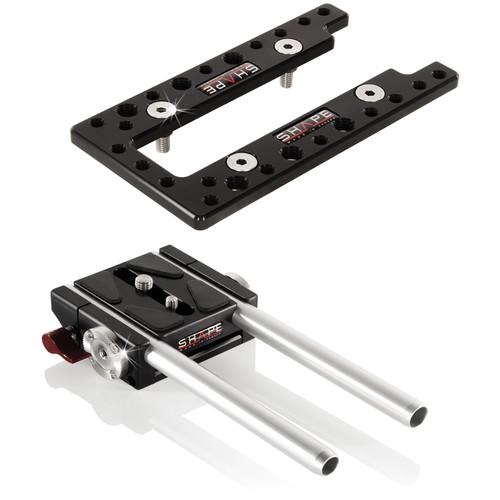

Product description The Sony FS7 Lightweight Plate and Top Plate from SHAPE expands the accessory support of your FS7 camera by outfitting it with a 15mm rod baseplate and a top plate with 1/4"-20 and 3/8"-16 threaded holes. The baseplate includes a pair of 8"-long 15mm rods for attaching optional accessories such as a follow focus and matte box, and its compact design leaves access to the camera's shoulder pad open. The baseplate also provides ARRI rosettes on each side for attaching the FS7's right handle and an optional left-sided rosette handle. A V-lock adapter on the underside of the baseplate allows the camera to be mounted on quick-release V-lock tripod plates.
The Top Plate attaches around the FS7's top handle using a pair of supplied screws, providing 1/4"-20 and 3/8"-16 threads on top of the camera. This is useful for articulating arms to support external monitors and viewfinders, or mounting additional accessories.
Please see the links below for more information on the components of this kit. - Sony FS7 Lightweight Plate The Sony FS7 Lightweight Plate from SHAPE is a fixed baseplate that provides 15mm LWS rod support without interfering with the camera's shoulder-mount design. A pair of 8" long 15mm rods is included for attaching optional accessories such as a follow focus and matte box. In addition to rod ports, the Lightweight Plate also features ARRI rosettes on each side for attaching the FS7's right handle and an optional left-sided rosette handle. On the underside of the baseplate is a V-lock delta adapter, allowing the baseplate to be mounted on V-lock quick-release tripod plates, such as the Panasonic SHAM-TM700 or Sony VCT14. The delta adapter is attached to a bottom door, which can be opened up to access 1/4"-20 and 3/8"-16 camera screws.
- Key Features
-
- 15mm rod baseplate for the Sony FS7
- Single ratcheting lever secures rods in place
- Maintains the FS7's shoulder-mount functionality
- ARRI rosettes for attaching handles
- V-lock delta adapter for mounting on V-lock quick-release tripod plates
- Bottom door opens up to access 1/4"-20 and 3/8"-16 camera screws
- Pair of 8" long 15mm rods included
UPC: 629266003350 - Top Plate for Sony FS7 Camera Use the top surface of your FS7 camcorder to mount accessories with this Top Plate from SHAPE. With multiple 1/4"-20 and 3/8"-16 tapped holes, this top plate will accept many standard accessories from magic arms to cold shoe adapters. The U-shape of the plate allows for the original camera handle to remain mounted while the non-flush design prevents over-tightened screws from puncturing the top of the camera casing. UPC: 629266003398
In the Box Bundle Items Sony FS7 Lightweight Plate zxusrszdabxzzarwvvasyctwxxysx - 2 x 1/4"-20 x 3/8" Screws for Bottom Door
- 15mm Aluminum Rods (Pair, 8")
- Limited Lifetime Warranty
Top Plate for Sony FS7 Camera - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Sony FS7 Lightweight Plate and Top Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sony FS7 Lightweight Plate
| Camera Screw(s) | 1/4"-20 and 3/8"-16 | | 15mm Rod Length | 8" (20 cm) | | | | Box Dimensions (LxWxH) | 8.268 x 4.646 x 4.409" | - Top Plate for Sony FS7 Camera
