User Manual for SHAPE Swivel Monitor Mount for Atomos Sumo Click to enlarge the picture
Contents of the user manual for the SHAPE Swivel Monitor Mount for Atomos
- Product category: Monitors SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Monitors
|
User manual for the SHAPE Swivel Monitor Mount for Atomos contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

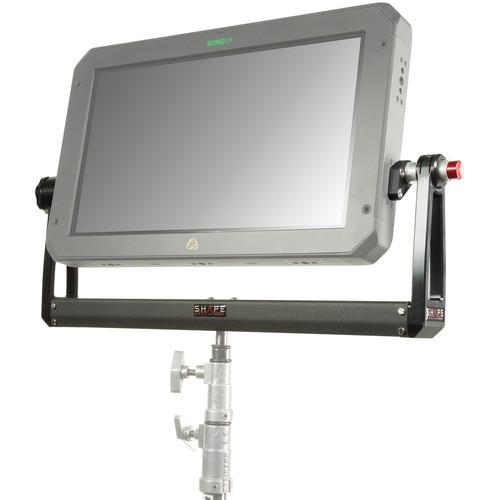

Product description The SHAPE Swivel Monitor Mount for Atomos Sumo is a bracket designed specifically to support the 19" monitor/recorder providing precise tilt adjustment for viewing. This matte black bracket limits reflection and it is VESA compliant for mounting your SUMO. It features a Baby pin receiver which allows you to mount the bracket onto a C-stand.
It also features SHAPE's well-known push-button adjustment system that enables you to tilt the monitor up to 170° forward and back in 4° increments. Once you've set the tilt, a locking knob enables you to lock it in that position so it doesn't shift until you wish to change the angle. - This VESA-compliant bracket enables you to utilize the side-mounting threads on your Sumo
- The SHAPE push-button adjustment system permits you to adjust the tilt of your monitor in 4° increments, while the locking knob secures your monitor at the angle you set it
- The mount supports up to 40 pounds
UPC: 629266007976 In the Box SHAPE Swivel Monitor Mount for Atomos Sumo Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Swivel Monitor Mount for Atomos Sumo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE UBRK Specs | Material of Construction | CNC Machined Aluminum | | Load Capacity | 40 lb / 18.14 kg | | Dimensions | 24.96 x 8.58 x 2.98" / 63.4 x 21.79 x 7.57 cm | | Weight | 6.13 lb / 2.78 kg | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 24.9 x 15.0 x 5.2" |
