User Manual for SHAPE Telescopic Handles with ARRI Rosettes Click to enlarge the picture
Contents of the user manual for the SHAPE Telescopic Handles with ARRI Rosettes
- Product category: Handles & Grips SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Handles & Grips
|
User manual for the SHAPE Telescopic Handles with ARRI Rosettes contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

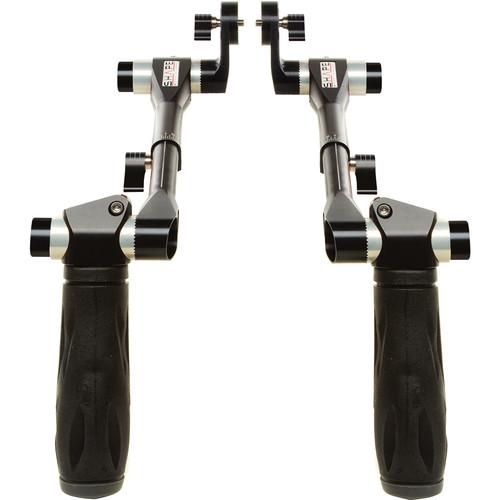

Product description The black Telescopic Handles with ARRI Rosettes from SHAPE are left and right handgrips that can be attached to cameras and camera support hardware that has standard ARRI rosettes. Each arm features three points of articulation, combined with the approximately two inches of arm extension allows you to adjust the arms for your comfort. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place without having a full 360° of rotation.
Shape's unique push-button articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips. A second spring-loaded locking lever along the arms allows you to extend the arms up to two inches and rotate the handgrips throughout 360°. The arms are indexed for extension and rotation, so you can quickly move between known setups. - The push-button locking joint enables independent rotation throughout 360°.
- Spring-loaded locking levers allow you to tighten or loosen the lever even when you do not have space to turn the lever throughout the entire 360° range.
- The arms feature two inches of extension and are indexed every 5mm of extension.
- The arms can rotate through 360° and feature 30° of index markings.
UPC: 629266002162 In the Box SHAPE Telescopic Handles with ARRI Rosettes (Black) Limited Lifetime Warranty on CNC Machined Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Telescopic Handles with ARRI Rosettes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE HAND12SHADOW Specs | Load Capacity | 25 lb / 11 kg | | Dimensions | Arms Retracted: 4.3 x 13.0" / 10.8 x 33.0 cm
Arms Extended: 4.3 x 15.0" / 10.8 x 38.1 cm | | Weight | Each Arm: 1.05 lb / 0.48 kg | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 11.654 x 9.291 x 3.071" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
