Product description - SHAPE TELESCOPIC PUSH-BUTTON MAGIC ARM WITH MINI QUICK RELEASE
The SHAPE Telescopic Push-Button Magic Arm with Mini Quick Release is a four-point articulating arm that is suitable for use on cameras and supports up to five pounds of gear. The arm extends a total of 2.6" and can rotate around the shaft. This is controlled by a spring-loaded locking lever. The three SHAPE push-button locks control three other axes providing you with maximum flexibility to position your accessory.

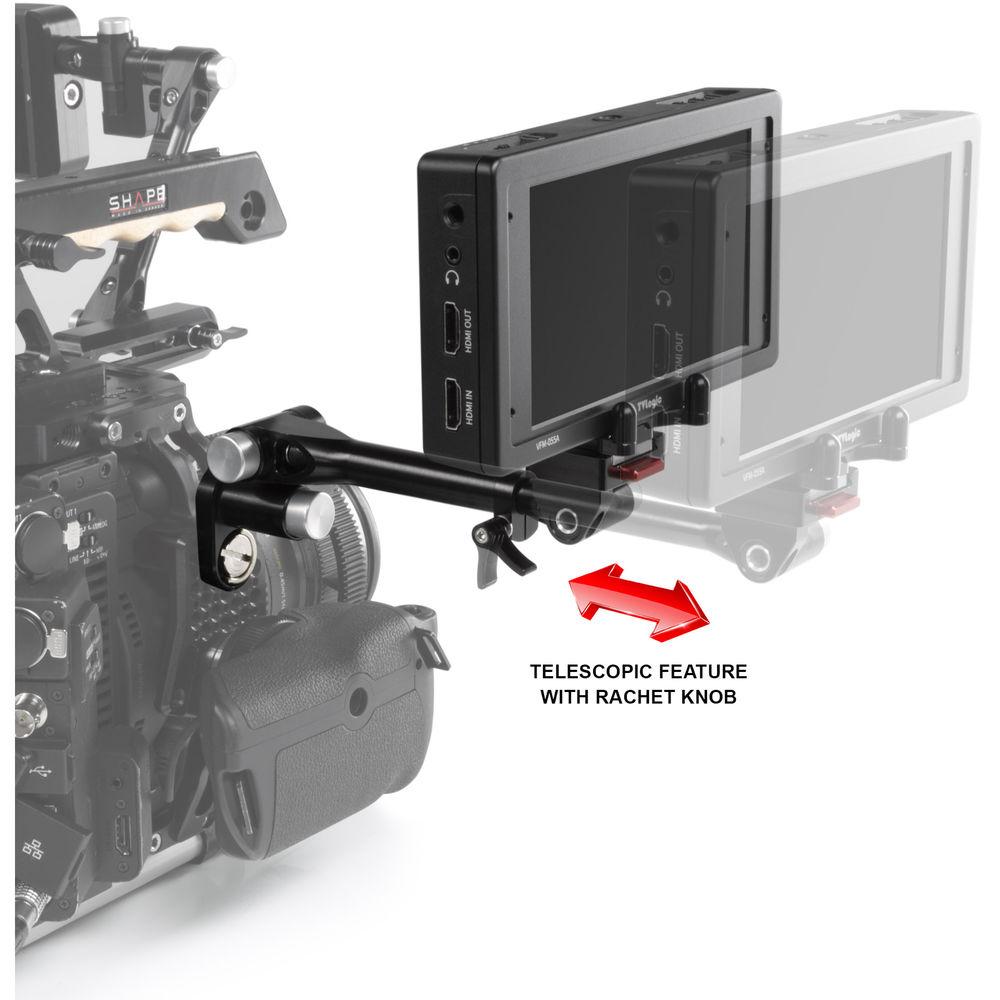

The arm attaches to your camera or cage via an ARRI-compatible accessory mounting system using a 3/8"-16 D-ring tie-down screw. The arm can extend up to 10.7" in length and the Delta mounting shoe can rotate, which extends the length of the arm to 13.3." the arm is made from CNC machined aluminum providing a positive balance between weight and strength. - The articulating arm features a telescopic section with a spring-loaded locking lever that allows 360° rotation and 2.6" of extension

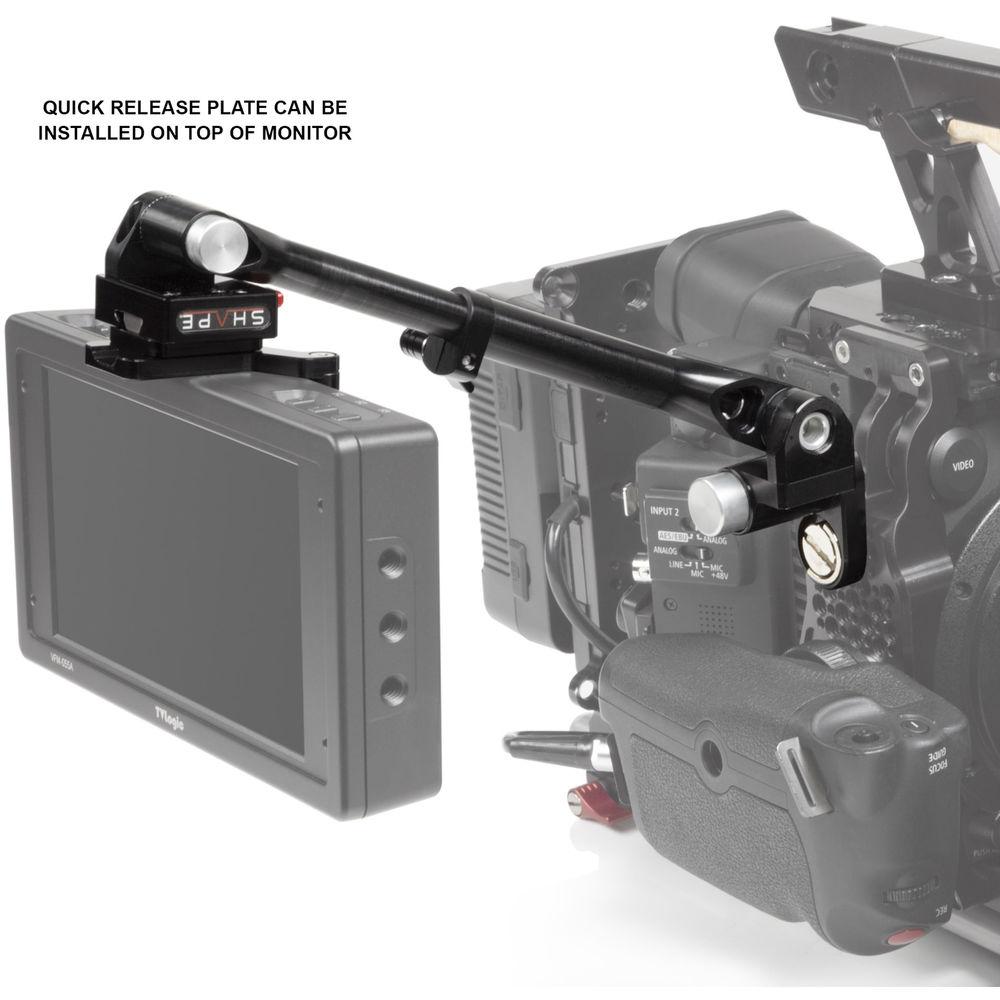

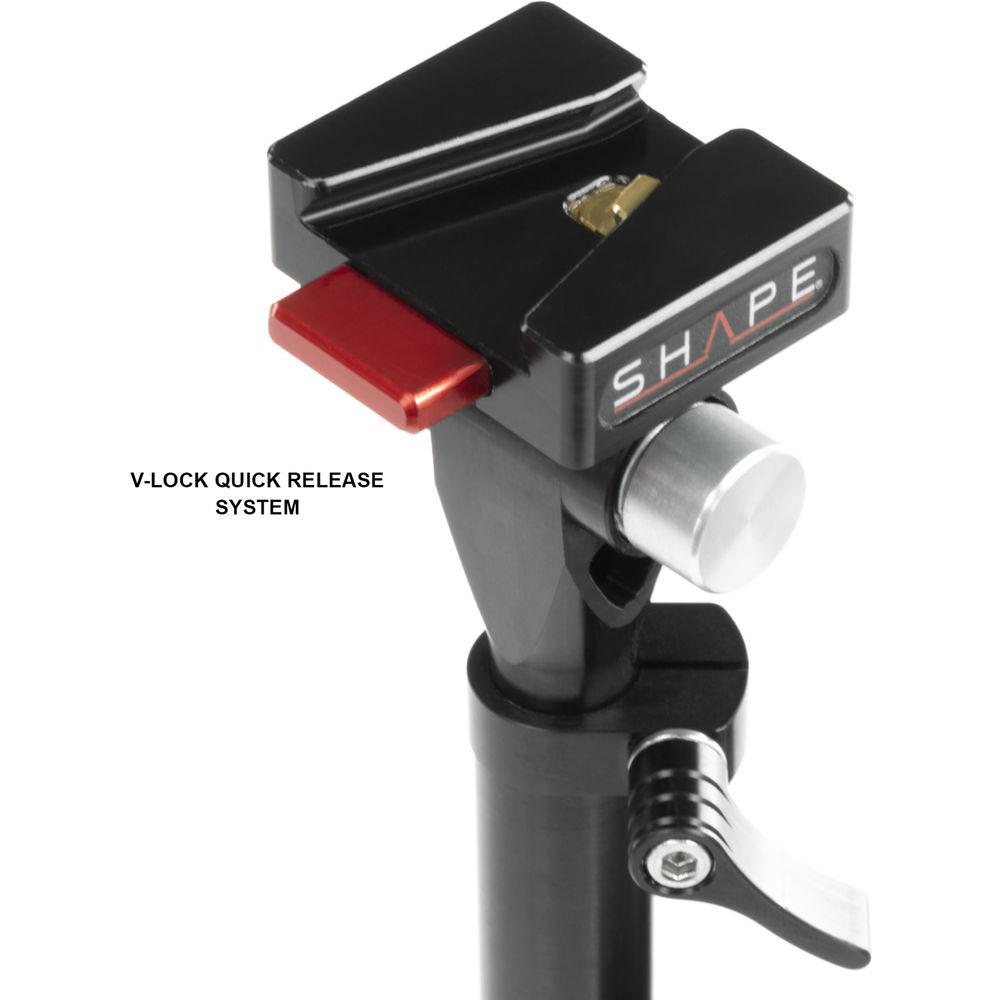

- The top section of the articulating arm is designed with a Mini Quick Release Lock Station, which mounts the SHAPE Mini Delta Monitor Plate

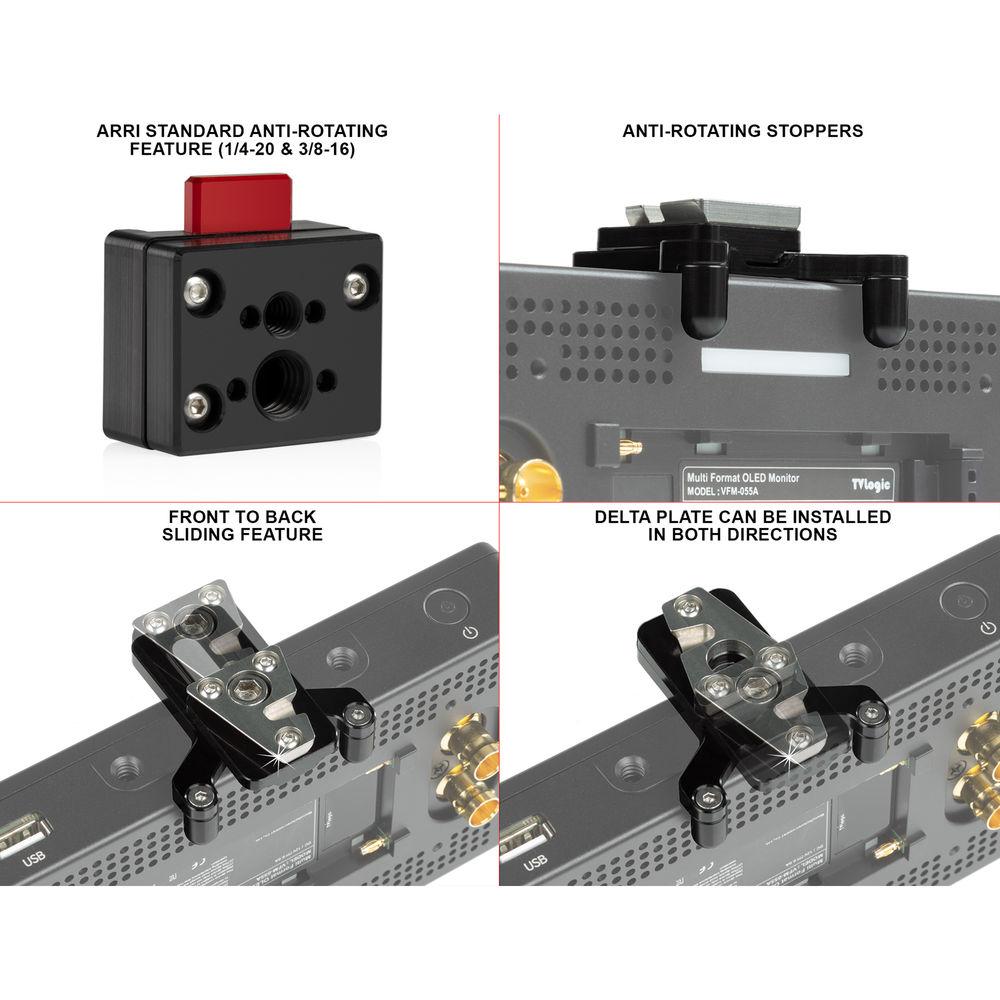

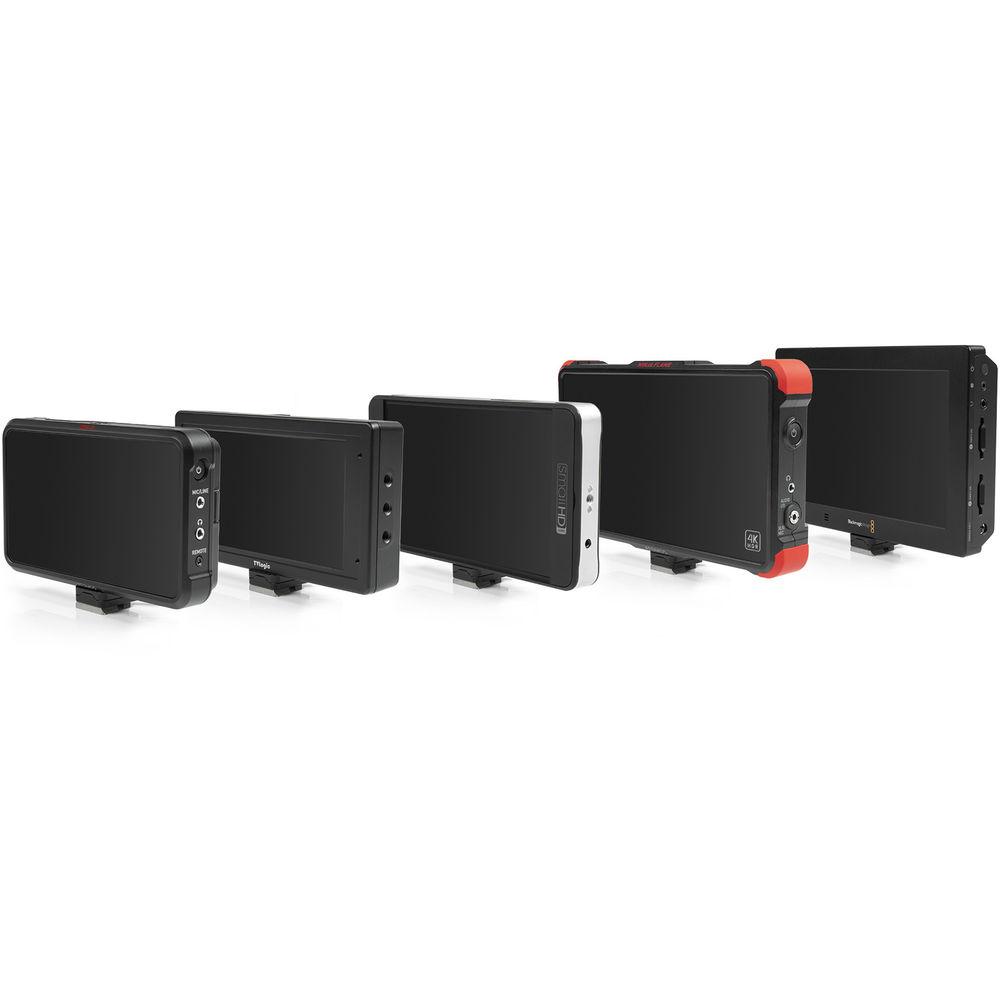

- The Mini Delta Monitor Plate is designed with a Mini Delta Plate and a sliding bracket with two anti-rotating support pins to keep your monitor from spinning
- The Mini Delta Plate (28mm x 24mm) can be installed in both directions on the bracket, which allows you to position the anti-rotating support pins in the front or back of the monitor
- The two anti-rotating support pins are 11mm in height, 8mm in diameter and are designed to keep your monitor in place

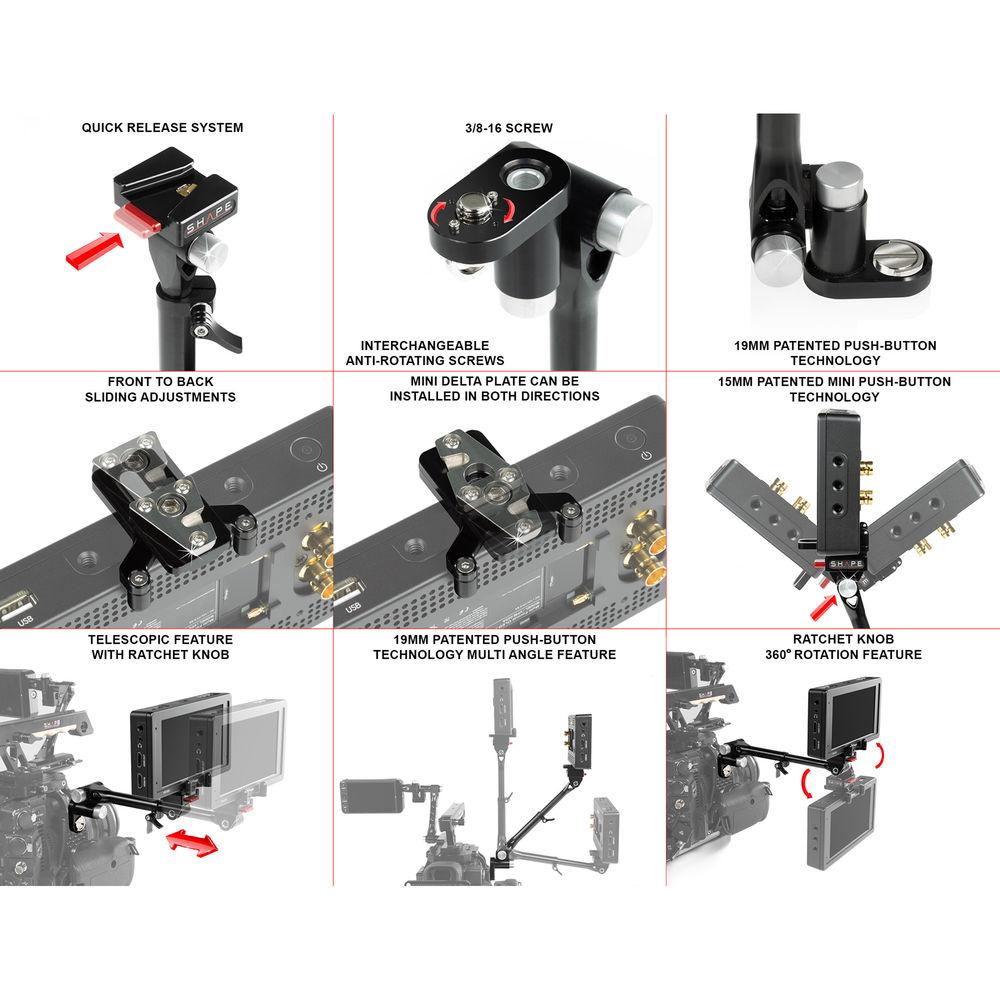

- Precise and fast adjustments of the articulating arm is possible via the SHAPE patented Push-Button Technology

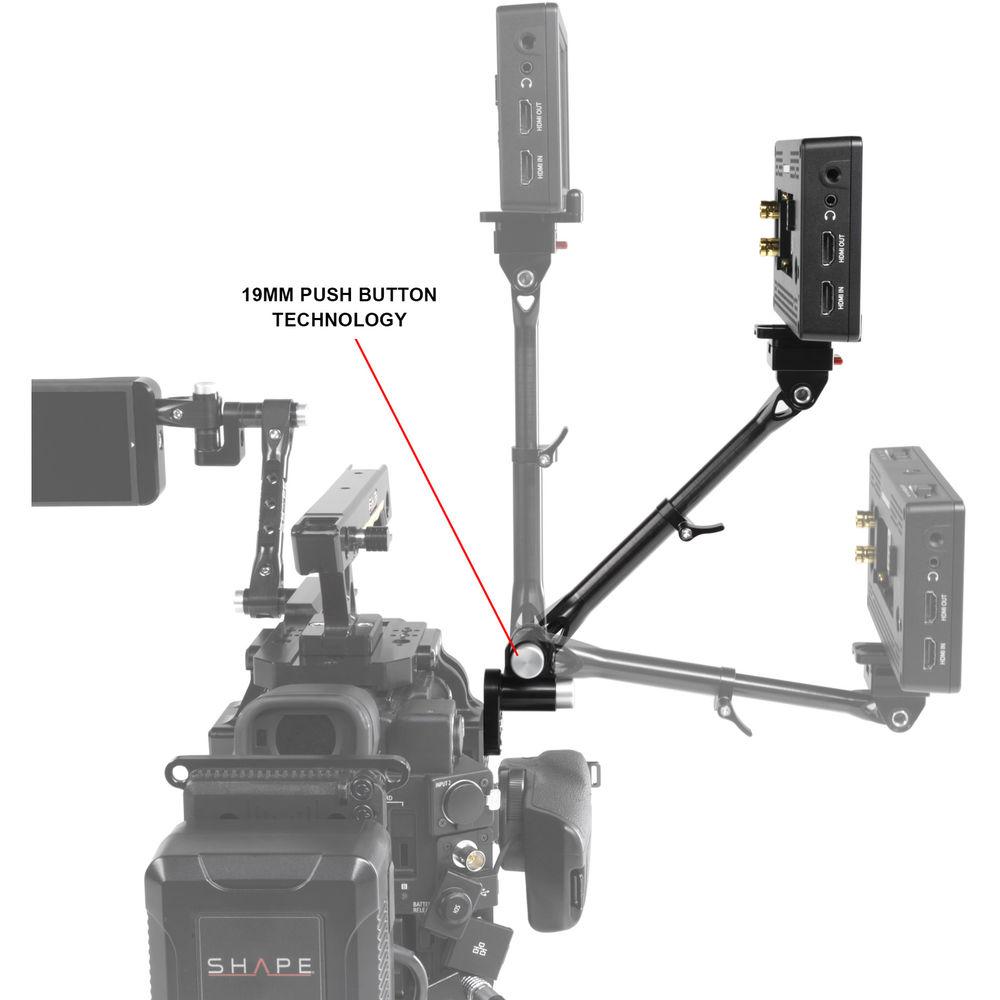

- Two 19mm push buttons at the bottom section of the arm and one 15mm mini push button at the top section provide you flexibility in positioning your accessory
UPC: 629266008867 In the Box SHAPE Telescopic Push-Button Magic Arm with Mini Quick Release Mini Delta Mounting Plate 2 x Anti-Rotating Pin 3/8"-16 D-Ring Tie-Down Screw Limited Lifetime Warranty Table of Contents
|
