User Manual for SHAPE Wireless Director's Kit Click to enlarge the picture
Contents of the user manual for the SHAPE Wireless Director's Kit
- Product category: Director's Monitor Brackets SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Director's Monitor Brackets
|
User manual for the SHAPE Wireless Director's Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|

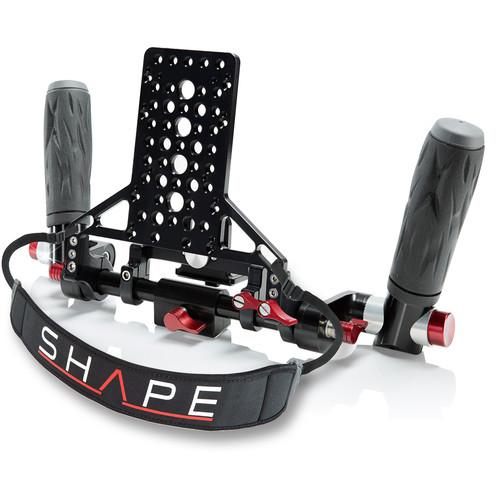

Product description The Wireless Director's Kit from SHAPE is based on a universal bracket system that will secure the position of your monitor with a 1/4"-20 captive screw. The monitor support allows the possibility to install a Paralinx or Teradek wireless data receiver and a Gold Mount or V-Mount battery plate. It can also be installed on a gobo stand to keep your setup in the same place. The monitor position can be rotated forward and backward using a red ratchet key (sold separately) to secure the position.
Behind the monitor, there is an included universal cheeseplate with 1/4"-20 and 3/8”-16 threaded holes. The cheeseplate can move forward and backward with the red knob screw to provide an easy access to the battery rear connectors of the monitor. This bundle includes a pair of handle with push button technology allowing 360° rotation. With this technology, the handles can be easily placed up or down with a simple press of your thumb, and you can position it backward so the monitor can easily hold on a flat surface. The handles are attached to the monitor support with SHAPE standard ARRI rosette place on each side of the monitor support. It includes a strap made of rubber and nylon to provide you a better support and to increase the security for the monitor. - Compatibility
- SmallHD, Atomos, TV Logic, ikan, Sony, Ikegami, Asto Design, Liliput, Sound Devices, and other monitors with threaded holes underneath
- General
- Based on a tension system to move the monitor bracket and the cheeseplate forward or backward to adjust the monitor position
- Red ratchet key to secure the lock of the bracket and the cheeseplate position
- Includes a spigot with rubber plug
- Two 1/4"-20 captive screws to secure the monitor position on the angle bracket
- Threaded holes pattern for Gold Mount and V-Mount battery plate (sold separately)
- Includes a universal cheeseplate with 1/4"-20 and 3/8"-16 threaded holes
- Cheeseplate can move forward and backward using a red knob for easy access to the batteries rear connectors of the monitor
- Paralinx or Teradek wireless data receiver can be installed on the cheesplate behind the monitor
- Can be combined with a Gold Mount or V-Mount battery plate
- Includes a pair of handles with push button technology and SHAPE red ratchet key for fast and easy adjustment
- Handles are attached with SHAPE standard ARRI rosette on each side on the monitor support and can be placed up and down with 360° rotation
- Handles can be positioned backward for a desktop configuration and can easily hold on to a flat surface
- Includes a strap with rubber padding for good grip and better support
- Universal bracket for monitors between 7 and 9"
UPC: 629266005286 In the Box SHAPE Wireless Director's Kit Cheeseplate with 1/4"-20 & 3/8"-16 Threaded Holes Cheeseplate with Handle 2 x Handle Strap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Wireless Director's Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE ICON2 Specs | Materials | Cheesplate: Anodized Aluminum
Handles: CNC Aluminum and rubber
Kit: CNC Aluminum | | Accessory Mounting Threads | 1/4"-20 and 3/8"-16 threaded holes | | Dimensions | Cheeseplate with Threaded Holes: 3.1 x 7.5 x 2" (8 x 19 x 5.1 cm)
Cheeseplate with Handle: 7 x 8 x 4" (18 x 20 x 10.2 cm)
Handles: 3.2 x 8 x 2" (8.1 x 20 x 5.1 cm)
Kit: 8 x 15 x 2.5" (20 x 38 x 6.4 cm) | | Weight | Cheeseplate with Threaded Holes: 0.70 lb (0.32 kg)
Cheeseplate with Handle: 1.05 lb (0.47 kg)
Handles: 0.65 lb (0.3 kg)
Kit: 4.05 lb (1.8 kg) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 14.2 x 9.7 x 3.7" |
