Product description - SHAPE ICON TECHNICAL VIDEO

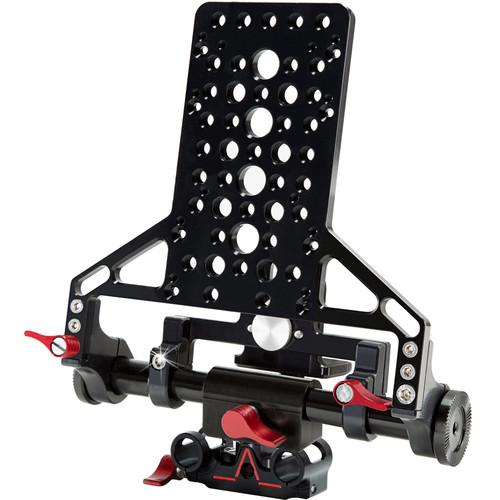

The Wireless On-Camera Kit from SHAPE is based on a universal bracket system that will secure the position of your monitor with a 1/4"-20 captive screw. The monitor support allows the possibility to install a Paralinx or Teradek wireless data receiver and a Gold mount or V-mount battery plate. The monitor position can be rotated forward and backward using a red knob screw to secure the position.
Behind the monitor, there is a universal cheese plate with 1/4"-20 and 3/8”-16 threaded holes. The cheese plate can move forward and backward with the red knob screw to provide an easy access to the battery and rear connectors of the monitor. The monitor is to be mounted on 15mm rods or to use on a gobo or C-stand. It can be rotated along the axis pin on the ICONBLOC. The rods are secure with a red ratchet key, for fast and easy adjustment. - Compatibility
- Small HD, Atomos, TV Logic, ikan, Sony, Ikegami, Astro Design, Liliput, Sound Devices, and other monitors with threaded holes underneath
- General
- Based on a tension system to move the monitor bracket and the cheese plate forward or backward to adjust the monitor position
- Red ratchet key to secure the lock of the bracket and the cheese plate position
- Two 1/4"-20 captive screws to secure the monitor position on the angle bracket
- Threaded holes pattern for Gold mount and V-mount battery plate (sold separately)
- Includes a universal cheese plate with 1/4"-20 and 3/8"-16 threaded holes
- Cheese plate can move forward and backward using a red knob for easy access to the batteries rear connectors of the monitor
- Paralinx or Teradek wireless data receiver can be installed on the cheese plate behind the monitor
- Includes the ICON 15mm Rod Bloc Spigot 750 standard to install on rods
- Monitor can be rotated along the pin axis of the 15mm Rod Bloc
- Universal bracket for monitors between 7 and 9"
In the Box SHAPE Wireless On-Camera Kit Cheese plate with 1/4"-20 & 3/8"-16 Threaded Holes Cheese plate with Handle Standard 15mm LW Red Ratchet Key 15mm Rod Bloc with Red Ratchet Key and Spigot bcexrauqzrervwbdzxdtzvzfvzxqub Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE Wireless On-Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE ICON3 Specs | Materials | Cheese plate: Anodized aluminum
Standard Red Ratchet Key: CNC Aluminum and 15mm LW
Kit: CNC aluminum | | Accessory Mounting Threads | 1/4"-20 and 3/8"-16 threaded holes | | Dimensions | Cheese plate with Threaded Holes: 3.1 x 7.5 x 2" (8 x 19 x 5.1 cm)
Cheese plate with Handle: 7 x 8 x 4" (18 x 20 x 10.2 cm)
Standard Red Ratchet Key: 4 x 2.4 x 3" (10.5 x 6.1 x 8 cm)
Kit: 10 x 7 x 2.5" (25.4 x 18 x 6.3 cm) | | Weight | Cheese plate with Threaded Holes: 0.70 lb (0.32 kg)
Cheese plate with Handle: 1.05 lb (0.47 kg)
Standard Red Ratchet Key: 0.35 lb (0.15 kg)
Kit: 2.65 lb (1.20 kg) |
