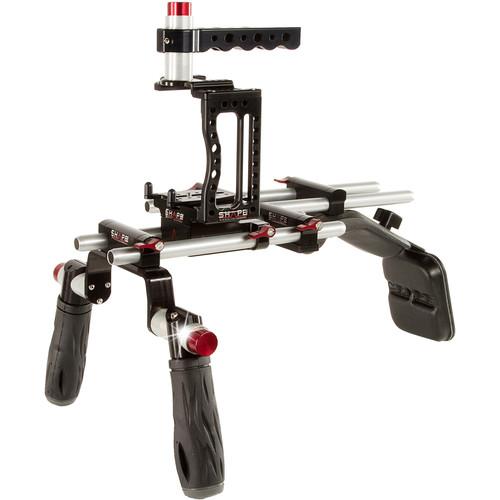

Product description The XC10 Camera Cage with Shoulder Mount Kit from SHAPE features the XC10 Camera Cage, HAND5 Quick Handle with Rod Bloc, SHPAD3 Mini Composite Shoulder Pad, PAD1 Back Pad, and a pair each 10” and 12" 15mm rods. This kit is designed for using the Canon XC10 camera on the shoulder.
The cage allows access to all the controls and ports on the camera. It also includes a black knob to secure and protect the HDMI cable. It features 1/4"-20 and 3/8"-16 threaded holes for attaching accessories, and the included top handle also has threaded holes. With push button technology, this cage allows for fast and easy adjustment and 360° rotation with one push of the button. The top of the cage also allows access to the camera's hot shoe. Built using CNC Machined aluminum, this cage is strong and durable; and features a quick release plate balanced for the optical center of the camera. The quick release plate allows the camera to be easily removed from the baseplate and cage.
The HAND5 Quick Handle with Rod Bloc features two independent handles that can rotate 360°. The push button technology allows the handle to rotate on the push of the button. You can achieve precise positioning by sliding the Quick Handle along the included 10" and 12" 15mm rods, securing the handles by tightening the red knob on the Rod Bloc.
The included SHPAD3 Mini Composite Shoulder Pad is suitable for switching rapidly from a camera rig to tripod without having to remove the shoulder pad. It is padded for comfort and can remain on the rig permanently. This kit also includes the PAD1 Back Pad that is powder-coated for a professional look, and is padded on one side to offer comfort and stability. The position of the back pad can be adjusted to suit your body type with a 2" vertical adjustment and 360° horizontal adjustment. - XC10CAGEROD XC10 Camera Cage with Two 10" 15mm Rods The XC10CAGEROD XC10 Camera Cage with Two 10” 15mm Rods from Shape is designed for the Canon XC10 camera. This cage allows access to all the controls and ports on the camera. It also includes a black knob to secure and protect the HDMI cable. The cage features 1/4"-20 and 3/8"-16 threaded holes for attaching accessories, and the included top handle also has threaded holes. With push button technology, this cage allows fast and easy adjustment with a 360° rotation with one push of the button. The top of the cage also allows access to the hot shoe on the camera.Built using CNC-machined aluminum, this cage is strong and durable. The cage also features a quick release plate, which allows removing the camera easily from the baseplate and the cage. The quick release plate is balanced for the optical center of the camera.
- Canon XC10 Cage with quick release baseplate
- Top handle with push-button technology
- Features 1/4"-20 and 3/8"-16 threaded holes for connecting accessories
- CNC-machined aluminum body for durability
- Includes two 10" 15mm rods
UPC: 629266004876 - Quick Handle + Rod Block The Shape Quick Handle + Rod Block is a professional video stabilization accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.
Quick Handle - Provides professional video stabilization with 2 handles
- Each handle offers 360° individual rotation
- Offers easy attachment/removal
Rod Block - Composed of anodized aluminum
- Offers composite camera support for all 15mm rods
- Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob
- With 2 screw-threaded holes, the Rod Block provides for attachment of components
UPC: 629266000793 - Mini Composite Shoulder Pad The SHAPE Mini Composite Shoulder Pad is a comfort-padded and comfort-shaped shoulder pad for the back of your camera rig. Outfitted with a 15mm-mount SHAPE Rod Block, the pad attaches right onto a pair of 15mm rods, slides into the best position on them, and tightens in place by a quality lever. It also has a black Screw Knob under which you can add a SHAPE Counter Weight or a SHAPE Back Pad, both optional and both back-supported accessories that work as extensions of the shoulder pad. The Screw Knob's screw is a 1/4"-20 screw. If you remove the Screw Knob, you'll have yourself a 1/4"-20 screw-hole to add various 1/4"-20-mount accessories into. UPC: 629266000830
- Back Pad The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
- Compatible Support Series
-
- Composite
- Cameleon
- Sumo
- Spider
UPC: 629266001202 - 15mm Aluminum Rods (Pair, 12") This pair of Shape 15mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various Shape and third-party accessories compatible with 15mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish. UPC: 629266001714 In the Box Bundle Items XC10CAGEROD XC10 Camera Cage with Two 10" 15mm Rods taavstaxwqssfexsftbzvqdftfestaredfdeye - 15mm Aluminum Rods (Pair, 10")
- Limited Lifetime Warranty
Quick Handle + Rod Block Mini Composite Shoulder Pad - Camera Screw Knob (1/4"-20)
Back Pad - Limited Lifetime Warranty
15mm Aluminum Rods (Pair, 12") - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE XC10 Camera Cage with Shoulder Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - XC10CAGEROD XC10 Camera Cage with Two 10" 15mm Rods
| For Use with | Canon XC10 camera | | Dimensions | Length: 10.0" (25.4 cm)
Height: 8.0" (20.3 cm)
Width: 4.0" (10.2 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Box Dimensions (LxWxH) | 14.1 x 6.1 x 4.4" | - Quick Handle + Rod Block
| | | Box Dimensions (LxWxH) | 12.7 x 11.3 x 2.55" | - Mini Composite Shoulder Pad
| | | Box Dimensions (LxWxH) | 6.5 x 4.3 x 3.4" | - Back Pad
| Material of Construction | Anodized aluminum | | Adjustments | Up/Down: 2" (5 cm)
Right/Left: 360° | | Weight | 0.5 lbs (0.2 kg) | | | | Box Dimensions (LxWxH) | 8.3 x 4.8 x 4.5" | - 15mm Aluminum Rods (Pair, 12")
| Diameter | 15 mm | | Length | 12 inches (30.5 cm) | | Material | Aluminum with a clear finish applied over it | | | | Box Dimensions (LxWxH) | 12.4 x 3.2 x 1.1" |
